Description

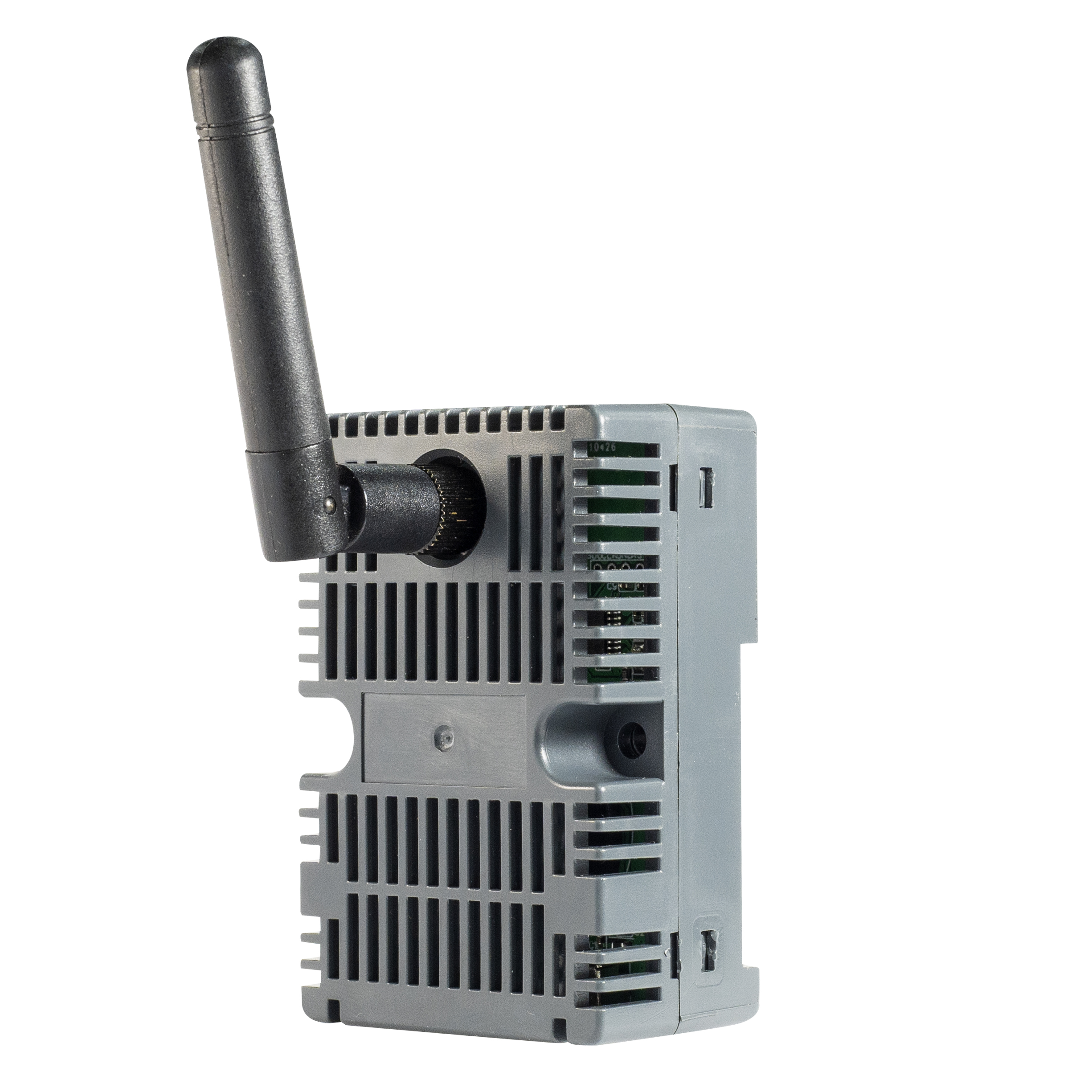

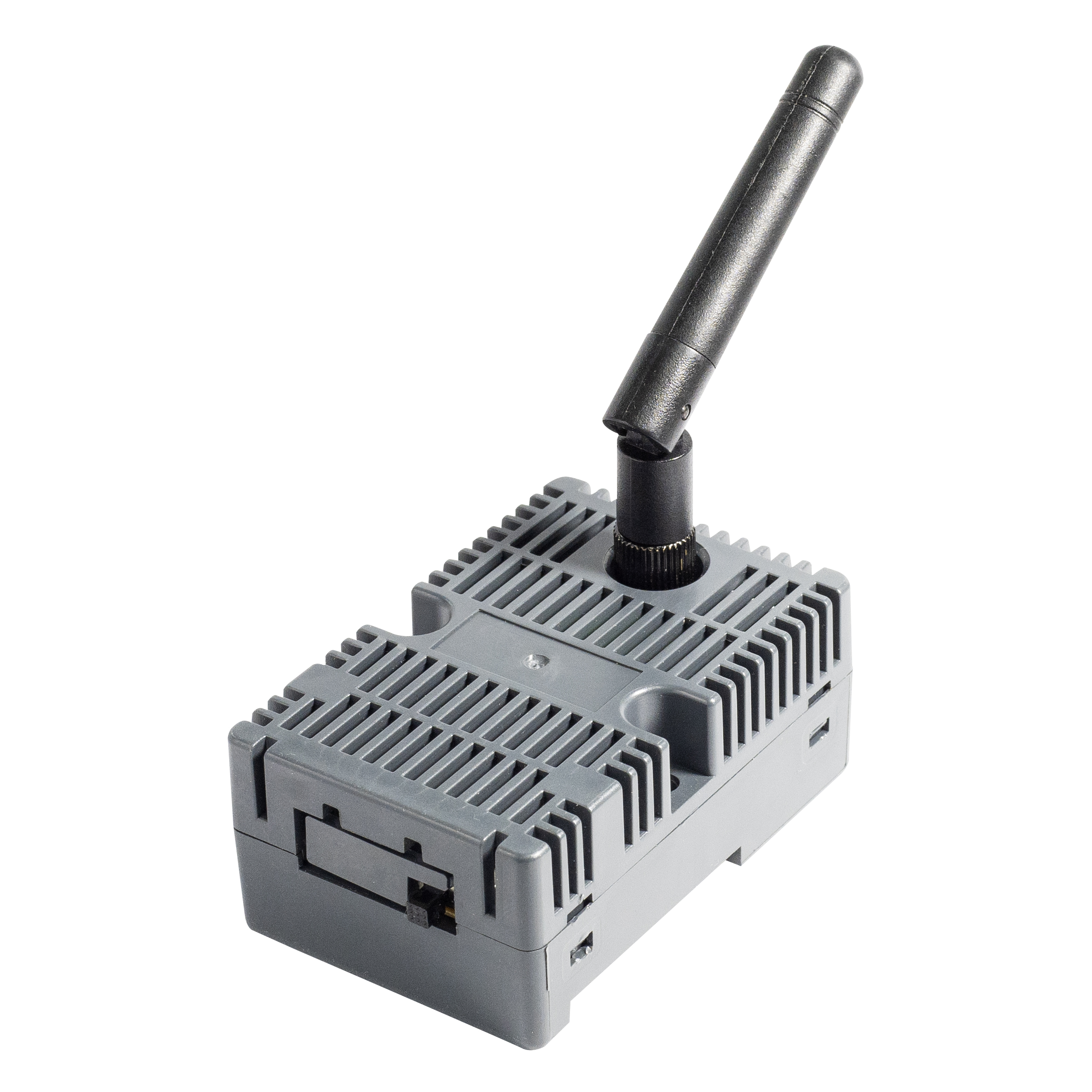

AHE100 temperature and humidity sensor is mainly used to detect the internal temperature and humidity of medium and high voltage switchgear, terminal box, ring network cabinet, box transformer and other equipment. The module adopts a special shell with good ventilation effect and exquisite appearance, which can effectively protect internal components and improve service life.

Function



AHE100: Temp&Humidity Wireless Sensor

Range of Temp Measurement: -30℃~+85℃

Range of Humidity Measurement: 0-100%RH

GFSK Wireless Communication

Power Supply: By battery

Temp Accuracy:±1℃

Humidity Accuracy: ±3%

Transmission frequency: 433.925Mhz

Sampling cycle:25S

Communication distance: 500m in open area

Operation life:＞5 years

Application:circuit breaker contact,busbar,cable connection and other places with big current



AHE100 temperature and humidity sensor is installed by guide rail (DIN35mm). It is necessary to

turn on the battery switch before use.

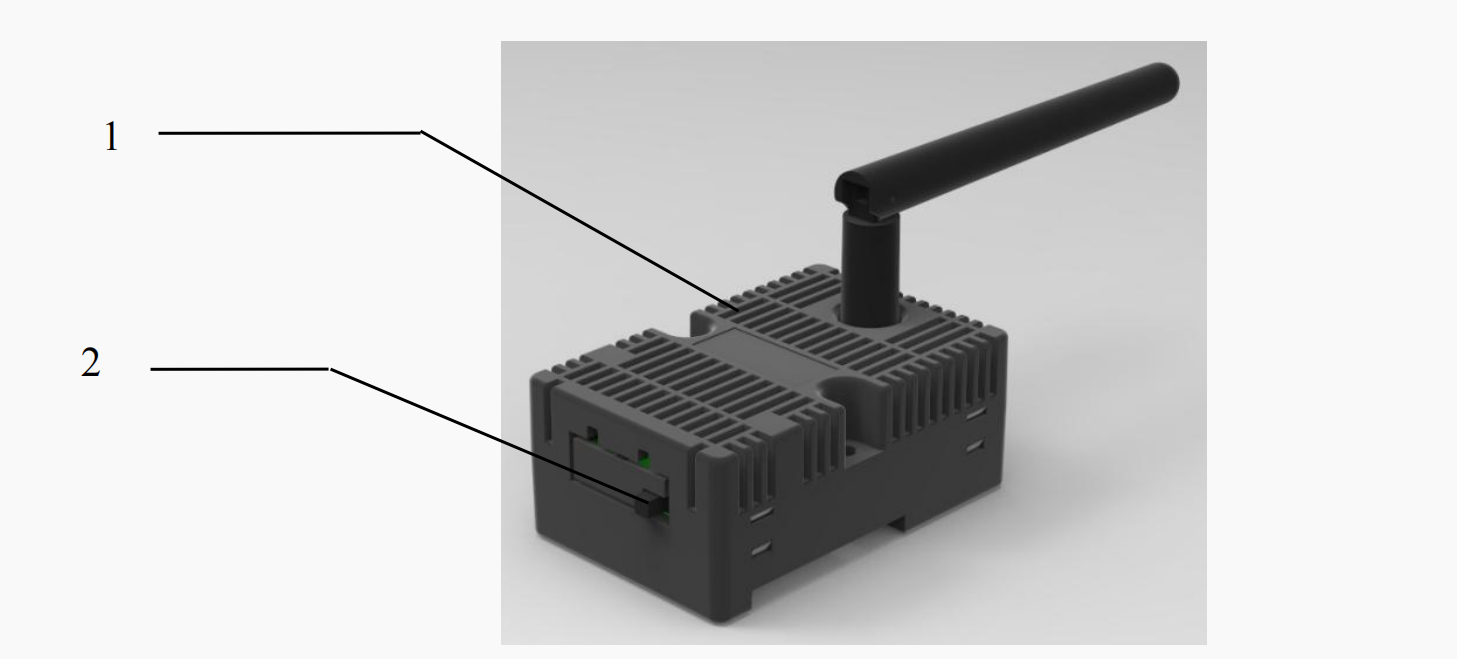

1 —— Wireless temperature and humidity sensor body

2 —— Power switch

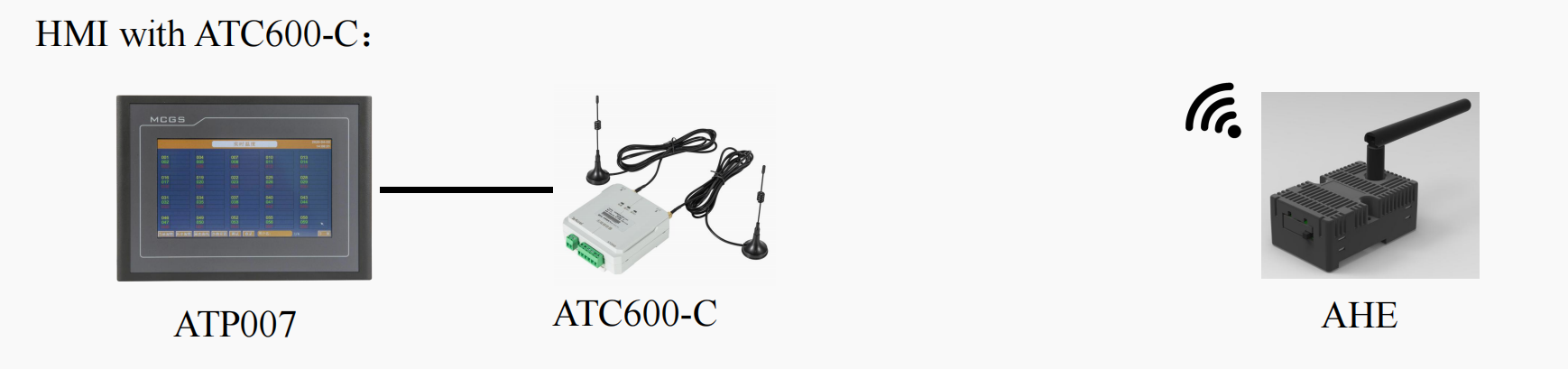

Note: The HMI is connected with an ATC600-C through RS485 interface to realize centralized temperature and humidity display, and one ATC600-C can receive 240 temperature and humidity sensors.

•
