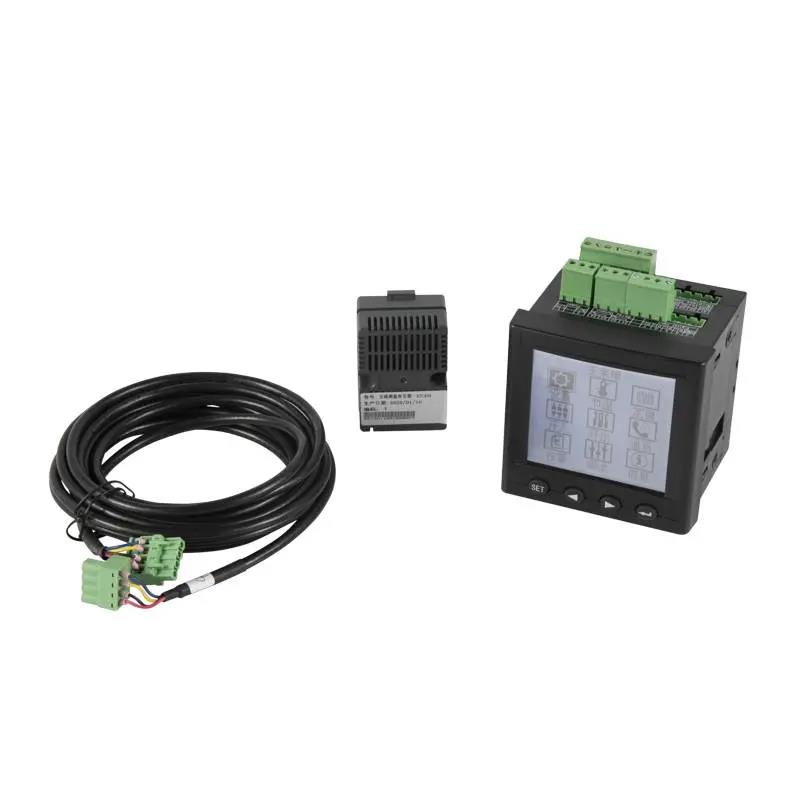

Acrel ARTM-Pn Local Temperature Data Display Device

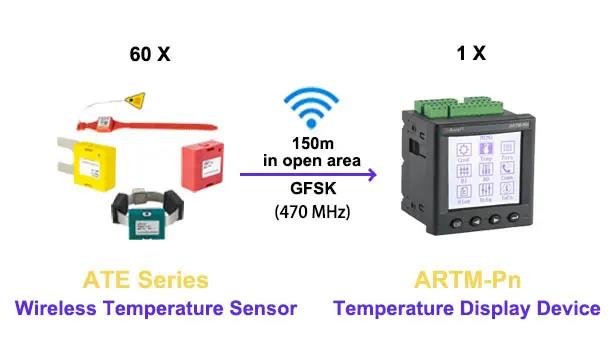

Receive&Display Temperature Data: From up to 60 ATE Temperature Sensors
Communication Methods: GFSK (with ATE Temperature Sensor)
Communication Distance: 150m in open Area & 15m in Building
Extra RS485 Communication: MODBUS-RTU

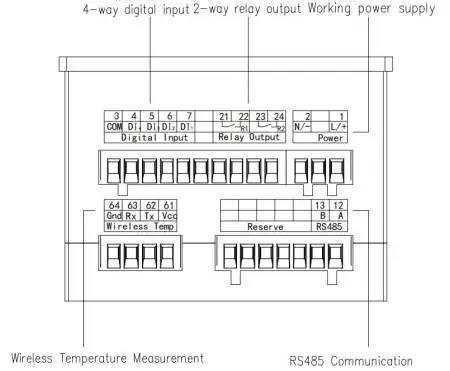

DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs
Dimension: 96*82*96mm (L*W*H)
Installation: Panel Mounted (Cut-out Dimension--92*92mm)

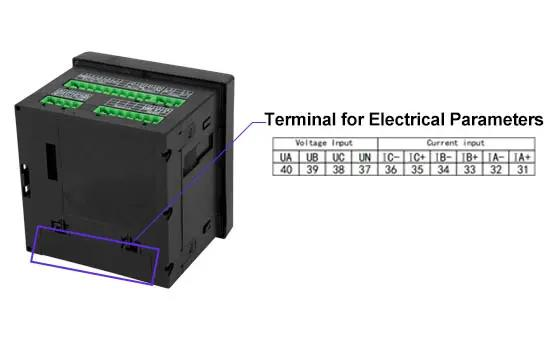

Electric Parameter Measurement: U,I,P,Q,F,kWh,kVarh (Optional)
● Display Data of up to 60 ATE Series Temperature Sensors
● Paired with ATC450 built-in Transceiver

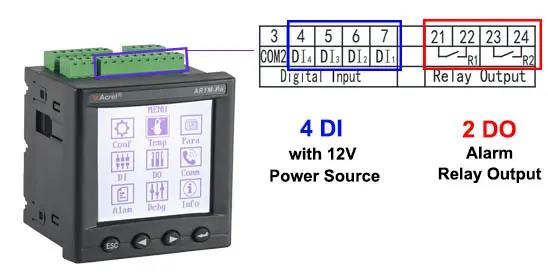

● 2 DO (high temperature alarm& over temperature alarm)
● 4 DI (built-in 12V power source)
●Temperature Monitoring Data Display

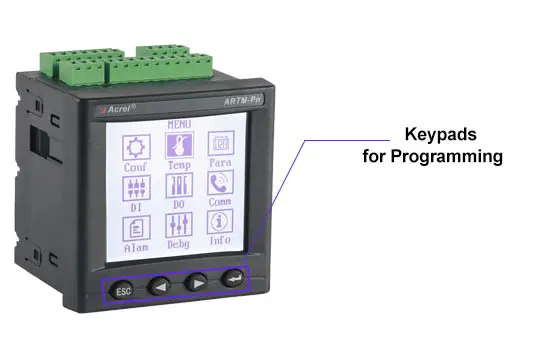

● Parameter Setting
● Temperature Sensors Binding Adjustment
● Alarm Display
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
● kWh (phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
|
Functions |
ARTM-PnARTM-Pn |
|
Sensor |
ATE100, ATE200, ATE300B, ATE300, ATE400 |
|
Temperature precision |
±2℃ |
|
Sensor number |
60 |
|
Auxiliary Power Supply |
ARTM-Pn |
|
Auxiliary power Supply |
AC 85~265V,DC 100~300V |
|
Power consumption |
8W |
|
Communication |
ARTM-Pn |
|
Protocol |
Modbus-RTU |
|
Rear port |
RS485 |
|
Baud rate(bps) |
2400,4800,9600,19200 |
|
Environmental requirement |
ARTM-Pn |
|
Operating temperature |
-10℃~55℃ |
|
Relative humidity |
≤95% |
|
Atmospheric pressure |
86kPa~106kPa |
|
Average work time without stoppage |
≥50000 hour |
-
