Acrel ATP Series Remote Temperature Data Display Touch Screen
Display Temperature Data: From up to 240 ATE Wireless Temperature Sensors
Communication: 1-channel Ethernet & 2-channel RS485 (MODBUS-RTU)
Touch Screen Size: 7 Inch & 10 Inch

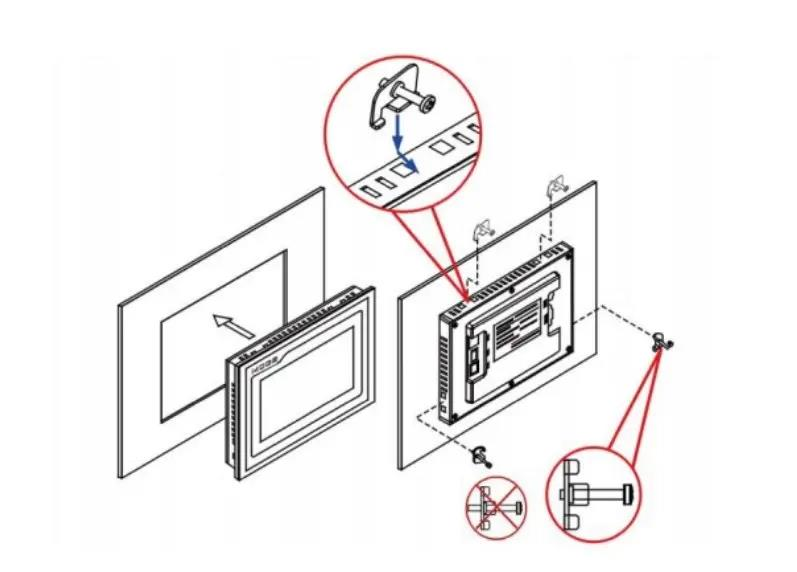

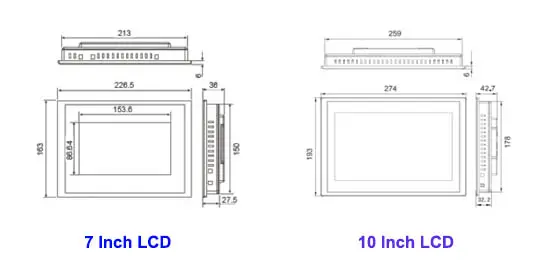

Cut-out Dimension: 215*152mm & 261*180mm
Power Supply: 24V DC (±10%)

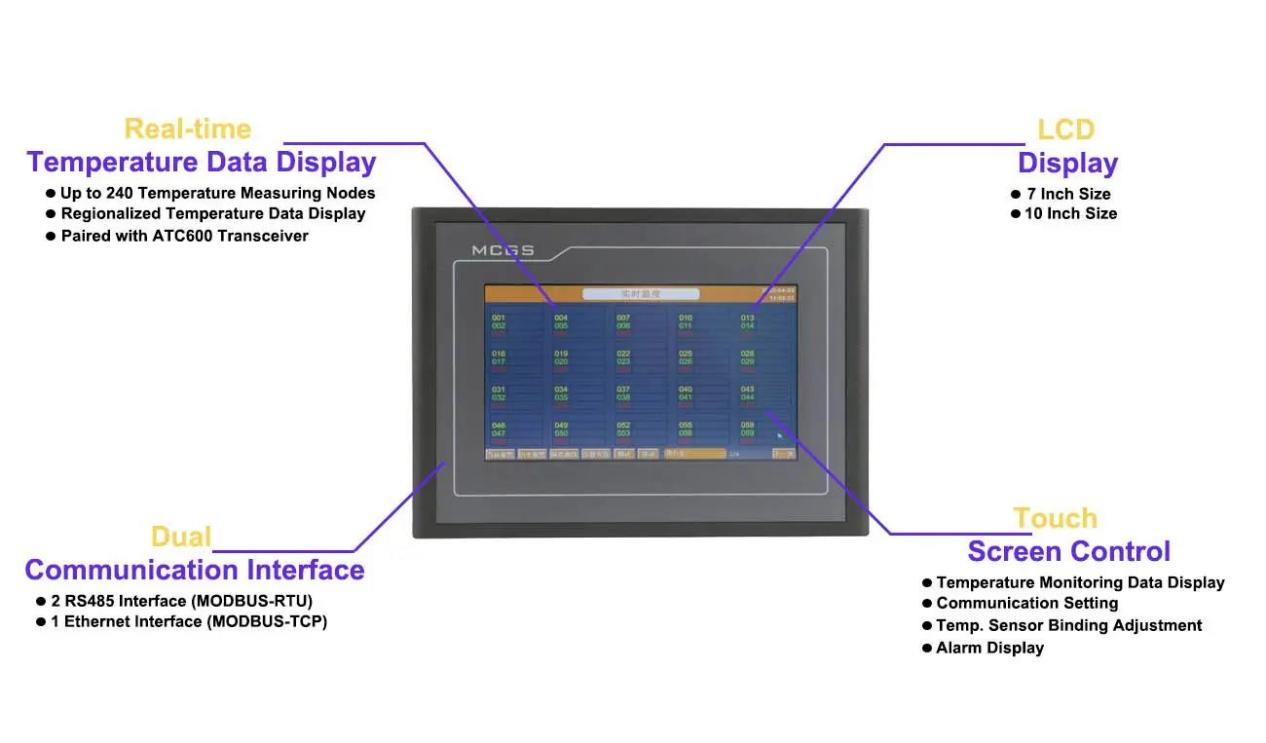

● Display Data of up to 240 Temperature Measuring Nodes
● Paired with ATC600 Transceiver

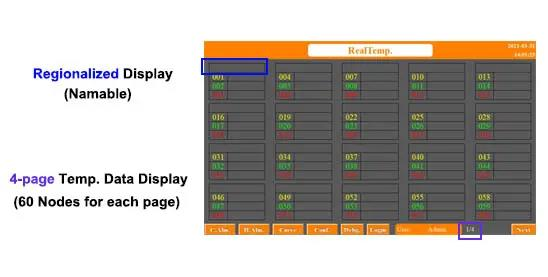

● Regionalized Temperature Data Display

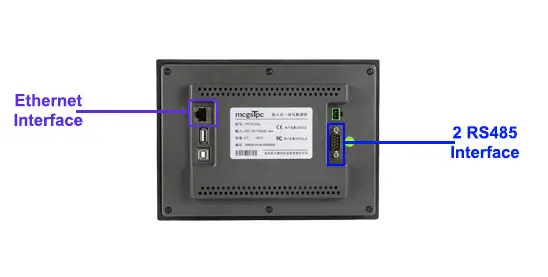

● 2 RS485 Interface (both upstream and downstream with MODBUS-RTU)
● 1 Ethernet Interface (upstream with MODBUS-TCP)
● 7 Inch
● 10 Inch

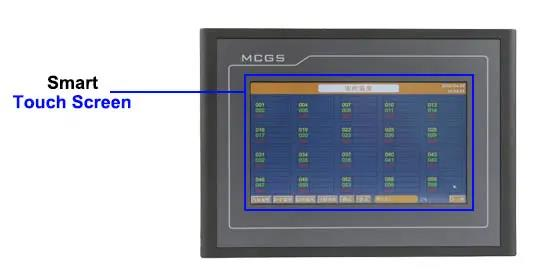

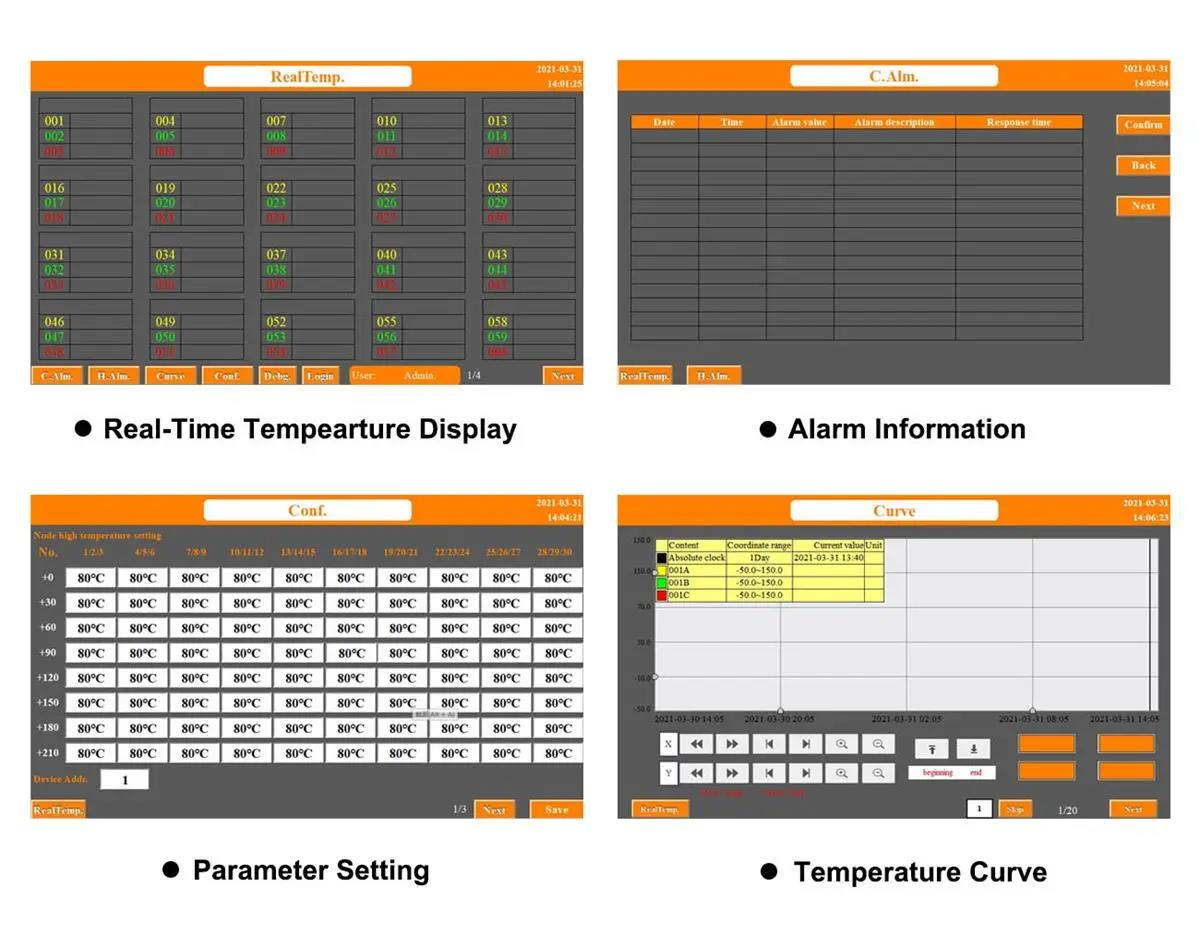

● Temperature Monitoring Data Display
● Parameter Setting
● Temperature Sensors Binding Adjustment
● Alarm Display
|
Items |
Features |
|
|
Type of touch screen |
ATP007,ATP010 |
|
|
Power source |
DC 24V（±10%），15W |
|
|
Points of temperature |
240 points |
|
|
Range of temperature |
-50℃~125℃ |
|
|
Precision |
±1℃ |
|
|
Battery life |
≥5 years |
|
|
Communication |
Interface |
RS485/Ethernet |
|
Protocol |
Modbus-RTU/ Modbus-TCP |
|
|
Environment |
Temperature |
-10℃~55℃ |
|
Humidity |
≤95% |
|
|
Altitude |
≤3000m |
|
-
ATP Manual
