Acrel ATE400 Tied Type Passive Wireless Temperature Sensor
Range of Measurement: -50℃~+125℃
Communication: GFSK Wireless Communication
Application: Switch-gear, Bus-bar, Bus duct, Electric contact, Cable joint, Rain main unit and etc
Installation: Alloy Sheet Fixed
Protection Level: IP68 (Optional)
Power Supply: CT Sensing Power
Standard&Certificate: CE
Description
Introduction
Acrel wireless temperature sensor device is suitable for high and low voltage cabinet under 35kv It is usually installed in cable connection,circuit breaker contact,knife switch,middle connection of high voltage cable,dry transformer,low voltage heavy current and other devices.
It can transmit data to the transceiver ATC600 by wireless transmission 470Mhz or 433Mhz
Product color
Function
Fixed by Alloy Sheets
Range of Measuring:-50℃~+125℃
GFSK Wireless Communication
Power Supply:CT sensing
Starting Current:>5A
Sampling cycle:25S
Transmission cycle:15s
Communication distance: 150m in open area
Operation life:＞5 years
Application:circuit breaker contact,busbar,cable connection and other places with big current
The mini type called ATE400 is suitable for using at moving contacts, bus bars, cables and joints
between bus bar and cable.
Mini type passive temperature sensor structure introduction:

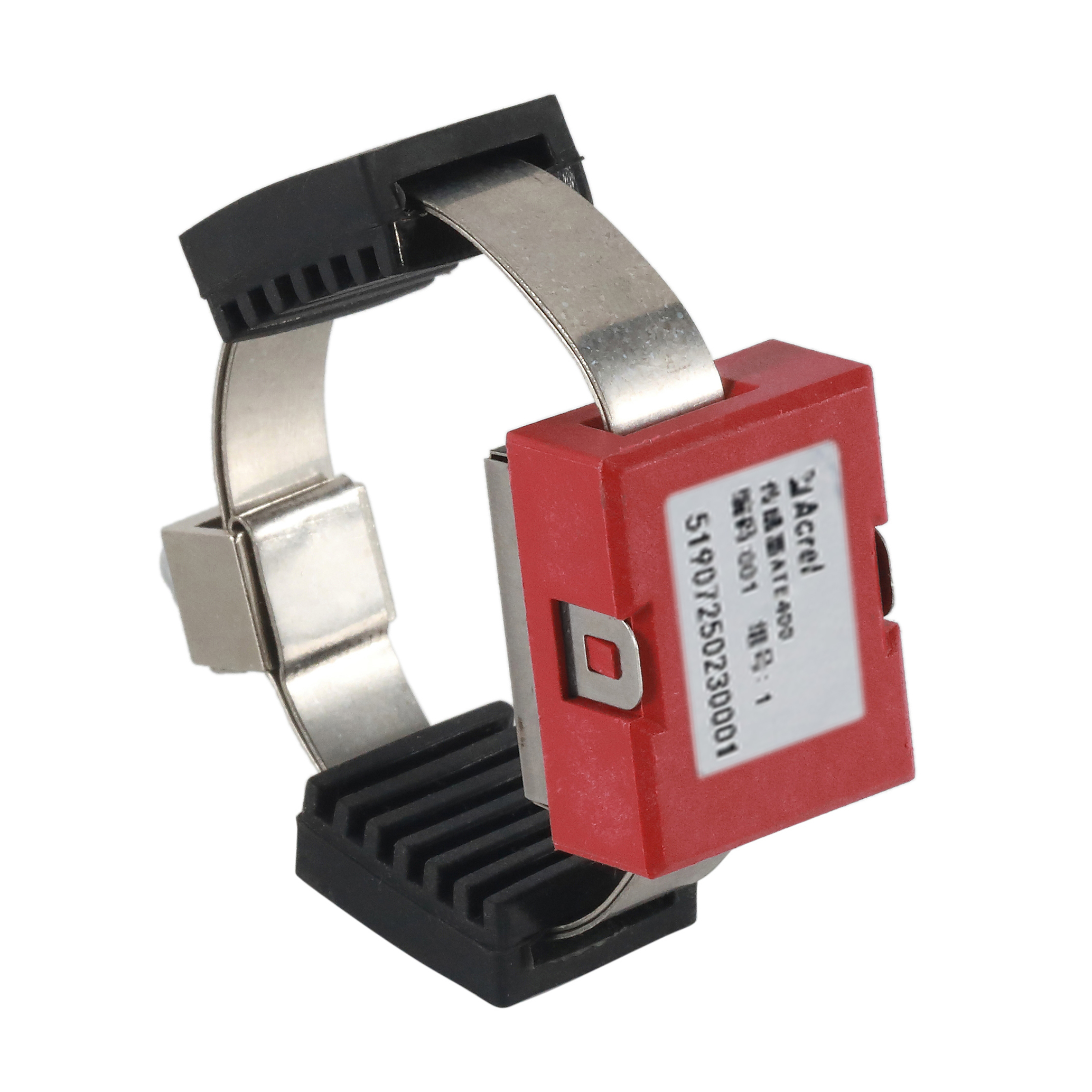

1 —— The core of wireless temperature sensor ATE400
2 —— alloy bottom, touched with temperature probe
3 —— metal hasp, for fixing alloy chip
4 —— alloy chip, for CT-powered
5 ——silicone gasket, used to support the alloy chip
6 ——alloy chip hole, used to install the alloy chip
|
Name |
Shape |
Parameter instruction |
Installation |
|
ATE100 |
|
62.4*32.4*16mm,φ13.5mm( length*width*high, aperture);-50℃~+125℃, |
Bolt fixing |
|
ATE100P |
|
62.4*32.4*16mm,φ13.5mm( length*width*high, aperture);-50℃~+125℃, |
Outdoor bolt fixing |
|
ATE100M |
|
32.4*32.4*16mm( length*width*high, aperture);-50℃~+125℃, |
Magnetic absorption fixation |
|
ATE200 |
|
35*35*17mm, L=330mm ( length*width*high, belt);-50℃~+125℃, |
Strap binding |
|
ATE200P |
|
35*35*17mm, L=330mm ( length*width*high, belt);-50℃~+125℃, |
Outdoor strap binding |
|
ATE400 |
|
25.82*20.42*12.8mm( length*width*high);-50℃~+125℃, |
Alloy sheet fixed and Powered |
|
Wireless temperature measurement |
Item |
Value |
|
Wireless frequency |
470MHz |
|
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s |
|
|
Transmission frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min |
|
|
Power source |
CT-powered, starting current>5A |
|
|
Installation |
Alloy chip fixing |
|
|
Range of temperature |
-50AC~125°C |
|
|
Precision |
ATE100, ATE100M, ATE200, ATE400: 士 TC |
|
|
Application |
Joints in high or low voltage switchgears |
|
|
Service life |
^5 years |
|
|
Environmental requirement |
Operating temperature |
-50"C~125"C |
|
Relative humidity |
W95% |
|
|
Atmospheric pressure |
86kPa~106kPa |
-
CE of ATE
-
ATE Manual
