Acrel ATE300M Multi Loop Wireless Temperature Sensor
Range of Measurement: -40℃~+140℃ (1-6 Channel)
Communication: GFSK Wireless Communication
Application: Switch-gear, Bus-bar, Bus duct, Electric contact, Cable joint, Rain main unit and etc
Installation: Rail type/Tie type
Power Supply: AC/DC85-265V
Standard&Certificate: CE
Description
Introduction

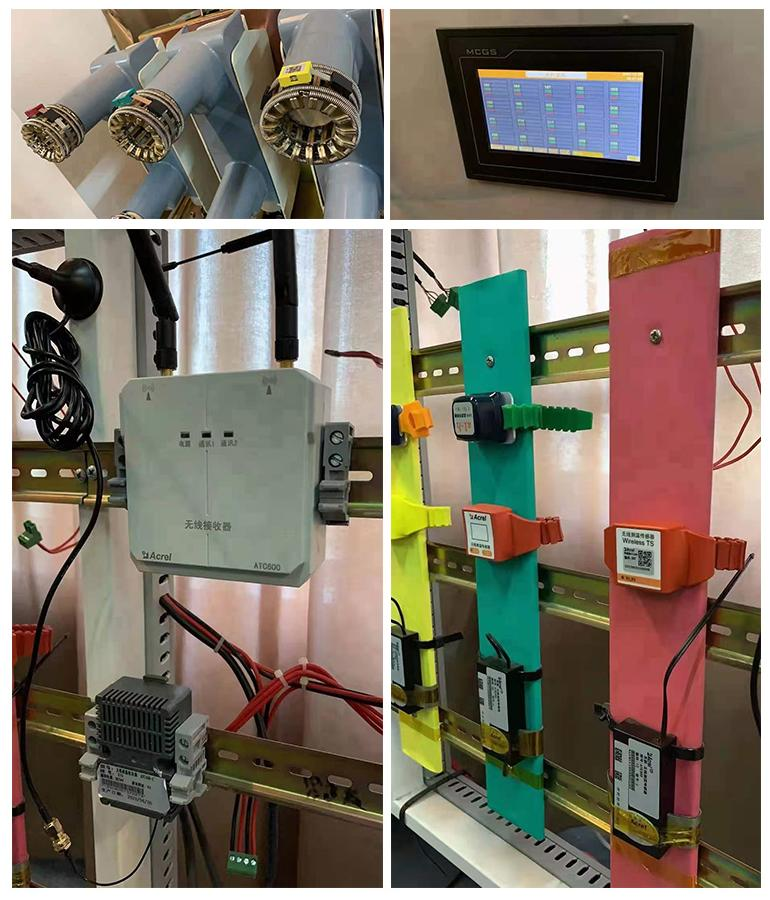

Acrel wireless temperature sensor device is suitable for high and low voltage cabinet under 35kv It is usually installed in cable connection,circuit breaker contact,knife switch,middle connection of high voltage cable,dry transformer,low voltage heavy current and other devices.
It can transmit data to the transceiver ATC600 by wireless transmission 470Mhz or 433Mhz
Function
Fixed by Rail type/Tie type
Range of Measuring:-40℃~+140℃
GFSK Wireless Communication
Power Supply: AC/DC85-265V
Starting Current:>5A
Sampling frequency: 1s-240s

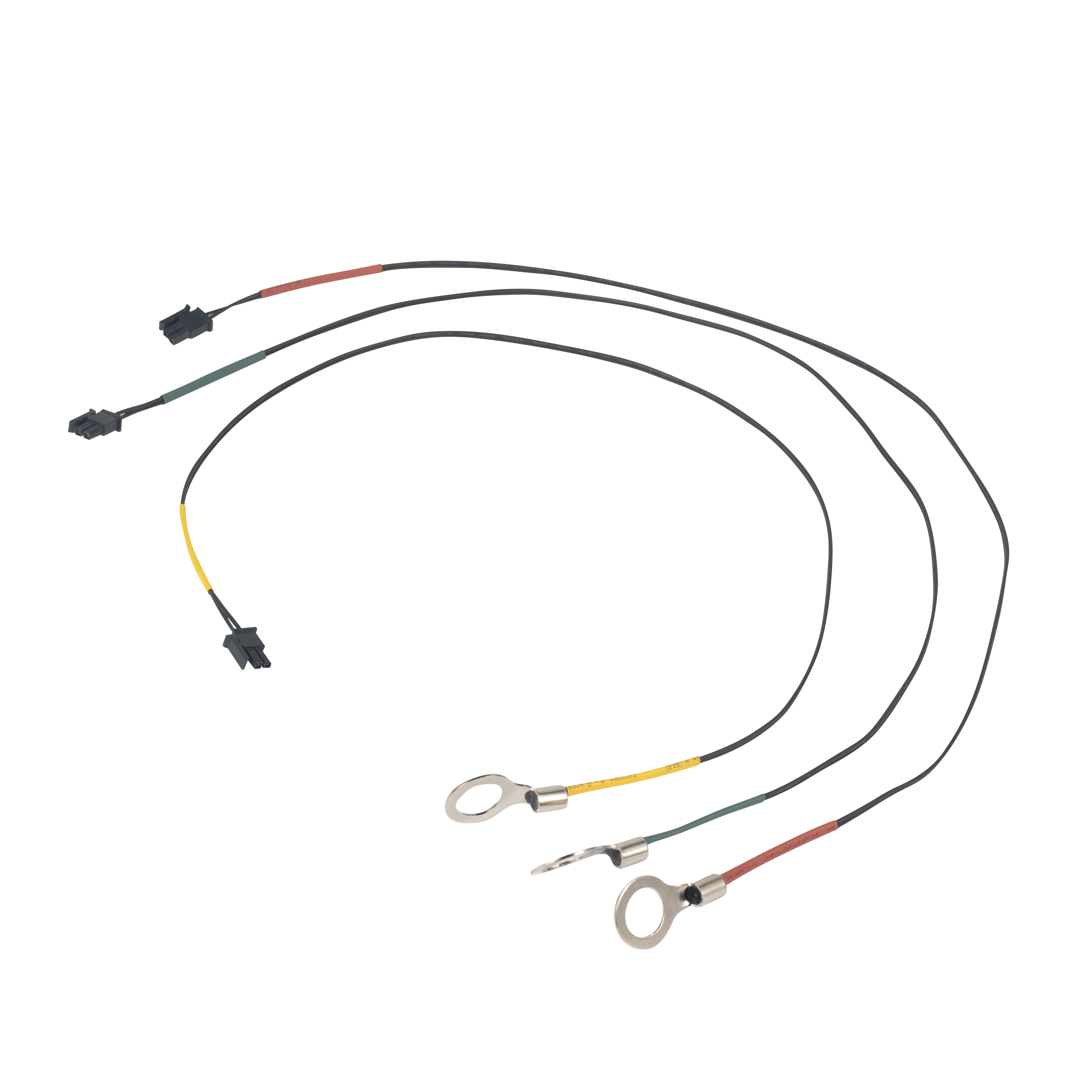

Sensor probe:1-6 channel optional
Communication distance: 1000m in open area
Operation life:＞5 years
Application:circuit breaker contact,busbar,cable connection and other places with big current
| Model | ATE300M |
| Wire frequency | 433MHz-510MHz |
| Transmission distance | 1000m (Open area) |
| Sampling frequency | 300ms/channel |
| Transmission frequency | 1s-240s |
| Power supply | AC/DC 85-265V |
| Sensor probe | 1-6 channel optional |
| Accuracy | ±1℃ |
| Installation | Rail type/Tie type |
| Temperature range | -40℃~+140℃ |
-
CE of ATE
-
ATE Manual
