Acrel ATC600 Wireless Temperature Data Transceiver
Receive Temperature Data: From up to 240 ATE Series Temperature Sensors
Communication Methods: GFSK (with Temperature Sensors)

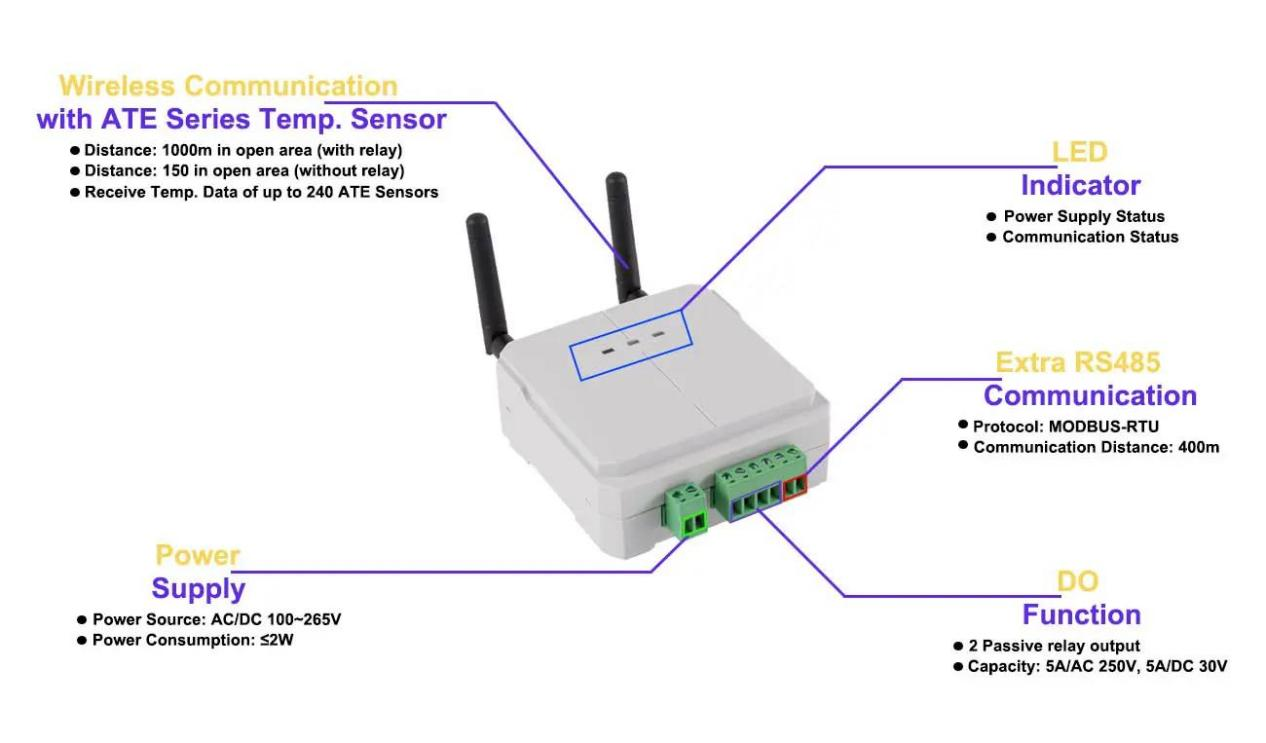

Communication Distance: 1000m in open Area & 100m in Building
Extra RS485 Communication: MODBUS-RTU

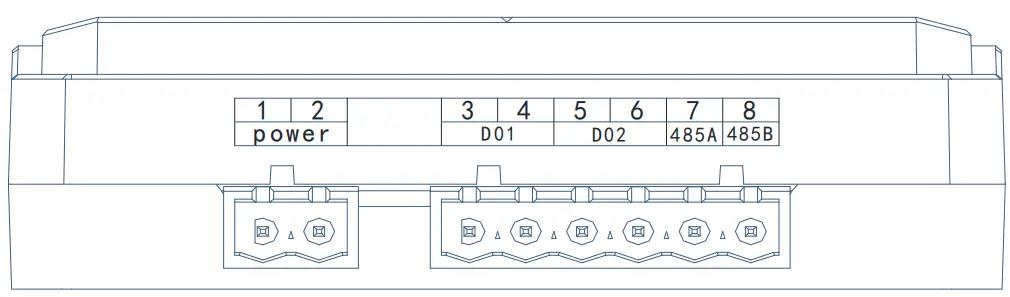

DO Function: 2 Relay Output
Dimension: 90*38*90mm (L*W*H)
Installation: 35mm DIN Rail
Power Supply: 85~265V AC/DC

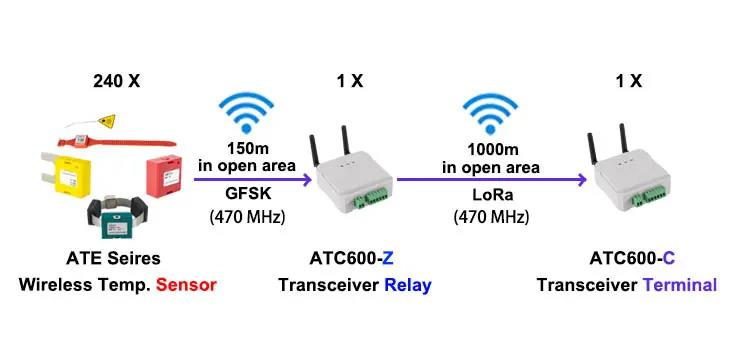

● Communication Distance: 1000m in open area (with ATC600-Z relay)

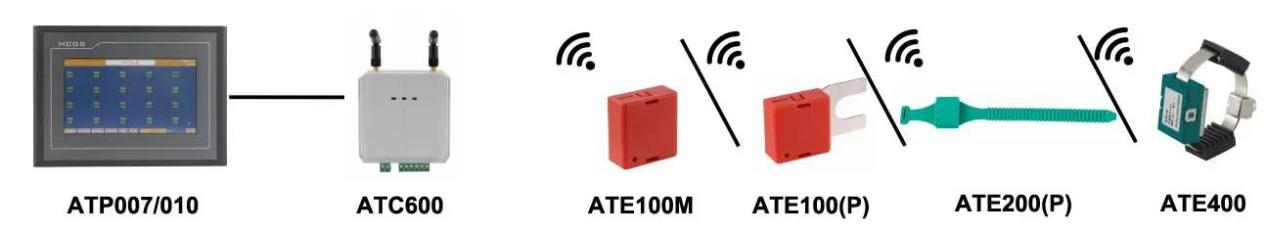

● Receive Temperature Measuring Data from: up to 240 ATE Series Temp. Sensors

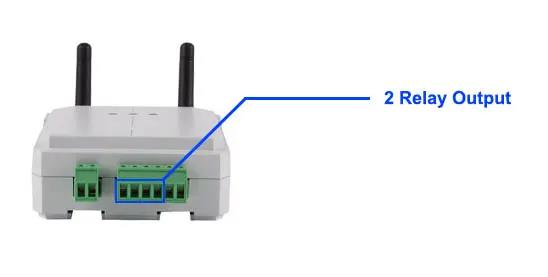

● 2 Passive Relay Output
● Capacity: 5A/AC 250V, 5A/DC 30V

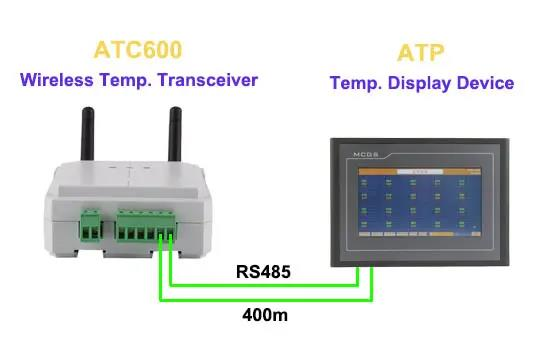

● Can be connected with ATP Temp. Display Device
● Protocol: MODBUS-RTU
● Communication Distance: 400m (in practical)

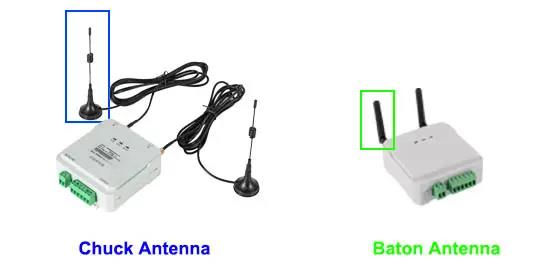

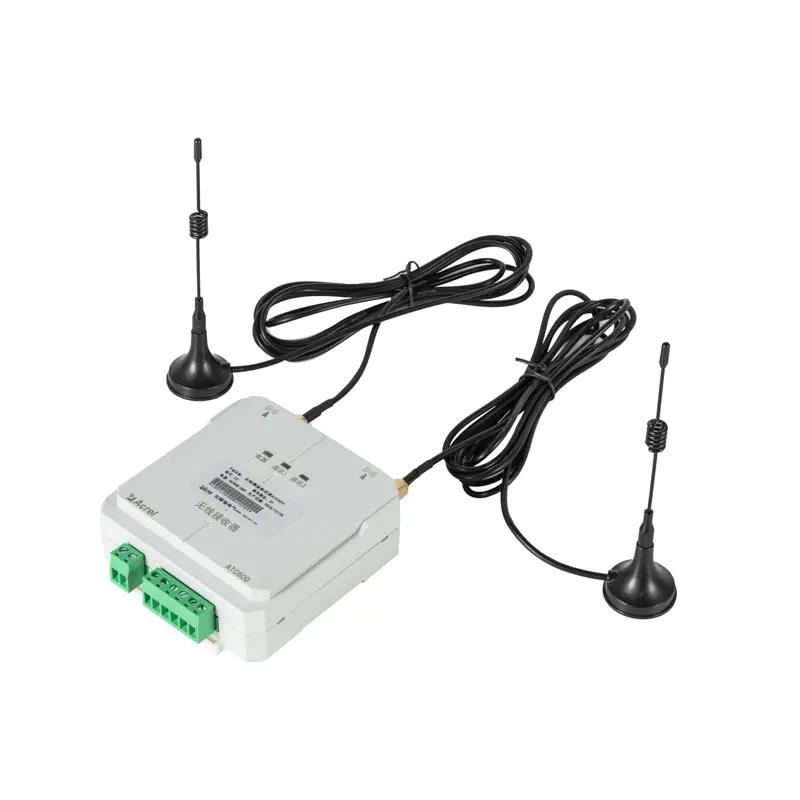

● Chuck Antenna
● Baton Antenna
|
Items |
Features |
|
|
Transceiver |
Power |
AC/DC100~265V |
|
Power consumption |
≤2W |
|
|
Points |
≤240 points |
|
|
Resolution |
0.1℃ |
|
|
Range of temperature |
-50℃~+125℃ |
|
|
Accuracy |
±1℃ |
|
|
Wireless frequency |
470M |
|
|
Distance |
Transceiver sensor 150 m( open), repeaters distance 1 km( open) |
|
|
Communication port |
RS485 |
|
|
Protocol |
MODBUS-RTU |
|
|
Baud(bps) |
2400、4800、9600、19200 |
|
|
Relay output |
2 passive exits ,5 A/AC250V,5A/DC30V capacity |
|
|
Working environment |
Temperature：-20 ℃～+55 ℃；Humidity≤95% |
|
-
ATC600 Manual
