Acrel ATE Series Wireless Temperature Measurement and Monitoring Sensor

Acrel ATE Series Wireless Temperature Measurement and Monitoring Sensor

Range of Measurement: -50℃~+125℃

Communication: GFSK Wireless Communication

Application: Switch-gear, Bus-bar, Bus duct, Electric contact, Cable joint, Rain main unit and etc

Installation: Bolted, Magnetic, Belt, Alloy Sheet Fixed

Protection Level: IP68 (Optional)

Power Supply: Battery or CT Sensing Power

Standard&Certificate: CE

008618702112136

sherry@acrel.cn

8618702112136

Acrel ATE Series Wireless Temperature Measurement and Monitoring Sensor

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Function

ATE Model Intro

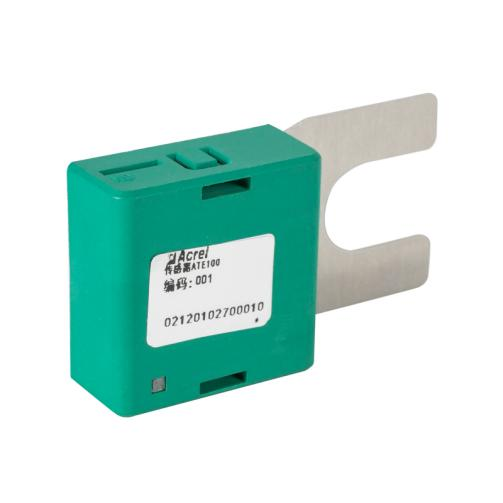

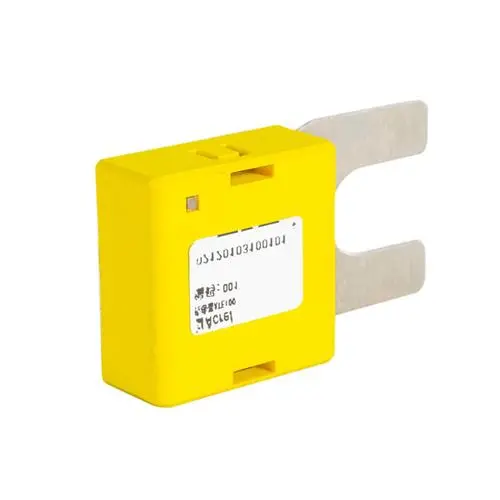

ATE100/ATE100P:Bolted Wireless Temp Sensor
Bolted Installation
Range of Measuring:-50℃~+125℃
GFSK Wireless Communication
Power Supply:Battery
IP68(ATE100P)

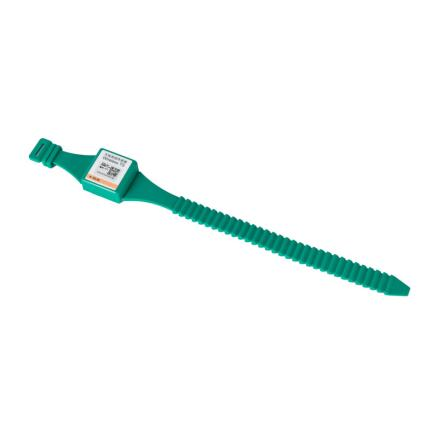

ATE200/ATE200P:Belt Wireless Temp Sensor
Belt Installation
Range of Measuring:-50℃~+125℃
GFSK Wireless Communication
Power Supply:Battery
IP68(ATE200P)

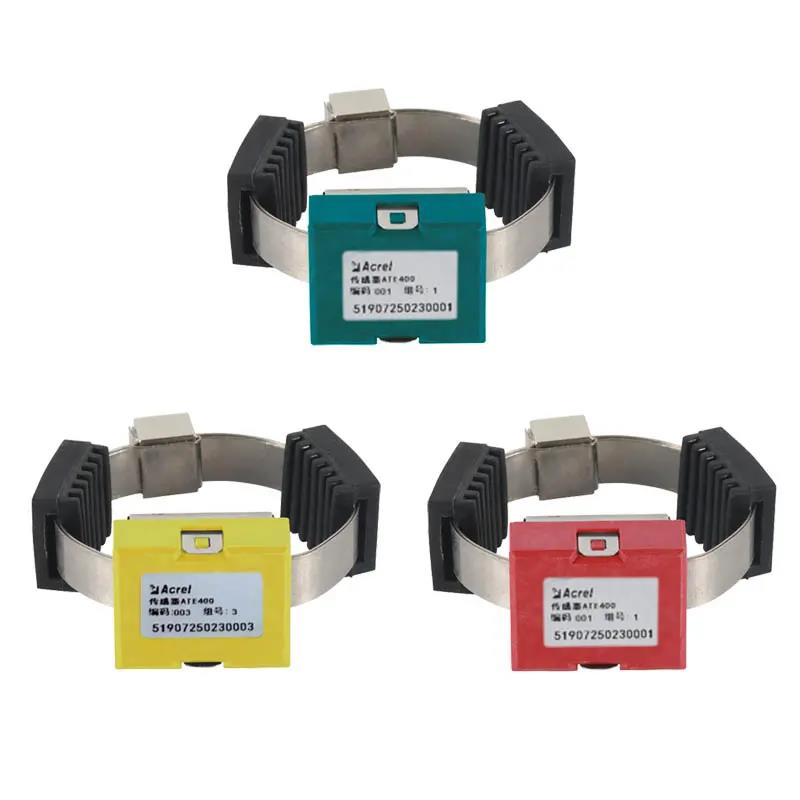

ATE400:Alloy Sheet Wireless Temp Sensor
Fixed by Alloy Sheets
Range of Measuring:-50℃~+125℃
GFSK Wireless Communication
Power Supply:CT sensing
Starting Current:>5A

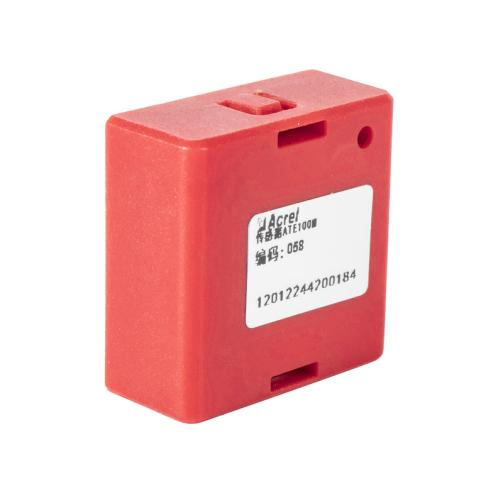

ATE100M:Magnetic Wireless Temp Sensor
Magnetic Installation
Range of Measuring:-50℃~+125℃
GFSK Wireless Communication
Power Supply:Battery

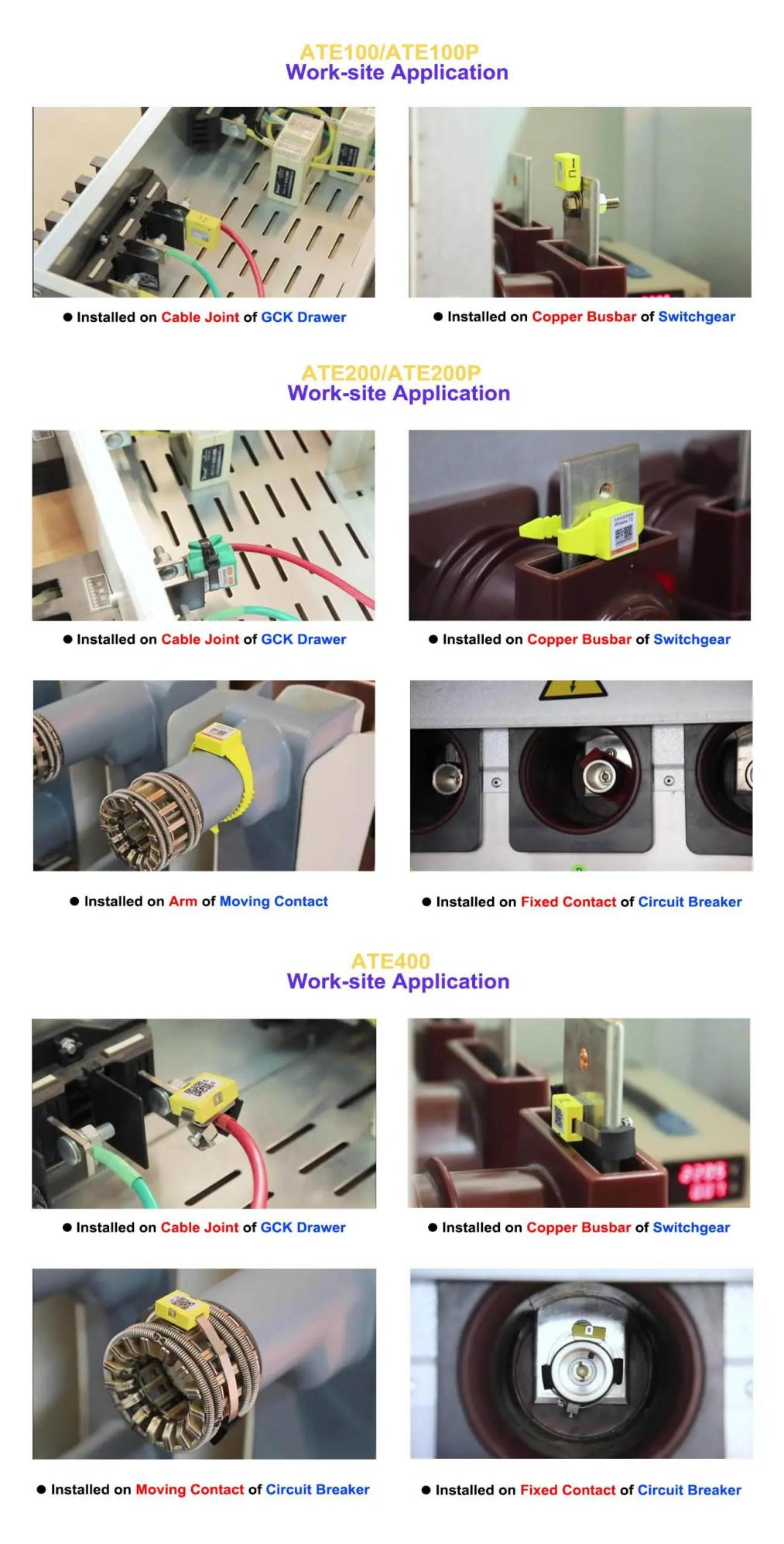

Practical Application

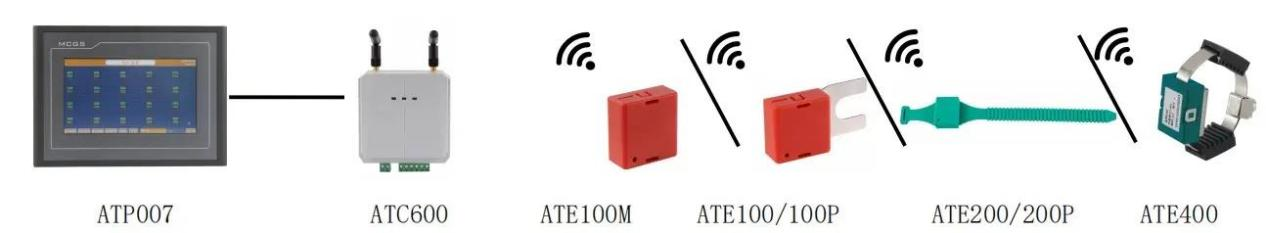

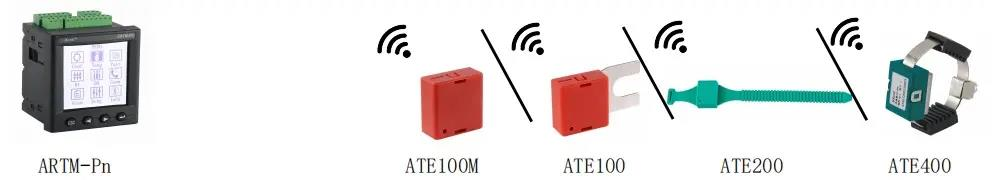

Typical Connection

Parameters

Name	Shape	Parameter instruction	Installation
ATE100		62.432.416mm,φ13.5mm( lengthwidthhigh, aperture);-50℃~+125℃, Accuracy class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Bolt fixing
ATE100P		62.432.416mm,φ13.5mm( lengthwidthhigh, aperture);-50℃~+125℃, Accuracy class ±0.5℃, battery powered, life ≥5 years ;470MHz, open distance 150m. IP68	Outdoor bolt fixing
ATE100M		32.432.416mm( lengthwidthhigh, aperture);-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Magnetic absorption fixation
ATE200		353517mm, L=330mm ( lengthwidthhigh, belt);-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Strap binding
ATE200P		353517mm, L=330mm ( lengthwidthhigh, belt);-50℃~+125℃, Accuracy Class ±0.5℃, battery powered, life ≥5 years ;470MHz, open distance 150m.IP68	Outdoor strap binding
ATE400		25.8220.4212.8mm( lengthwidthhigh);-50℃~+125℃, Accuracy class ±1℃, CT induction of electricity powered, starting current ≥5 A;470MHz, open distance 150 m.	Alloy sheet fixed and Powered

Wireless temperature measurement	Item	Value
	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s ATE400:15s
	Transmission frequency	ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min ATE400：15s
	Power source	CT-powered, starting current>5A
	Installation	Alloy chip fixing
	Range of temperature	-50AC~125°C
	Precision	ATE100, ATE100M, ATE200, ATE400: 士 TC ATE100P,ATE200P: 土0.5°C
	Application	Joints in high or low voltage switchgears
	Service life	^5 years
Environmental requirement	Operating temperature	-50"C~125"C
	Relative humidity	W95%
	Atmospheric pressure	86kPa~106kPa
