Acrel ATE200 Belt Wireless Temperature Sensor

Range of Measurement: -50℃~+125℃

Communication: GFSK Wireless Communication

Application: Switch-gear, Bus-bar, Bus duct, Electric contact, Cable joint, Rain main unit and etc

Installation: Belt

Protection Level: IP68 (Optional)

Power Supply: Battery

Standard&Certificate: CE

008618702112136

sherry@acrel.cn

8618702112136

Acrel ATE200 Belt Wireless Temperature Sensor

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Description

Introduction

Acrel wireless temperature sensor device is suitable for high and low voltage cabinet under 35kv It is usually installed in cable connection,circuit breaker contact,knife switch,middle connection of high voltage cable,dry transformer,low voltage heavy current and other devices.
It can transmit data to the transceiver ATC600 by wireless transmission 470Mhz or 433Mhz

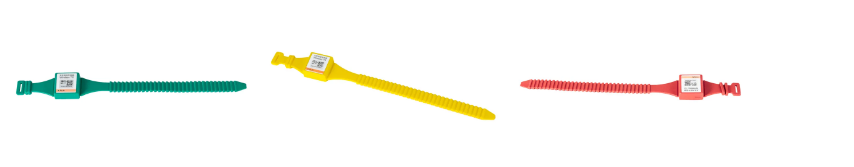

Product color

Function

ATE200/ATE200P:Belt Wireless Temp Sensor
Belt Installation
Range of Measuring:-50℃~+125℃
GFSK Wireless Communication
Power Supply:Battery
IP68(ATE200P)

Accuracy:±1℃

Transmission frequency: 434Mhz
Sampling cycle:25S
Transmission cycle:15s
Communication distance: 150m in open area
Operation life:＞5 years
Application:circuit breaker contact,busbar,cable connection and other places with big current

Size and Installation

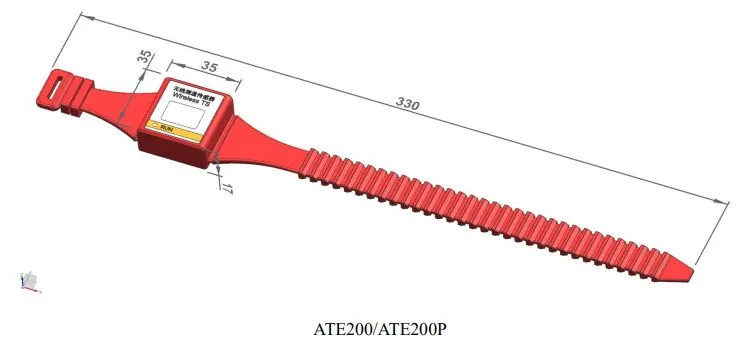

Product size

Installation method

The strap secured type called ATE200 is suitable for use at moving contacts and fixed contacts of breaker, cable joints and busbar.

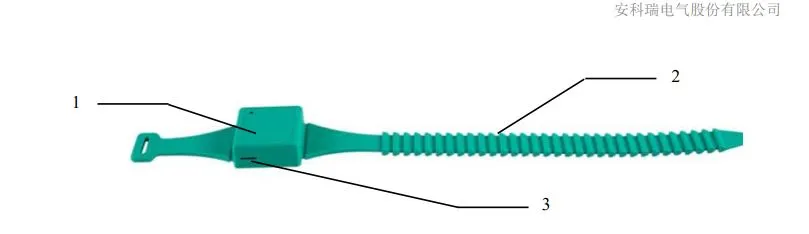

ATE200 structure introduction:

1——The core of wireless temperature sensor ATE200,temperature measuring probe is on the other side

2——strap and hasp

3——battery switch

Practical Application

Typical Connection

Technical parameter

Name	Shape	Parameter instruction	Installation
ATE100		62.432.416mm,φ13.5mm( lengthwidthhigh, aperture);-50℃~+125℃, Accuracy class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Bolt fixing
ATE100P		62.432.416mm,φ13.5mm( lengthwidthhigh, aperture);-50℃~+125℃, Accuracy class ±0.5℃, battery powered, life ≥5 years ;470MHz, open distance 150m. IP68	Outdoor bolt fixing
ATE100M		32.432.416mm( lengthwidthhigh, aperture);-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Magnetic absorption fixation
ATE200		353517mm, L=330mm ( lengthwidthhigh, belt);-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m.	Strap binding
ATE200P		353517mm, L=330mm ( lengthwidthhigh, belt);-50℃~+125℃, Accuracy Class ±0.5℃, battery powered, life ≥5 years ;470MHz, open distance 150m.IP68	Outdoor strap binding
ATE400		25.8220.4212.8mm( lengthwidthhigh);-50℃~+125℃, Accuracy class ±1℃, CT induction of electricity powered, starting current ≥5 A;470MHz, open distance 150 m.	Alloy sheet fixed and Powered

Wireless temperature measurement	Item	Value
	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s ATE400:15s
	Transmission frequency	ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min ATE400：15s
	Power source	CT-powered, starting current>5A
	Installation	Alloy chip fixing
	Range of temperature	-50AC~125°C
	Precision	ATE100, ATE100M, ATE200, ATE400: 士 TC ATE100P,ATE200P: 土0.5°C
	Application	Joints in high or low voltage switchgears
	Service life	^5 years
Environmental requirement	Operating temperature	-50"C~125"C
	Relative humidity	W95%
	Atmospheric pressure	86kPa~106kPa
