Acrel PZ96L-E4/C 3 Phase Energy Meter with Huawei Inverter

Input current: 5A Or 1A (By CTs access)
Rated voltage: 3*220/380V
Power supply: AC/DC85-265V
Work with Huawei inverter

008618702112136

sherry@acrel.cn

8618702112136

Acrel PZ96L-E4/C 3 Phase Energy Meter with Huawei Inverter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Description

ACREL PZ96L-E4 5A 380v CT input three 3 phase 4 wire multifunction power energy monitor meter is suitable for HUAWEI Inverter with zero export alarm functions.

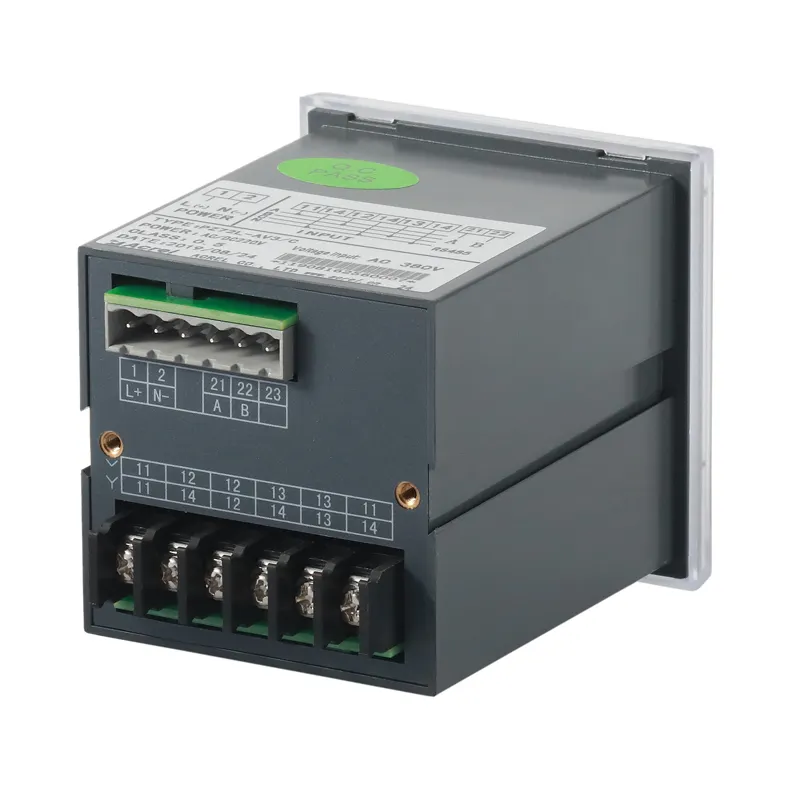

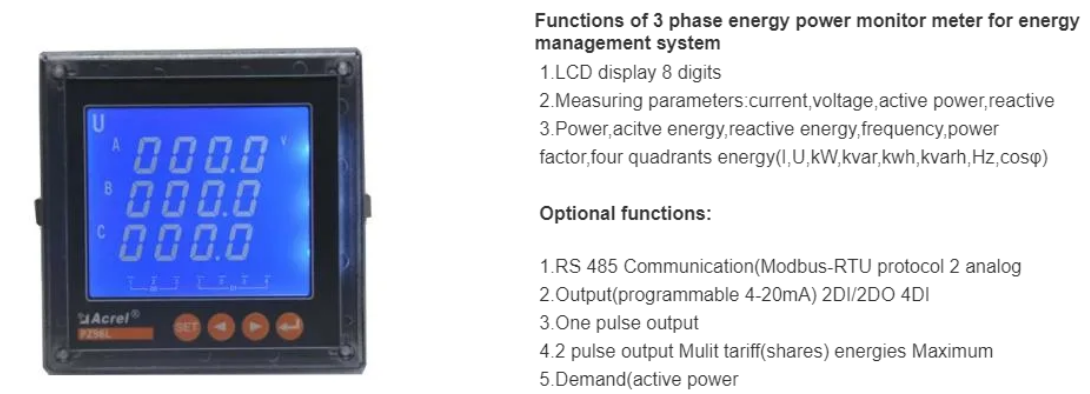

It can measure current, voltage, power, power factor,electrical energy and other electrical parameters.
It can set multiplying power by panel membrane switch.It is with RS485 interface,adopting Modbus RS485 communication;
It can also convert the power signal to standard dc analog signal output;
It can also add DI/DO,relay alarm output and other communications.

Installation Method

1)Opening in fixed distribution cabinet
2)Take out the instrument and take out the clip
3) The instrument is mounted from the Front to the mounting hole
4) Insert the instrument clasp to secure the instrument

Application

Technical Parameters

Technical parameters		Value
input	Connection	3-phase-3-wire, 3-phase-4-wire
	frequency	45-65HZ
	voltage	rating: AC 100V,400V
		overload: 1.2 fold rating {continuous) : 2 fold rating for 1 second
		power consumption : < 0.2VA
	current	Rating: AC IA,5A
		overload: 1.2 fold rating (continuous) ; 10fold rating for 1 second
		power consumption : < 0.2VA
output	electric energy	Output mode: 2 channel open-collector photo coupler pulse
		pulse constant: 10000 , 40000, 160000 imp/kWh
	communication	RS485port, Modbus -RTU protocol
	display	LED or LCD display, set multiplying power, alarm, switching indication at will;For 1 channel analog, display related programmable setting
function	Switching input	2channel or 4channel passive dry contact input mode
	Switching output	Output mode: 2 channel relay NO contact output
		contact capacity- 1A/30VDC 1A/250VAC
	Analog output	Output mode: 1, 2 or 4 channel Output, 0 - 20mA,4 - 20mA programmable
		load capacity≤500Ω
accuracy class		Frequency 0.05Hz, reactive electric energy 1 class, others 0.5class
power supply		DC100~350V;AV 85~265V; (In order to instrument wiring shall prevail )	power consumption<5VA
Security		Equipment withstand voltage= power supply, voltage input circuit 2kVAC; power supply,current circuit 2.5kV/1min(RMS) Insulation resistance- input, output end to housing >100MΩ

Environment	Temperature	work: -10°C~+55°C storage: -25°C ~+75°C
	Humidity	≤93%RH Non-condensing
	Altitude	≤2500m

Download

CE-EMC of PZ
RoHs of PZ
IEC of PZ

PZ96L-E4 Manual
