Acrel ACR10R-DxxT Bidirectional Single-phase Reflux Monitoring Energy Meter

● Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc

● Current Rating: up to 300A (paired with external CTs)

● Communication: RS485 (MODBUS-RTU)

● Application: Using in distributed Solar PV and Anti-reflux Inverter

● Display: LCD Dispaly

● Dimension: 54*74*85mm (L*W*H)

● Installation: 35mm DIN Rail

● Power Supply: 85~265V AC or 100~350V DC

● Standard&Certificate: CE

008618702112136

Richard@acrel-electric.com

8618701850814

Acrel ACR10R-DxxT Bidirectional Single-phase Reflux Monitoring Energy Meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Feature

Used for distributed Solar PV

●Reflux Monitoring

● Harmonic Monitoring

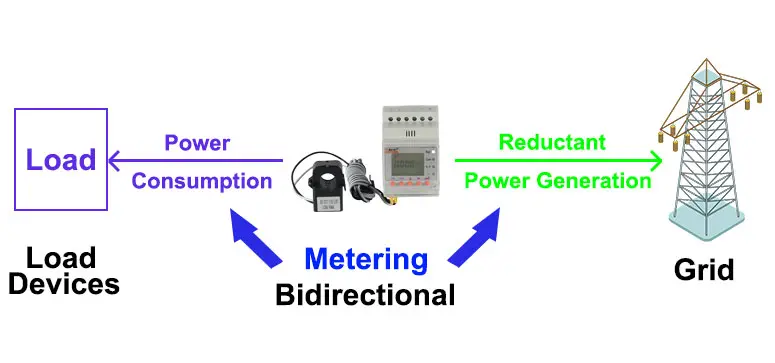

Bidirectional Metering

● Active Energy Metering

● Reactive Energy Metering

RS485 Communication

● MODBUS-RTU Protocol

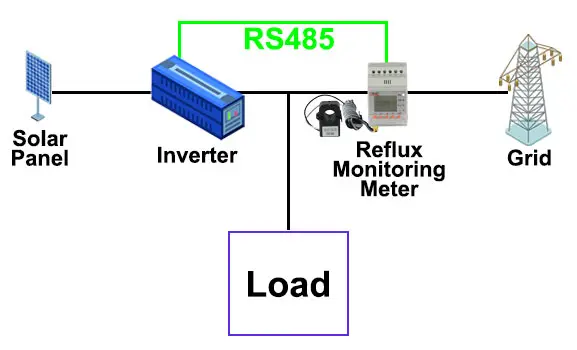

● Communicate with Inverter to realize anti-reflux Function

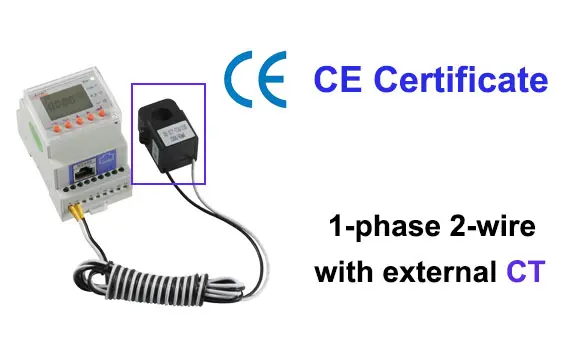

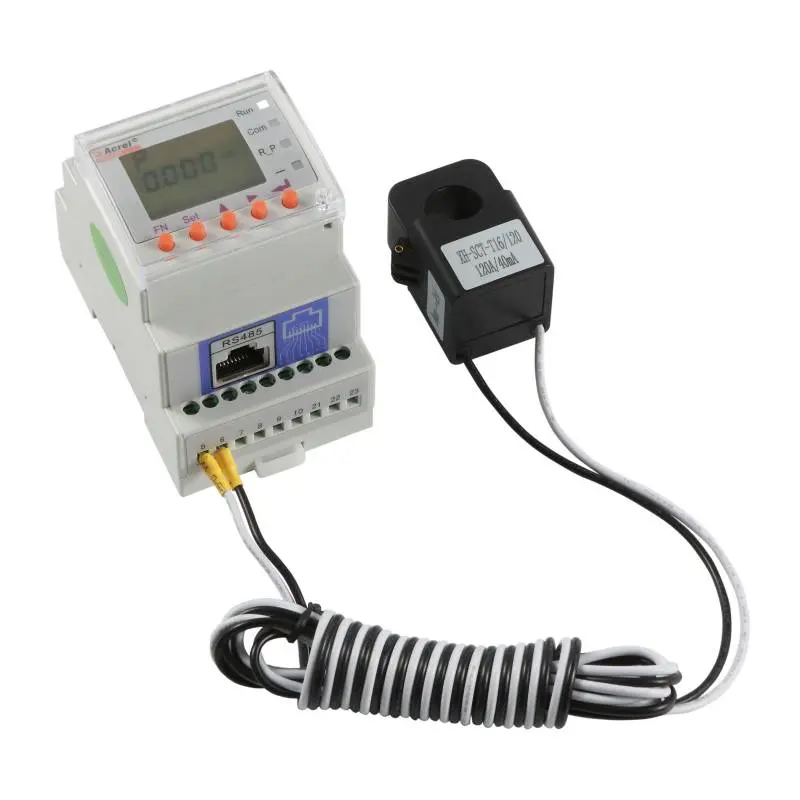

Single-phase Two-Wire Connection

● Paired with external split core CT

● Rated Voltage: AC 100V, 400V

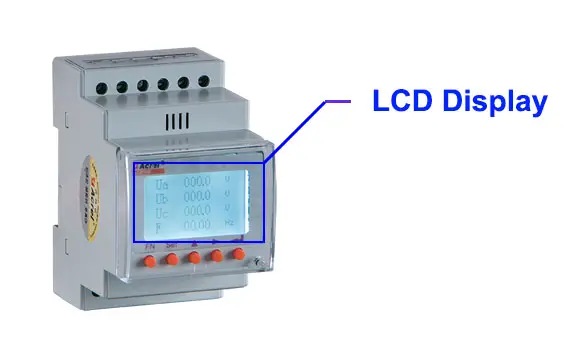

LCD Display

● Parameter Display

● Programming Interface

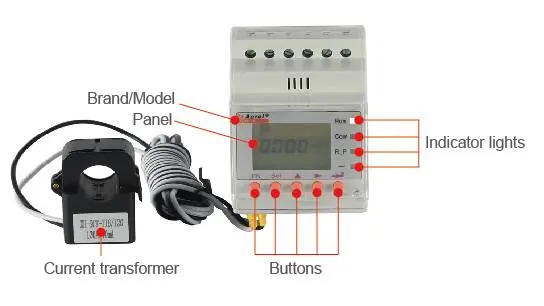

Keypads HMI for Programming

● Parameter Display Setting

● Communication(address, baud rate and etc.)

Display sample

Particular Application

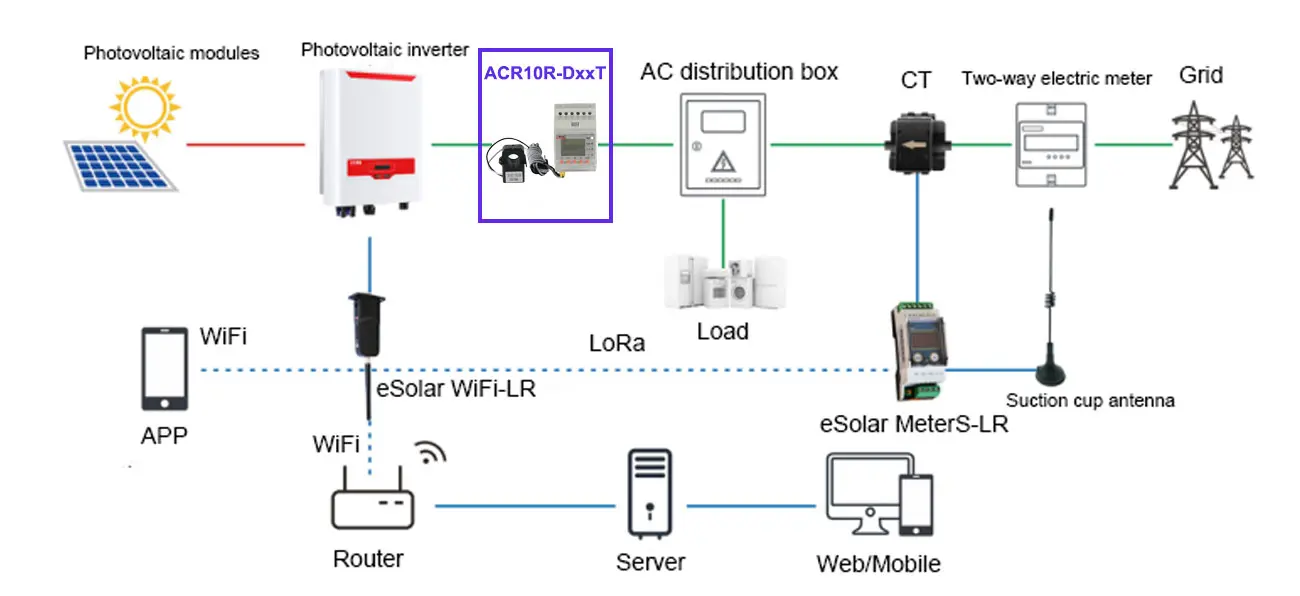

Solor PV Power Distribution Monitoring Solution

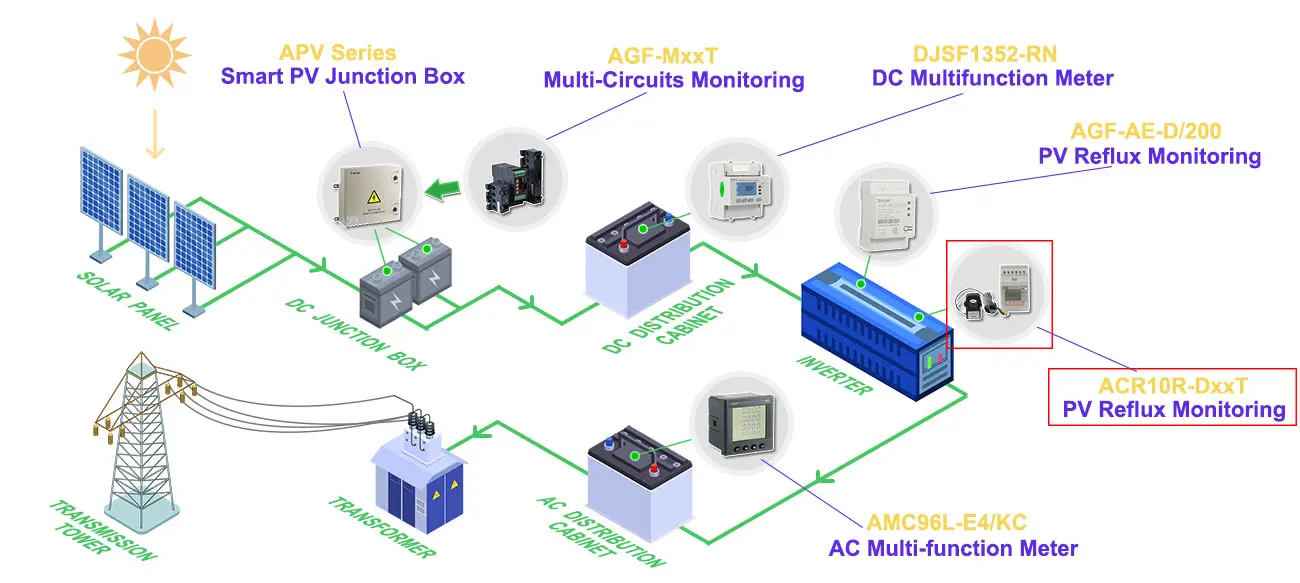

ACR10R-DxxT Practical Utility In Distributed Solar PV

Technical parameter

Technical parameters			Indicators
Input		Grid	Single-phase
		Frequency	45～65Hz
		Voltage	Rated voltage: AC 100V, 400V
			Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second
			Power consumption: less then 0.2VA
		Current	Rated current: 10A，20A，40A，80A，120A， 200A etc. (for details see product specifications)
			Overload: 1.2 times the rated current (continuous); 10 times the rated current lasting for 1 second
			Power consumption: less then 0.2VA
Output		Communication	RS485 interface, Modbus-RTU
		Display	LCD
Measurement precision			Voltage: 0.2 level, current, power Active energy: 0.5 level, 0.01Hz frequency, Reactive energy: 1 level
Power supply			AC85～265V or DC100～350V; power consumption ≤10VA
Safety	Power frequency withstand voltage		AC2kV 1 min between power supply // current input//voltage input and communication AC2kV 1 min between each pair of combinations among power supply, urrent input and voltage input.
	Insulating resistor		Input,output terminal to housing >100MΩ
Environment			Working temperature: -10℃～+55℃;storage temperature: -20℃～+70℃ Relative humidity:5%～95%，non-condensing; altitude:≤2500m

Download

ACR10R-DxxTE CE

ACR10R-DxxTE Manual
