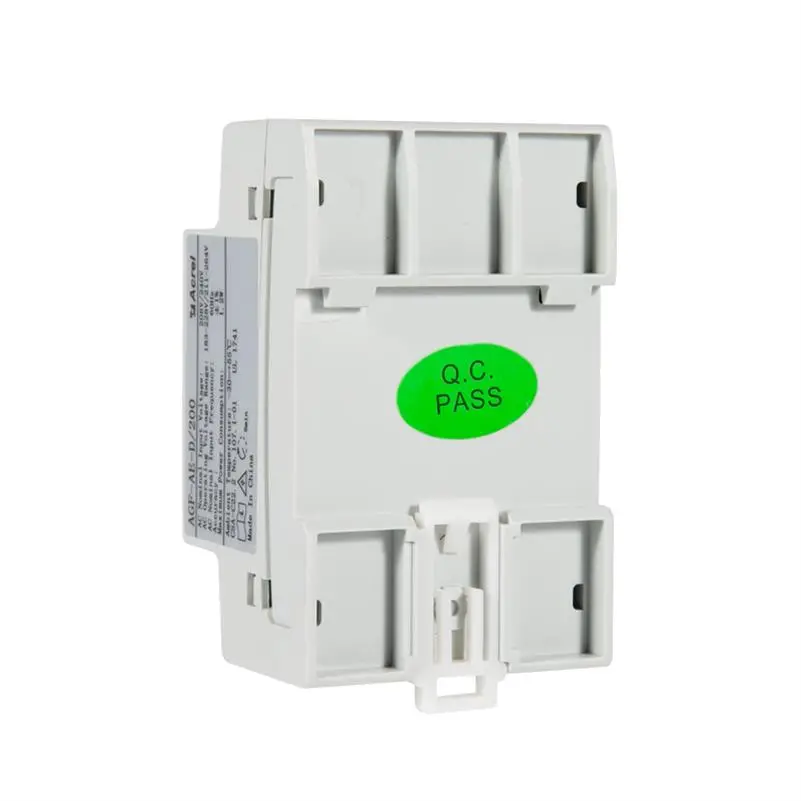

Acrel AGF-AE-D Bidirectional Reflux Monitoring Single Phase Energy Meter
Feature
Used for distributed Solar PV
● Reflux Monitoring

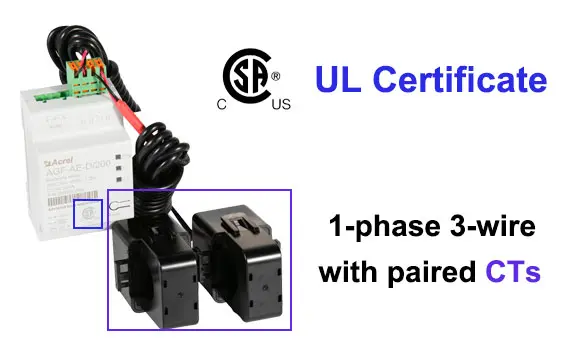

● Connected with Load Line through CTs
● Directly connect with inverters
Single-phase Three-wire Connection
● Rated Voltage of Line to N: 120V
● Rated Voltage of Line to Line: 208/240V
● Grids Supported： L1/L2/N/PE
RS485 Communication
● MODBUS-RTU Protocol
● Communicate with Inverter to realize anti-reflux Function
● Response Time: ≤1s
Bidirectional Metering
● Active&Reactive Energy Metering
● Rated RMS Current: 100/200A
● Accuracy: ±0.5%/±1%
Display sample

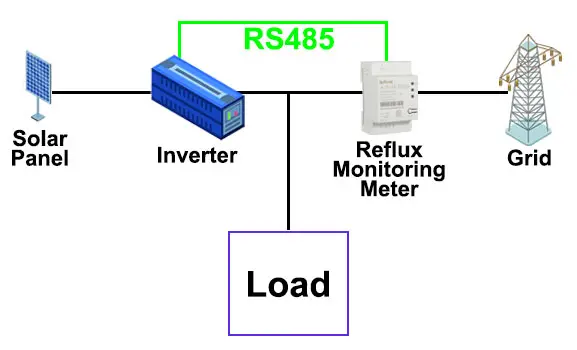

Wiring Diagram
Connected with Load Line through CTs
Directly connect with inverter
Particular Application
Solor PV Power Distribution Monitoring Solution
AGF-AE-D Practical Utility In Distributed Solar PV
|
Meter Electrical Service |
Units |
||
|
Model |
AGF-AE-D/100 |
AGF-AE-D/200 |
|
|
Rated Voltage-Line to N |
120 |
V |
|
|
Rated Voltage-Line to Line |
208/240 |
V |
|
|
Extended Voltage Range |
88%~110% |
|
|
|
AC Frequency |
60 |
Hz |
|
|
Grids Supported |
L1/L2/N/PE |
|
|
|
Power Consumption |
1.2 |
W |
|
|
Communication |
|||
|
Meter Communication Interfaces |
RS 485 |
|
|
|
Response Time |
≤1 |
S |
|
|
Meter Accuracy |
|||
|
Rated RMS current |
100 |
200 |
A |
|
1%-100% of CT Current |
±0.5 |
±1 |
% |
|
Current Transformers |
|||
|
Number of Supplied Current Transformers |
2 |
|
|
|
Dimensions |
I.D:15 O.D:35 |
70.5×54.5×39 (H×W×D) |
mm |
|
Standard Compliance |
|||
|
Safety |
UL1741 |
|
|
|
Installation Specifications |
|||
|
Dimensions(H×W×D) |
54.1×87.8×52 |
mm |
|
|
Weight |
0.2 |
kg |
|
|
Operating Temperature Range |
-30~55 |
℃ |
|
|
Relative Humidity (noncondensing) |
5 - 90 |
% |
|
|
Mounting Type |
DIN-Rail，35mm |
|
|
-
TUV of AGF-AE-D
-
UL of AGF-AE-D
-
AGF-AE-D Manual
