Acrel ACR10R-DxxTEx Bidirectional Three-phase Zero Export Monitoring Energy Meter

Acrel ACR10R-DxxTEx Bidirectional Three-phase Zero Export Monitoring Energy Meter

● Measurement: 3-phase Active Power, Reactive Power, Current, Voltage and etc

● Current Rating: up to 300A (with CTs); up to 20000A (with Rogowski Coil)

● Communication: RS485 (MODBUS-RTU)

● Application: Using in distributed Solar PV and Anti-reflux Inverter

● Display: LCD Display

● Dimension: 54*64*84mm (L*W*H)

● Installation: 35mm DIN Rail

● Power Supply: 85~265V AC or 100~350V DC

● Standard&Certificate: CE

008618702112136

sherry@acrel.cn

8618702112136

Acrel ACR10R-DxxTEx Bidirectional Three-phase Zero Export Monitoring Energy Meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

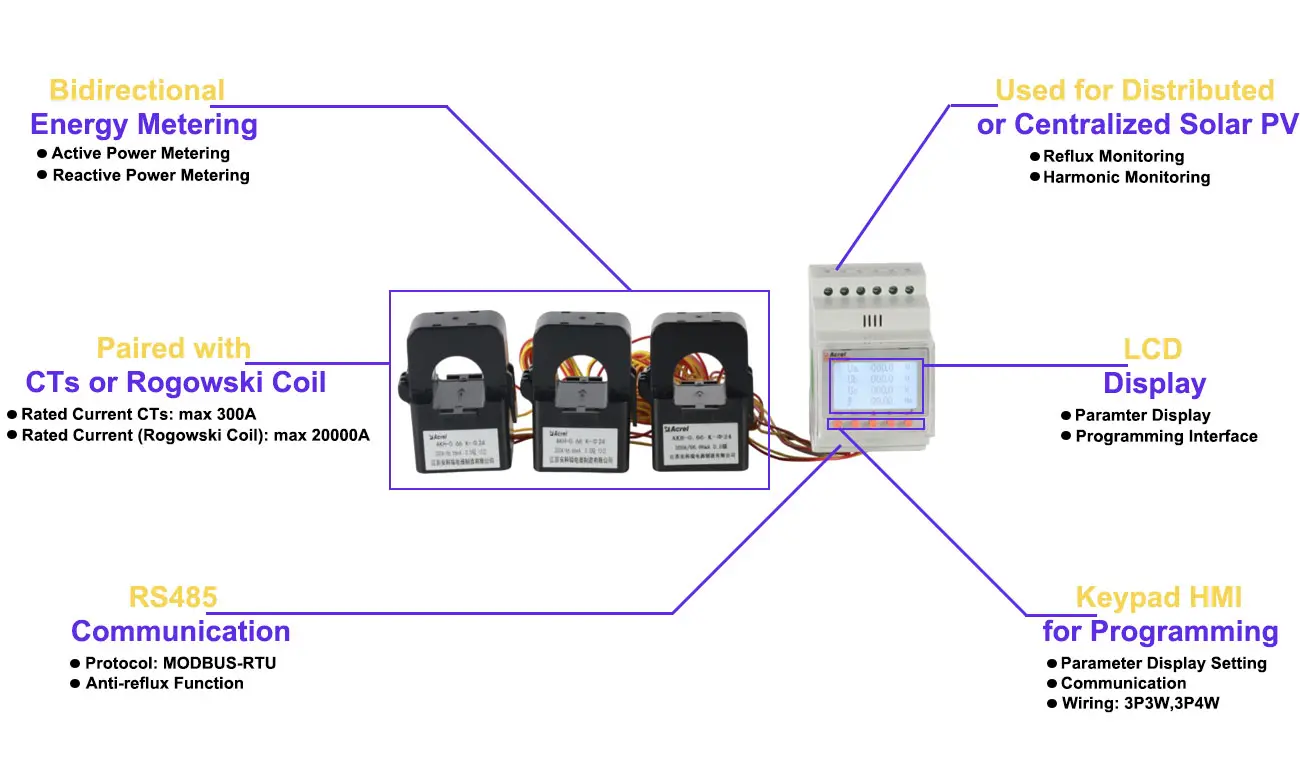

Feature

Used for distributed Solar PV

● Reflux Monitoring

● Connected with Load Line through CTs

● Directly connect with inverters

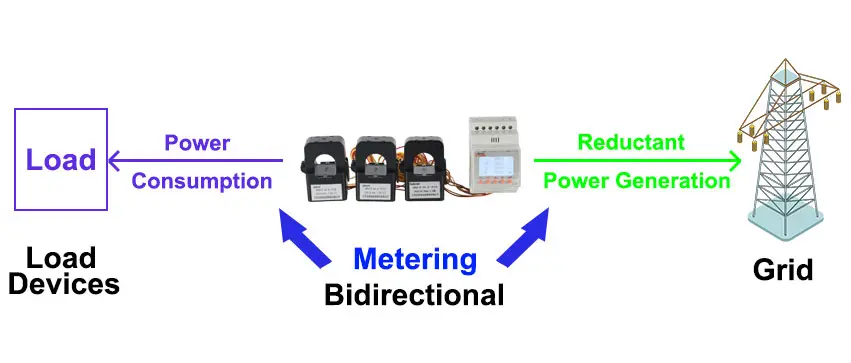

Bidirectional Power Metering

● Active Power Metering

● Reactive Power Metering

RS485 Communication

● MODBUS-RTU Protocol

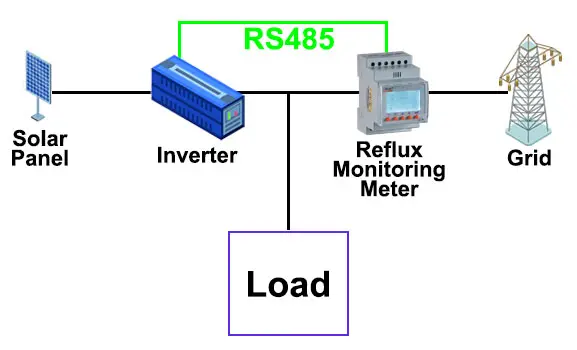

● Communicate with Inverter to realize anti-reflux Function

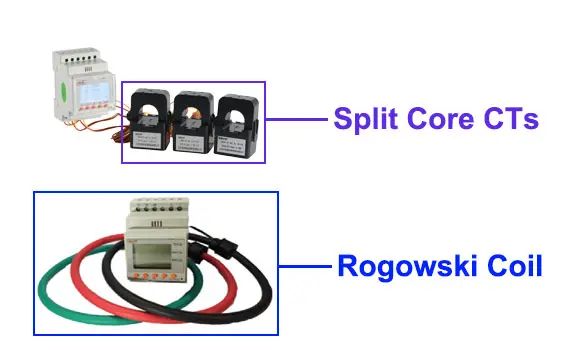

Paired with external CTs or Rogowski Coil

● Rated Current of CTs: up to 300A

● Rated Current of Rogowski Coil: up to 20000A

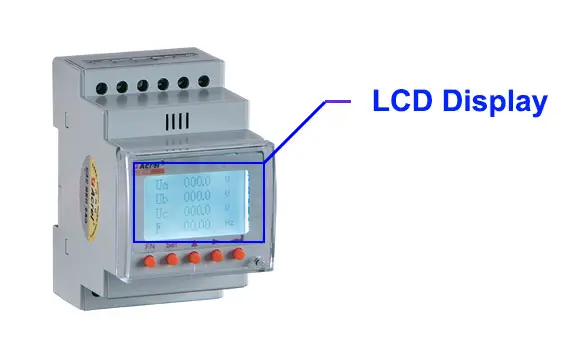

LCD Display

● Parameter Display

● Programming Interface

Keypads HMI for Programming

● Parameter Display Setting

● Communication(address, baud rate and etc.)

● Wiring: 3P3W,3P4W

Wiring Diagram

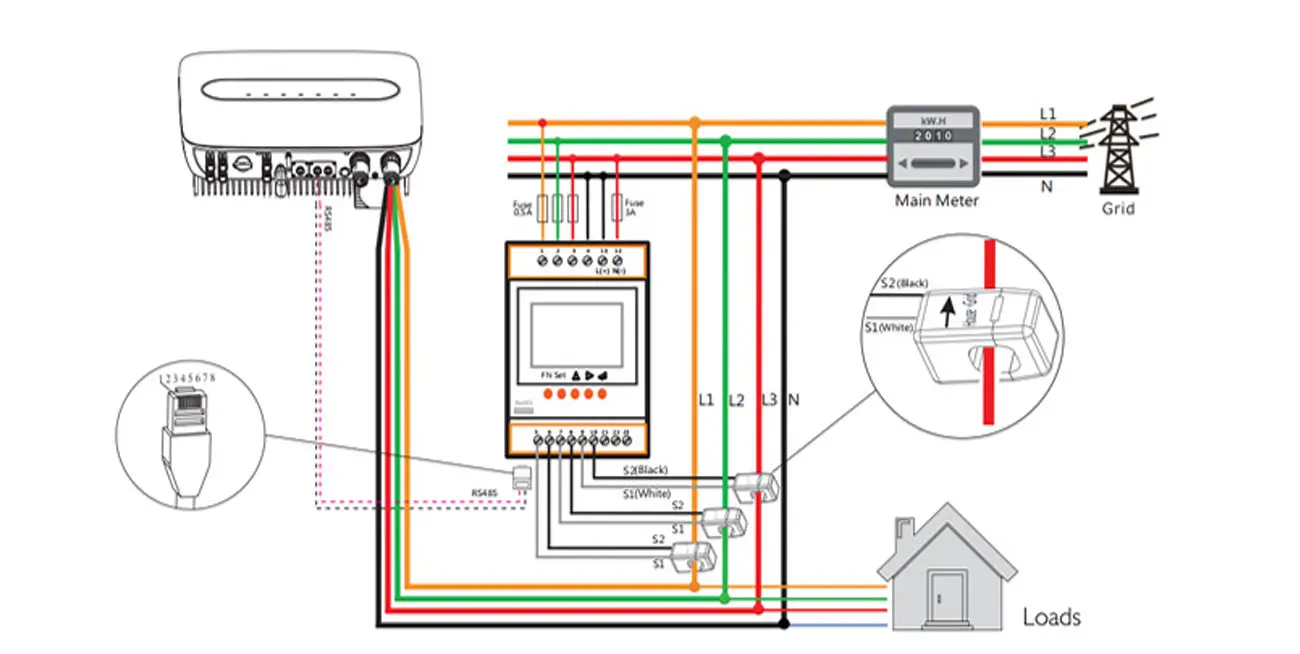

3P4W Wiring of ACR10R-DxxTE4 with external CTs

Particular Application

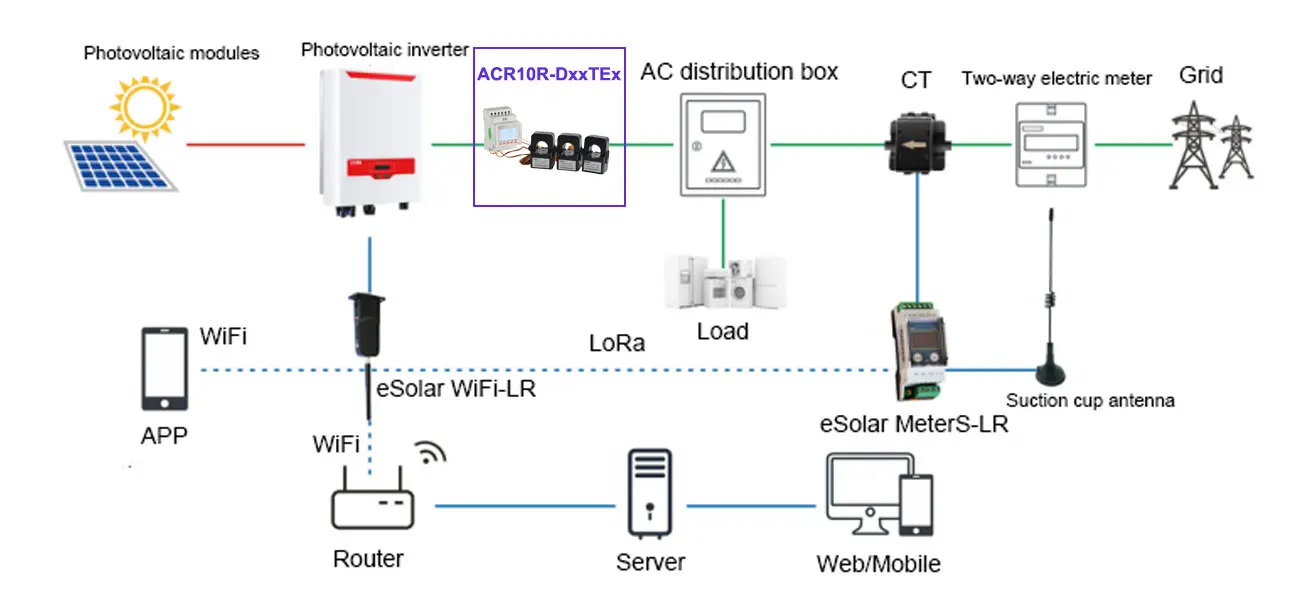

Solor PV Power Distribution Monitoring Solution

ACR10R-DxxTEx Practical Utility In Distributed Solar PV

Technical parameter

Function

Function/Model		ACR10RH-DxxT(R)E4 ACR10RH-DxxT(R)E3
Display mode	LCD（Field LCD）	■
Measuring parameter	Current/voltage/frequency/power facto	■
	Active power/reactive power/apparent power	■
	Four quadrant electric energy measurement	■
	Maximum demand	□
	Multiple rate electric energy measurement	□
Power quality monitoring	Total harmonic content	■
Power quality monitoring	subharmonic（2-31 times）	■
Data logging	Incident record	□
Display mode	Alarm	□
Display mode	Built-in clock	□
Communication	RS485 interface	■
Optional function (choose one)	J（2DO）	A1+（B1 or C1） (4DI+2DO or 4DI+EP)*
	K（4DI）
	pulse（2channels）

Note:

1、“■”is standard allocation function，“□”is matching function，Above instrument stanfard 1 channel RS485 communication；

2、Terminal connection mode corresponding to A1/B1/C1 and so on in selection function；

3、Pulse output and relay output can not be selected at the same time;

4、When you select an event loggong feature,you must configure the DI or DO

Technical parameters			Index
Input	Net work		3-phase 3-wire,3-phase 4 wire
	Frequency		45～65Hz
	Voltage		Rating：AC 57.7V/100V(100V)、220V/380V(400V)
			Overload:1.2-foldrating (continuous);2-fold rating/1second
			Consumption:<0.2VA
	Current		Rating:80A,120A,200A .etc (See specific product specifications, special parameters can be customized）
			Overload:1.2-fold rating(continuous); 10-fold rating/1 second
			Consumption:＜ 0.2VA
Output	Electric energy		Output mode:Open-collector photocoupler pulse,two way output
			Three-phase	Pulse constant :4000,8000imp/kWh
	Communication		RS485 interface, Modbus-RTU Protocol
	Display mode		LCD
Function	Switching	Input	Four way dry contact input
		Output	Output mode: two way relay nO contact output
			Contact capacity：AC 250V/3A、DC 30V/3A
Measuring accuracy			Frequency0.05Hz、reactive electric energy1class、other 0.5class
Power supply			AC85～265V or DC100～350V；DC24V（±10%）；DC48V（±10%） Consumption≤10VA
Safety	Power-frequency withstand voltage		Power frequency withstand voltage between Auxiliary power and switch volume output and current input and voltage input and communication and pulse output and switch volume input terminal is AC2kV 1min； Power frequency withstand voltage between auxiliary power and switch volume output and current input voltage input terminal is AC 2kV/1min; Power frequency withstand voltage between communication and pulse output and switch volume input terminal is AC 1kV/1min;
	Insulation resistance		Input,Output terminal to housing>100MΩ
Environment			Working temperature：-10℃～+55℃；Storage temperature：-20℃～+70℃ Relative humidity：5%～95% No condensation；Altitude：≤2500m

Download

ACR10R-DxxTE4(3) CE

ACR10R-DxxTE4(3) Manual
