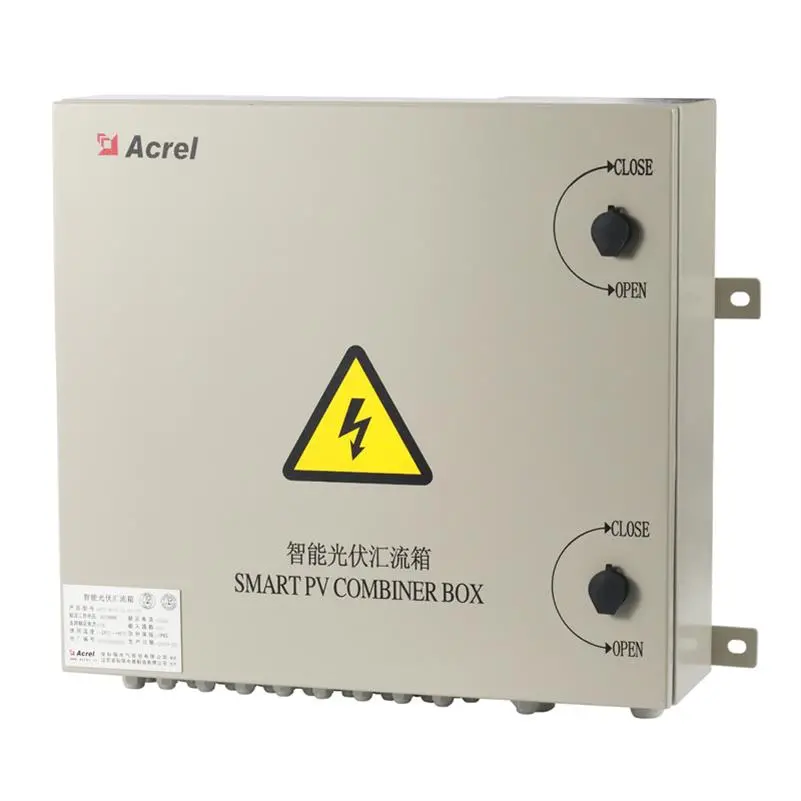

Acrel APV Series Smart Solar PV Combiner Box
- 16-Channel DC Circuits Monitoring
- Various Power Supply Option
- Optional DO&DI&AI Function
- IP65 Protection Level
- RS485 Communication
Features
Function

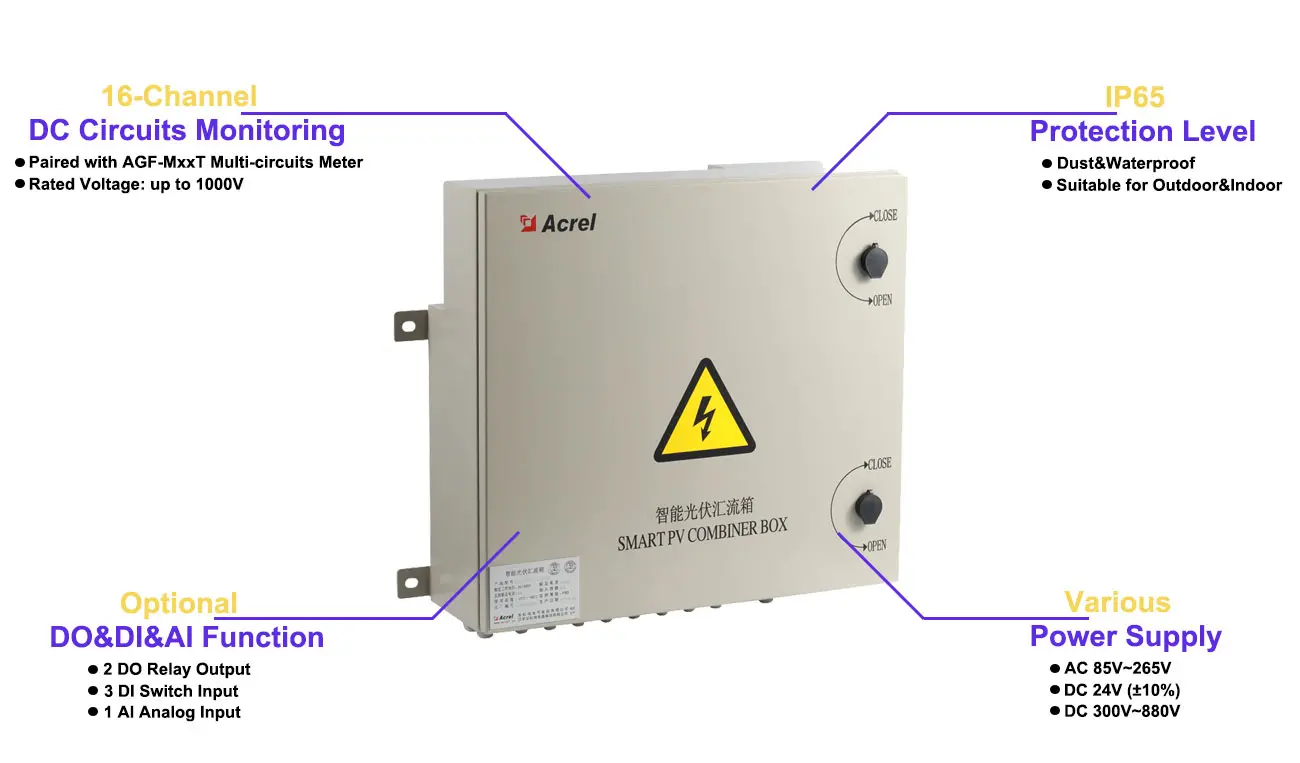

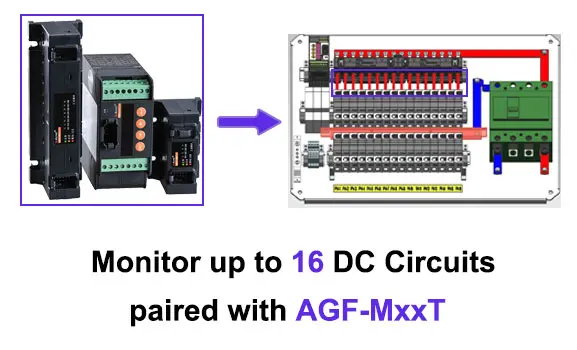

16-Channel DC Circuits Monitoring
● Paired with AGF-MxxT Multi-circuits Meter
● Rated Voltage: up to 1000V

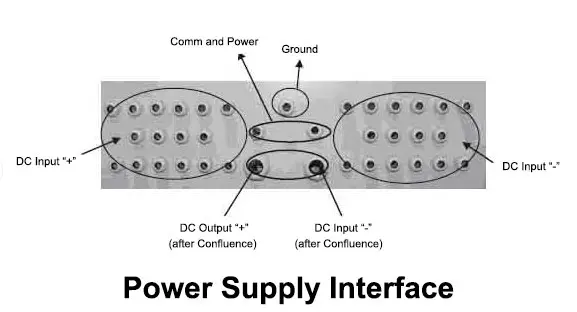

Various Power Supply Option
● AC 85V~265V
● DC 24V (±10%)
● DC 300V~880V

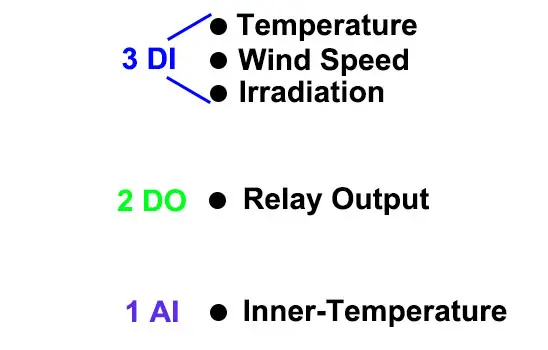

Optional DO&DI&AI Function
● 2 DO Relay Output
● 3 DI Switch Input
● 1 AI Analog Input

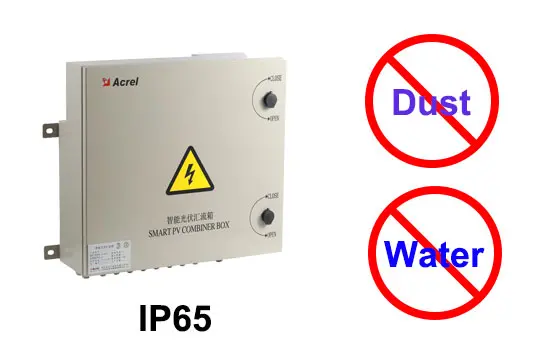

IP65 Protection Level
● Dust&Waterproof
● Suitable for Outdoor&Indoor Circumstances

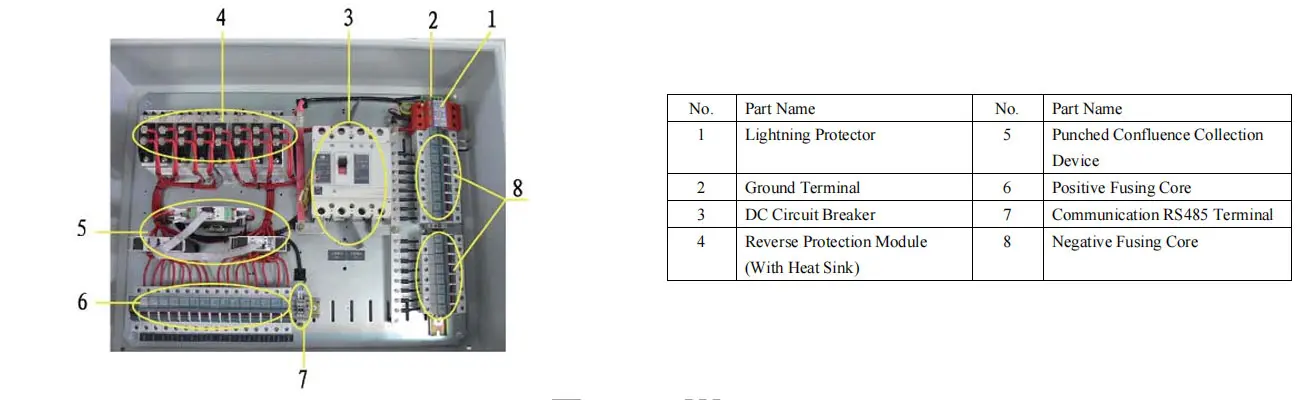

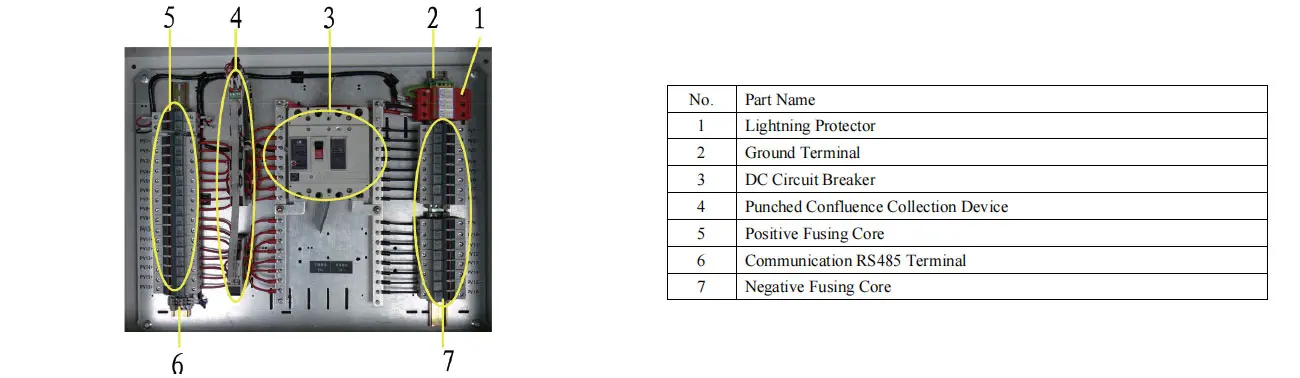

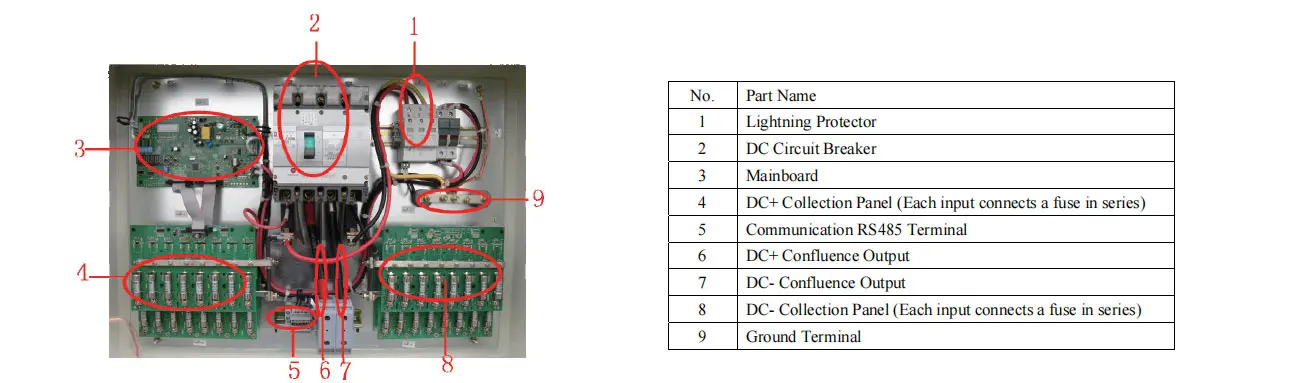

Display sample
Application

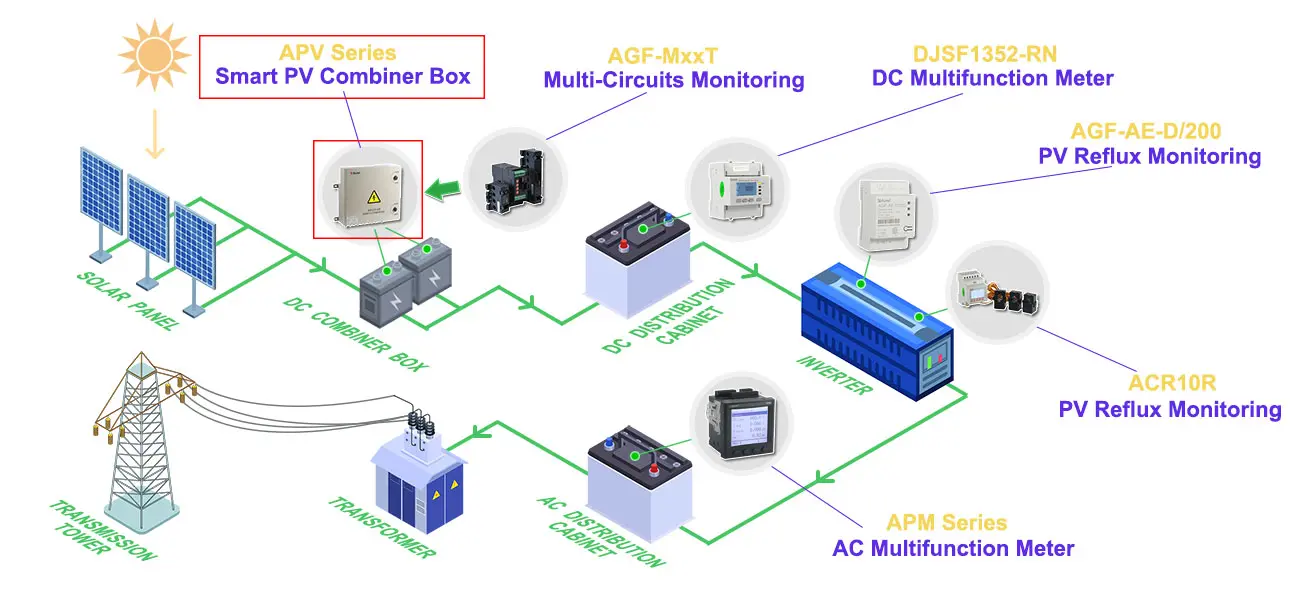

Solor PV Power Distribution Monitoring Solution

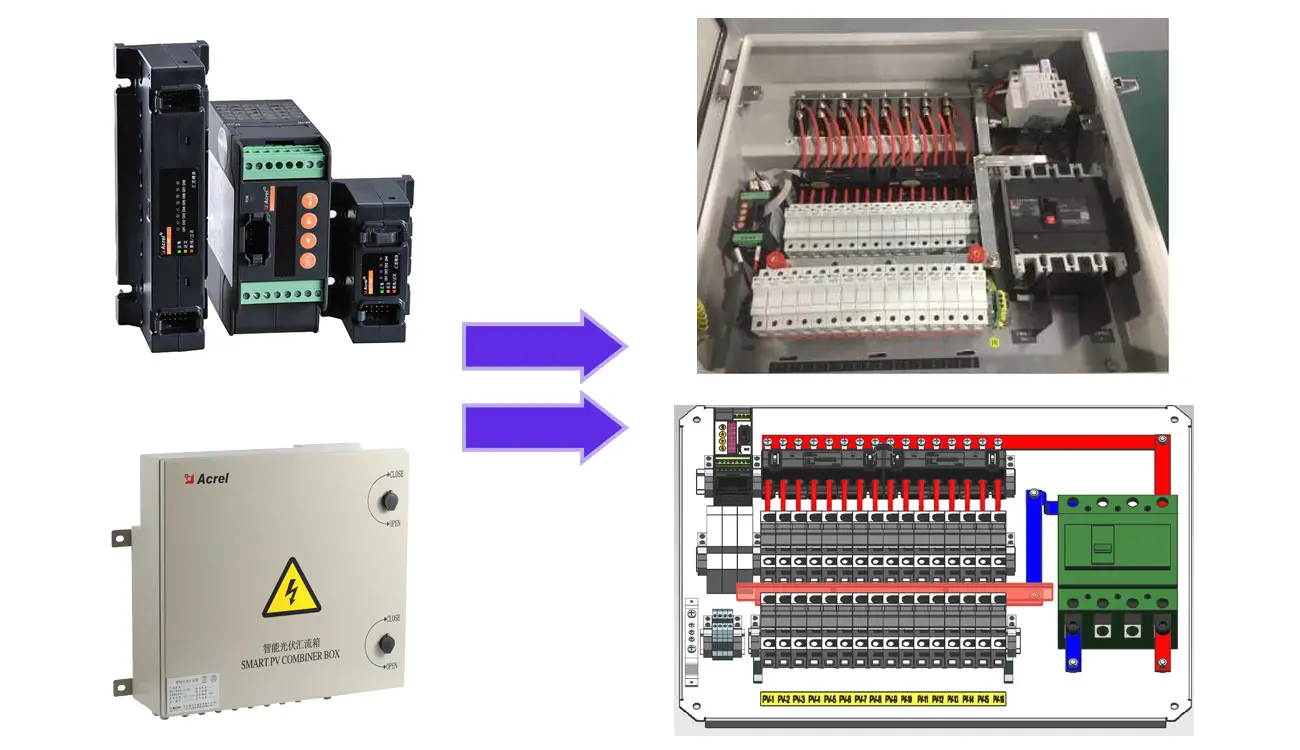

Practical Application of AGF MxxT in PV Combiner Box

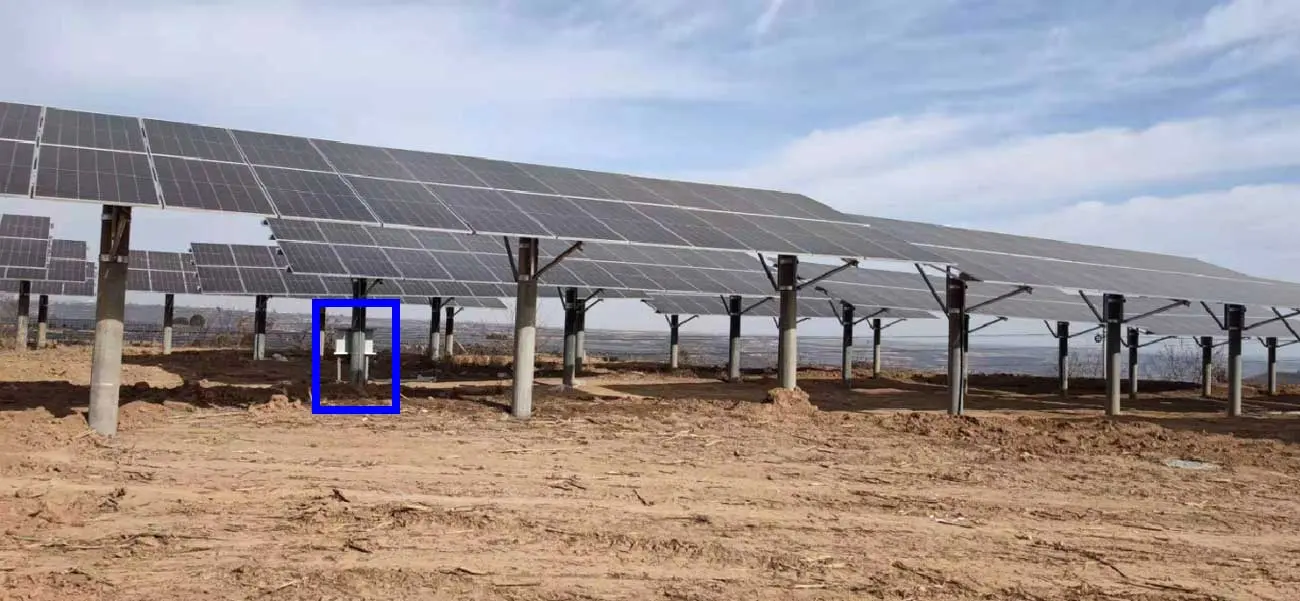

APV Smart Solar PV Combiner Box installed under PV Array
|
Product Type |
APV-M4XX |
APV-M8XX |
APV-M12XX |
APV-M16XX |
|
|
Input Channels |
4 |
8 |
12 |
16 |
|
|
Input Scope |
DC ± 18A |
||||
|
Response Time |
1s |
||||
|
Measuring Accuracy |
Grade 0.5 for PV battery measurement, grade 0.2 for the external analog |
||||
|
RS485 Comm. |
RS485/ModBus-RTU protocol, 4800/9600/19200/38400bps |
||||
|
Additional Function |
Relay Output |
2 group switches 5A/AC250V（5A/DC 30V） |
|||
|
Switch Input |
3 groups of external state inputs (optocoupler or dry contact) |
||||
|
Analog Input |
PT100, DC 0(4)~20mA, DC 0~10V and 24V power supply with the max. current ≤25mA |
||||
|
Humidity/Temp. |
The working temperature: -25~+60℃, R.H.: 95%, the worksite does not have the condensed and corrosive gas |
||||
|
Altitude |
≤3000m |
||||
|
Insulation Resistance |
≥100MΩ |
||||
|
Auxiliary Power |
Auxiliary Power : AC85V～265V or DC 300～880V or DC 24V(±10%) |
||||
|
Case Waterproof Rating |
IP65 |
||||
|
Weight |
Approx. 30kg |
||||
|
Volume(W×H×D) |
700×575×220 |
||||
-
