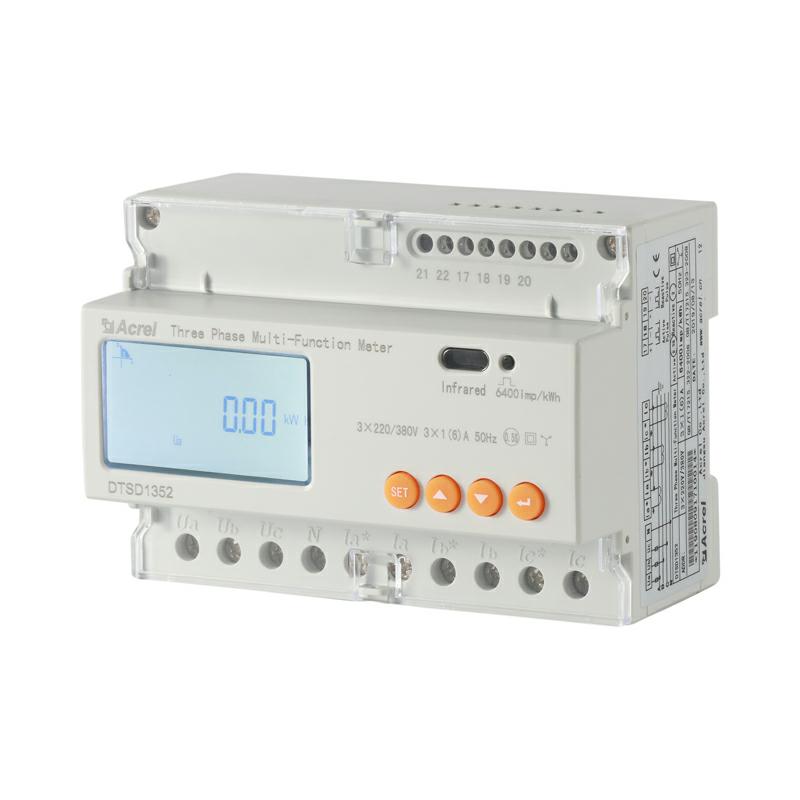

Acrel DTSD1352-C 3 Phase Energy Meter for Solar PV Inverter

AC 3X220/380V,3X380V,3X220V

3X1(6)A via CTs，3X10(80)A

kWh Class 0.5; kVarh Class 2

LCD Display; Din 35MM; Modbus-RTU(RS485)

008618702112136

sherry@acrel.cn

8618702112136

Acrel DTSD1352-C 3 Phase Energy Meter for Solar PV Inverter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Function

Measurement of kWh: kWh , Kvarh (positive and negative);A, B, C phase positive kWh

Measurement of electrical parameters: U、I、P、Q、S、PF、Hz

Measurement of harmonics: 2~31st voltage and current harmonic (Optional)

LCD Display: 8 digits

Frequency: 45-65Hz

Communication: Modbus-RTU (Optional)

Detail

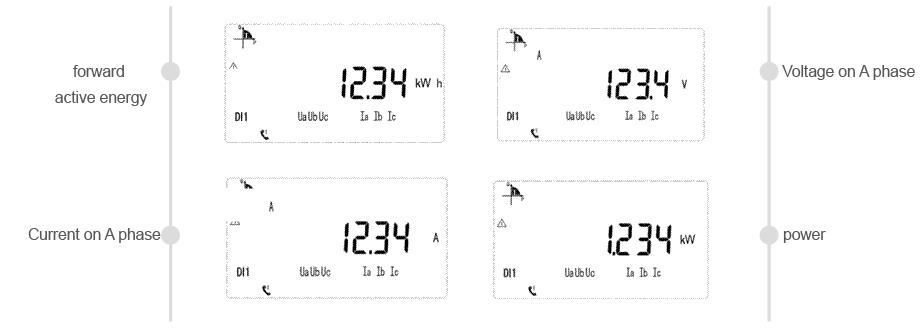

LCD Display

Wiring Diagram

Dimension(unit:mm)

Installation

DTSD1352-C installing (Note：DIN 35 mm rail installation.)

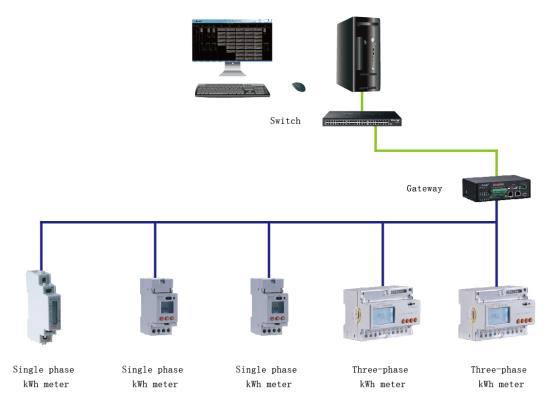

Application

Technical parameters

Function

Measurement of kWh	kWh (positive and negative)
	kvarh (positive and negative)
	A, B, C phase positive kWh
Measurement of electrical parameters	U、I、P、Q、S、PF、Hz
Measurement of harmonic (optional)	2~31ST Voltage and current harmonic
LCD Display	8 digits
Key	4 keys
LED alarm	voltage loss and over voltage
Switch I/O (optional)	Active switch input
Switch I/O (optional)	Switch output
Data (optional)	Maximum demanded kWh and time happened
	Frozen data on last 48 months, last 90days
	Date, time
Communication	Infrared
Communication	RS485, MODBUS-RTU (optional)
Temperature measurement (optional)	Support 3 outlay NTC temperature

Electric performance

Voltage	Nominal voltage	3×100V、 3×380V、 3×57.7/100V、 3×220/380V
	Consumption	<10VA(Single phase)
	Impedance	>2MΩ
	Accuracy	±0.2%
Current	Accuracy	±0.2%
	Maximum current	80A,6A
	Consumption	<1VA
Frequency	range	45～65Hz
Frequency	accuracy	±0.2%
Energy accuracy	Active energy	Class 0.5s
Energy accuracy	reactive energy	Class 2
Clock	accuracy	≤0.5s/d
Active Pulse	Width	80±20ms
	constant	6400imp/kWh,400imp/kWh
	constant	(Correspond with the basic current)
Communication	Interface	RS485
Communication	Protocol	MODBUS-RTU
