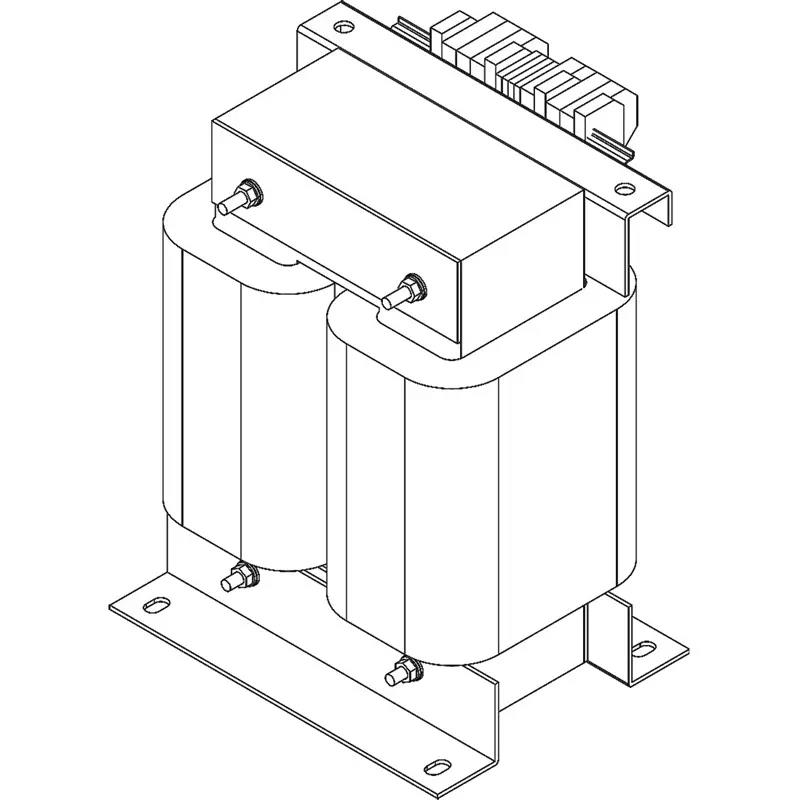

Acrel AITR Series Medical Insulation Transformer
Function

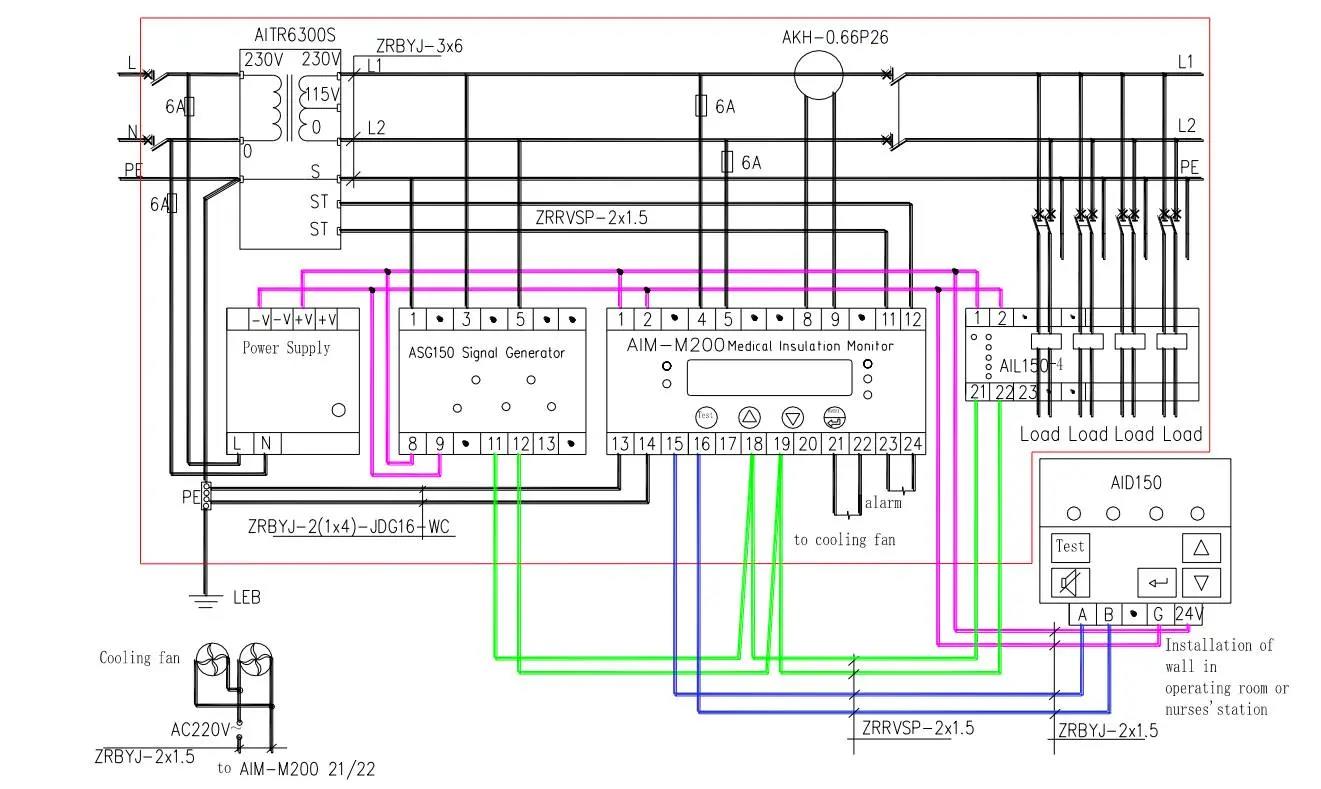

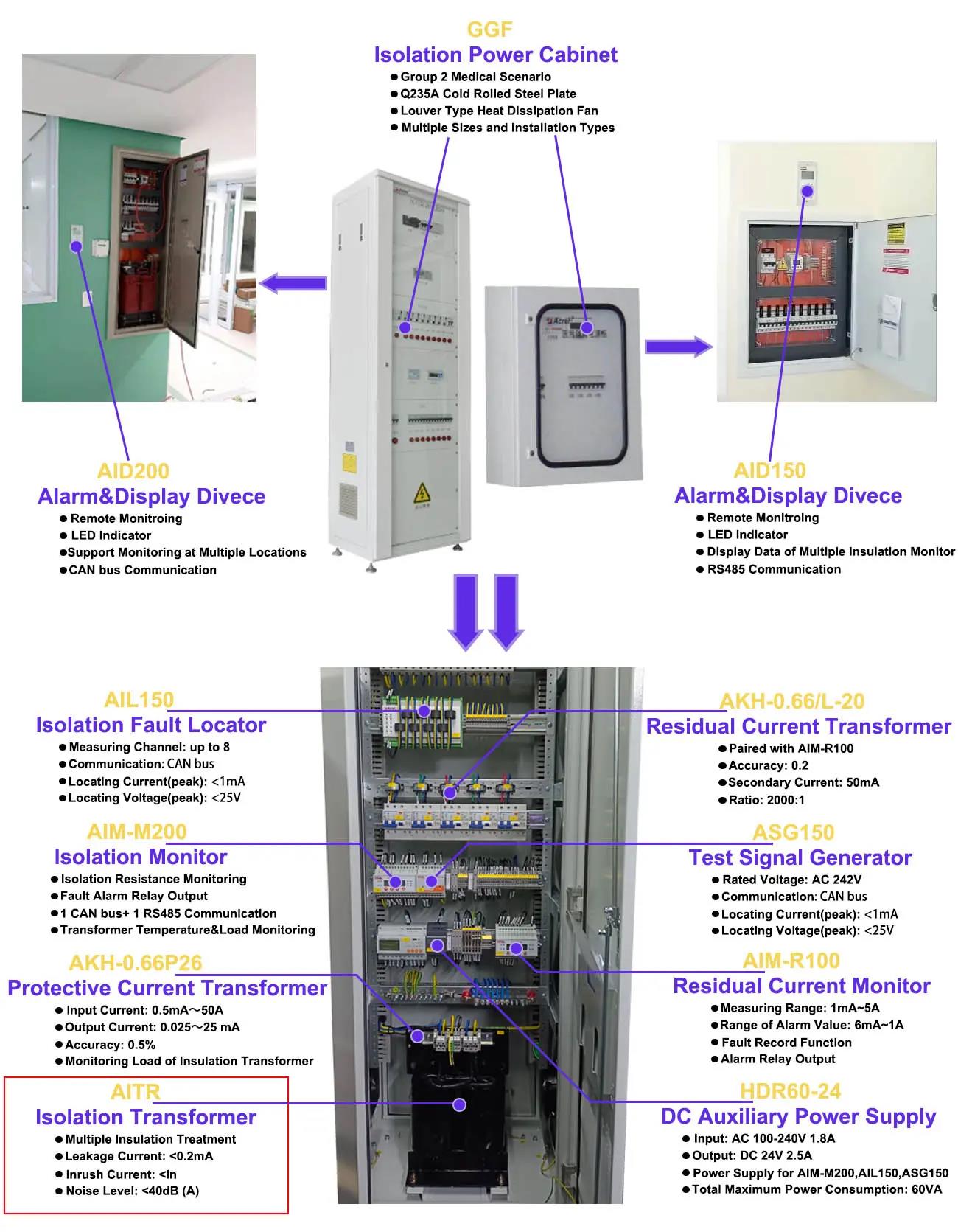

Insulation Transformer for Hospital IT Power System
● Inrush Current(IE): <12Ln
● Short-circuits Voltage: <3% Un
● Noise Level: <40dB (A)
● Efficiency: >96%

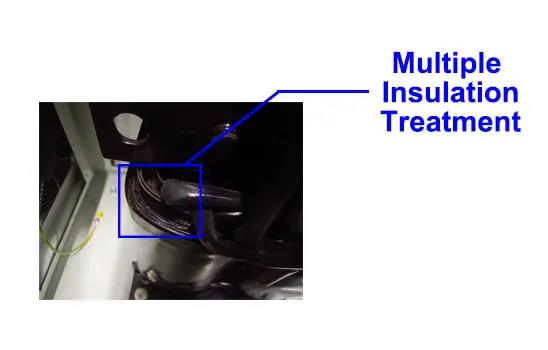

Multiple Insulation Treatment
- Leakage Current: <200μA
- Insulation Class: H

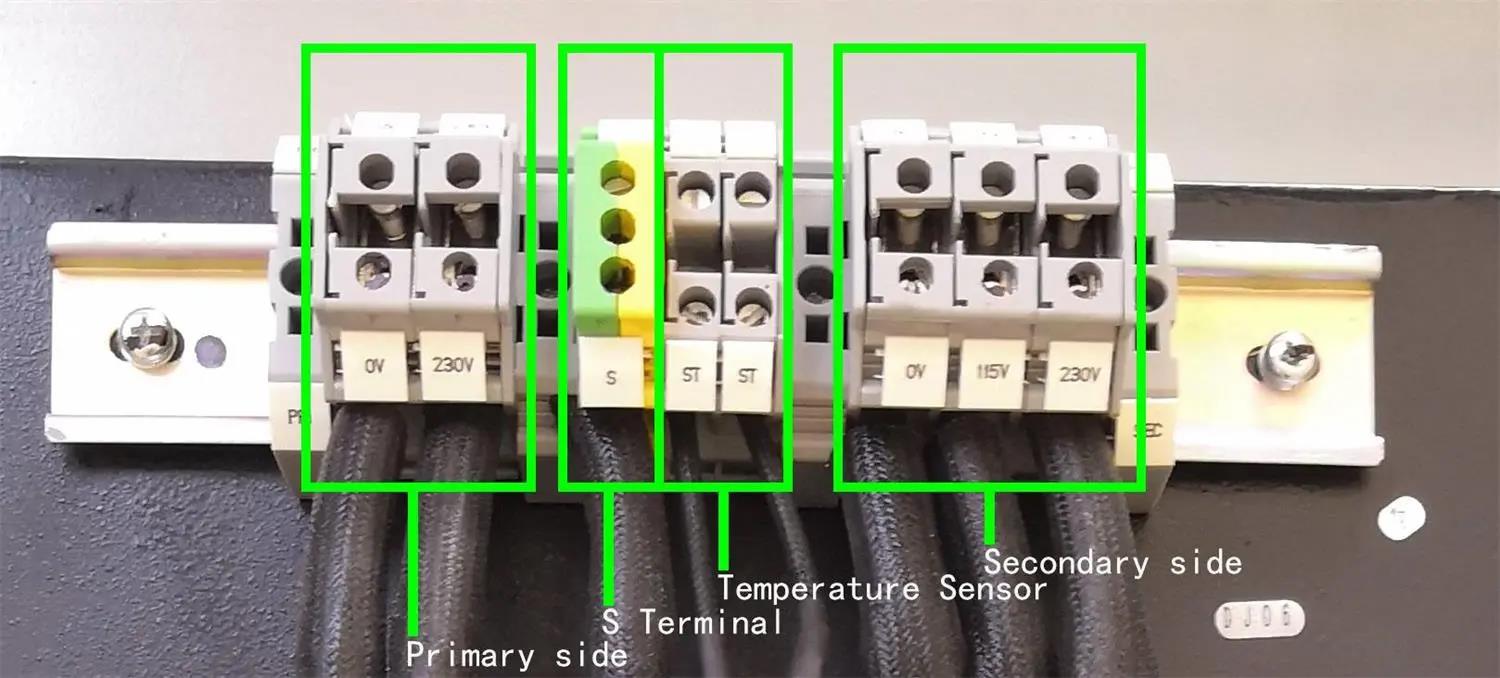

PT100 Temperature Sensor Embedded in the Winding
● Thermistor: PT100
● Temperature Measuring Range: -50℃~+200℃
|
Rated Capacity |
3.15kVA/5kVA/6.3kVA/8kVA/10kVA |
|
Frequency |
50/60Hz |
|
Rated input voltage |
230V |
|
The output voltage |
230V/115V |
|
Inrush current |
<12In |
|
Leakage Current |
<200uA |
|
No-load output voltage |
<235V |
|
No-load output current |
<3% In |
|
Short-circuit voltage |
<3% Un |
|
Efficiency |
>96% |
|
Maximum ambient temperature |
<40℃ |
|
No-load temperature rise |
<33℃ |
|
Full load temperature rise |
<76℃ |
|
Withstand voltage |
4200V/Min |
|
Insulation Class |
H |
|
Noise Level |
<40dB (A) |
-
CE of AITR
-
AITR Manual
