Description

• Functions of real-time monitoringand fault alarming of the ground insulation resistance, transformer load current and transformer winding temperature of the monitored IT system;
• Can be used with insulation fault locator, remotely starting fault-locating and displaying locating results when there are insulation faults;
• Real-time monitor the line disconnection fault,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2secondafter the fault occurs. when the fault occurs;
• Relay alarm output, LED alarm indication andother faults indication functions;
• Two kinds of field-bus communication technology, which are used for centralized alarm and display instrument, test signal generator, insulation faultlocator and upper computer management software communications, and can monitor the operation status of IT system in real time;
• Fault recordsfunction, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.

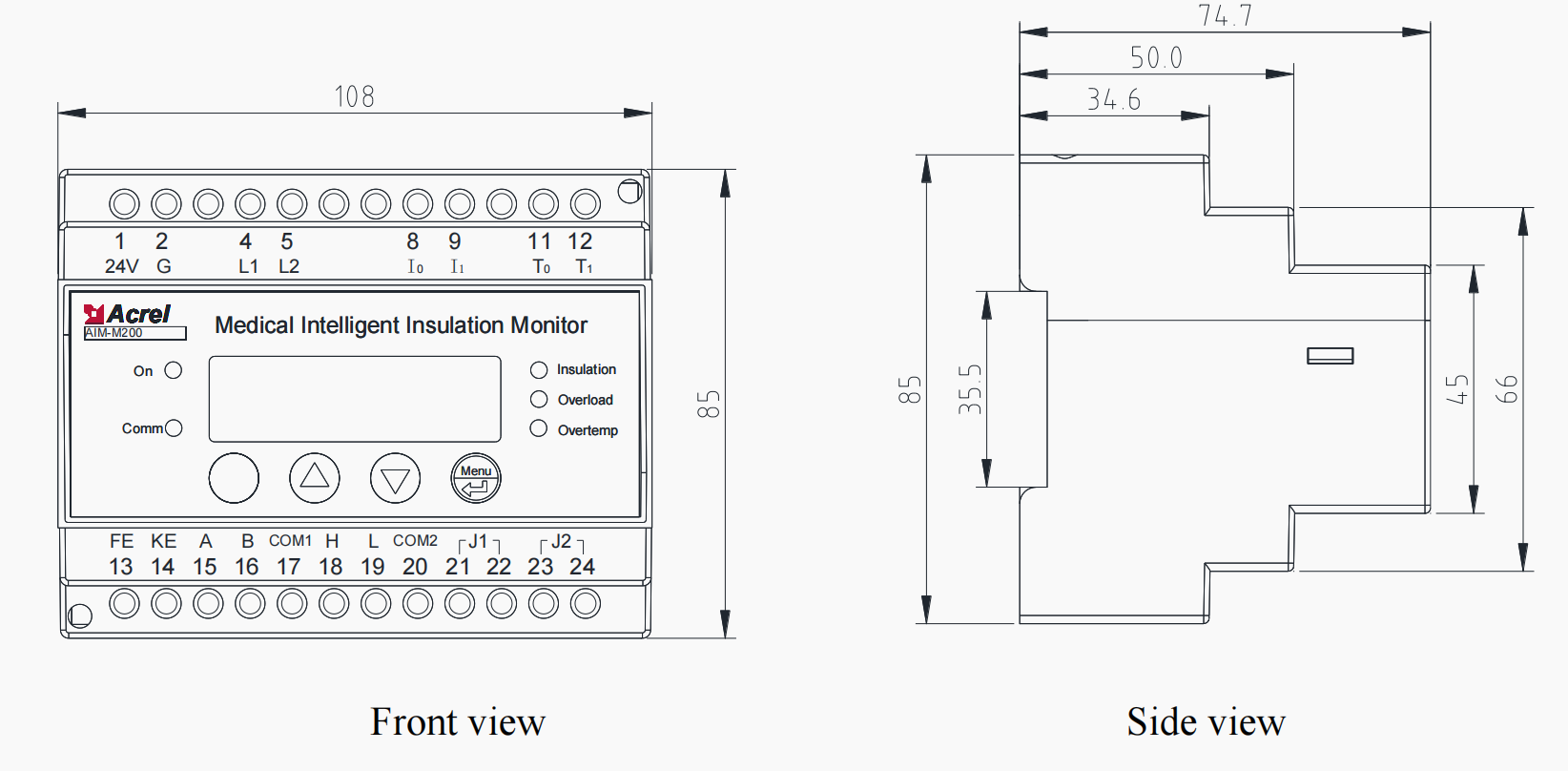

Dimension(unit:mm)

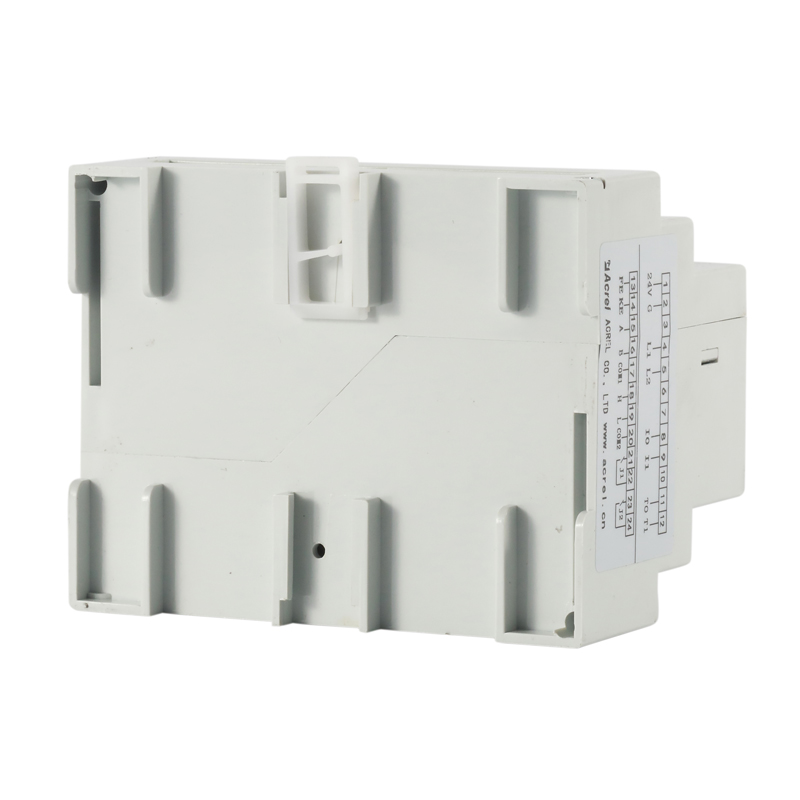

Installation

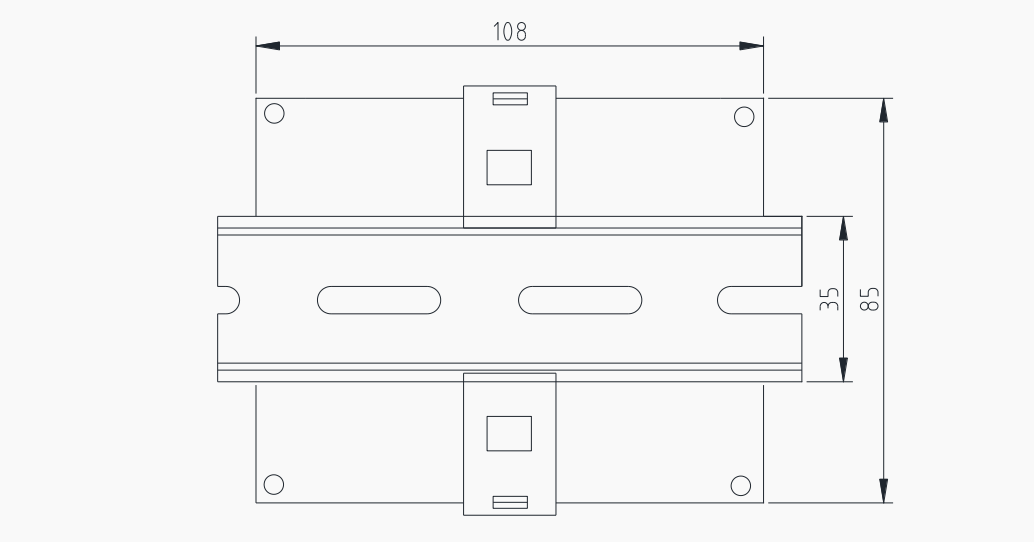

AIM-M200 insulation monitor adopts the installation method of the guide rail, and the fixation mode is the clip buckle type, as shown in the following figure:

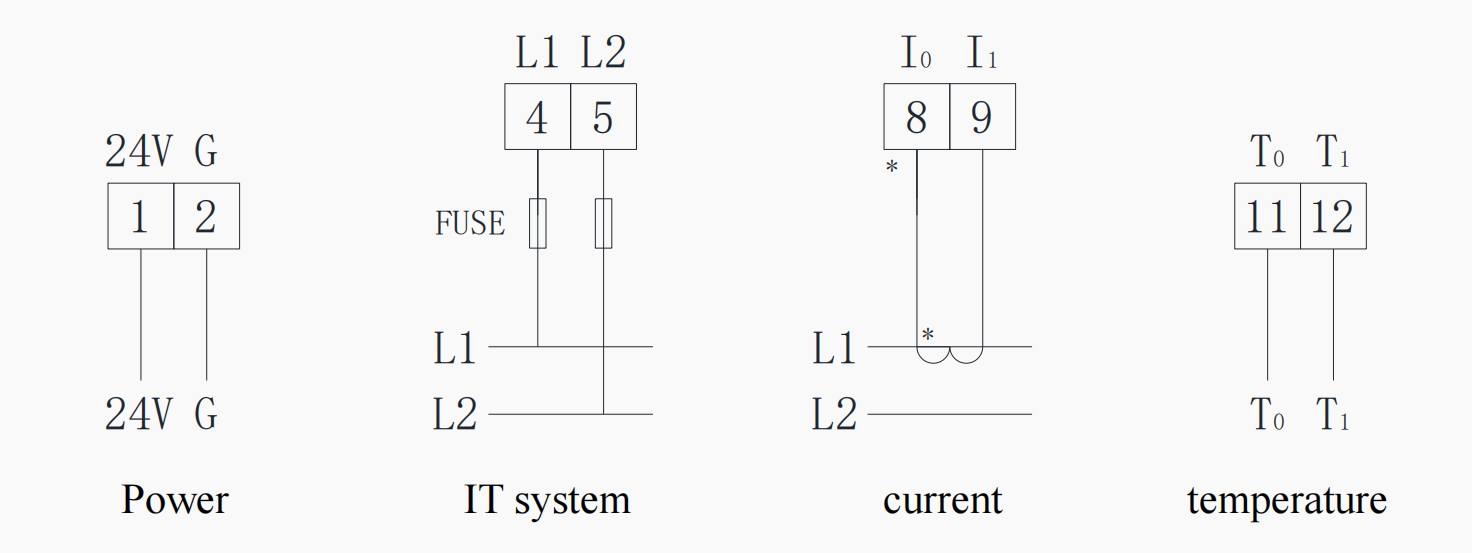

Wiring Diagram
