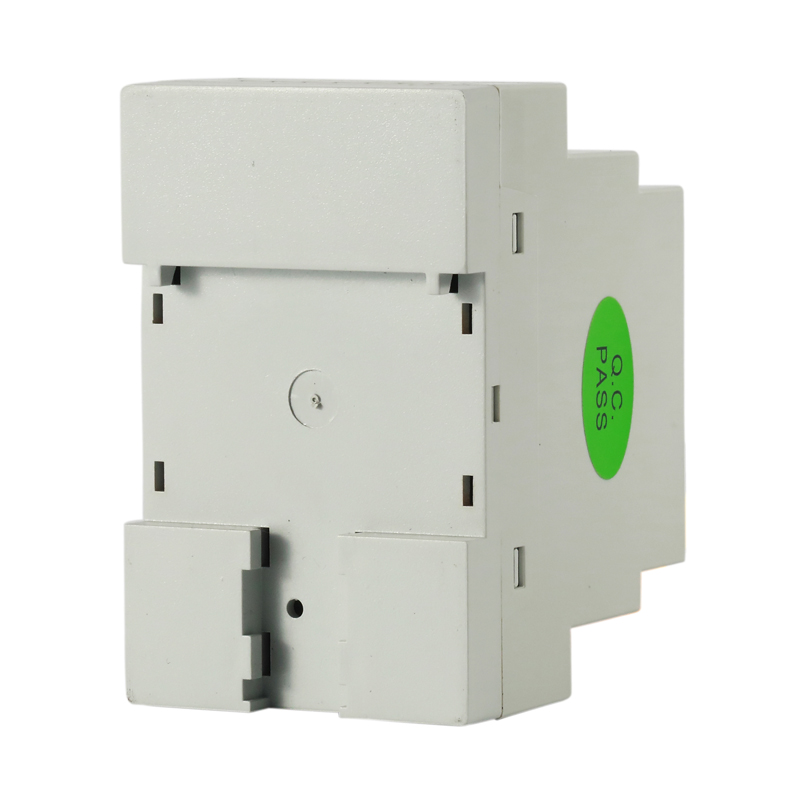

Acrel AIM-M10 Medical Intelligent Insulation Monitor

Insulation monitoring for medical IT systems; Fault alarm
Real-time monitor the line disconnection fault
Relay output, LED indicator and other fault indication
Modbus-RTU communication
Event Record
DC 24V Power Supply (Power for external alarm and display instrument)

008618702112136

sherry@acrel.cn

8618702112136

Acrel AIM-M10 Medical Intelligent Insulation Monitor

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Description

Real time monitoring of IT system to ground insulation resistance, transformer load current, transformer winding temperature, and give alarm indication when fault occurs;
The real-time monitoring system wire break fault, temperature sensor wire break fault and function ground wire break fault, and give alarm indication when the fault occurs;
Relay output, LED indicator and other fault indication;
Modbus, which communicates with external alarm and display instrument, can monitor the operation of IT system remotely;
Event record, including the time and type of the alarm, is convenient for the operator to analyze the operation status of the system and eliminate the fault in time;
DC24V power output function can provide power for external alarm and display instrument.

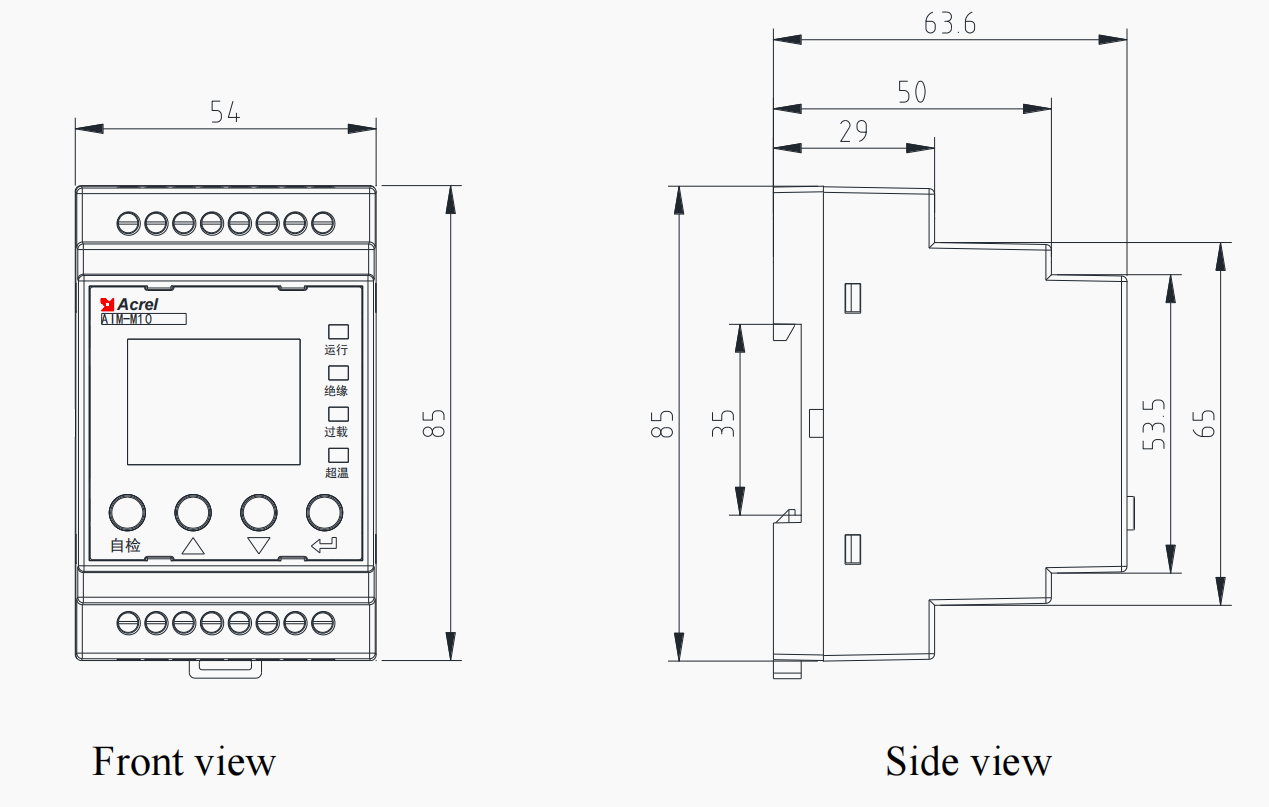

Dimension(unit:mm)

Installation

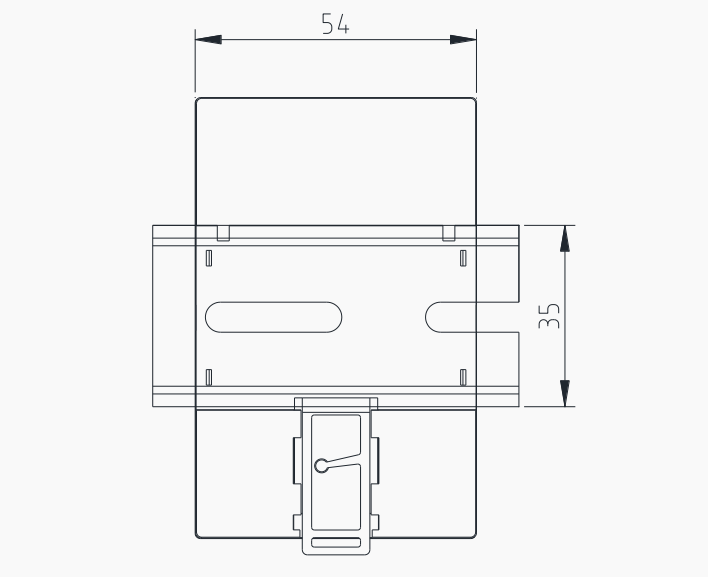

AIM-M10 insulation monitor adopts the installation method of the guide rail, and the fixation mode is the clip buckle type, as shown in the following figure:

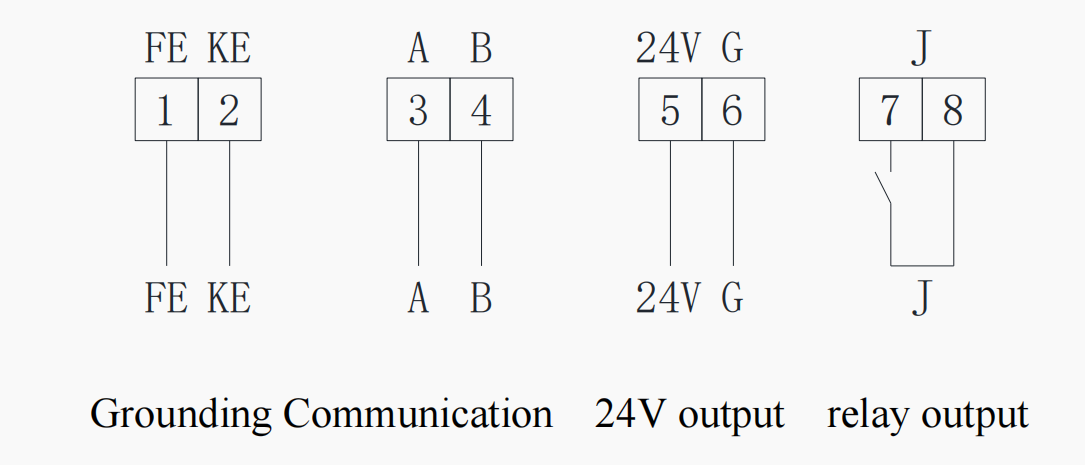

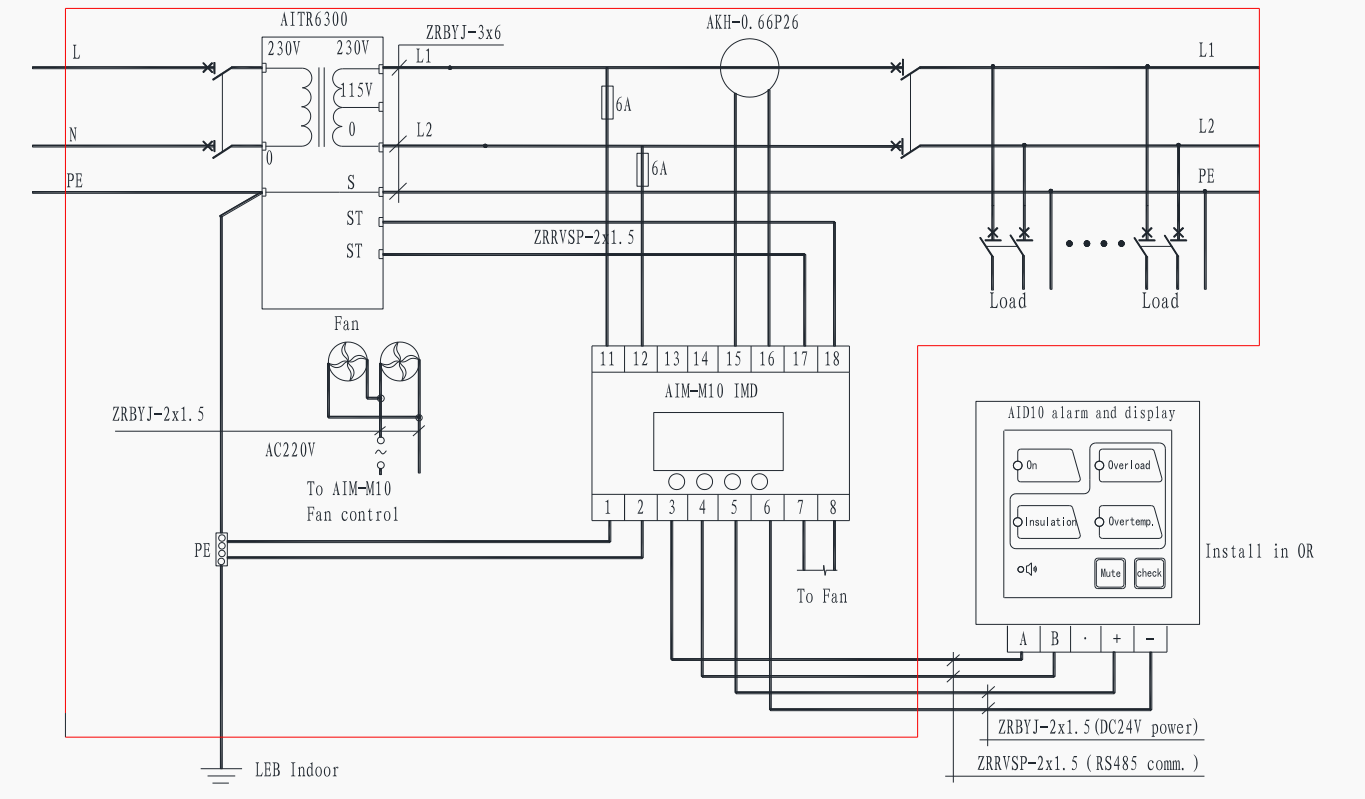

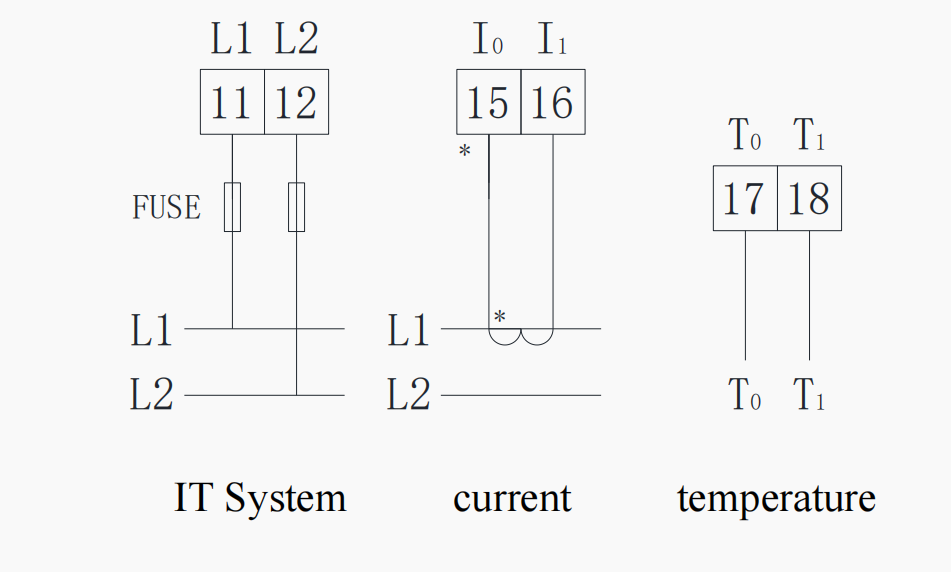

Wiring Diagram

Parameters

Auxiliary power supply	Voltage	AC220V (±10%)	Temperature monitoring	Thermistor	2 PT100
	Frequency	50/60Hz		Alarm value range	0~+200℃
	Power Consumption	< 5W		Measuring range	-50…+200℃
Insulation monitoring	Measuring range of insulation resistance	10~999kΩ	Alarm output	Output mode	1 relay output
	Absolute percentage error	0~±10%	Alarm output	Contact capacity	AC 250V/3A DC 30V/3A
	Alarm value	50~999kΩ	Environment	Operating temperature	-10~+55℃
	Response time	<2s		Storage temperature	-20~+70℃
	Measuring voltage	<12V		Relative humidity	5~95%, non-condensate
	Measuring current	<42μA		Altitude	≤2500m
Load current	Measuring Value	2.1~50A	Communication		RS485, Modbus-RTU
	Alarm Value	5~50A	Rated impulse voltage /pollution degree		4KV/Ⅲ
	Measuring accuracy	≤±5%	EMC/EMR		Conform to IEC 61326-2-4
