Acrel AIM-M200 Hospital Insulation Monitoring Device
Features
Function

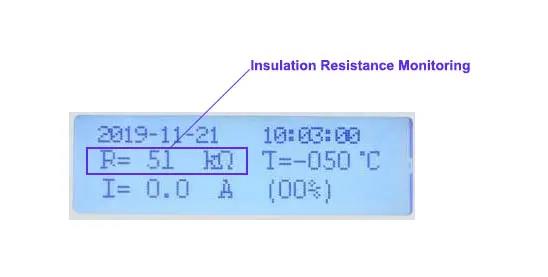

Accurate Insulation Resistance monitoring
● Isolation Measuring Range：10~999Ω
● Relative Tolerance：0~±10%
● Display Method：value&percentage display

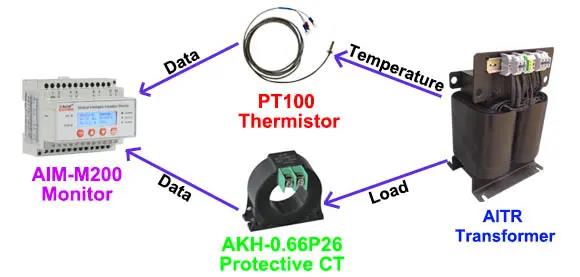

Load&Temperature monitoring for Insulation Transformer
● Thermistor: PT100
● Temperature Measuring Range: -50℃~+200℃
● Residual Current Measuring Range: 2.1~50A
● Accuracy: 5%
Prompt Alarm with Relay Output and LED Indicator once Insulation Fault&IT System Devices Disconnection happened
● Response Time:<2s

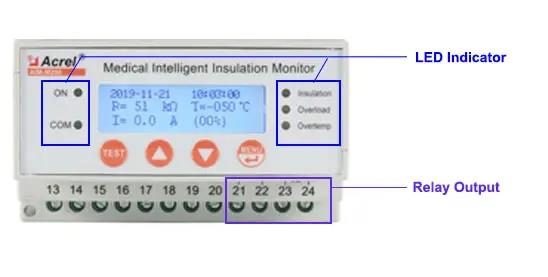

● LED Indicator：Insulation Fault&Overload&Over-temperature Alarm; Connected Device status (on-off)
● Alarm Relay Output: 2 relay output (non-programmable)

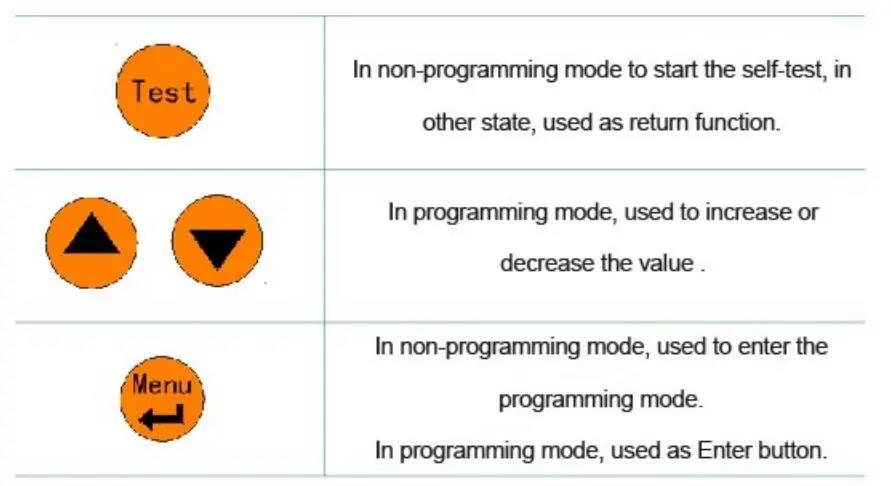

Smart HMI for convenient Parameters&Alarm Setting and Self-test
● Alarm Threshold Value Setting
● Response Time setting
● Self Test
|
Parameters/Model |
AIM-M10 |
AIM-M100 |
AIM-M200 |
|
|
Auxiliary power |
Voltage |
AC220V(±10%) |
DC24V(±25%) |
|
|
Frequency |
50/60Hz |
— |
||
|
Power consumption |
<5VA |
< 8VA |
<3VA |
|
|
Insulation monitoring |
Insulation resistance measurement range |
10～999kΩ |
||
|
Accuracy |
0～±10% |
|||
|
Alarm value range |
50～999kΩ |
|||
|
Response time |
<2s |
|||
|
Measuring voltage |
<12V |
|||
|
Measuring current |
<50uA |
|||
|
Current Monitoring |
Measurement value |
2.1～50A |
||
|
Alarm value range |
5～50A |
|||
|
Accuracy |
5% |
|||
|
Display method |
Value display |
Percentage display |
Value and percentage display |
|
|
Temperature Monitoring |
Sensor |
PT100 |
||
|
Measuring range |
-50～+200℃ |
|||
|
Alarm value range |
0～+200℃ |
|||
|
Power output |
24VDC |
2W |
None |
|
|
Alarm Output |
Output |
1 relay |
2 relay(programmable) |
2 relay (not programmable) |
|
Contact Capacity |
AC 250V/3A DC 30V/3A |
|||
|
Communications |
1 RS485 , Modbus-RTU |
2 RS485 , Modbus-RTU |
1 RS485, Modbus-RTU |
|
|
1 CAN, custom protocol |
||||
|
Environment |
Operating temperature |
-10～+50℃ |
||
|
Storage temperature |
-20～+70℃ |
|||
|
Relative humidity |
5%-95%，No condensation |
|||
|
Altitude |
≤2500m |
|||
|
Rated impulse voltage / pollution degree |
4KV/3 |
|||
|
EMC & EMR |
IEC61326-2-4 |
|||
-
IEC of AIM-M200
-
EMC of AIM-M200
-
AIM-M200 Manual
