Acrel AID150 Alarm&Display Device
Function

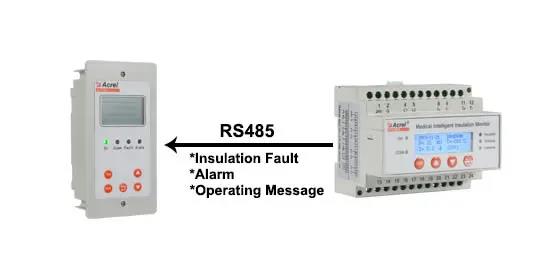

Remote Monitoring
(Duplicate data of AIM Series Insulation monitor)
● Insulation Fault
● Alarm
● Operating Message
● Through RS485 (MODBUS-RTU)

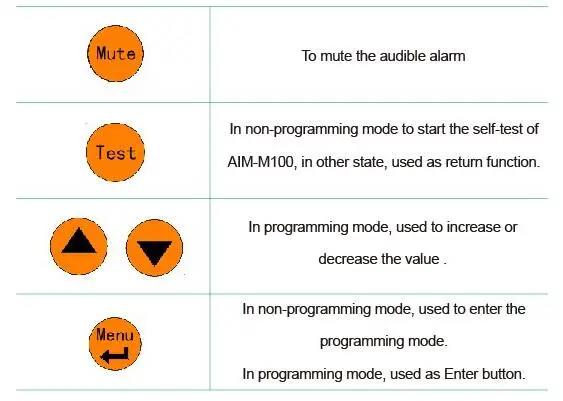

HMI Interface for remote Parameter Setting&Alarm Mute
● Set Response Time of Insulation Monitoring
● Mute Audible Alarm
Detail
|
Parameters/Model |
AID10 |
AID120 |
AID150 |
|
|
Auxiliary power |
Voltage |
DC 24V |
||
|
Power consumption |
< 0.6W |
|||
|
Insulation resistance measurement range |
— |
0—999kΩ |
— |
|
|
Insulation alarm value range |
|
50—999kΩ |
|
|
|
Transformer load rate display |
— |
Percentage display |
— |
|
|
Load current alarm settings |
14A、18A、22A、28A、35A、45A |
|||
|
Temperature alarm value range |
0~+200℃ |
|||
|
Alarm |
Audible and visible alarm |
|||
|
Alarm Type |
Insulation fault, overload, over-temperature, equipment failure |
|||
|
Communication |
RS485 interface, MODBUS-RTU protocol |
|||
|
Display method |
— |
LED Display |
128*32 LCD |
|
-
IEC of AID150
-
EMC of AID150
-
AID150 Manual
