Description

• Functions of real-time monitoring and fault alarming of the grounding insulation resistance, transformer load current and transformer winding temperature of the monitored IT system;
• Locating current injector for insulation fault location systems;
• Real-time monitor the line disconnection fault, current sensor disconnection,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
• Relay alarm output, LED alarm indication and other faults indication functions;
• Two kinds of field-bus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.
• Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.

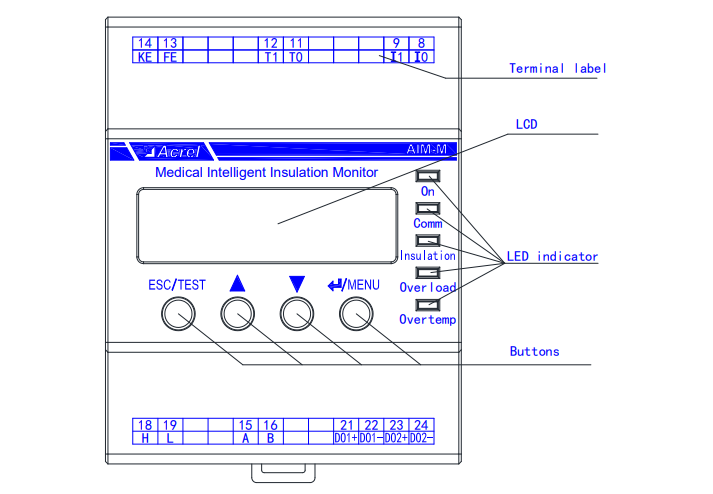

Panel Description

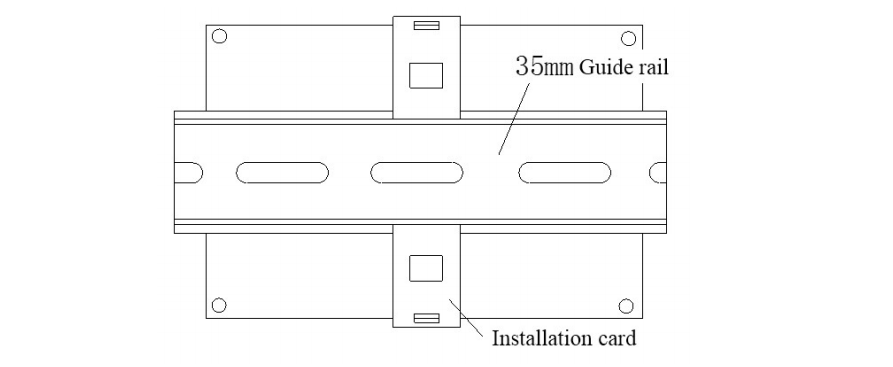

Installation

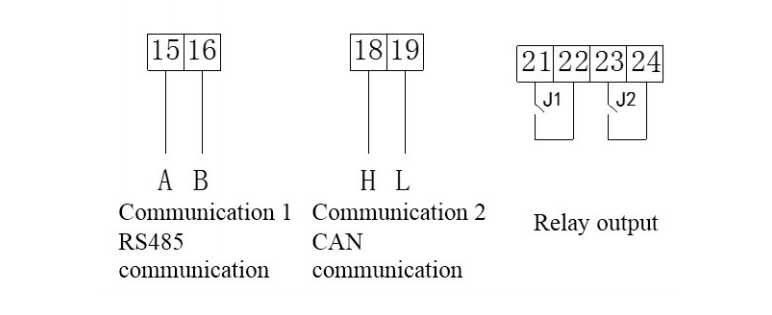

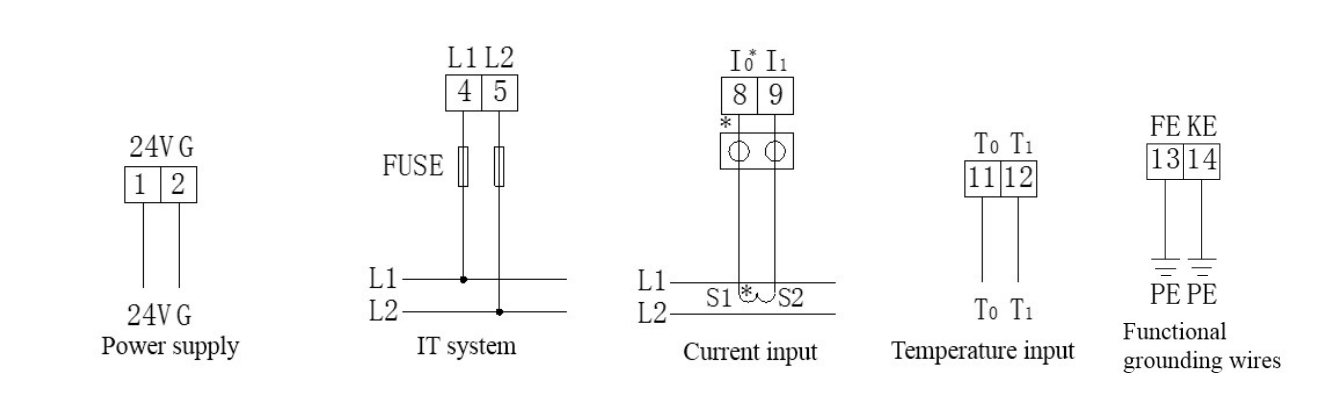

Wiring Diagram
