Acrel AIL100-8 Insulation Fault Locator
Features
Function
Insulation Fault Location for IT Power System
● Location Current: <1mA
● Location Voltage: <25V

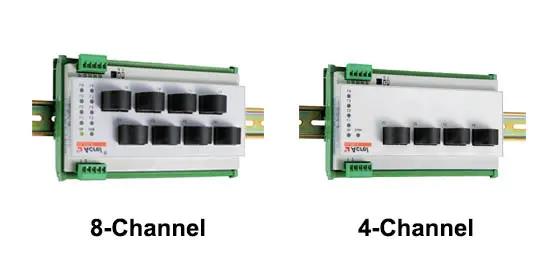

Selectable Number of Location Channel
● AIL100-4&AIL150-4 (4 channel)
● AIL100-8&AIL150-8 (8 channel)

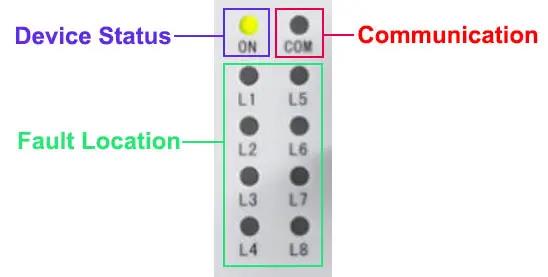

LED Indicator
● Fault Location (L1~L8 for channel1~8)
● On-off (status of devices’ connection)
● Communication

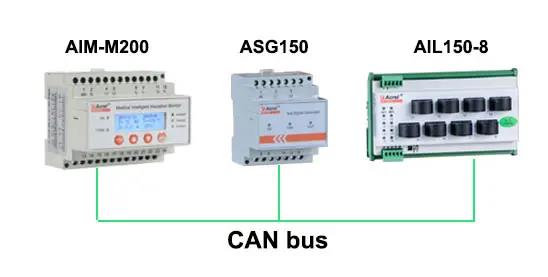

CAN bus communication
● Customized Protocol
● Support Multiple Master
|
Parameters |
Value |
||
|
|
AIL150-4 |
AIL150-8 |
|
|
Auxiliary power |
Voltage |
DC24V(±25%) |
|
|
|
Power consumption |
≤2VA |
|
|
Monitored system |
Rated voltage |
0~242V AC |
|
|
|
Frequency |
45 ~ 60Hz |
|
|
Location signals |
Location voltage |
<25V |
|
|
|
Location current |
<1mA |
|
|
Fault location |
The maximum number of loops |
4 |
8 |
|
|
Response time |
<2s |
|
|
Communications |
Bus |
CAN |
|
|
|
Protocol |
Custom protocol |
|
-
IEC of AIL100
-
EMC of AIL100
-
AIL100 Manual
