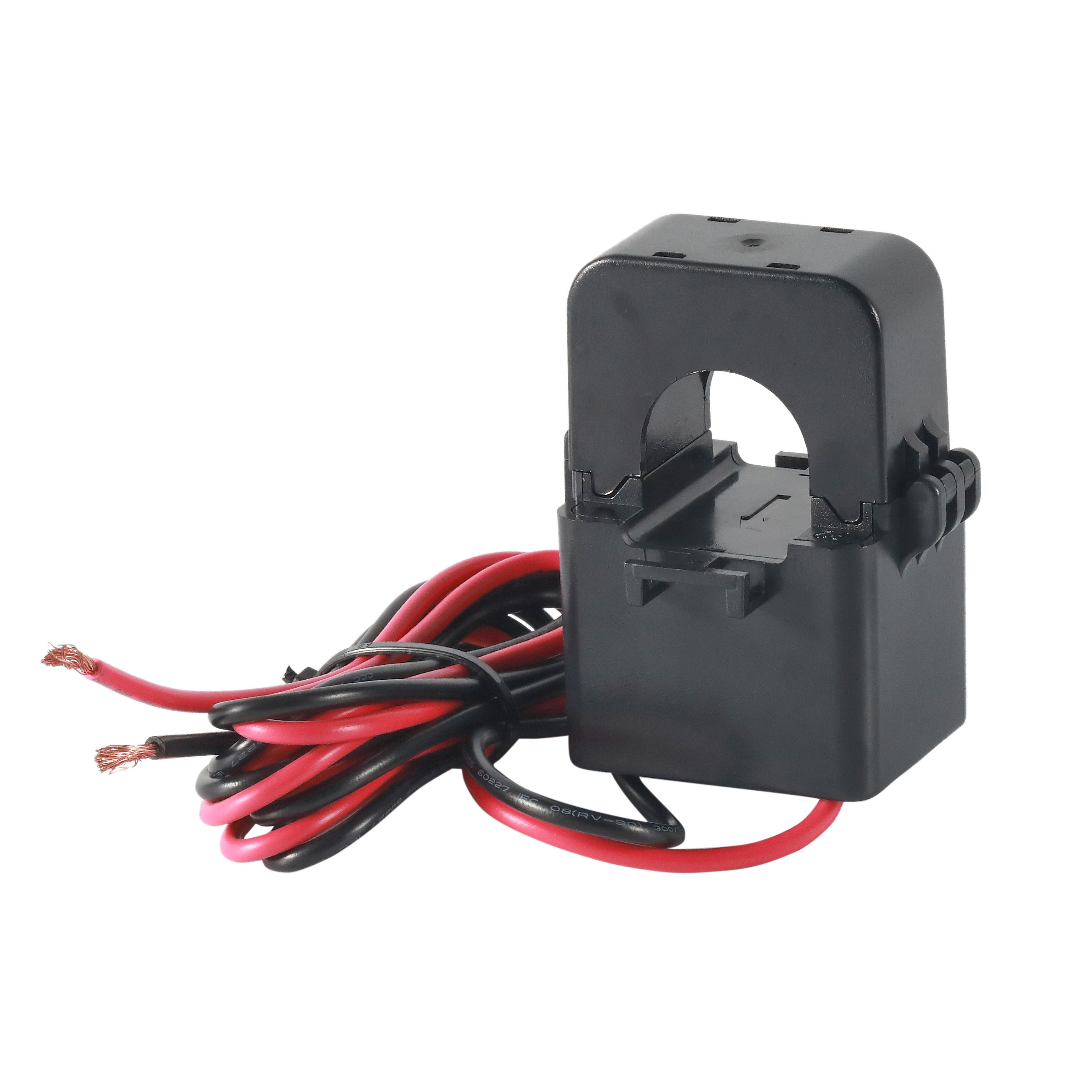

Acrel AKH-0.66/K UL Certificate Split Core Current Transformer

Rated voltage: AC 0.66kV
Rated Frequency:50-60Hz
Environment Temperature:-30~70℃
Altitude: <3000m

008618702112136

sherry@acrel.cn

8618702112136

Acrel AKH-0.66/K UL Certificate Split Core Current Transformer

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

Dimension(unit:mm)

Model Name	Outline Size (mm)					Perforation Size (mm)		Tolerance (mm)
Model Name	W	H	D	M	N	φ1	φ2	Tolerance (mm)
AKH-0.66/K-φ16	31	50	36	27	42	16	17	±1
AKH-0.66/K-φ24	39	71	55	36	52	24	23	±1

Installation Instruction

Work Site Application

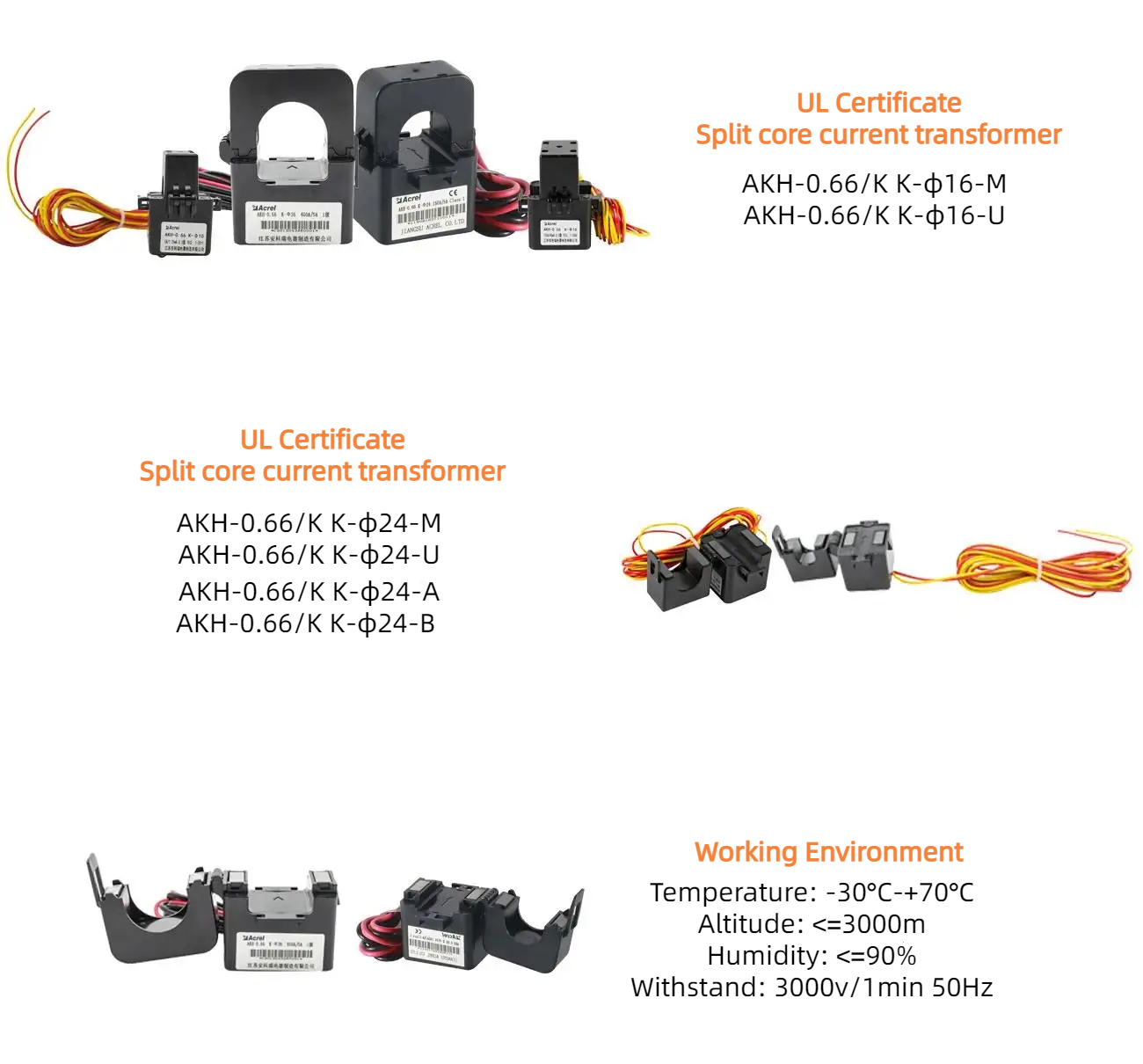

Model Choose

Model	Rated input	Rated output	Accuracy		Perforation Hole Size (mm)	Withstand voltage
			Class 0.5	Class 1
AKH-0.66/K-Φ16-M	20-120A	(10-50)mA	10Ω		16	3KV
AKH-0.66/K-Φ16-U		(100-333)mV	10Ω
AKH-0.66/K-Φ24-M	(100-400)A	(20-100)mA	10		24
AKH-0.66/K-Φ24-U		(100-333)mV	10
AKH-0.66/K-Φ24-A	(150-200)A	5A		1
	(250-300)A			1.5
AKH-0.66/K-Φ24-B	(150-200)A	1A		1
	(250-300)A			1.5

Download

UL of AKH-0.66
