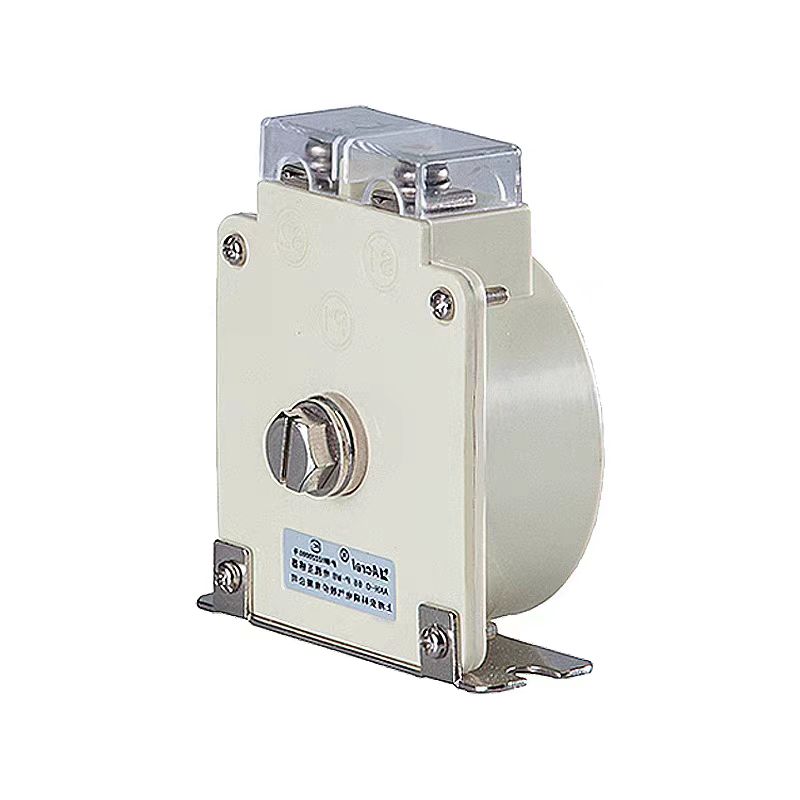

Acrel M8 Type Current Transformer
- Rated voltage: AC 0.66kV
- Rated Frequency:50-60Hz
- Environment Temperature:-30~70℃
- Altitude: <3000m
General
Primary current is small, capacity 2.5VA and below for measuring or protection, and more used for small space such as low voltage draw-out cabinet etc.

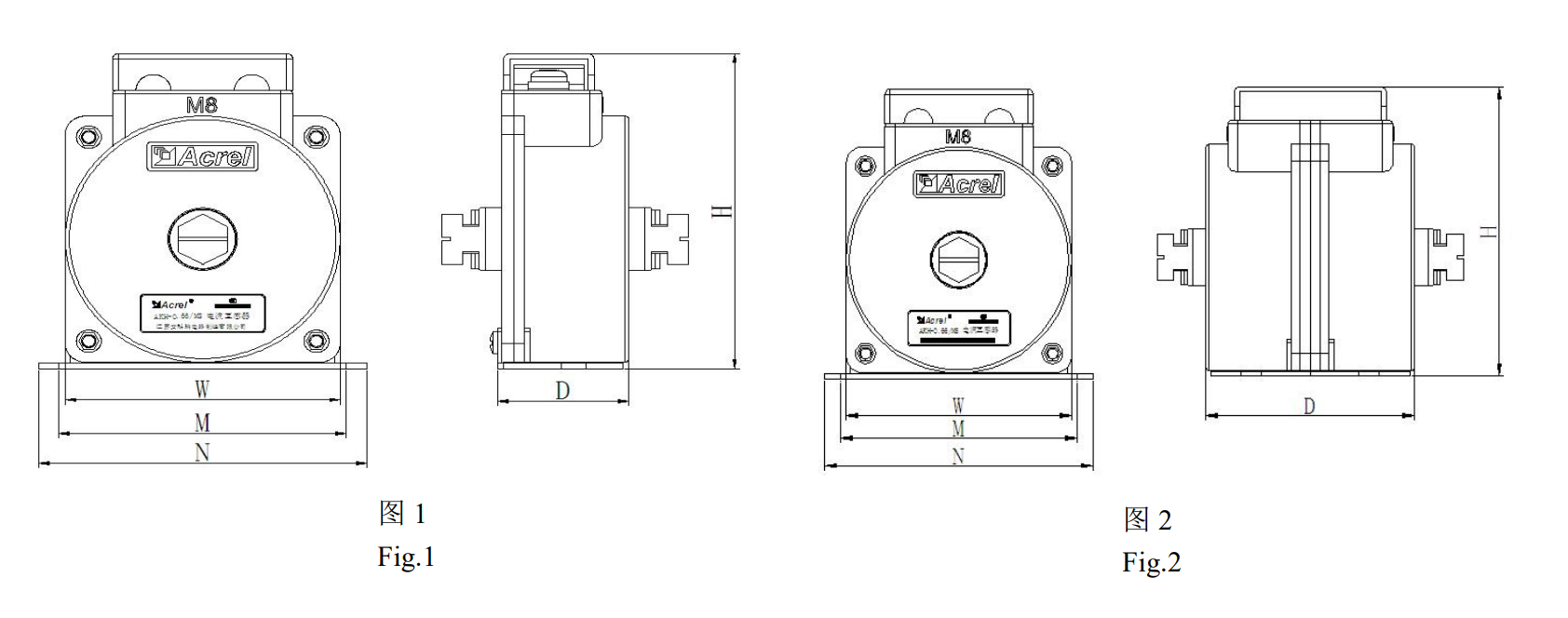

Dimension(unit:mm)
|
Type |
Outline size |
Mounting size |
Tolerance |
Figure |
|||
|
W |
H |
D |
M |
N |
|||
|
M8 |
67 |
86 |
30 |
70.8 |
80.5 |
+1 |
Fig 1 |
|
Double M8 |
67 |
86 |
56 |
70.8 |
80.5 |
Fig 2 |
|

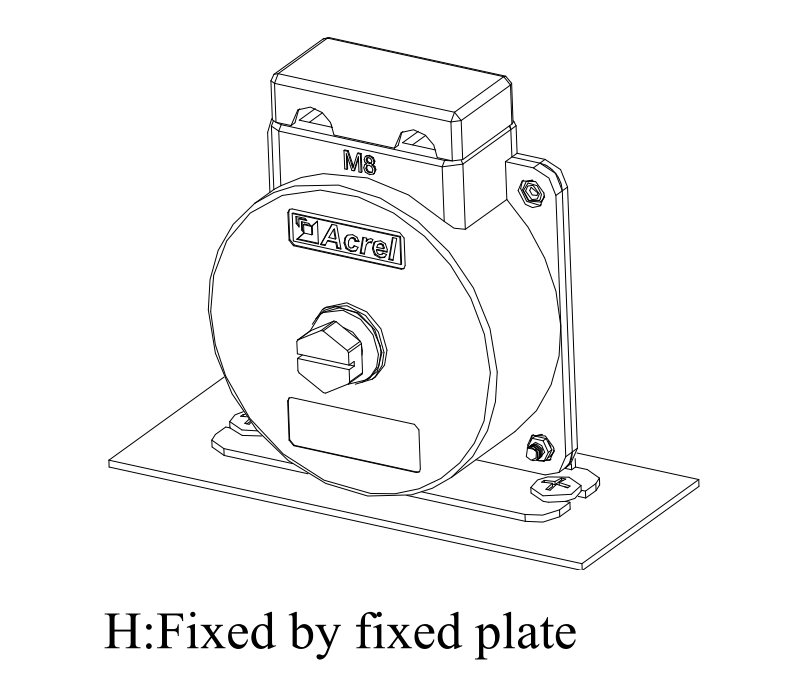

Installation
- Rated operation voltage AC 0.66kV
- Rated frequency 50-60Hz l
- Ambient air temperature -30℃-70℃ l
- Height above sea level≤3000m l
- Power frequency withstand voltage 3000v/1min 50Hz l
- Used in place without direct rain and snow,without severe pollution and acute shock
|
Specific ation |
ratio（A） |
Precision degree and corresponding rated load (VA) |
Straight-through tums |
Installation |
||||
|
0.2s |
0.5s |
0.2 |
0.5 |
1 |
||||
|
M8 |
5-100/5(1) |
|
|
|
1.5 |
2.5 |
Direct |
H |
|
Double M8 |
5-100/5 |
1.5 |
1.5 |
1.5 |
|
|
||
-
CE of AKH-0.66
-
AKH-0.66 Manual
