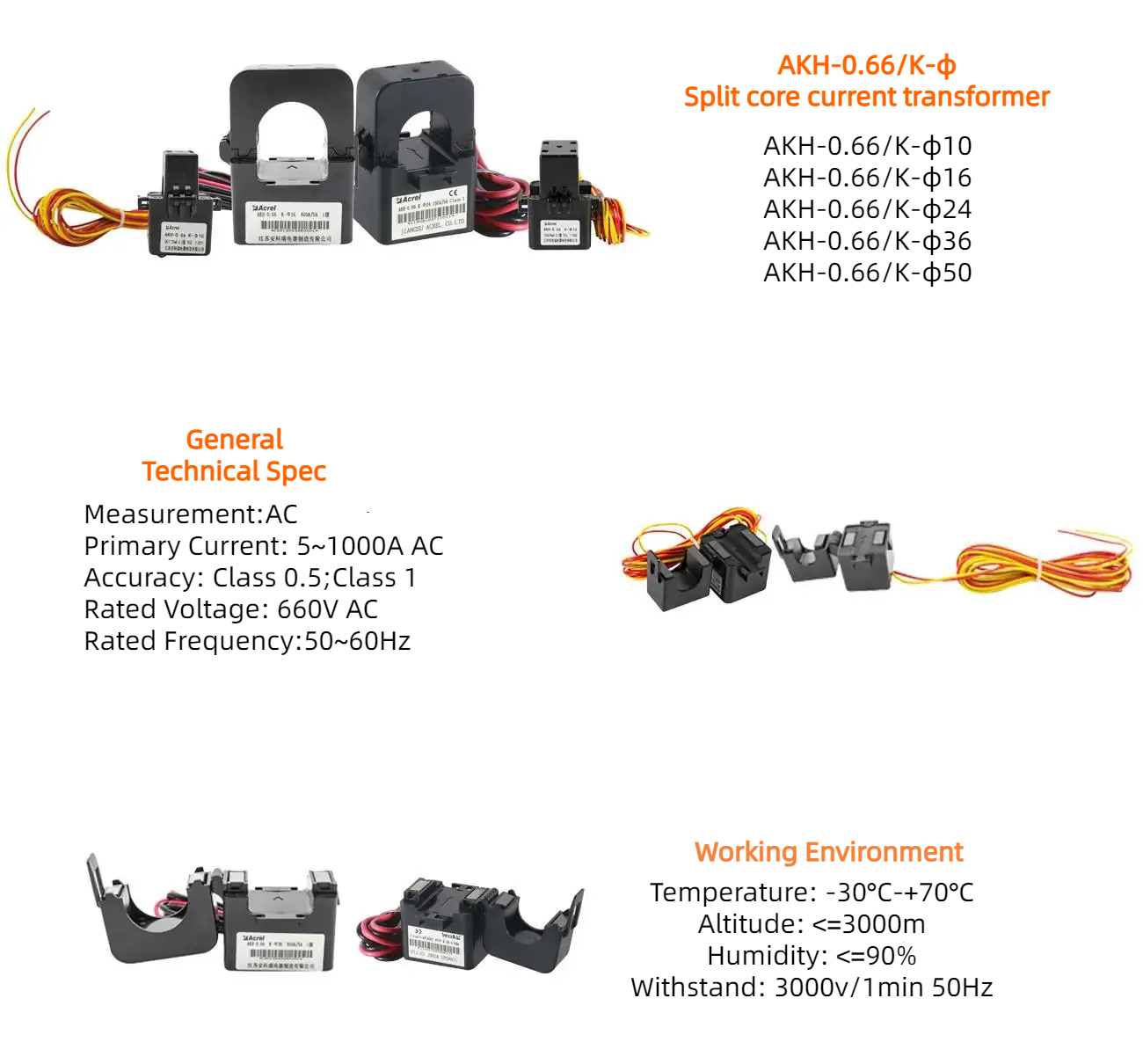

Acrel AKH-0.66/K Split Core Current Transformer Low Voltage

Rated voltage: AC 0.66kV
Rated Frequency:50-60Hz
Environment Temperature:-30~70℃
Altitude: <3000m

008618702112136

sherry@acrel.cn

8618702112136

Acrel AKH-0.66/K Split Core Current Transformer Low Voltage

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Desrciption

General

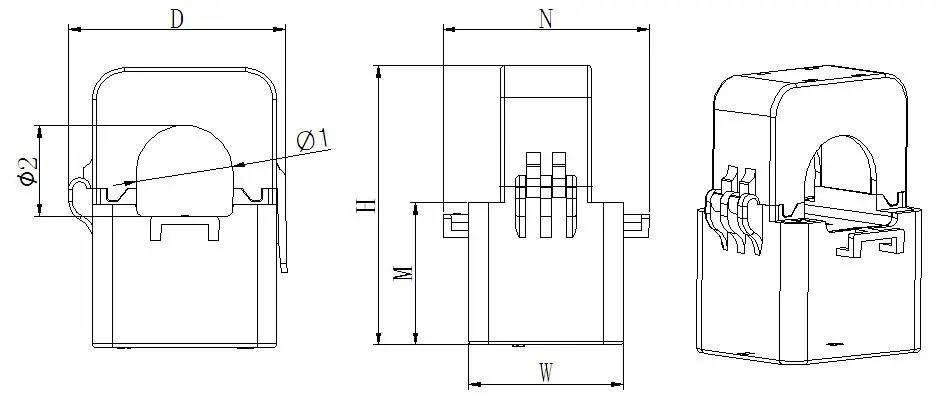

Dimension(unit:mm)

Model Name	Outline Size (mm)					Perforation Size (mm)		Tolerance (mm)
Model Name	W	H	D	M	N	φ1	φ2	Tolerance (mm)
AKH-0.66/K-φ10	27	40	26	24	36	10	9	±1
AKH-0.66/K-φ16	31	50	29	28	42	16	17
AKH-0.66/K-φ24	39	71	46	36	52	24	23.5
AKH-0.66/K-φ36	42.5	82	58	40	56	33.5	35
AKH-0.66/K-φ50	46.5	110	90	54	66.5	47	52

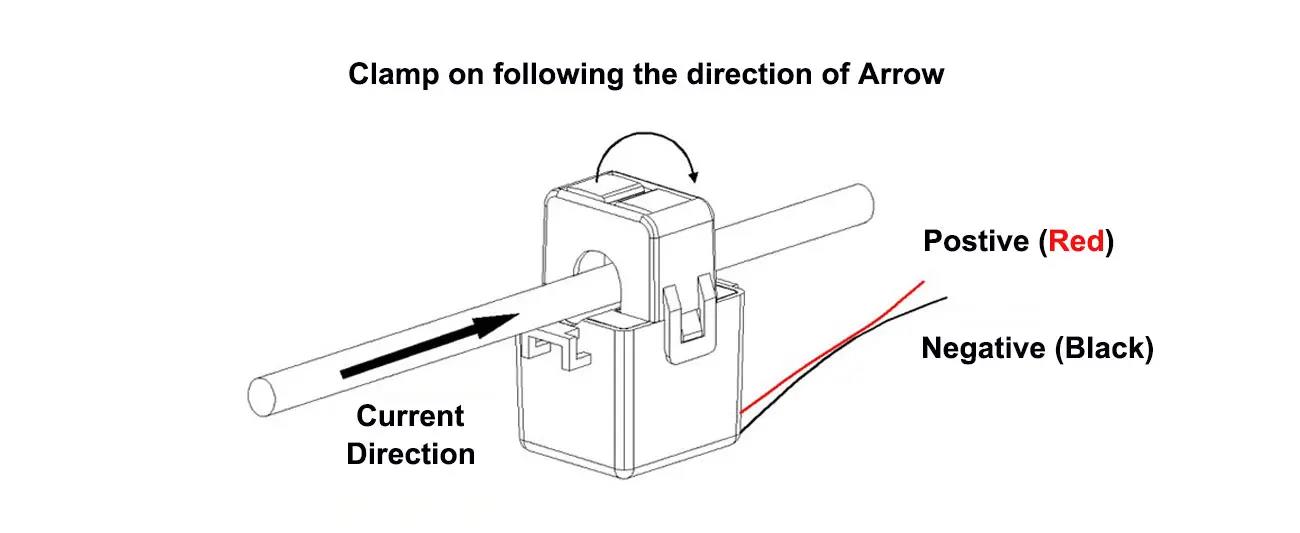

Installation Instruction

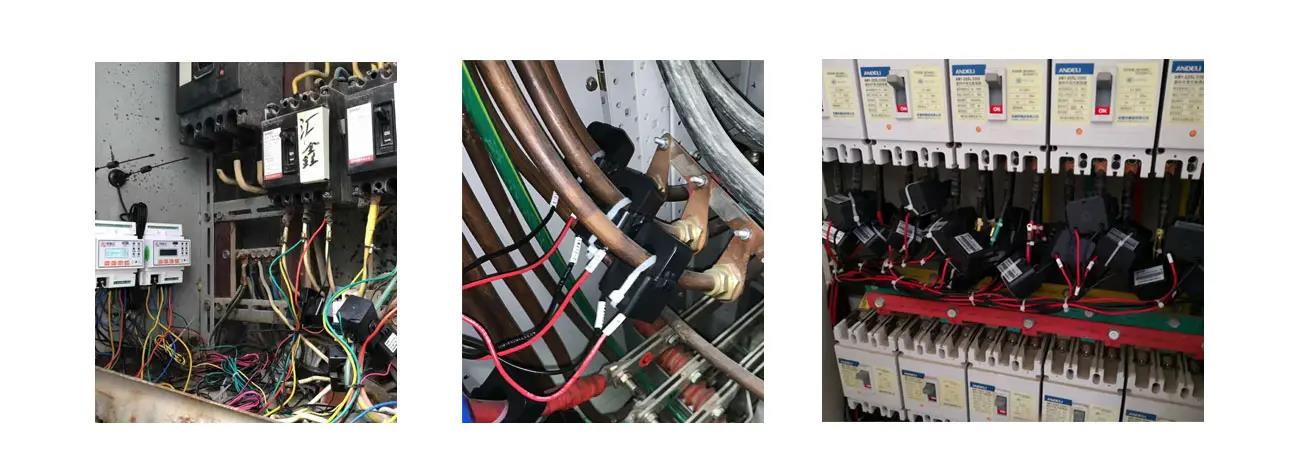

Work Site Application

Technical Parameter

Model Name	Current Ratio (Primary/Secondary)	Accuracy Class	Rated Load (VA)	Perforation Hole Size (mm)
AKH-0.66/K-φ10	5A/1.25mA	0.5	10	φ10
	(10~20)A/5mA
	(40~60)A/20mA
AKH-0.66/K-φ16	(20~50)A/10mA			φ16
	(40~100)A/20mA
	100A/40mA
AKH-0.66/K-φ24	(60~200)A/20mA			φ24
	(100~250)A/40mA
	400A/100mA
AKH-0.66/K-φ36	(100~200)A/10mA			φ36
	(200~400)A/20mA
	(300~600)A/100mA
	400A/40mA
	600A/75mA
AKH-0.66/K-φ50	(600~800)A/100mA			φ50

Model Name	Current Ratio (Primary/Secondary)	Accuracy Class	Rated Load (VA)	Perforation Hole Size (mm)
AKH-0.66/K-φ24	150-200/5(1)	1	1	φ24
	250-300/5(1)		1.5
AKH-0.66/K-φ36	300-400/5(1)			Φ36
	500-600/5(1)	0.5
AKH-0.66/K-φ50	600-700/5(1)		2.5	Φ50
	800-900/5(1)		5
	1000/5(1)		10

Download

CE of AKH-0.66
AKH-0.66 K Split core CTs Manual
