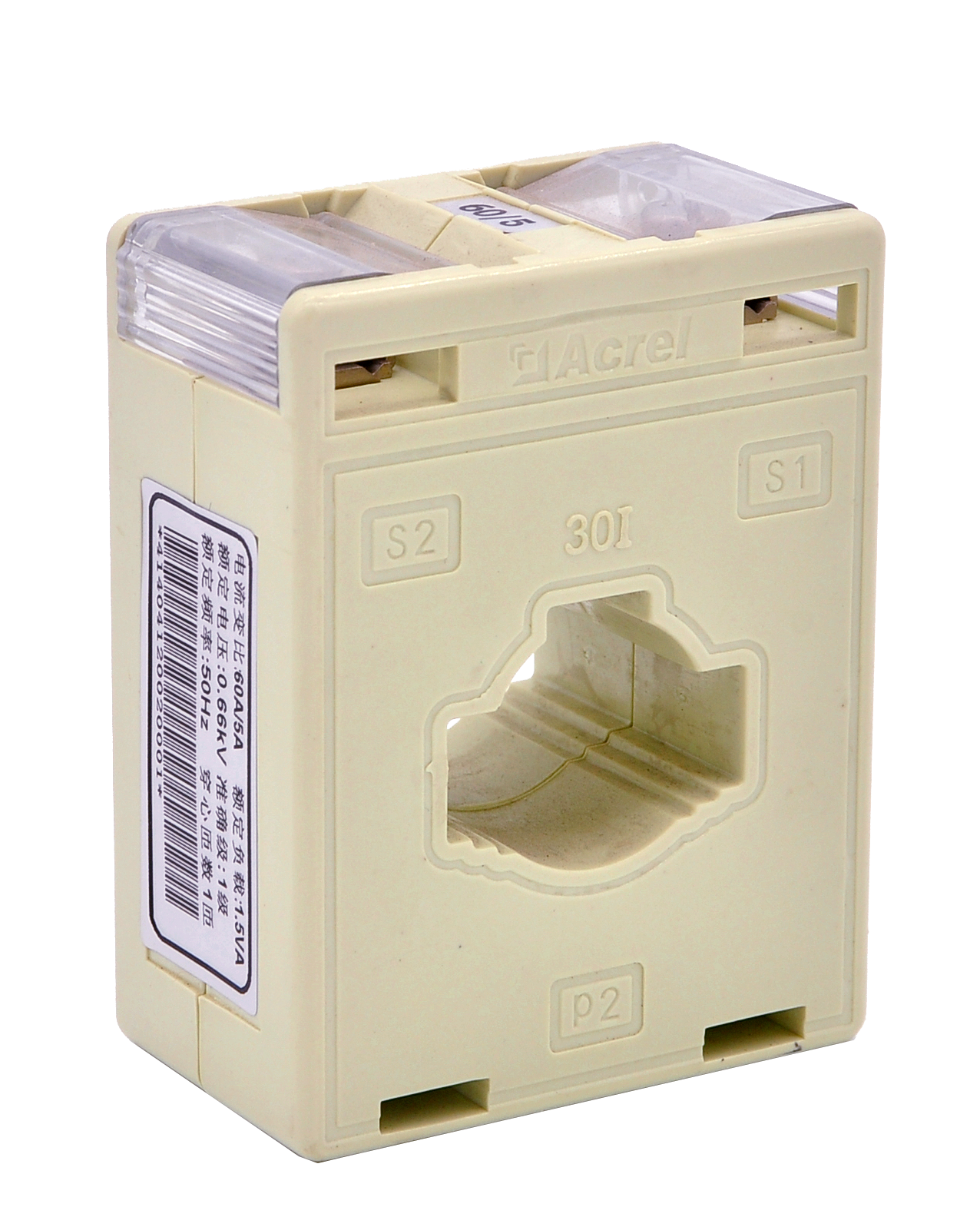

Acrel AKH-0.66-I Closed Type Measuring Current Transformer
- Rated voltage: AC 0.66kV
- Rated Frequency:50-60Hz
- Environment Temperature:-30~70℃
- Altitude: <3000m

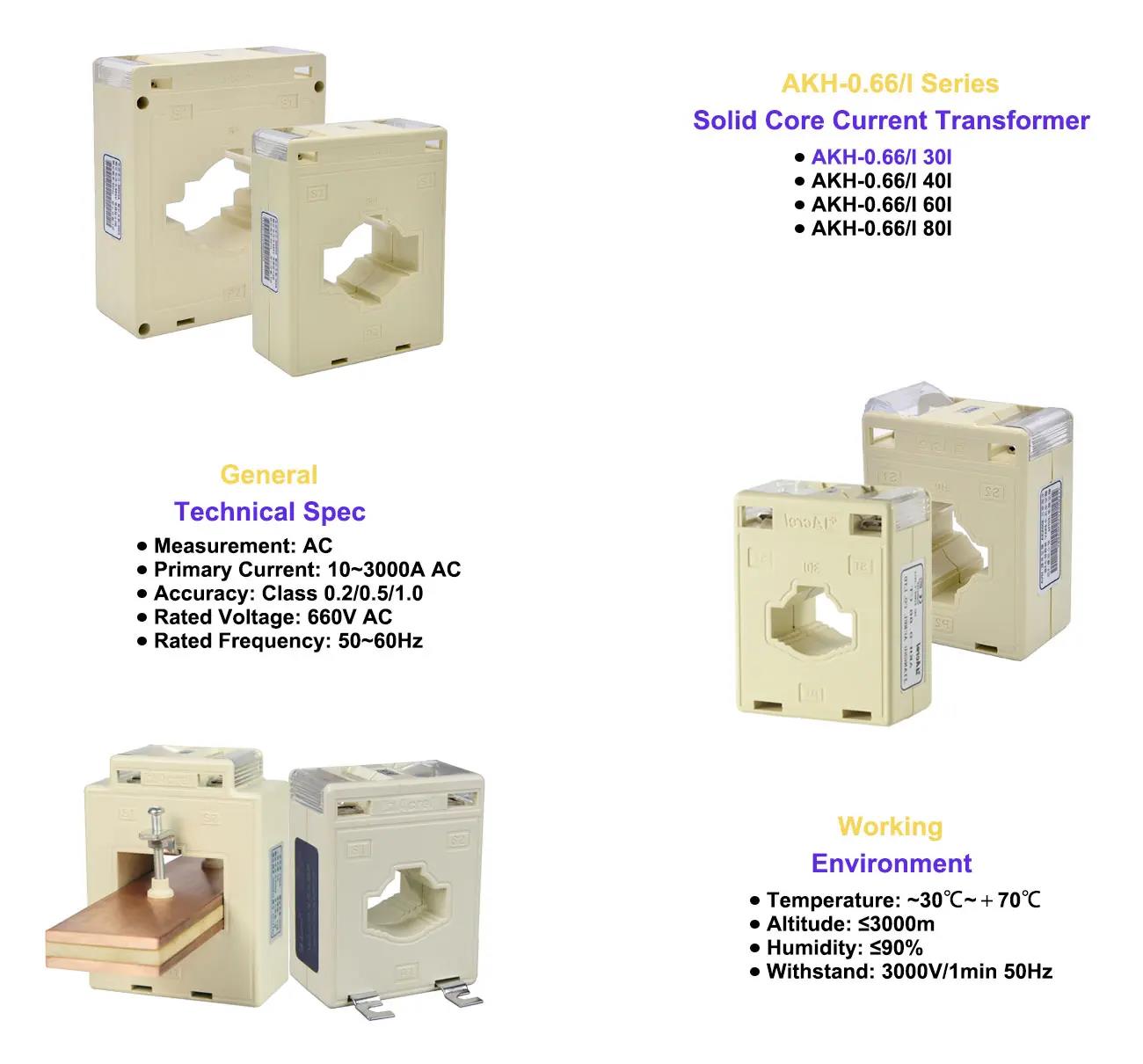

General

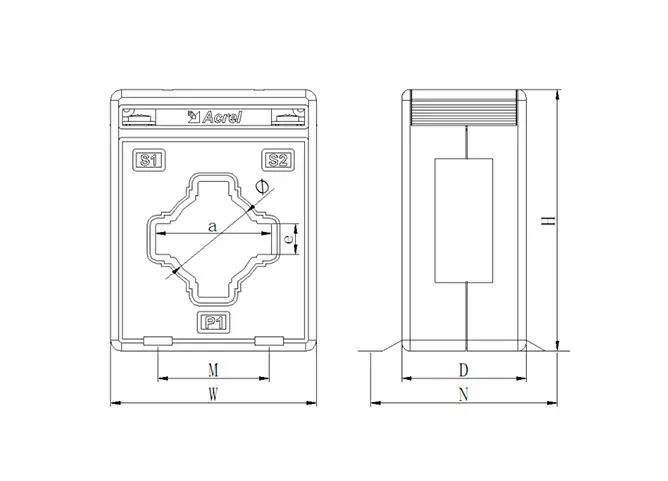

Dimension(unit:mm)
|
Model Name |
Outline Size (mm) |
Perforation Size (mm) |
Installation Size (mm) |
Tolerance (mm) |
|||||
|
W |
H |
D |
a |
e |
Φ |
M |
N |
||
|
AKH-0.66/I 30I |
60 |
78 |
36 |
31 |
11 |
23 |
34 |
57.5 |
±1 |
|
AKH-0.66/I 40I |
75 |
95 |
45 |
42 |
11 |
31 |
40 |
57.5 |
|
|
AKH-0.66/I 60I |
102 |
130 |
45 |
61.5 |
21 |
45 |
42 |
57.5 |
|
|
AKH-0.66/I 80I |
118 |
140 |
45 |
82 |
11 |
52 |
60 |
57.5 |
|
Installation Instruction

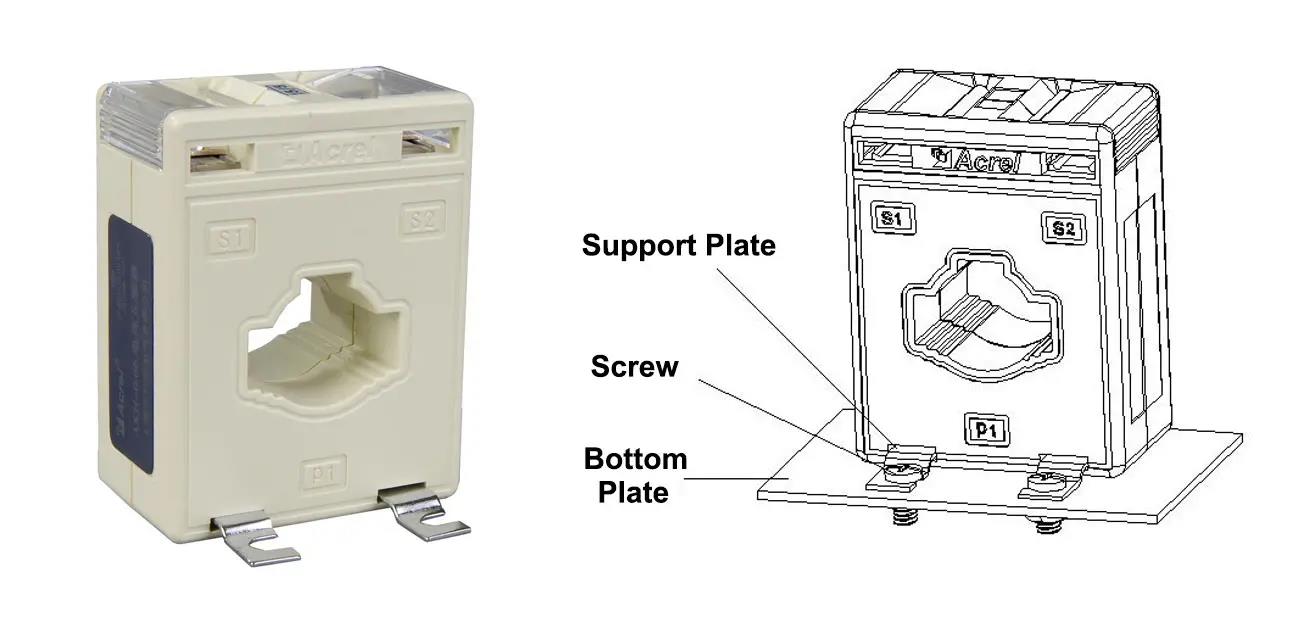

Fixed by Sheet Metal

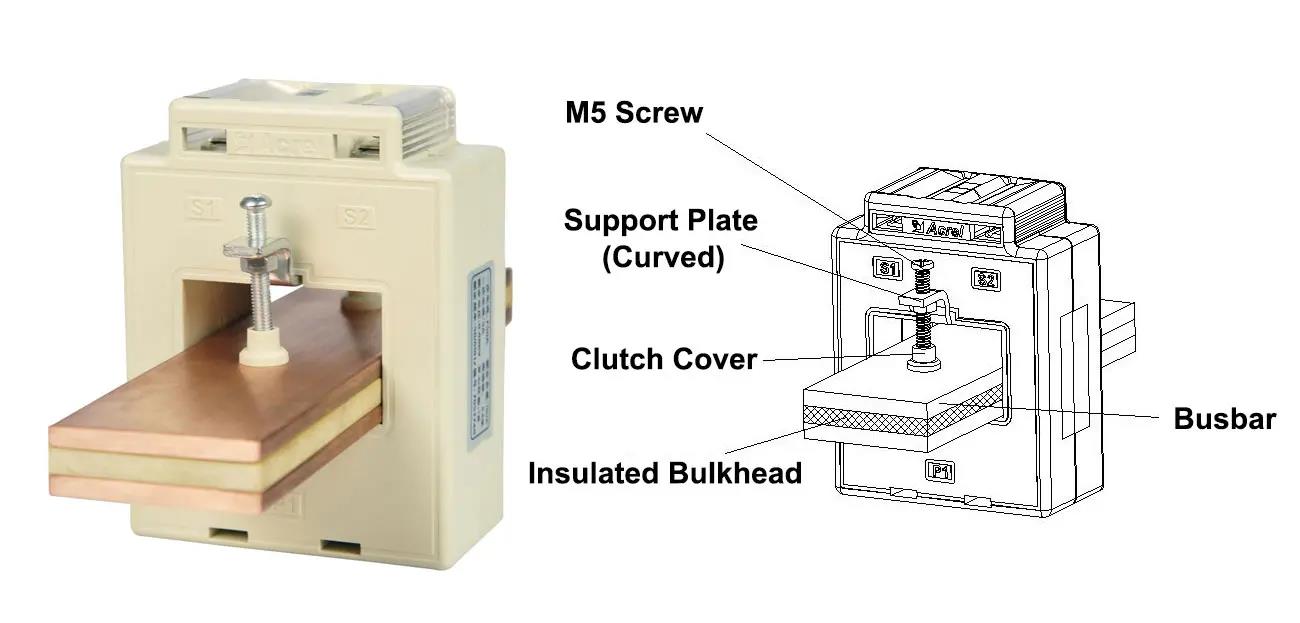

Fixed by Clutch Cover (with curved Support Plate)

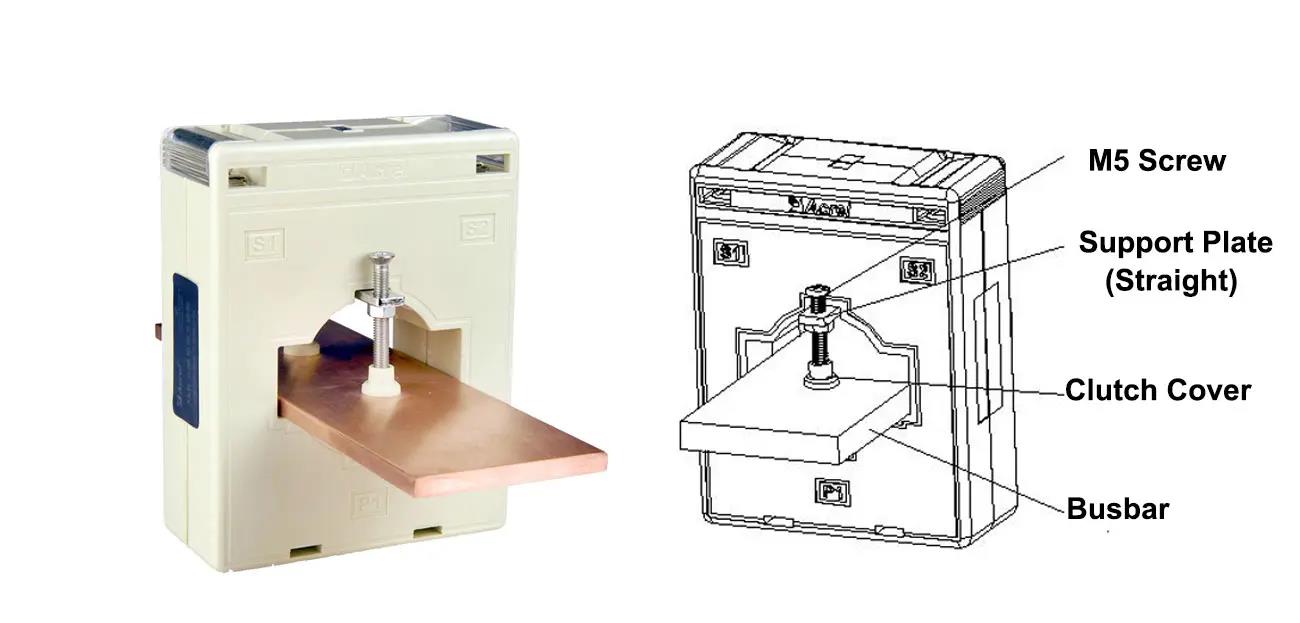

Fixed by Clutch Cover (with straight Support Plate)

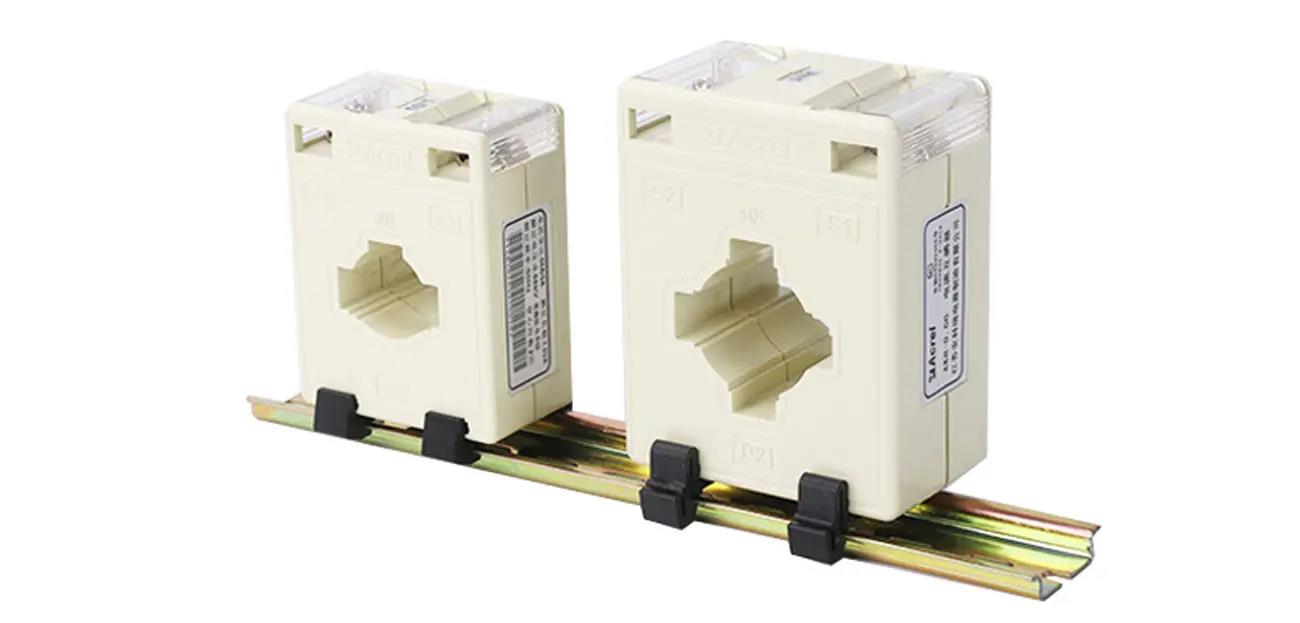

Installed on 35mm Standard DIN Rail

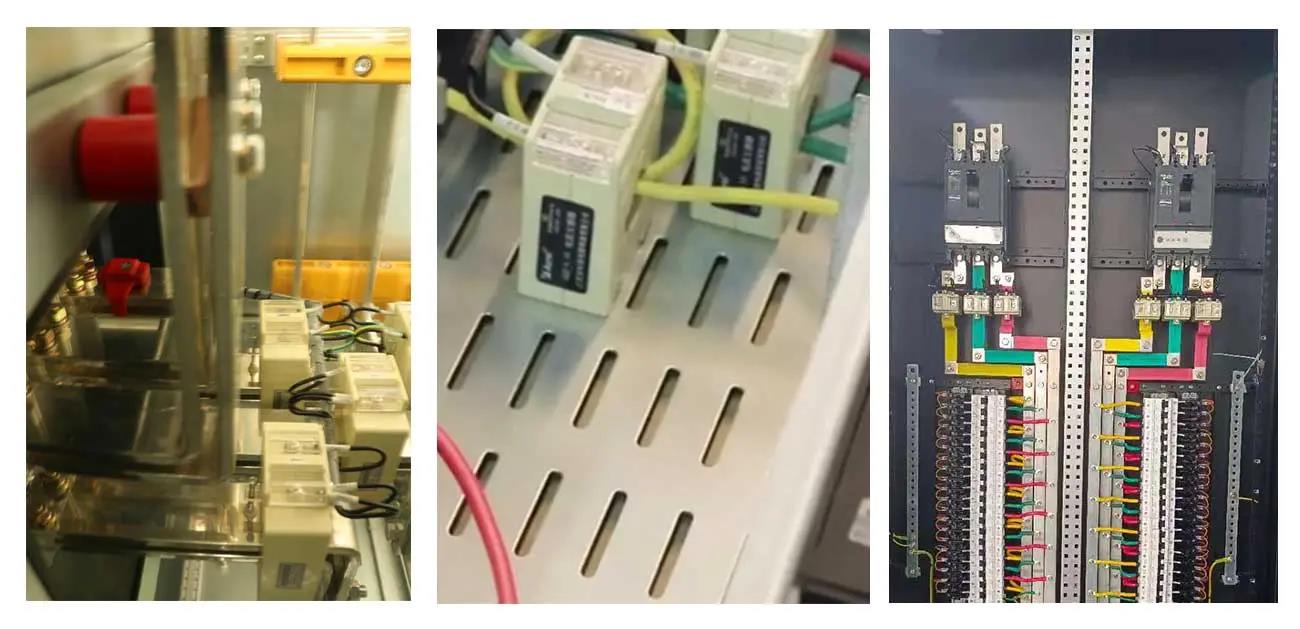

Work Site Application
|
Model Name |
Current Ratio (A) (Primary/Secondary) |
Accuracy Class and Rated Load (VA) |
Loop Count of Cable |
Perforation Size(mm) /Pieces of Busbar |
||
|
Class 0.2 |
Class 0.5 |
Class 1.0 |
||||
|
|
15/5(1) |
|
|
1.5 |
5 |
|
|
20/5(1) |
|
|
1.5 |
4 |
||
|
25~30/5(1) |
|
|
1.5 |
3 |
||
|
40~60/5(1) |
|
|
1.5 |
2 |
||
|
75~100/5(1) |
|
|
1.5 |
1 |
|
|
|
100/5(1) |
|
1.5 |
|
1 |
||
|
150~200/5(1) |
|
2.5 |
|
1 |
||
|
250/5(1) |
|
3.75 |
|
1 |
||
|
300~450/5(1) |
|
5 |
|
1 |
||
|
500/5(1) |
|
10 |
|
1 |
||
|
600/5(1) |
|
10 |
|
1 |
||
|
|
10/5(1) |
|
|
1.5 |
10 |
|
|
15/5(1) |
|
|
1.5 |
8 |
||
|
20/5(1) |
|
|
1.5 |
5 |
||
|
25~30/5(1) |
|
|
1.5 |
4 |
||
|
40/5(1) |
|
|
1.5 |
3 |
||
|
50~75/5(1) |
|
|
1.5 |
2 |
||
|
100/5(1) |
|
|
1.5 |
1 |
|
|
|
150/5(1) |
|
|
2.5 |
1 |
||
|
200/5(1) |
|
2.5 |
|
1 |
||
|
250/5(1) |
|
3.75 |
|
1 |
||
|
300~450/5(1) |
|
5 |
|
1 |
||
|
500~800/5(1) |
|
10 |
|
1 |
||
|
1000/5(1) |
10 |
|
|
1 |
||
|
|
150/5(1) |
|
|
2.5 |
1 |
|
|
200/5(1) |
|
2.5 |
|
1 |
||
|
250/5(1) |
|
3.75 |
|
1 |
||
|
300~450/5(1) |
|
5 |
|
1 |
||
|
500~800/5(1) |
|
10 |
|
1 |
||
|
1000~1250/5(1) |
10 |
|
|
1 |
||
|
1500~2000/5(1) |
20 |
|
|
1 |
||
|
2500/5(1) |
30 |
|
|
1 |
||
|
|
150/5(1) |
|
|
2.5 |
1 |
|
|
200~250/5(1) |
|
2.5 |
|
1 |
||
|
300~450/5(1) |
|
5 |
|
1 |
||
|
500~800/5(1) |
|
10 |
|
1 |
||
|
1000/1250/5(1) |
10 |
|
|
1 |
||
|
1500~2000/5(1) |
20 |
|
|
1 |
||
|
2500~3000/5(1) |
30 |
|
|
1 |
||
-
CE of AKH-0.66
-
REACH of AKH-0.66
-
RoHs of AKH-0.66
-
AKH-0.66 Series Manual
