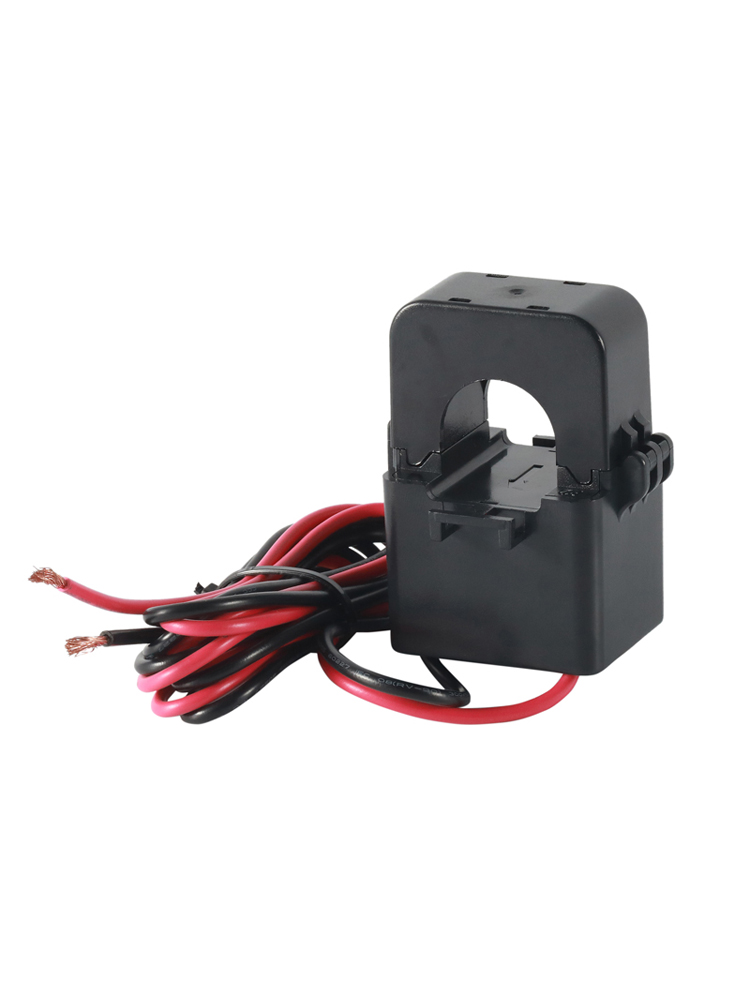

Acrel AKH-0.66K-ΦN mA Output Current Transformer Split Core for Cable
- Split core current transformer
- Accuracy: class 0.5
- Suitable for electricity renovation project
.JPG)
General
The appearance is nice and the installation and wiring are convenient. AKH-0.66/K-ΦN split current transformers are mainly used in reconstructing projects of urban and rural power grids. Product has the advantages of small size, high accuracy, strong load capacity, easy installation, etc. It can be used with energy meter.
Dimension(unit:mm)
|
Model Name |
Outline Size (mm) |
Perforation Size (mm) |
Tolerance (mm) |
|||||
|
W |
H |
D |
M |
N |
φ1 |
φ2 |
||
|
AKH-0.66/K-φ10N |
27 |
44 |
32 |
25 |
36 |
10 |
9 |
±1 |
|
AKH-0.66/K-φ16N |
31 |
50 |
36 |
27 |
42 |
16 |
17 |
|
|
AKH-0.66/K-φ24N |
39 |
71 |
46 |
36 |
52 |
24 |
23.5 |
|
|
AKH-0.66/K-φ36N |
42.5 |
82 |
58 |
40 |
56 |
33.5 |
35 |
|
Installation Instruction
Work Site Application
-
CE of AKH-0.66
