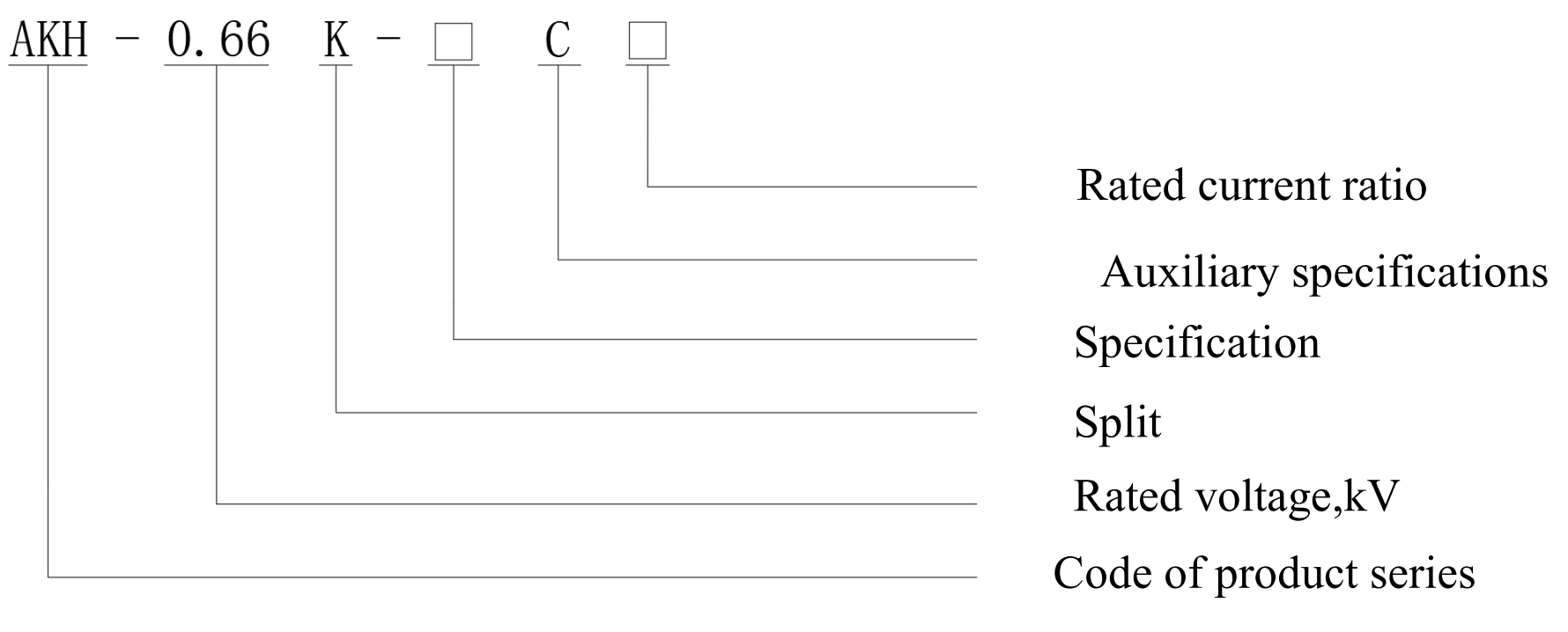

AKH-0.66 K-Φ24C 200A/40mA Split current transformer
· Convenient installation
· 200A/40mACurrent radio
· Beautiful appearance
· Easy to transformation
· High accuracy
The product has a beautiful appearance, easy installation and wiring, and is mainly used for power operation and maintenance projects as well as electrical renovation projects. It generally outputs small current signals and has the advantages of small size, high accuracy, strong load capacity, and easy installation. It can be used in conjunction with AMC16 multi circuit monitoring instruments.
· Rated operation voltage AC 0.66kV
· Rated frequency 50-60Hz
· Ambient air temperature -30℃-70℃
· Height above sea level≤3000m
· Power frequency withstand voltage 3000v/1min 50Hz
· Used in place without direct rain and snow,without severe pollution and acute shock
|
Specification |
Rated current ratio |
Precision degree and corresponding rated load |
Straight-through tums |

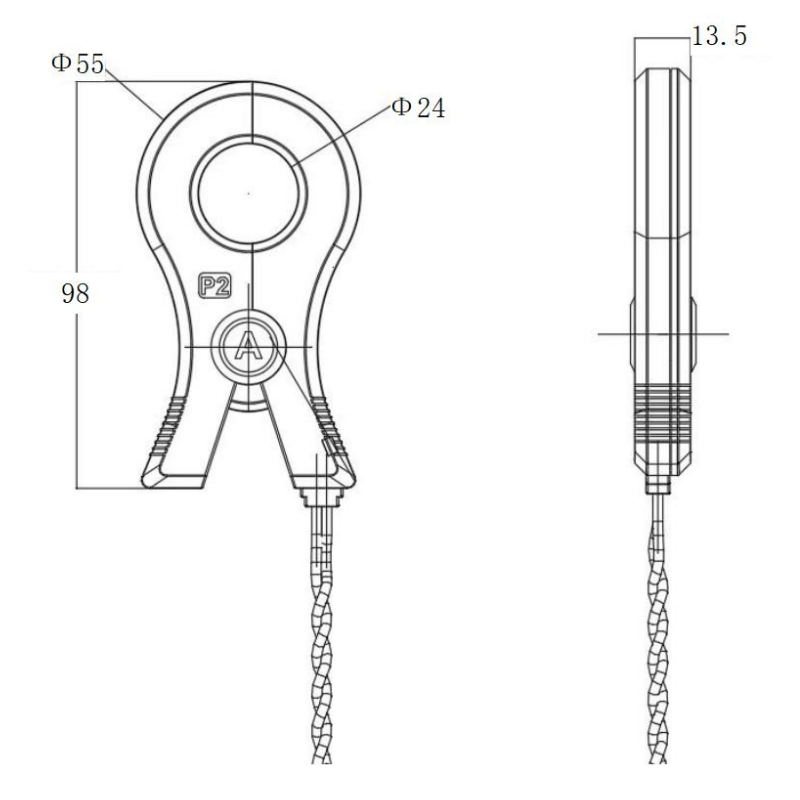

Max.cable outer diameter (mm) |
|
0.5 |
||||
|
K-Φ24C |
200A/40mA |
10Ω |
1 |
Φ24 |
-
Manual of AKH-0.66K-Φ24C200A-40mA Split current transformer.pdf .pdf
