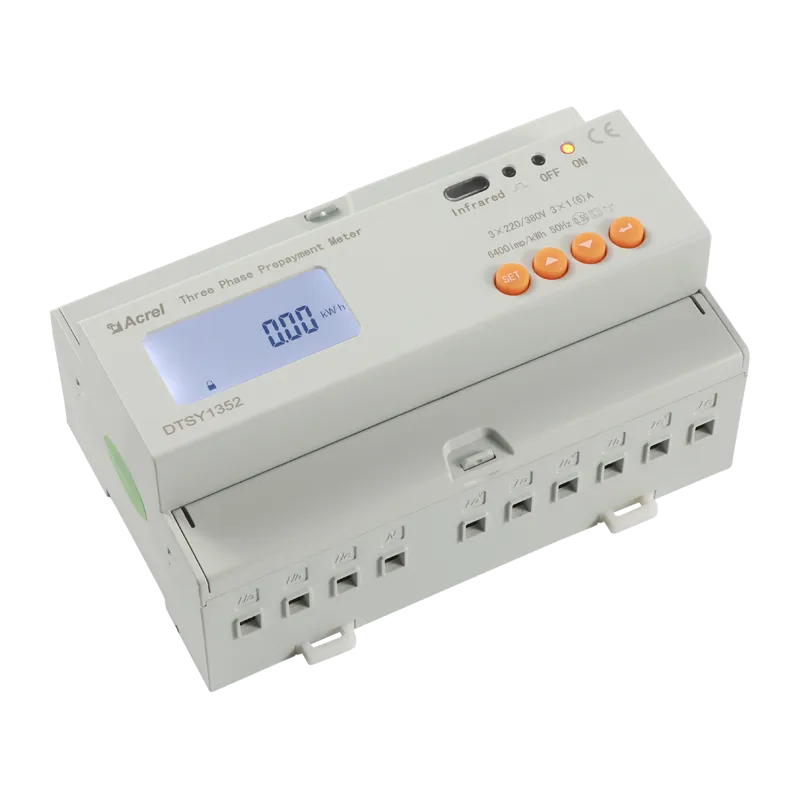

Acrel DTSY 3 Phase Prepaid electricity meter

AC 3X220/380V,3X380V,3X220V

3X1(6)A via CTs，3X10(80)A

kWh Class 0.5; kVarh Class 2

LCD Display; Din 35MM; Modbus-RTU(RS485)

008618702112136

sherry@acrel.cn

8618702112136

Acrel DTSY 3 Phase Prepaid electricity meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

DTSY1352-NK Prepaid energy meter

DTSY1352-NK is a new type of prepaid energy meter integrating measurement and control.

It supports radio frequency recharge and remote recharge, and has multiple control modes such as prepaid control,

time control, and vicious load control.

It is mainly used for charge management of merchants such as commercial complexes and large trade markets.

Wiring Illustration

Specification

item	value
Place of Origin	China
Brand Name	Acrel
Model Number	DTSY1352-NK
Display Type	Analog and Digital
Phase	Three Phase
Measuring Energy Range	0-99999kwh
Accuracy Class	0.5s
Output Voltage
Operating Temperature	-20℃~55℃
Dimensions
Product name	Prepaid Electricity Meter
Communication	RS485 Port MODBUS-RTU Protocol
Optional Communication	4G WIFI NB-IoT RS485
Input Voltage	Ac 3*220/380v
Input current	3x1(6A), 3x10(80)A

Technical parameters

Function

Measurement of kWh	kWh (positive and negative)
	kvarh (positive and negative)
	A, B, C phase positive kWh
Measurement of electrical parameters	U、I、P、Q、S、PF、Hz
Measurement of harmonic (optional)	2~31ST Voltage and current harmonic
LCD Display	8 digits
Key	4 keys
LED alarm	voltage loss and over voltage
Switch I/O (optional)	Active switch input
Switch I/O (optional)	Switch output
Data (optional)	Maximum demanded kWh and time happened
	Frozen data on last 48 months, last 90days
	Date, time
Communication	Infrared
Communication	RS485, MODBUS-RTU (optional)
Temperature measurement (optional)	Support 3 outlay NTC temperature

Electric performance

Voltage	Nominal voltage	3×100V、 3×380V、 3×57.7/100V、 3×220/380V
	Consumption	<10VA(Single phase)
	Impedance	>2MΩ
	Accuracy	±0.2%
Current	Accuracy	±0.2%
	Maximum current	80A,6A
	Consumption	<1VA
Frequency	range	45～65Hz
Frequency	accuracy	±0.2%
Energy accuracy	Active energy	Class 0.5s
Energy accuracy	reactive energy	Class 2
Clock	accuracy	≤0.5s/d
Active Pulse	Width	80±20ms
	constant	6400imp/kWh,400imp/kWh
	constant	(Correspond with the basic current)
Communication	Interface	RS485
Communication	Protocol	MODBUS-RTU
