Acrel AIM-D100-CA DC0-1000V din rail LED indication insulation monitor

Auxiliary power supply: DC9~36V

Voltage monitoring range: DC0~1000V

Insulation resistance monitoring range:1kΩ~10MΩ

Insulation alarming range:10kΩ~10MΩ

Insulation monitoring mode:Triggered by RS485 Comms

Accuracy: Class 0.5

Communication: RS485(Modbus-RTU)

Installation: Wall-mounted or din rail

Extra current monitoring:1-channel DC current metering via shunt; 5% accuracy

008618702112136

sherry@acrel.cn

8618702112136

Acrel AIM-D100-CA DC0-1000V din rail LED indication insulation monitor

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

AIM-D100-CA series DC insulation monitor can be applied in DC system of 0~1000V, used for on-line monitoring of DC ungrounded system positive and negative pole to ground insulation resistance, when insulation resistance is lower than the set value, it will send out warning or alarm signal.

The product is mainly designed for DC 0~1000V range of electric vehicle charging device insulation monitoring, but also can be applied in energy storage DC, substation DC screen, UPS power supply system, photovoltaic DC system and other DC power grid DC system.

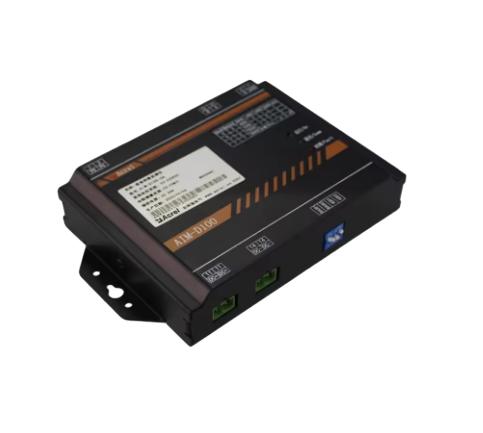

Detail

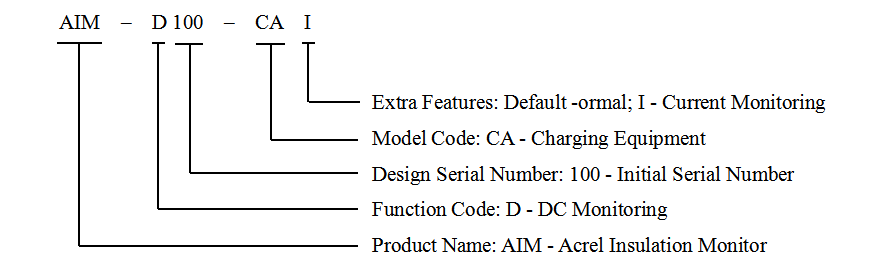

Model description

Function

Resistance monitoring

Voltage monitoring

Current monitoring function

LED indication

Communication networking function

Metal casing

Plug-in terminals

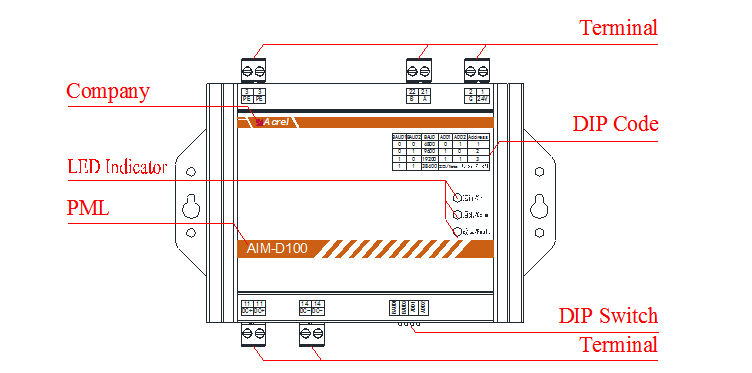

Dimension(unit:mm)

Wiring

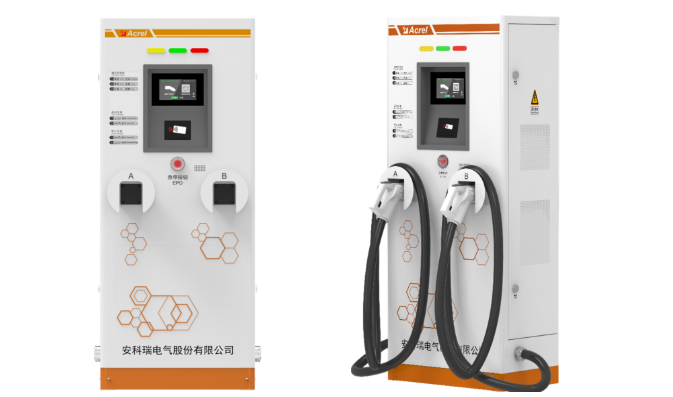

Application

Packing&delivery

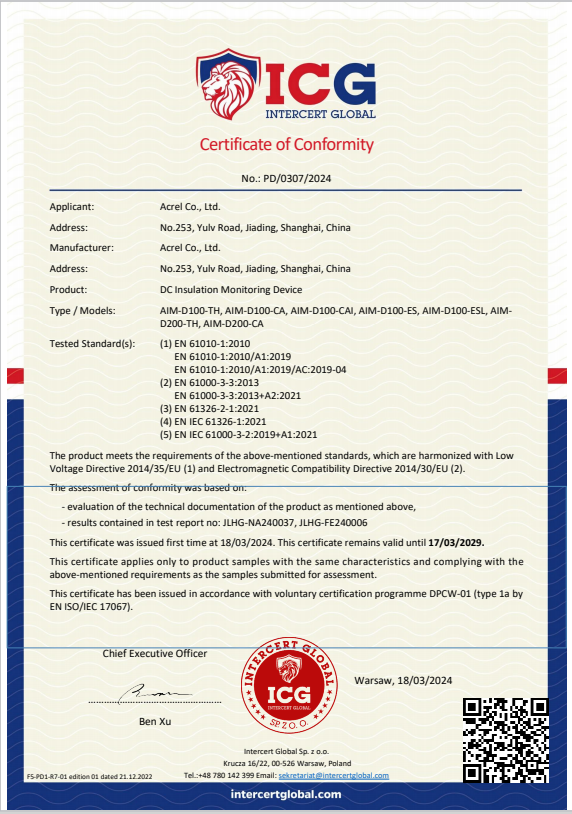

Certificate

Technical parameter

Electric Performance

Technical Parameter		Technical Specifications
Auxiliary power		DC 9~36V
Maximum power consumption		≤6W
Voltage monitoring	Voltage range	DC 0~1000V
Voltage monitoring	Accuracy	0.5 grade
Current monitoring	Current monitoring	Connect with current shunt base on rated current; CAI models only
Current monitoring	Accuracy	5%
Insulation monitoring	Insulation resistance range	1kΩ~10MΩ
	Warning and alarm range	10kΩ~10MΩ
	Accuracy	1~10kΩ: ±1k; 10k~500k: ≤3%
	System leakage capacitance	≤5μF
	Insulation monitoring speed	500ms/cycle; 1000ms/cycle
Alarm method		LED indicator
Communication		RS485 interface, Modbus-RTU protocol
Installation		Wall-mounted installation or DIN-rail installation (plastic stent included)
Protection level		IP30
