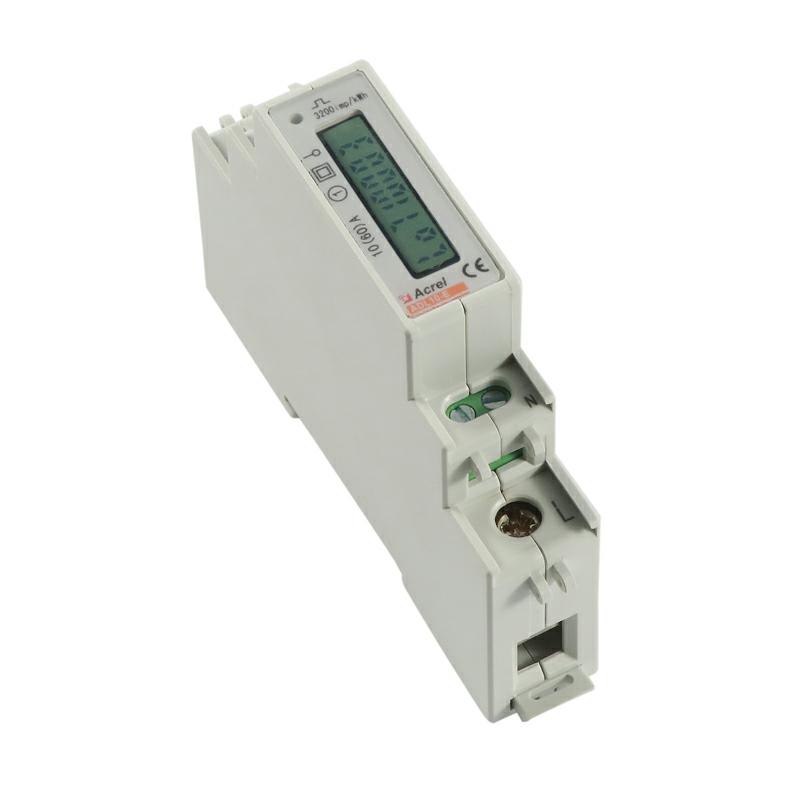

Acrel ADL10-E Single Phase Din Rail Energy Meter
Rated Voltage: AC 220V
Input Current:10（60）A
LCD Display
Accuracy: Class 1
Measurement of electrical parameters: U、I、P、Q、S、PF、Hz
LCD Display: 8 digits
Frequency: 45-65Hz
Communication: RS485,Modbus-RTU (Optional)
-

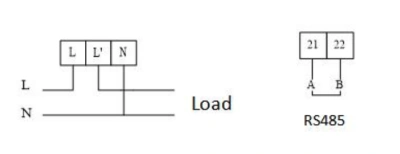

ADL10-E installing
Note：DIN 35 mm rail installation. -
Function
| Measurement of kWh |
Single phase active energy |
|

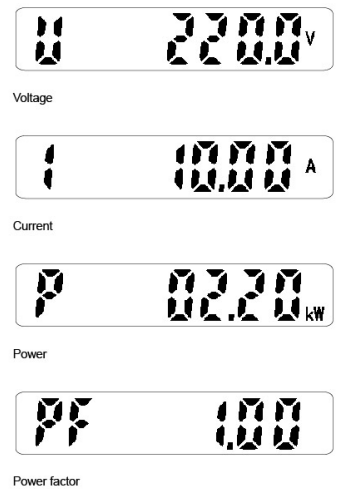

Measurement of electrical parameters |
U、I、P、Q、S、PF、Hz |
|

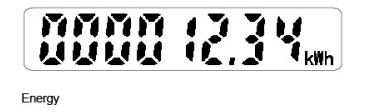

LCD Display |
8 digits |
|
Communication (Optional) |
RS485, MODBUS-RTU |
Electric Performance
| Voltage |
Reference voltage |
AC 220V |
|
Reference frequency |
50Hz |
|
|
Power consumption |
<10VA (Single phase) |
|
|
Current |
Basic current |
10A |
|
Maximum current |
60A |
|
|
Consumption |
<4VA (Maximum current) |
|
|
Measurement performance |
Accuracy of Active kWh |
1 class |
|
|
Standards compliant |
IEC 62053-21:2003 |
Working Environment
| Temperature |
Working |
-25℃~55℃ |
|
|
Storing |
-40℃~70℃ |
|
Humidity |
≤95%(No condensation) |
|
|
Altitude |
<2000m |
|
-
CE of ADL10-E
-
EAC of ADL10-E
-
RoHs of ADL
-
ADL10-E Manual
