Acrel ADL3000-E Three-Phase Multi-function Energy Meter

● Complete electrical measurement

● Split-phase forward active energy calculation

● Total forward and reverse active or reactive energy calculation

● Support RS485(Modbus-RTU/TCP) protocol

● Support 2-31st harmonic

● Support three channels temperature measurement

008618702112136

sherry@acrel.cn

8618702112136

Acrel ADL3000-E Three-Phase Multi-function Energy Meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

ADL3000-E is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 12 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL3000-E can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electricity power meter in the IEC62053-21、IEC62053-22 standards.

Model description

LCD display

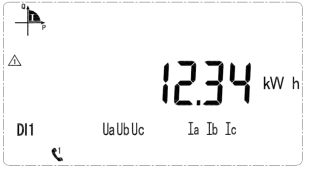

Current forward active energy 12.34kWh
Current reversing active energy 12.34kWh

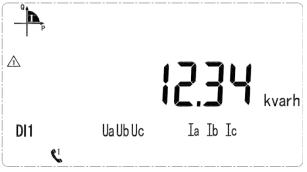

Current forward reactive energy 12.34kWh

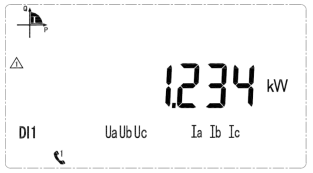

Current total power is 1.234kW

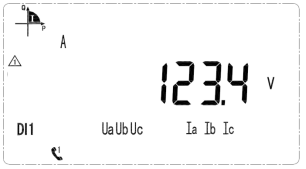

Voltage on A phase is 123.4V
Current on A phase is 12.34A

Note: There are parts of the display function, and other menus are familiar with the example above. The customers can understand the meaning refer to the above examples.

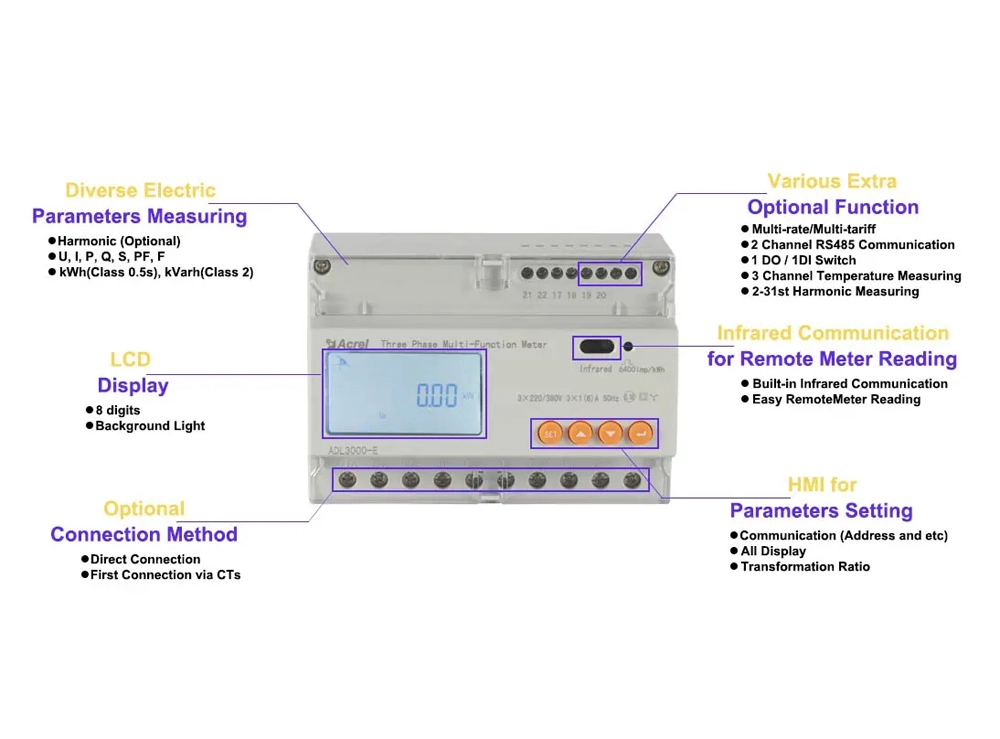

Function

Function	Function description	Function provide
Measurement of kWh	Active kWh (positive and negative)	■
	Reactive kWh (positive and negative)	■
	A, B, C phase positive active kWh	■
Measurement of electrical parameters	U、IP、Q、S、PF、F	■
Measurement of electrical parameters	U、IP、Q、S、PF、F	■
Measurement of	2~31^ST Voltage and current harmonic	□Note 1
LCD Display	8 bits section LCD display, background light	■
Key programming	4 keys to communication and set parameters	■
Pulse output	Active pulse output	■
	Reactive pulse output	□
	Clock pulse output	□
Functions	Active switch input	□
Communication	Infrared communication	■
Communication	The first communication path: Communication interface: RS485, Communication protocol: MODBUS-RTU	□

“■” means standard, “□” means optional.

Note: Harmonic is a standard while choosing outlay transformer, optional for another situation.

Product Parameter

ADL3000-E-A

Specification		3 phase 4 wires, Earthed
Voltage	Reference voltage	3～66/115V、3～220/380V、3～277/480V(Three sizes)
	Input voltage tolerance	3～66/115V、3～220/380V:±30% 3～277/480V:±10%
	Consumption	<10VA (Single phase) (Rate current or power for power input <10VA(Single phase))
	Impedance	>2MΩ
	Accuracy class	Error±0.2%
Current	Input current	3～1(6)A Min:0.01A,Standard:1A,Max:6A
	Consumption	<1VA (Single phase rated current)
	Accuracy class	Error±0.2%
Power		Active, reactive, apparent power, error±0.5℅
Frequency		45~65Hz， Error±0.2%
Energy		Active energy (Accuracy class:0.5, 1), reactive energy (Accuracy class 2)
Energy pulse output		1 active optocoupler output, Resistive load （Voltage is not more than 24V, current is not more than 5mA）
Switching input		1 optocoupler input,Maximum allowed voltage: 220V, OVC III
Measurement category		CAT III
Width of pulse		80±20ms
Pulse constant		6400imp/kWh
Interface and communication		RS485：Modbus RTU
Range of communication address		Modbus RTU:1~ 247；
Baud rate		1200bps~19200bps
Working temperature		-25℃~+55℃
Relative humidity		≤95℅ (No condensation)
Altitude		≤ 2000m
Installation environment		Indoor use
Pollution degree		Class 2

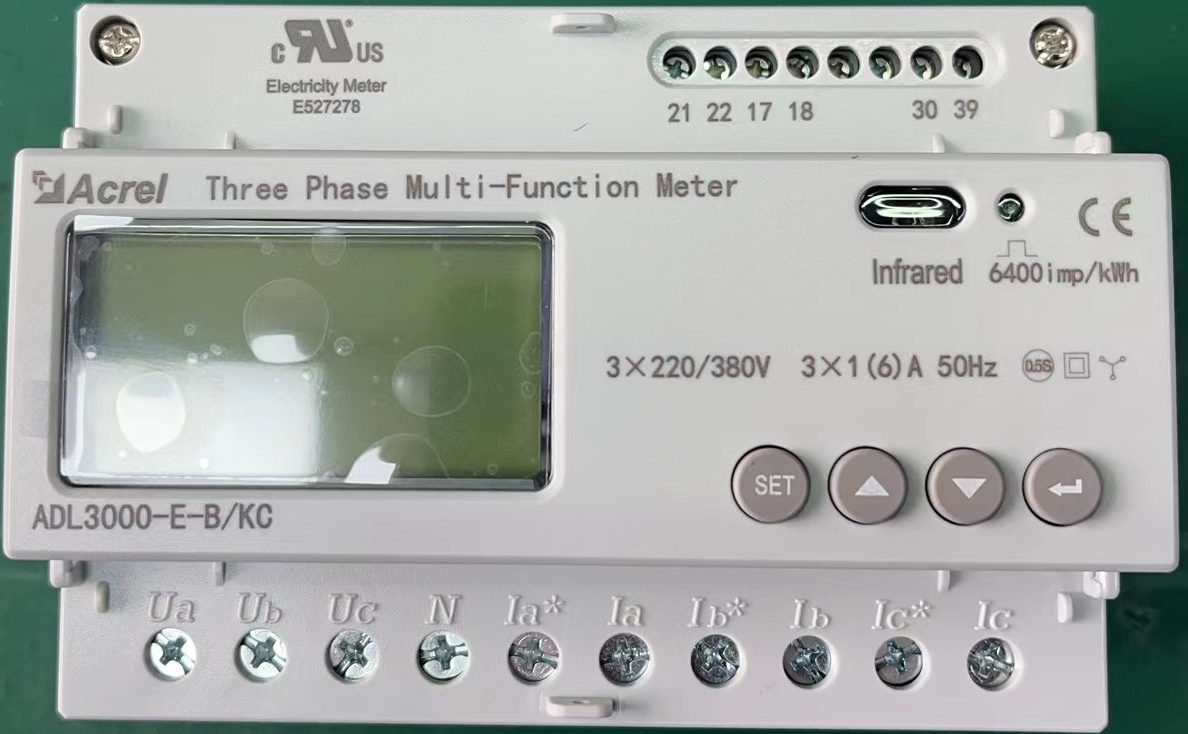

ADL3000-E-B

Specification		3 phase 4 wires, Earthed
Voltage	Reference voltage	3～66/115V、3～220/380V、3～277/480V(Three sizes)
	Input voltage tolerance	3～66/115V、3～220/380V:±30% 3～277/480V:±10%
	Consumption	<10VA (Single phase) (Rate current or power for power input <10VA(Single phase))
	Impedance	>2MΩ
	Accuracy class	Error±0.2%
Current	Input current	3～1(6)A Min:0.01A,Standard:1A,Max:6A
	Consumption	<1VA (Single phase rated current)
	Accuracy class	Error±0.2%
Power		Active, reactive, apparent power, error±0.5℅
Frequency		45~65Hz， Error±0.2%
Energy		Active energy (Accuracy class:0.5, 1), reactive energy (Accuracy class 2)
Energy pulse output		1 active optocoupler output, Resistive load （Voltage is not more than 24V, current is not more than 5mA）
Switching input		1 optocoupler input,Maximum allowed voltage: 220V, OVC III
Measurement category		CAT III
Width of pulse		80±20ms
Pulse constant		6400imp/kWh
Interface and communication		RS485：Modbus RTU
Range of communication address		Modbus RTU:1~ 247；
Baud rate		1200bps~19200bps
Working temperature		-25℃~+55℃
Relative humidity		≤95℅ (No condensation)
Altitude		≤ 2000m
Installation environment		Indoor use
Pollution degree		Class 2

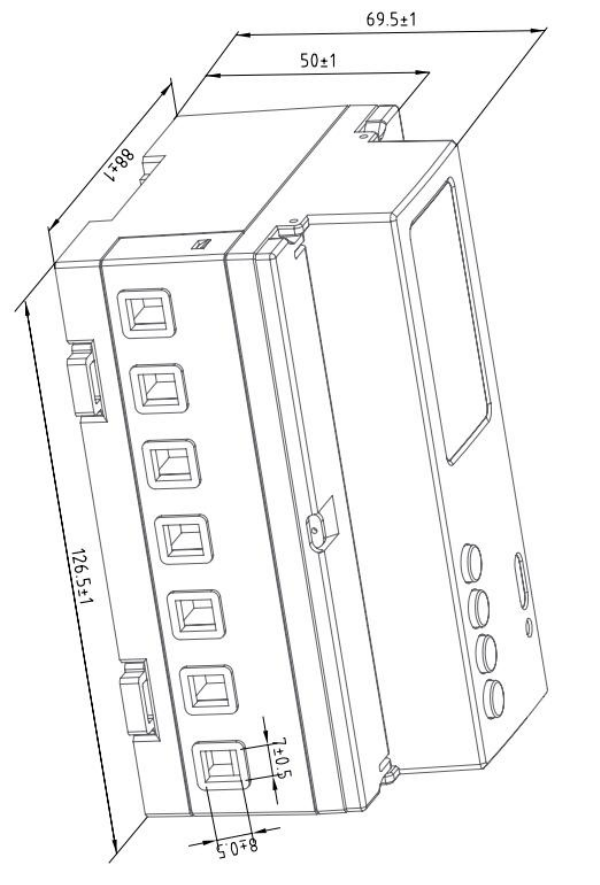

Dimension

Wiring

ADL3000-E-A

Three phase four lines direct connect

Note :

ADL3000-E-A can adopt one access methods: three-phase four wire .

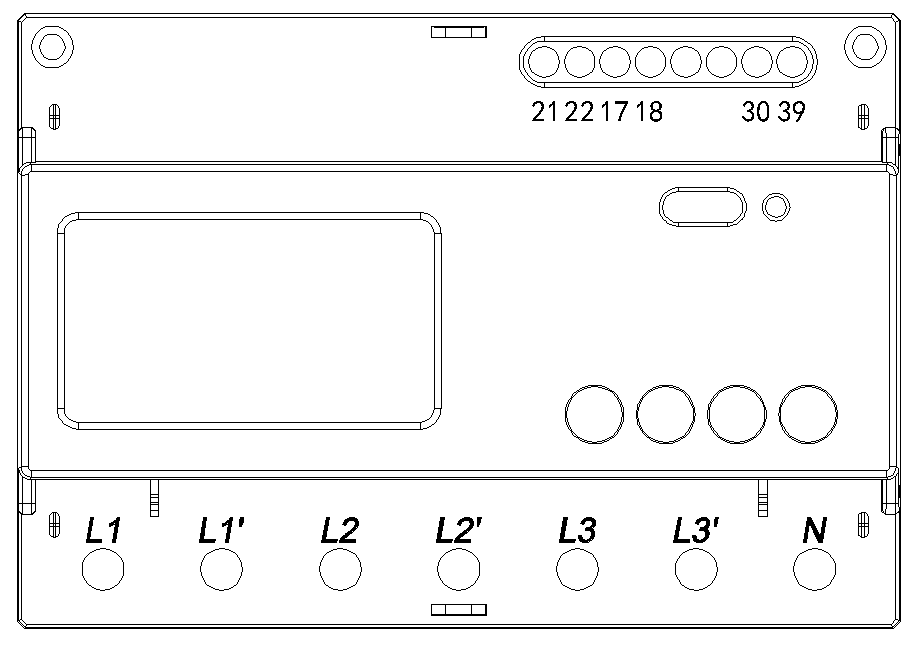

product drawing

Port	Description	Remark
L1	UA Volatge Input /IA Currten Input
L1’	IA Currten Output
L2	UB Volatge Input /IB Currten Input
L2’	IB Currten Output
L3	UC Volatge Input /IC Currten Input
L3’	IC Currten Output
N	Neutral Line
