Acrel ADL100-ET Single Phase Electric Energy Meter
Rated Voltage: AC 220V
Input Current:10（60）A
LCD display
Accuracy: Class 1
Support Infrared Communication
Measurement of electrical parameters: U、I、P、Q、S、PF、Hz
LCD Display: 8 digits
Frequency: 45-65Hz

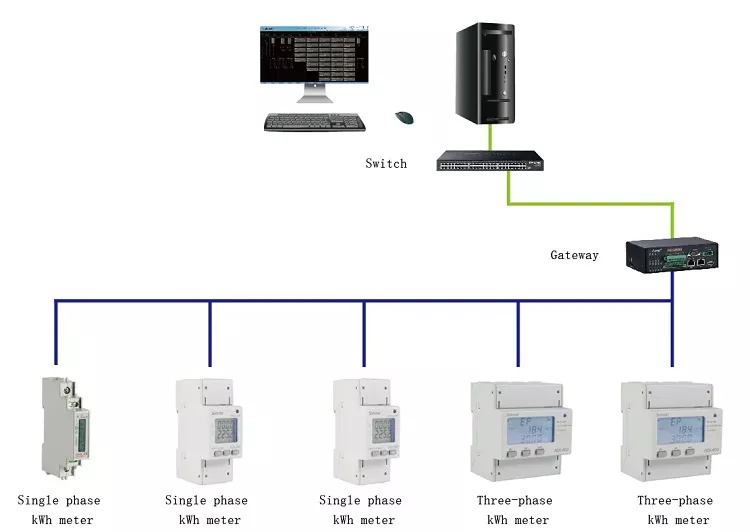

Communication: RS485,Modbus-RTU (Optional)
-

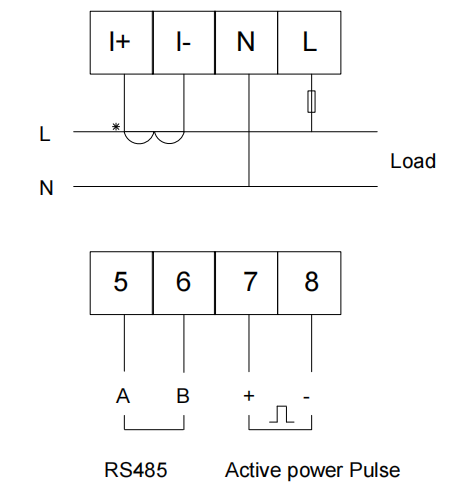

10(60)A specification wiring diagram
-
20(100)A specification wiring diagram

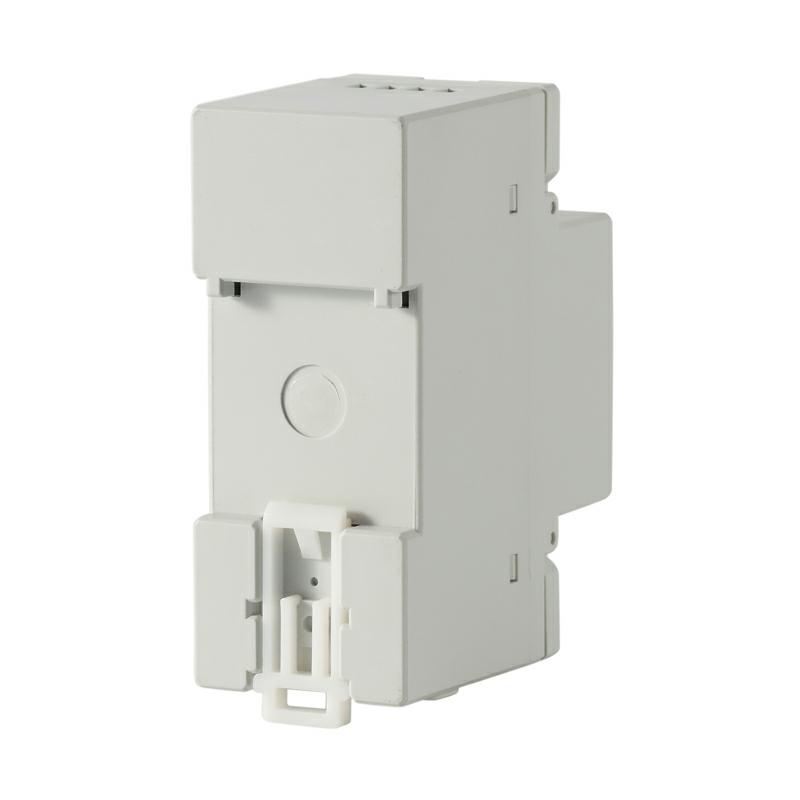

Note：DIN 35 mm rail installation.
Function
| Measurement of kWh |
Single phase active energy |
|
Measurement of electrical parameters |
U、I、P、Q、S、PF、Hz |
|
LCD Display |
8 digits |
|
Communication (Optional) |
RS485, MODBUS-RTU |
Electric Performance
Voltage |
Reference voltage |
AC 220V |
|
Reference frequency |
50Hz |
|
|
Power consumption |
<10VA (Single phase) |
|
|
Current |
Starting current |
0.04A |
|
Maximum current |
60A |
|
|
Measurement performance |
Consumption |
<4VA (Maximum current) |
|
Accuracy |
1 class |
|
|
Clock |
Range |
0~999999.99kWh |
|
Active Pulse |
accuracy |
Error≤0.5s/d |
|
width |
80±20ms |
|
|
constant |
1600imp/kWh，LED |
Working Environment
Temperature |
Working |
-25℃~55℃ |
|
Storing |
-40℃~70℃ |
|
|
Humidity |
≤95%(No condensation) |
|
|
Altitude |
<2000m |
|
-
CE of ADL100-ET
-
EAC of ADL100-E
-
RoHs of ADL
-
ADL10-E Manual
