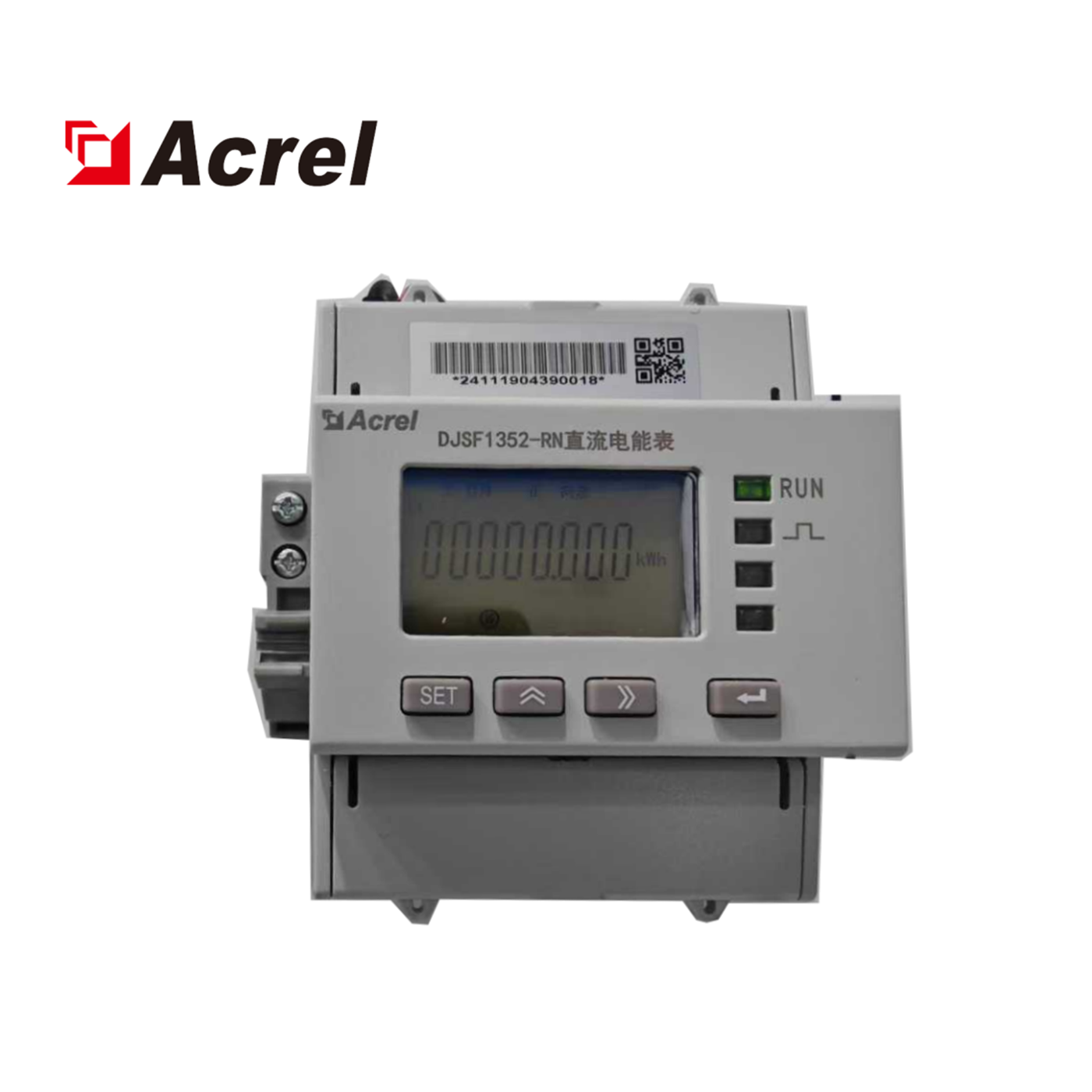

Acrel DJSF1352-D rail-mounted DC power meter

·Charging pile scenario

·Full DC electrical parameter monitoring

·Integrated shunt

·Maximum 1000V voltage

·Direct connection of DC 600A or 300A

·Rail-mounted installation

008618702112136

sherry@acrel.cn

8618702112136

Acrel DJSF1352-D rail-mounted DC power meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Overview

DJSF1352-D rail-mounted DC power meter designed for DC charging piles, this series of meters can measure the voltage, current, power and energy and so on.

Technical parameters

Technical parameters		Index
Input	Nominal value	Voltage input range	Current input
		DC 0-1000V	300A、600A
	Overload	1.2 times rated (continuous); 2 times rated/1 second
	Power consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class		Class B(Class 1)
Function	Display	segment LCD screen (LCD)
	Communication Interface	RS485
	Communication protocol	Modbus-RTU，DL/T 645-2007，DLT698
	Pulse output	A second pulse output, a energy pulse output
		See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH
Power Supply	Voltage range	DC 9-36V
	Power consumption	≤ 3W
Power frequency withstand voltage		Power supply // Signal input / / Other circuits 3.5kV/1min Other circuits not connected to each other except power supply and signal input 2kV/1min
Impulse withstand voltage		±6.5KV
Insulation resistance		≥ 40M Ω
Average barrier-free working hours		≥50000h
Environment	Temperature	working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃～+70℃
	Humidity	≤95%RH, no condensation, no corrosive gas
	Altitude	≤2000m
