Accuracy
kWh Class 1Frequency
50/60HZ（Optional）, Range：45~65HZ
Auxiliary power supply(self supply):
220Vac（L-N）,range:154~264Vac
Pulse output:
Pulse output kWh
Consumption
<4VA(Each phase)

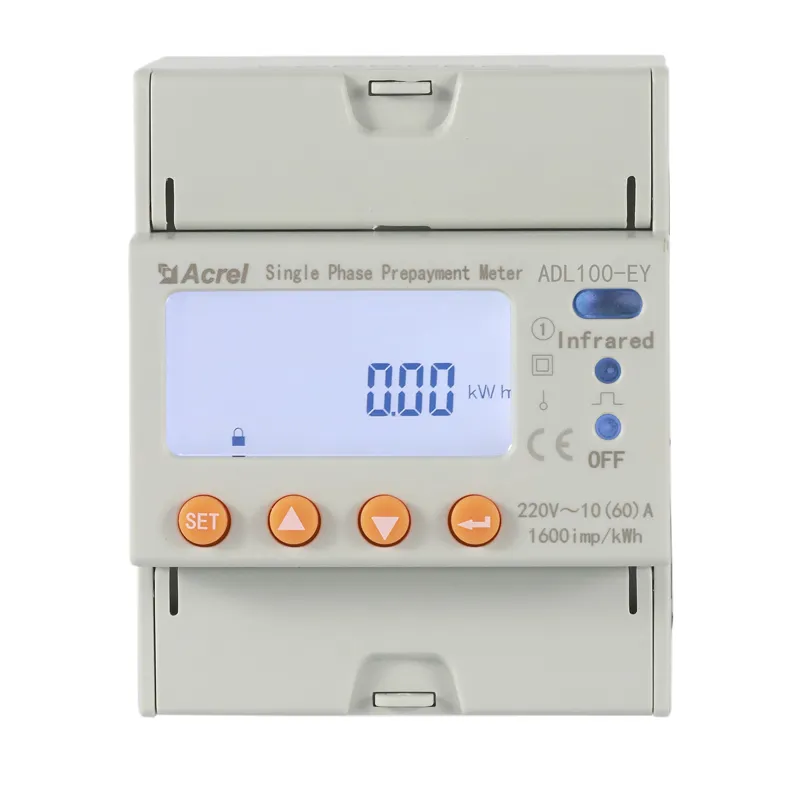

DDSY Single-phase Prepaid Energy Meter
Frequency
50/60HZ（Optional）, Range：45~65HZ
Auxiliary power supply(self supply):
220Vac（L-N）,range:154~264Vac
Pulse output:
Pulse output kWh
Consumption
<4VA(Each phase)
DIN 35mm
Dimension(L*W*H)：
72*88*70mm
Active pulse:
Constant: 6400imp/kWh,400imp/kWh
Clock:
≤0.5s/d
Starting current:
0.04A
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Specification
|
Voltage |
Nominal voltage
|
220V
|
|
|
Nominal frequency
|
50/60Hz
|
||
|
Consumption
|
<4VA(Each phase)
|
||
|
Current |
Maximum current
|
60A
|
|
|
Starting current
|
Connect directly:0.04A
Connect via CT：0.002A |
||
|
Consumption
|
<4VA（Maximum current）
|
||
|
Measurement performance
|
Accuracy of active kWh
|
Class 1
|
|
|
Clock
|
Accuracy
|
Error≤0.5s/d
|
|
|
Active pulse |
Width
|
80+20ms
|
|
|
Constant
|
1600imp/kWh
|
||
|
Communication
|
Interface
|
RS485
|
|
|
Protocol
|
MODBUS-RTU
|
||
|
Outline
|
L*W*H(mm)
|
72*88*70
|
|
|
Environment |
Temperature
|
Operating：-25~55℃；Storage：-40~70℃
|
|
|
Humidity
|
≤95%（No condensation）
|
||
|
Altitude
|
≤2000m
|
||
Product Description

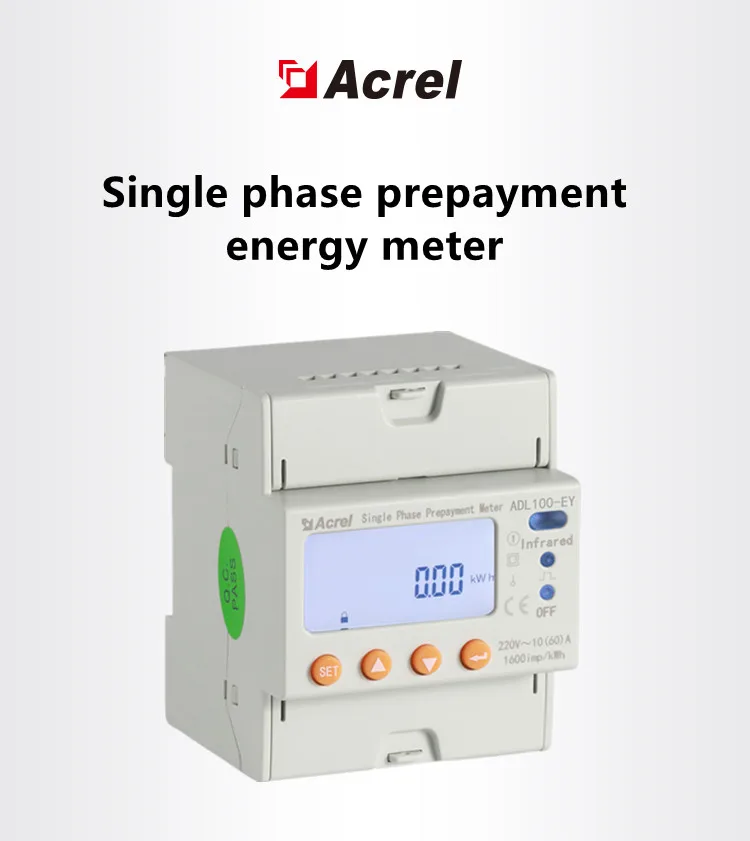

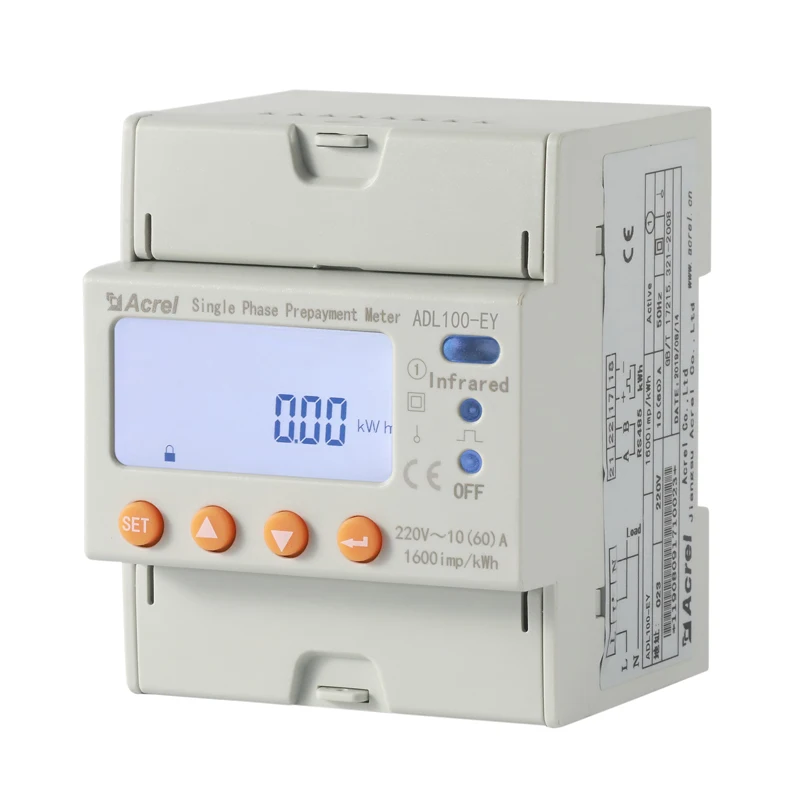

Prepayment energy meter
ADL100-EY single phase pre-paid meters with intro-control, ADL300-EY three phase pre-paid meters with
intro-control are used for calculating the single and three phase active energy respectively on the frequency of 50/60 Hz.
The meter has functions of pre-paid, load controlling and RS485 communication etc.
The meter has functions of pre-paid, load controlling and RS485 communication etc.
meet the related technical requirements of electronic power meter in the IEC62053-21 IEC62053-22 standards.
Accuracy
kWh Class 1Frequency
50/60HZ（Optional）, Range：45~65HZ
Auxiliary power supply(self supply):
220Vac（L-N）,range:154~264Vac
Pulse output:
Pulse output kWh
Consumption
<4VA(Each phase)
DIN 35mm
Dimension(L*W*H)：
72*88*70mm
Active pulse:
Constant: 6400imp/kWh,400imp/kWh
Clock:
≤0.5s/d
Starting current:
0.04A
Customized service
If you have any special requirements, for example wireless communication, or special power supply and size ,
please feel free to contact us.

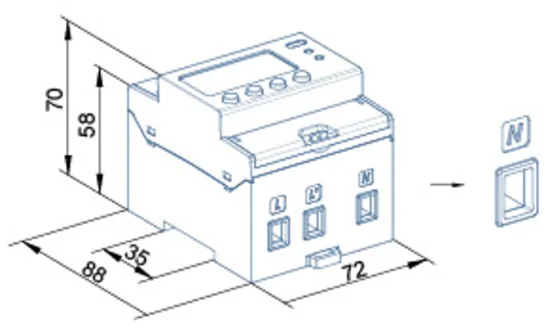

Dimensions
