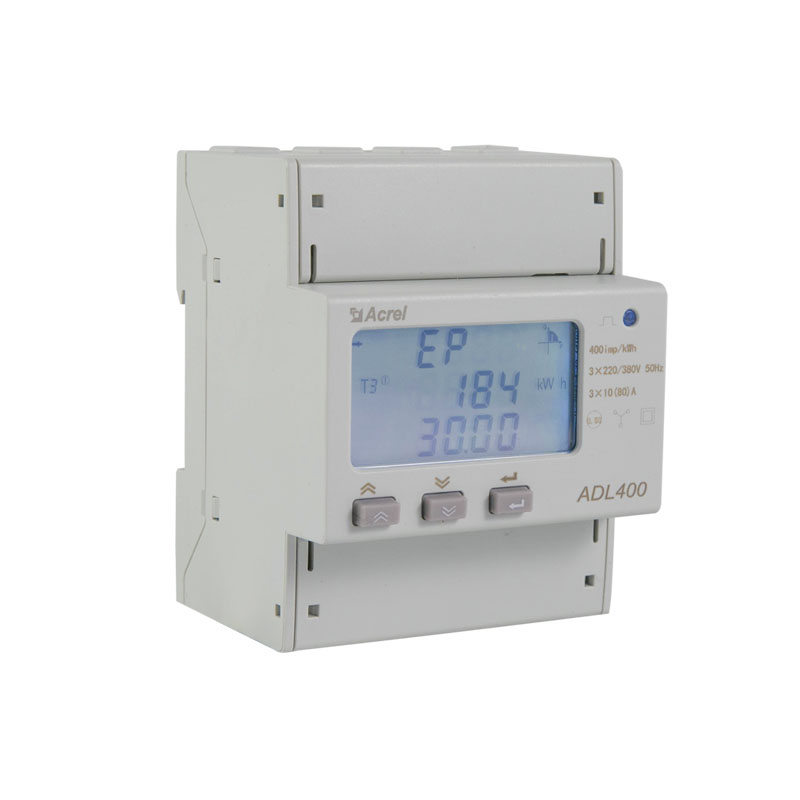

Acrel ADL400 3 Phase Energy Meter CE/MID Certification

Rated Voltage: AC3*220/380V

Input Current: 3*10(80)A, 3*1(6)A(Via CTs)

Communication: RS485(modbus-rtu)

Accuracy: kWh Class 0.5

008618702112136

sherry@acrel.cn

8618702112136

Acrel ADL400 3 Phase Energy Meter CE/MID Certification

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Products Description

ADL400 3-phase power meter is designed for 3-phase power measurement on low voltage system. The meter strictly follow the compliance of IEC62053-21,IEC62053-22 standards.

Function

Measurement of kWh: kWh , Kvarh (positive and negative);A, B, C phase positive kWh

Measurement of electrical parameters: U、I、P、Q、S、PF、Hz

Measurement of harmonics: 2~31st harmonic

LCD Display: 12 digits

Frequency: 45-65Hz

Pulse output: kWh

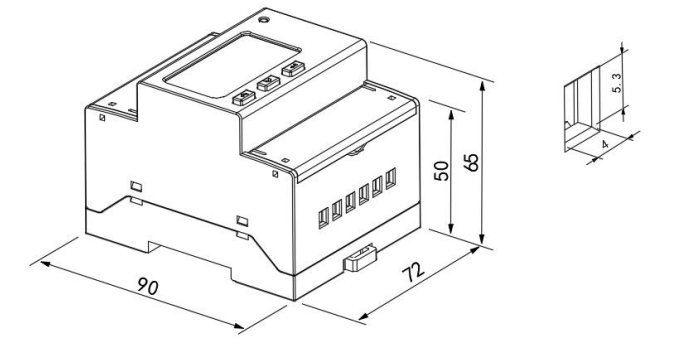

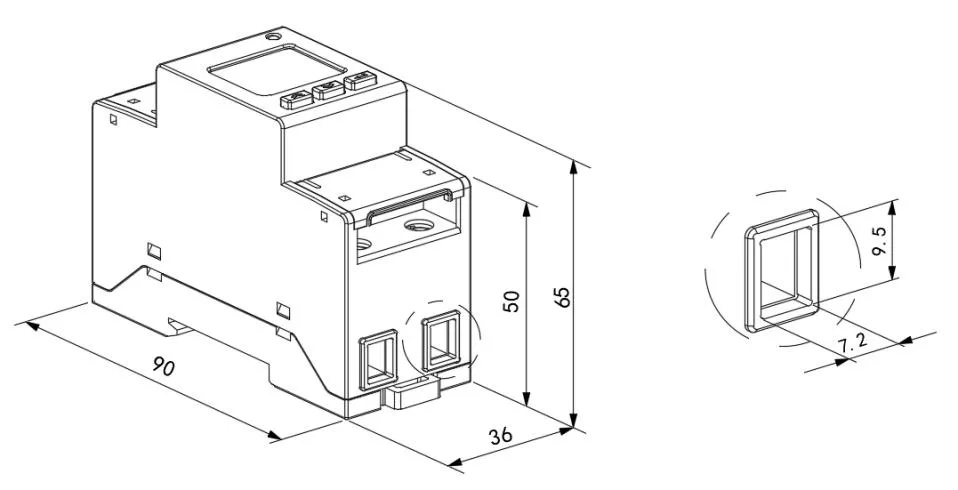

Dimension (Unit:mm)

Direct connect

Connect via CT

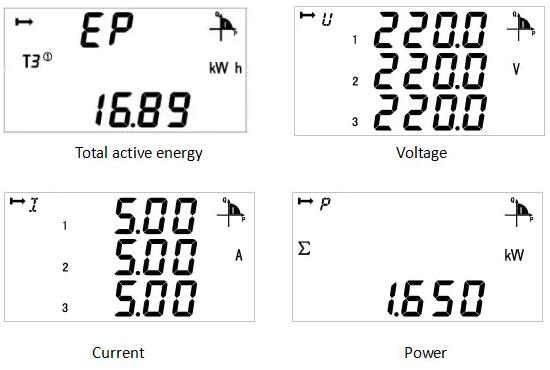

LCD Display

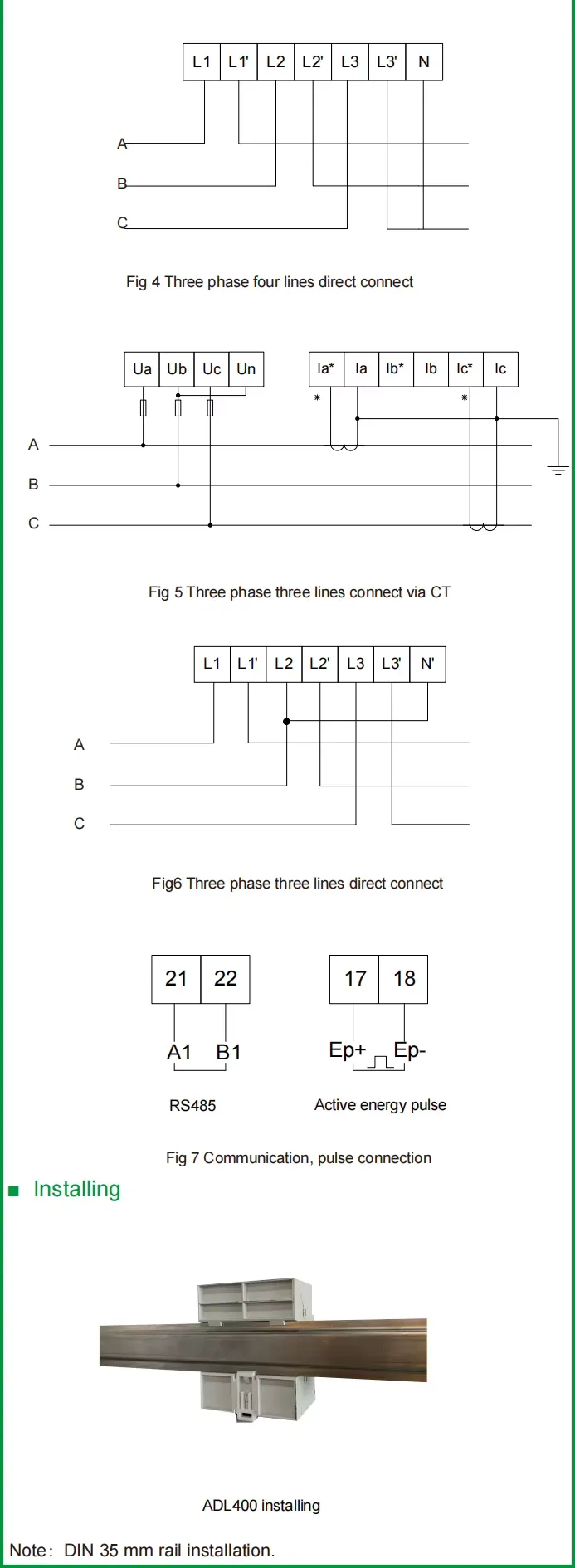

Wiring Diagram

Installation＆Application

ADL400 installing
Note：DIN 35 mm rail installation.

Photo on Site

Parameters

Function

Measurement of kWh	kWh (positive and negative)
	kvarh (positive and negative)
	A, B, C phase positive kWh
Measurement of electrical parameters	U、I、P、Q、S、PF、Hz
LCD Display	12 digits
Key	3 keys
Measurement of harmonics	2~31ST harmonic
Pulse output	kWh
Communication	RS485, MODBUS-RTU,Infrared
Data (optional)	Maximum demanded
	Frozen data on last 48 months,last 90days
	Date, time

Electric Performance

Voltage	Nominal voltage	3×100V、 3×380V、 3×57.7/100V、 3×220/380V
	Consumption	<10VA(Single phase)
	Impedance	>2MΩ
	Accuracy	±0.2%
Current	Accuracy	±0.2%
	Maximum current	80A,6A
	Consumption	<1VA
Frequency	range	45～65Hz
Frequency	accuracy	±0.2%
Energy accuracy	Active energy	Class 0.5s
Energy accuracy	reactive energy	Class 2
Clock	accuracy	≤0.5s/d
Active Pulse	Width	80±20ms
Active Pulse	constant	1000imp/kWh,10000imp/kWh
Communication	Interface	RS485
Communication	Protocol	MODBUS-RTU

Function

Temperature	Working	-25℃~55℃
	Storing	-40℃~70℃
Humidity	≤95%(No condensation)
Altitude	<2000m
