ADL rail- installation Electricity meters is a new generation electricity meter developed by Acrel Co,.Ltd, resulting from many
years experience in designing Electricity meters. LCD display and electricity pulse output function is installed in the power
meter; clock, rate period parameters can be set also. Data swap with the super ordination machine via RS485 communication
interface greatly facilitate the power automated administration. This power meter has advantages of smaller volume, high
precision, good EMC, easy installation etc, meet the related technical requirements of electronic power meter in the IEC
62053-21,IEC 62053-22 standard.

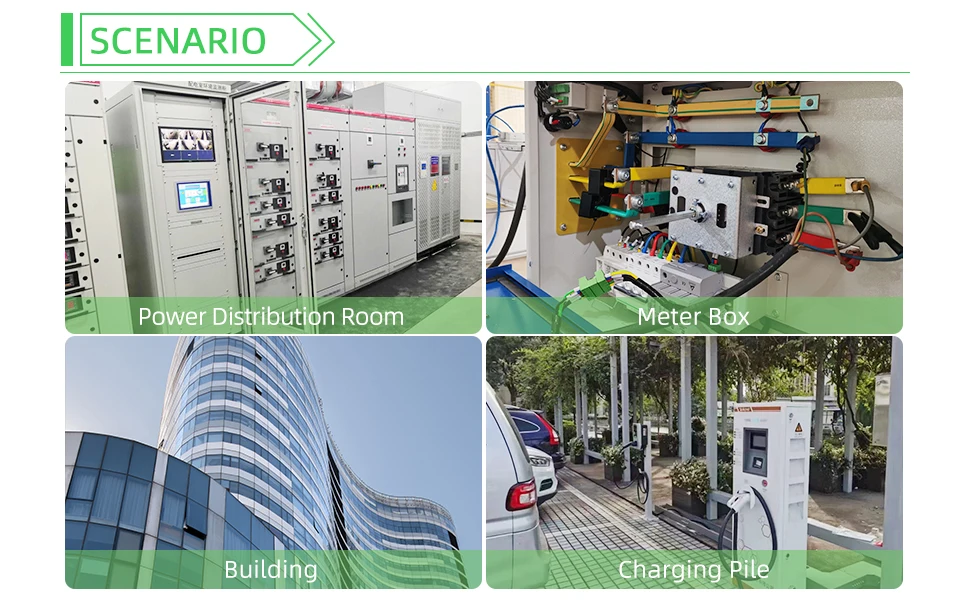

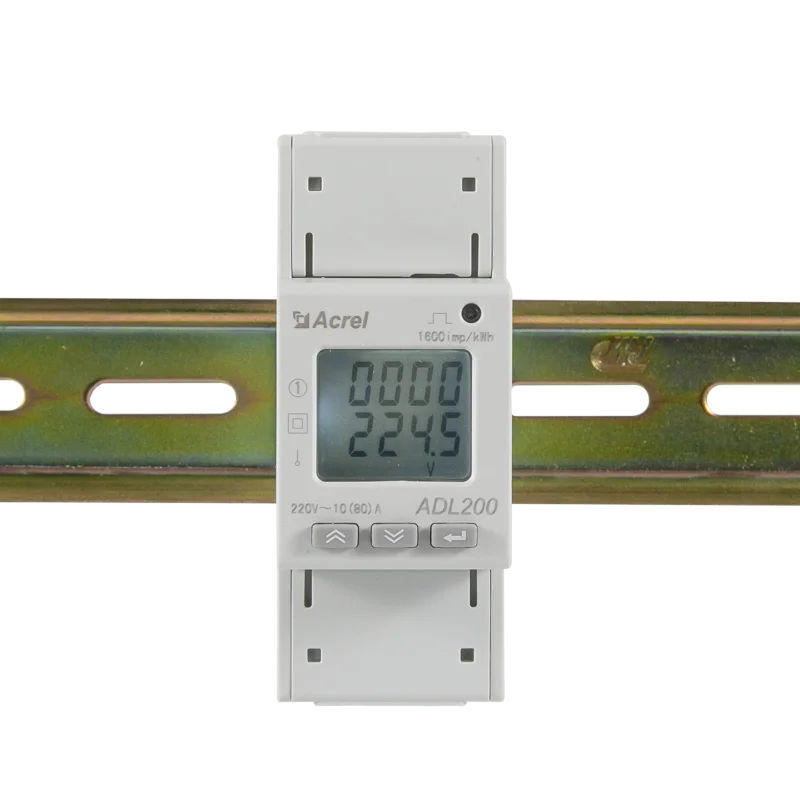

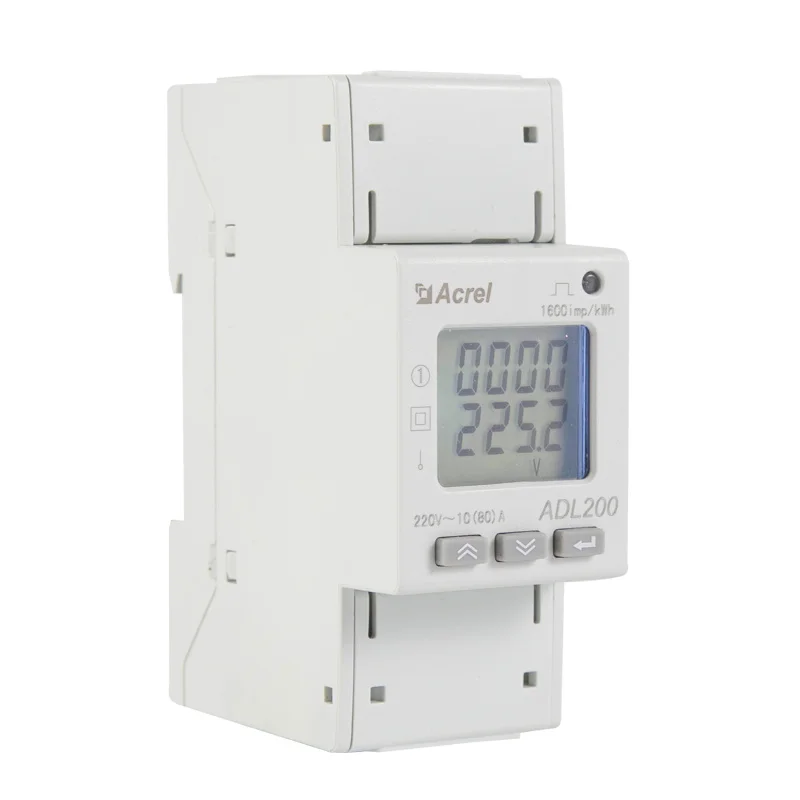

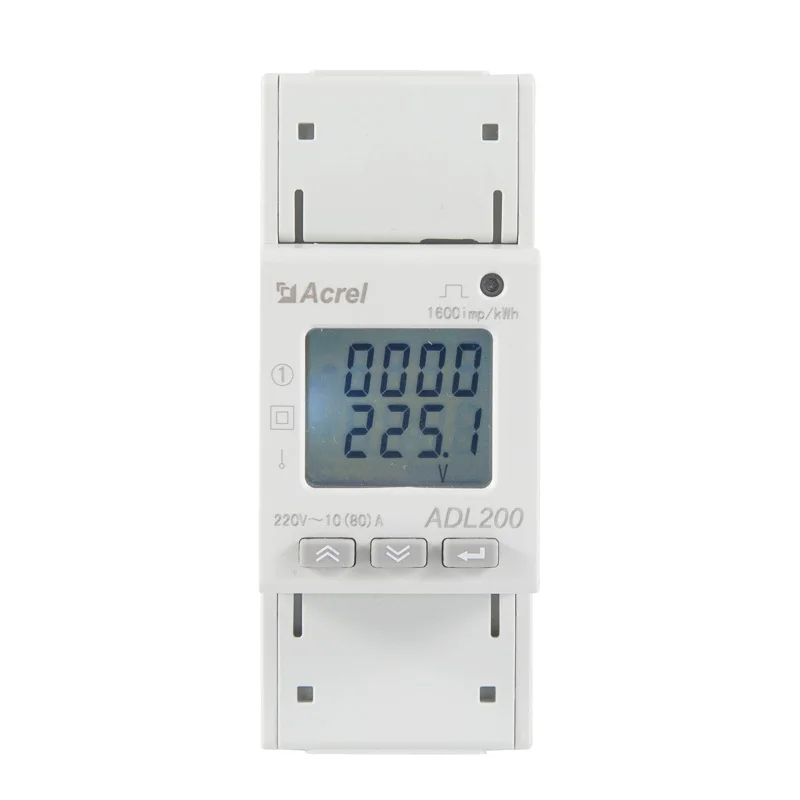

Acrel ADL200 Single-Phase Energy Meter
Rated Voltage: AC220V
Input Current: 10(80)A (Direct access)
Communication: RS485(modbus-rtu)
Accuracy: Class 1
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Products Description
Specification
|
Technical Parameters
|
Value
|
|||||
|
ADL 10-E
|
ADL 200
|
ADL 100-EY
|
ADL 3000-E
|
ADL 300-EY
|
||
|
Accuracy Class
|
Class 1.0
|
Class 0.5
|
Class 1.0
|
|||
|
Rated Voltage
|
220V
|
3*220/380V 3*380V 3*100V 3*57.7/100V
|
3*220/380V
|
|||
|
Current Specification
|
10(60)A
|
1(6)A 10(80)A
|
1.5(6)A 10(60)A
|
|||
|
Reference Frequency
|
50Hz
|
|||||
|
Starting Current
|
Direct Connecting
|
0.004lb
|
||||
|
Via CT Connecting
|
/
|
0.002ln
|
||||
|
Power Consumption
|
Voltage Line
|
＜10VA
|
＜10VA
|
＜10VA
|
＜10VA/Phase
|
＜10VA/Phase
|
|
Current Line
|
＜4VA
|
＜4VA
|
＜4VA
|
＜1VA/Phase
|
＜4VA/Phase
|
|
|
Electricity Pluse Output
|
80ms±20ms
|
|||||
|
Digital Communication
|
RS485/MODBUS-RTU
|
|||||
|
Clock Error
|
≤0.5s/D
|
|||||
|
Temperature Range
|
Normal Working Temperature:-20℃~+60℃
|
|||||
|
Storage Temperature:-30℃~+70℃
|
||||||
|
Relative Humidity
|
≤95%(No Condensation)
|
|||||
|
Outline(L*W*H)(mm)
|
18*96*70
|
90*36*65
|
76*89*74
|
126*88*70
|
144*85*74
|
|
|

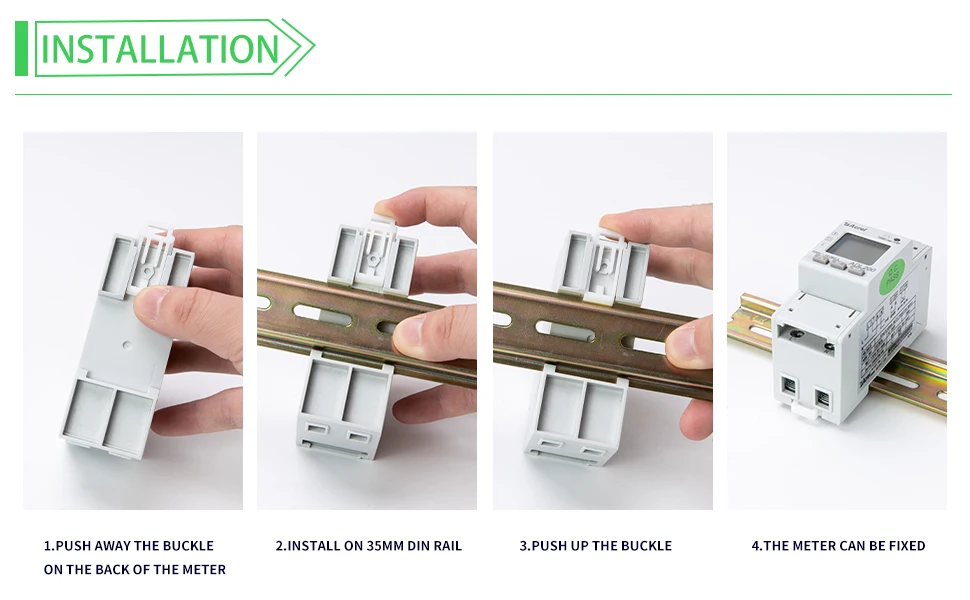

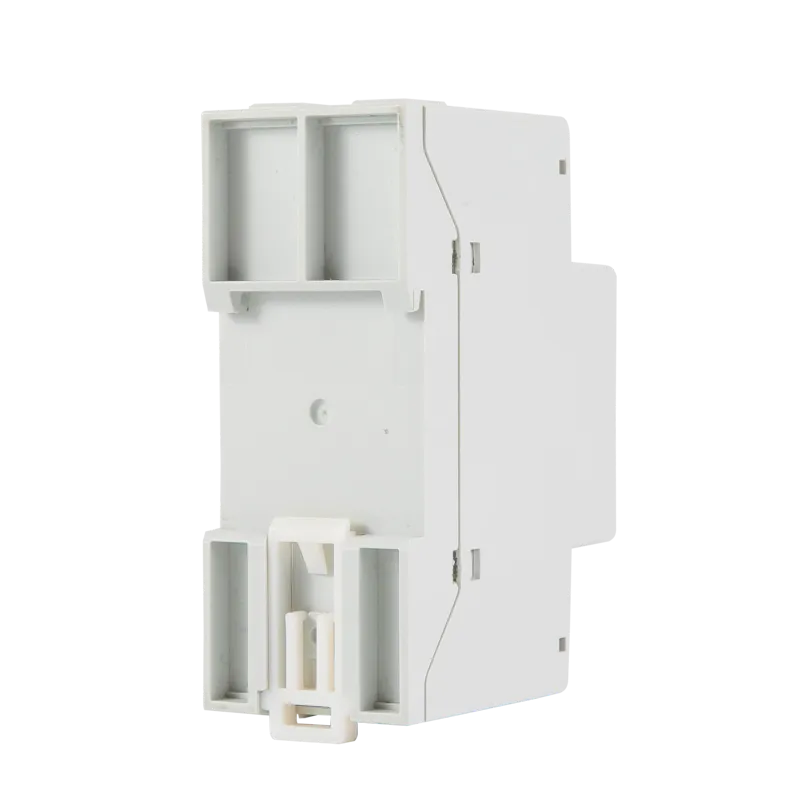

Installation Method
|

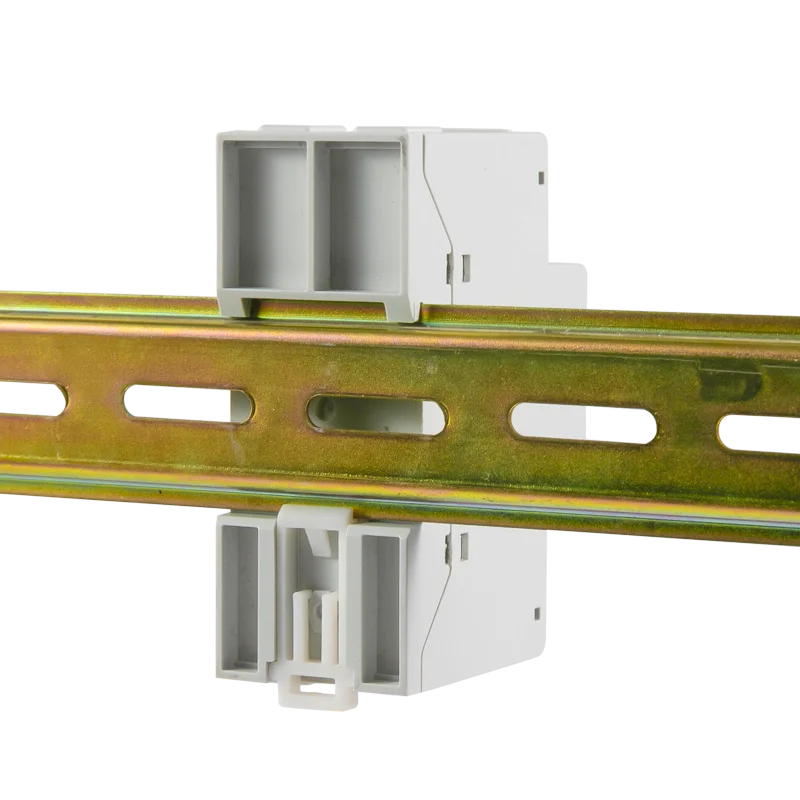

TS35mm Din Rail
|
|||||
LCD Display
Parameters
Function
|

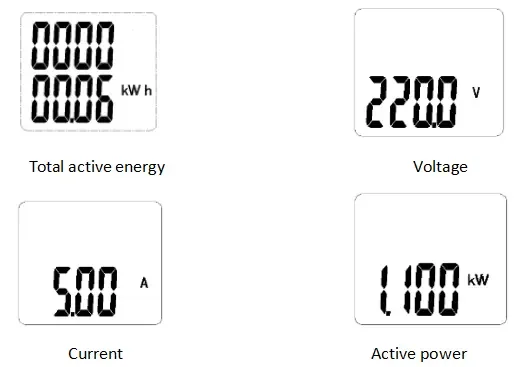

Measurement of kWh |
kWh (positive and negative) |
|
kvarh (positive and negative) |
|
|
Measurement of electrical parameters |
U、I、P、Q、S、PF、Hz |
|
LCD Display |
8 digits |
|
Key |
3 keys |
|
LED alarm |
voltage loss and over voltage |
|
Pulse output |
kWh |
|
Communication |
RS485, MODBUS-RTU,Infrared |
Electric Performance
|
Voltage |
Reference voltage |
AC 220V |
|
Reference frequency |
50Hz |
|
|
Power consumption |
<10VA |
|
|
Current |
Basic current |
10A |
|
Maximum current |
80A |
|
|
Consumption |
<4VA |
|
|
Energy accuracy |
Accuracy measuring |
1 class |
|
Clock |
accuracy |
≤0.5s/d |
|
Active pulse |
Pulse width |
80±20ms |
|
Pulse constant |
1000imp/kWh |
|
|
Communication |
Interface |
RS485 |
|
Protocol |
MODBUS-RTU |
Working Environment
|
Temperature |
Working |
-25℃~55℃ |
|
|
Storing |
-40℃~70℃ |
|
Humidity |
≤95%(No condensation) |
|
|
Altitude |
<2000m |
|
Download
-
CE of ADL200
-
MID of ADL200
-
RoHs of ADL
-
ADL200 Manual
Related Products
CONTACT US
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
