Acrel DDSD1352 Single-Phase Din Rail Meter for Solar Zero Export Monitoring
● Reference Voltage: AC 220V
● Input Current: 10（60）A
● Small Compact Size
● Diverse Electricity Parameters Measurement
● Multi-rate/Flexible Tariff
● HMI for Parameters Setting
● DIN Rail Installation
● RS485 (MODBUS-RTU)
● IEC62053-21:2003; IEC62053-22:2003; CE; EA
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Products Description

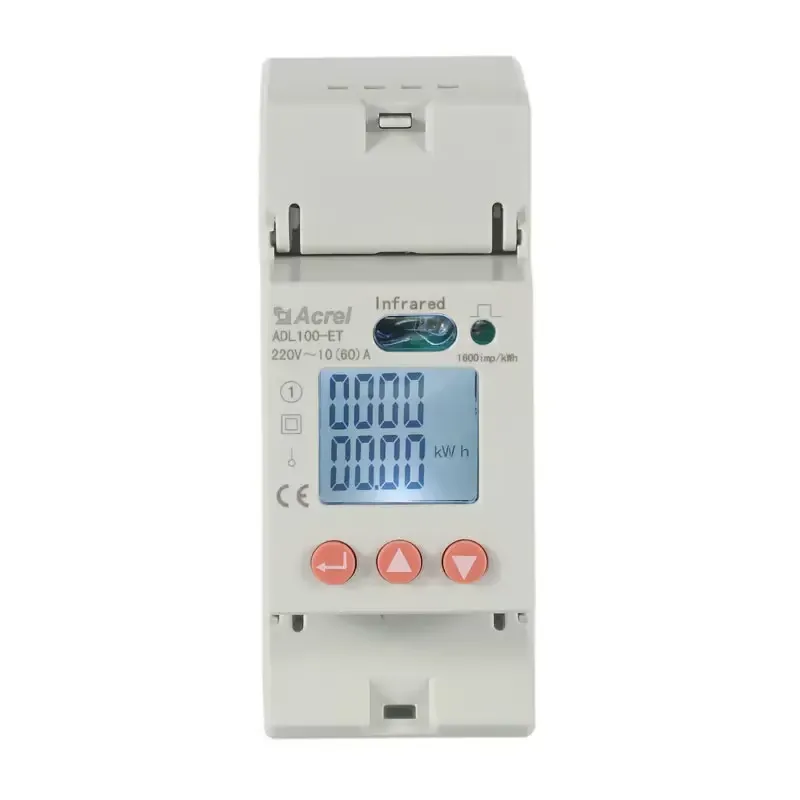

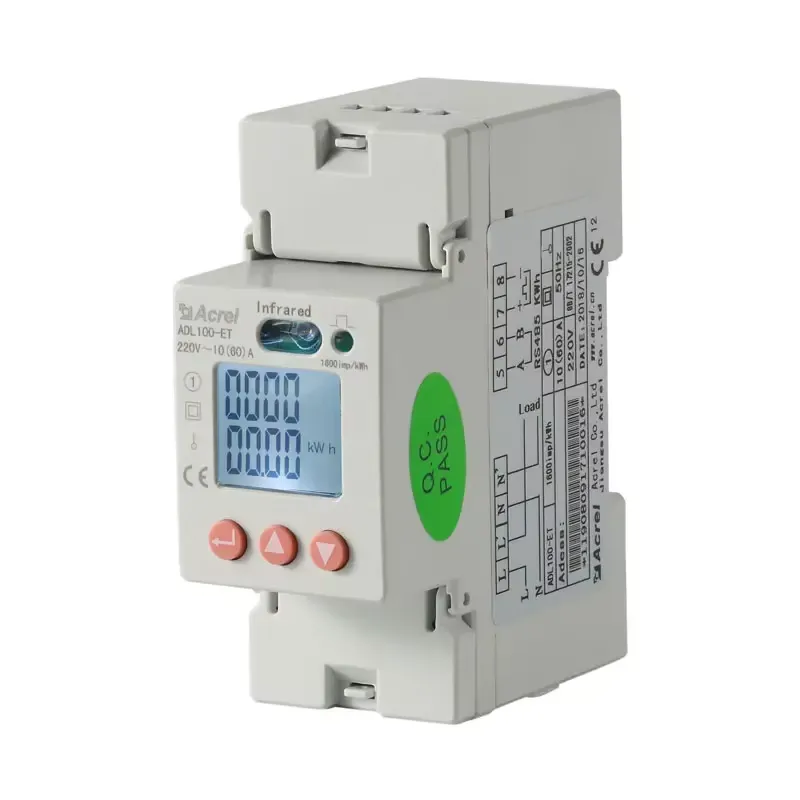

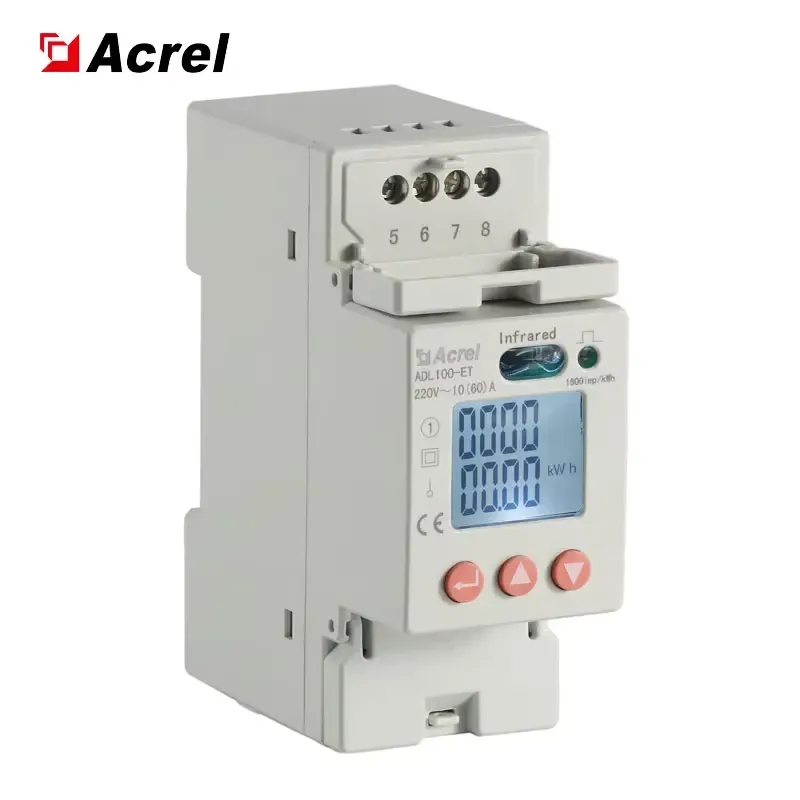

DDSD1352-C Single-phase DIN Rail Energy Meter
single phase electronic multifunction kwh meter could test the total active kwh and measure voltage,current,
power and other electric parameters,also with optional function RS485 Modbus RTU.
It's convenient to monitor,collect and manage the electric energy. DDSD1352-C is with high class,small volume,
easy installation etc.advantage,it could be used in electric distribution box to realize the measurement,
statistics and analysis of the different electric energy in different district and electric load.
● Reference Voltage: AC 220V
● Input Current: 10（60）A
● Small Compact Size
● Diverse Electricity Parameters Measurement
● Multi-rate/Flexible Tariff
● HMI for Parameters Setting
● DIN Rail Installation
● RS485 (MODBUS-RTU)
● IEC62053-21:2003; IEC62053-22:2003; CE; EA
Small Compact Size

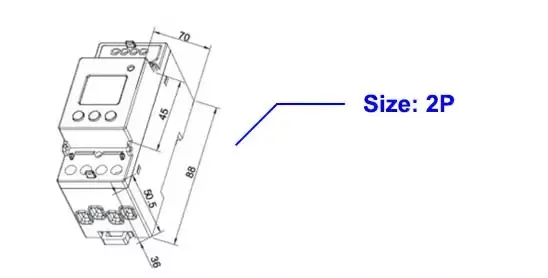

● Dimension (L*W*H): 36mm*88mm*70mm

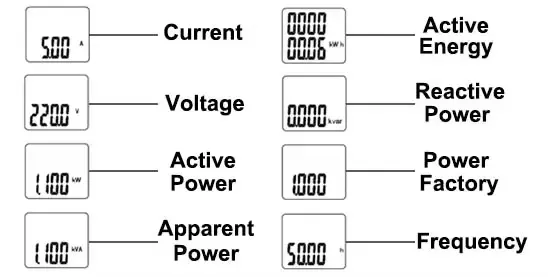

Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)

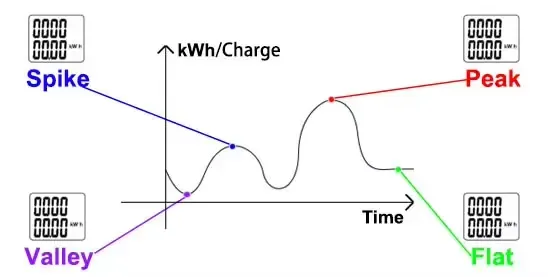

Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day

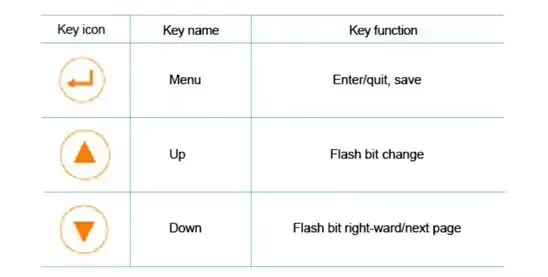

HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display

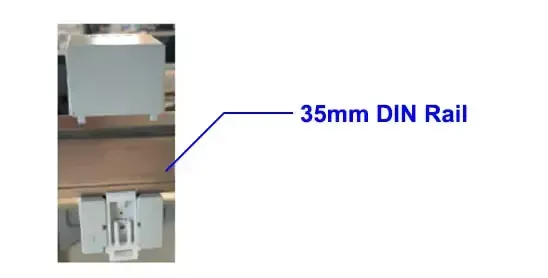

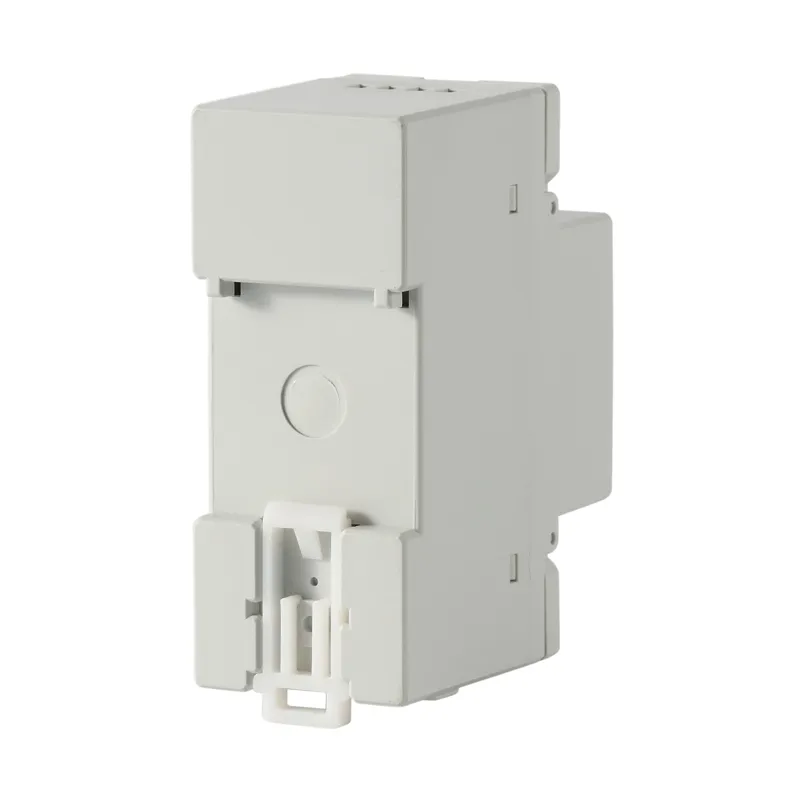

DIN Rail Installation
● 35mm standard DIN rail

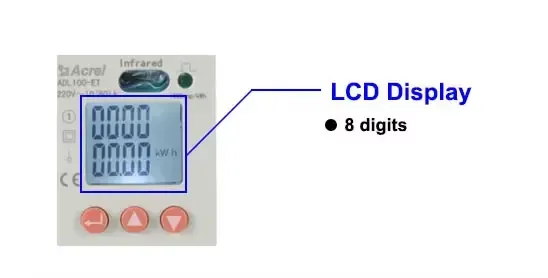

LCD Display
● 8 digits
Function & Parameter
1.Function
|
Function
|
Function description
|
Function provide
|
|
Measurement of kWh
|
Single-phase active kWh (positive and negative)
|
■
|
|
Measurement of electrical parameters
|
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency
|
■
|
|
LCD Display
|
8 bits section LCD display
|
■
|
|
Key programming
|
3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol
|
■
|
|
Pulse output
|
Active energy pulse output
|
■
|
|
Multi-tariff
|
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
|
□F
|
|
Communication
|
Communication interface: RS485, Communication protocol: MODBUS-RTU
|
□C
|
|
Infrared communication
|
■
|
2.Technical parameter
|
Input voltage
|
Reference voltage
|
AC 220V
|
|
Reference frequency
|
50Hz
|
|
|
Power consumption
|
<10VA
|
|
|
Input current
|
Basic current
|
10A / 20A
|
|
Maximum current
|
60A / 100A
|
|
|
Starting current
|
4‰Ib
|
|
|
Consumption
|
<4VA (Maximum current)
|
|
|
Measurement performance
|
Accuracy of measuring
|
1class
|
|
Range of measuring
|
000000.00~99999999kWh
|
|
|
Clock accuracy
|
Error≤0.5s/d
|
|
|
Active pulse
|
Pulse width
|
80±20ms
|
|
Pulse constant
|
1600imp/kWh，LED
|
|
|
Communication
|
Interface
|
RS485(A+、B-)
|
|
Connection mode
|
Shielded twisted pair conductors
|
|
|
Protocol
|
MODBUS-RTU
|
|
|
Outline (Length × Width × Height)
|
88mm×36mm×70mm
|
|
|
Temperature range
|
Work temperature
|
-25℃~55℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
|
Relative humidity
|
≤95%(No condensation)
|
|
|
Altitude
|
<2000m
|
|

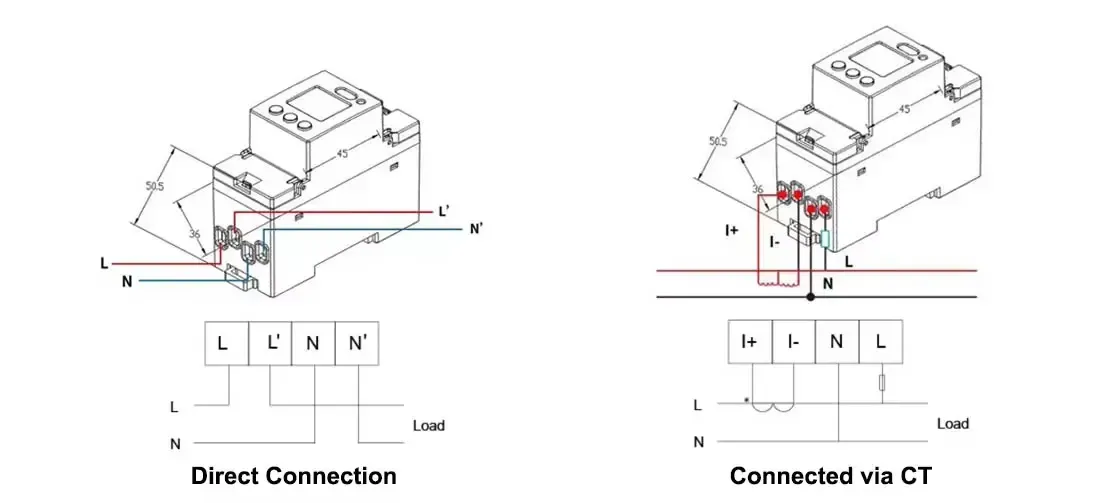

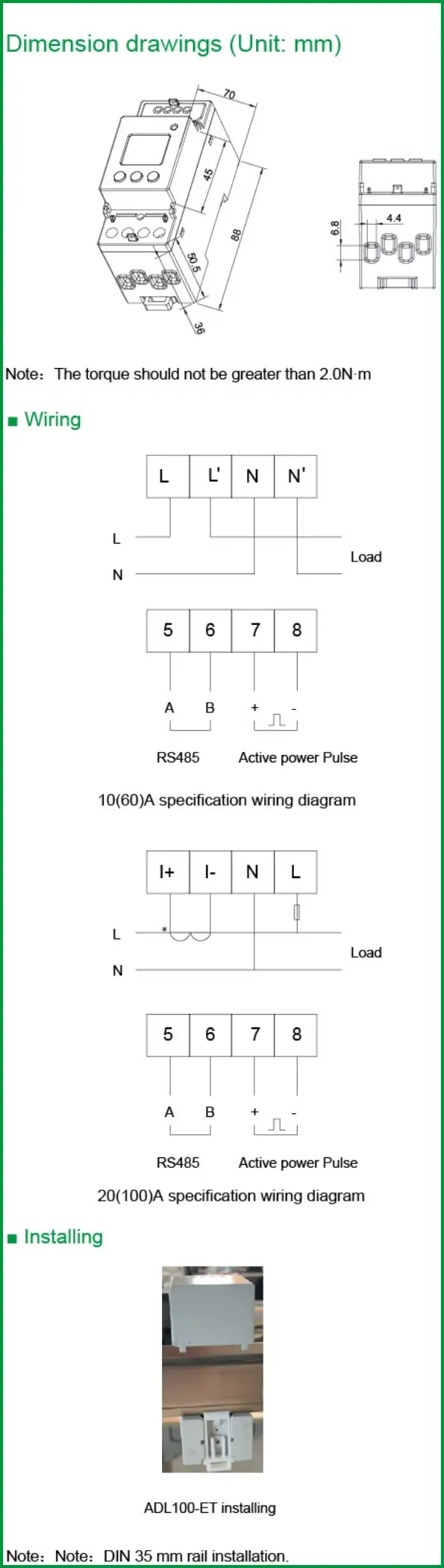

Dimension & Installation
Parameters
Function & Parameter
1.Function
|
Function
|
Function description
|
Function provide
|
|
Measurement of kWh
|
Single-phase active kWh (positive and negative)
|
■
|
|
Measurement of electrical parameters
|
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency
|
■
|
|
LCD Display
|
8 bits section LCD display
|
■
|
|
Key programming
|
3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol
|
■
|
|
Pulse output
|
Active energy pulse output
|
■
|
|
Multi-tariff
|
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
|
□F
|
|
Communication
|
Communication interface: RS485, Communication protocol: MODBUS-RTU
|
□C
|
|
Infrared communication
|
■
|
2.Technical parameter
|
Input voltage
|
Reference voltage
|
AC 220V
|
|
Reference frequency
|
50Hz
|
|
|
Power consumption
|
<10VA
|
|
|
Input current
|
Basic current
|
10A / 20A
|
|
Maximum current
|
60A / 100A
|
|
|
Starting current
|
4‰Ib
|
|
|
Consumption
|
<4VA (Maximum current)
|
|
|
Measurement performance
|
Accuracy of measuring
|
1class
|
|
Range of measuring
|
000000.00~99999999kWh
|
|
|
Clock accuracy
|
Error≤0.5s/d
|
|
|
Active pulse
|
Pulse width
|
80±20ms
|
|
Pulse constant
|
1600imp/kWh，LED
|
|
|
Communication
|
Interface
|
RS485(A+、B-)
|
|
Connection mode
|
Shielded twisted pair conductors
|
|
|
Protocol
|
MODBUS-RTU
|
|
|
Outline (Length × Width × Height)
|
88mm×36mm×70mm
|
|
|
Temperature range
|
Work temperature
|
-25℃~55℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
|
Relative humidity
|
≤95%(No condensation)
|
|
|
Altitude
|
<2000m
|
|
