Acrel ADL3000-E 3 Phase Multi-function Energy Meter

Measurement: 3-phase kWh (0.5S), Active Power, Reactive Power, Current, Voltage, Harmonic and etc
Voltage Rating: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W)
Current Rating: 3x10(80)A; 3x1(6)A
Frequency: 45~65Hz
Communication: RS485 (MODBUS-RTU) and Infrared
Multi-rate: Spike, Peak, Valley and Flat kWh
Extra Function: Cable Temperature Measurement and DO/DI
Standard&Certificate: IEC; CE; EAC

008618702112136

Richard@acrel-electric.com

8618701850814

Acrel ADL3000-E 3 Phase Multi-function Energy Meter

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

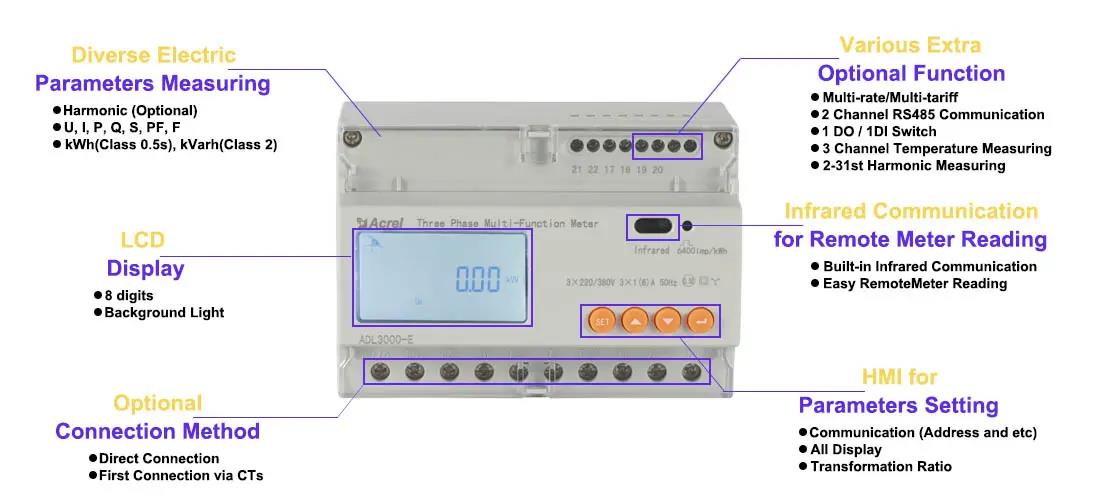

Features

Function

Diverse Electricity Parameters Measurement

● Harmonic (2~31st voltage¤t)---Optional

● F (Frequency) ● U (3-phase Voltage) ● I (3-phase Current)

● kWh (3-phase positive Kilowatt-hours)

● kVarh (Kilovar-hours) ● P (Power) ● Q (Reactive power)

● S (Apparent power) ● PF (Power factor)

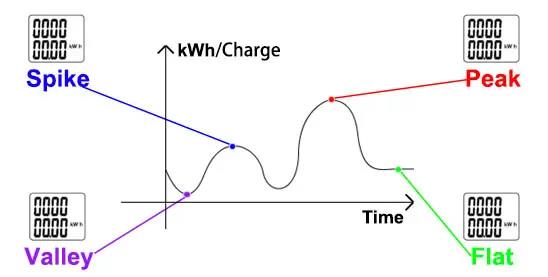

Multi-rate/Flexible Tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

● Data Frozen (last 48 months or last 90 days)

● Max demand and occurrence time

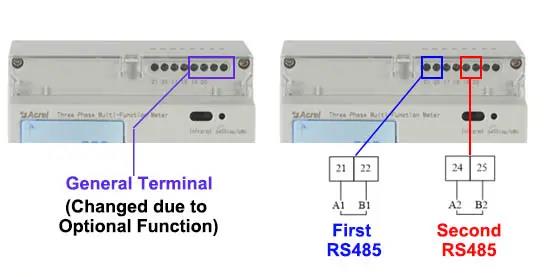

2 Channel RS485 Communication

● Protocol: MODBUS-RTU

● 1 channel RS485 or 2 channel RS485 both optional

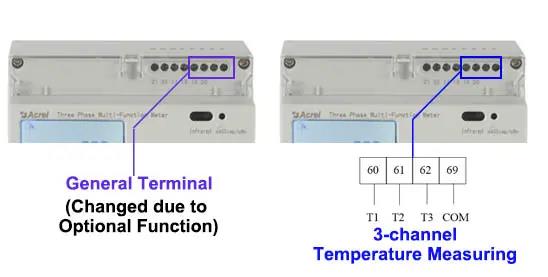

3-channel Temperature Measuring

● Thermistor: NTC temperature sensor

● Measuring Range: -40℃~+125℃

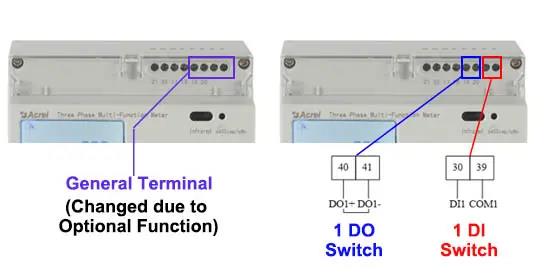

DO/DI Switch

● 1 channel DO

● 1 channel DI

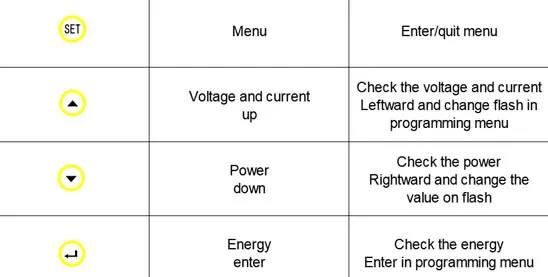

HMI for Parameters Setting

● Code ● Protocol

● Address ● Baud rate

● Parity ● All Display

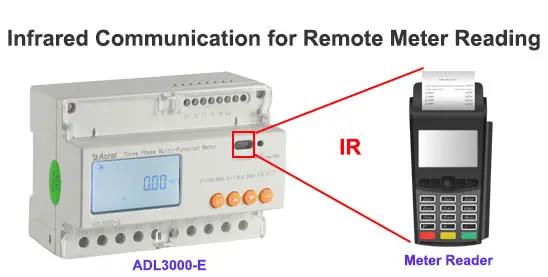

Infrared Communication for Remote Meter Reading

● Built-in infrared communication

● Easy Remote Meter Reading

● Optional Connection Methods

● Direct Connection with Meter

● First Connection via CT.

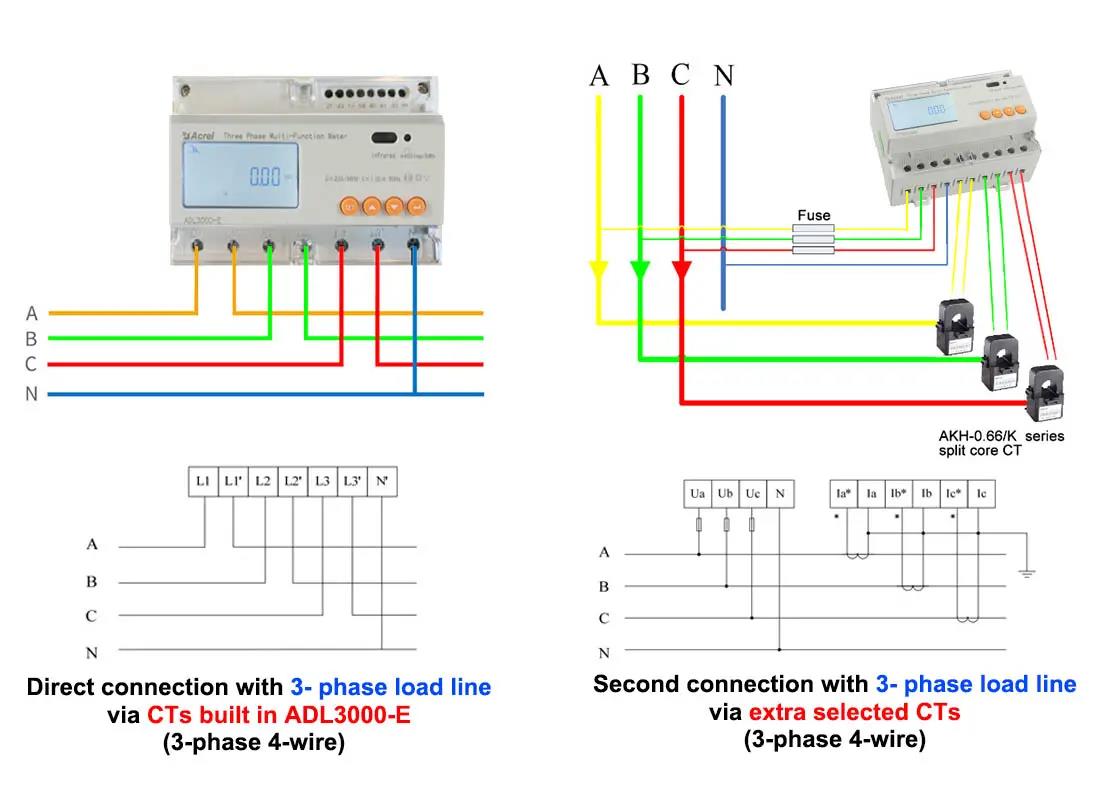

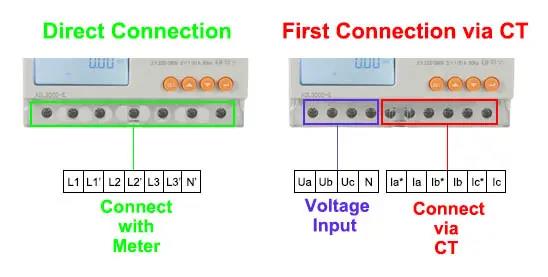

Optional Connection Methods

● Direct Connection with Meter

● First Connection via CT.

Wiring Digram

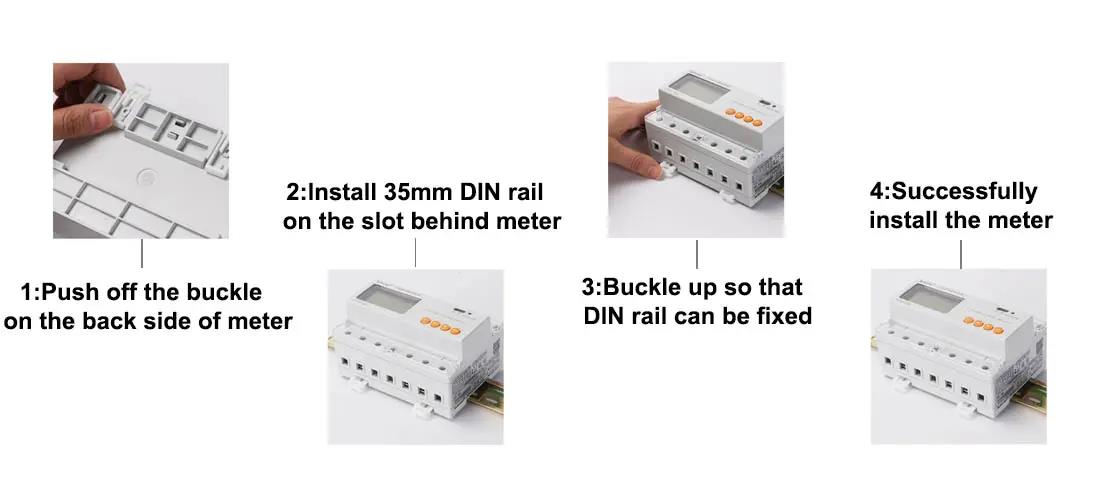

Installation Instruction

Technical Parameters

Function

Measurement of kWh	kWh (positive and negative)
	kvarh (positive and negative)
	A, B, C phase positive kWh
Measurement of electrical parameters	U、I、P、Q、S、PF、Hz
Measurement of harmonic (optional)	2~31ST Voltage and current harmonic
LCD Display	8 digits
Key	4 keys
LED alarm	voltage loss and over voltage
Switch I/O (optional)	Active switch input
Switch I/O (optional)	Switch output
Data (optional)	Maximum demanded kWh and time happened
	Frozen data on last 48 months, last 90days
	Date, time
Communication	Infrared
Communication	RS485, MODBUS-RTU (optional)
Temperature measurement (optional)	Support 3 outlay NTC temperature

Electric performance

Voltage	Nominal voltage	3×100V、 3×380V、 3×57.7/100V、 3×220/380V
	Consumption	<10VA(Single phase)
	Impedance	>2MΩ
	Accuracy	±0.2%
Current	Accuracy	±0.2%
	Maximum current	80A,6A
	Consumption	<1VA
Frequency	range	45～65Hz
Frequency	accuracy	±0.2%
Energy accuracy	Active energy	Class 0.5s
Energy accuracy	reactive energy	Class 2
Clock	accuracy	≤0.5s/d
Active Pulse	Width	80±20ms
	constant	6400imp/kWh,400imp/kWh
	constant	(Correspond with the basic current)
Communication	Interface	RS485
Communication	Protocol	MODBUS-RTU
