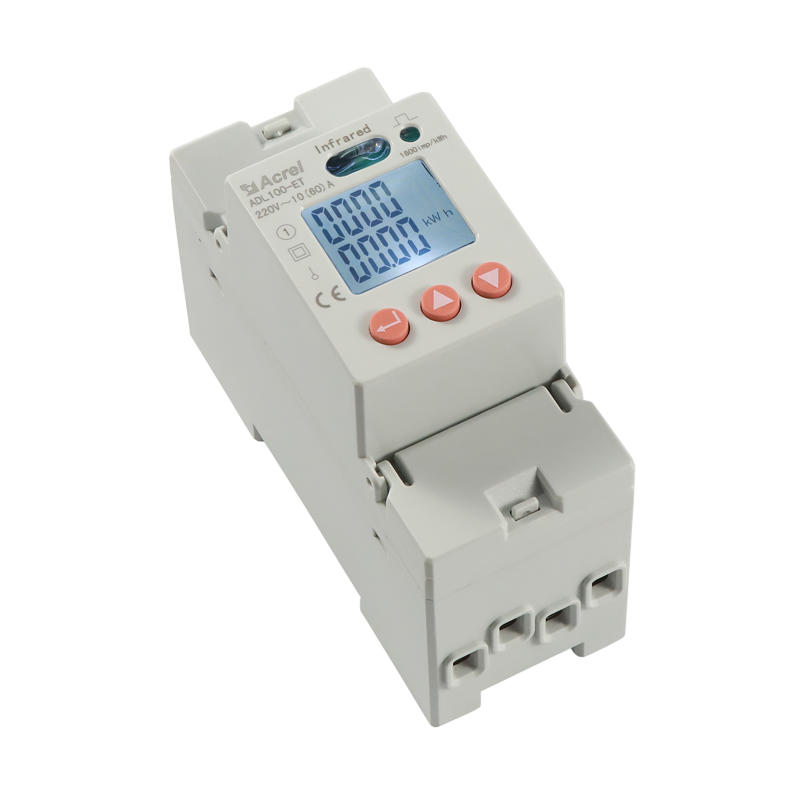

Acrel ADL100-ET/CT Single phase multi-function electric meter with CT

Input current:20(100)A
Input voltage:AC220V
Accuracy:Class 1
Frequency:50Hz
Installation:DIN 35mm

008618702112136

Richard@acrel-electric.com

8618701850814

Acrel ADL100-ET/CT Single phase multi-function electric meter with CT

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

ADL100 single phase electric meter is designed for single phase active energy measurement on low voltage system, in the same time it can measure the electrical parameters like voltage, current, power and so on. There is also RS485 can be chosen. This power meter has advantages of smaller volume, high precision, good EMC, easily installing etc, All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.

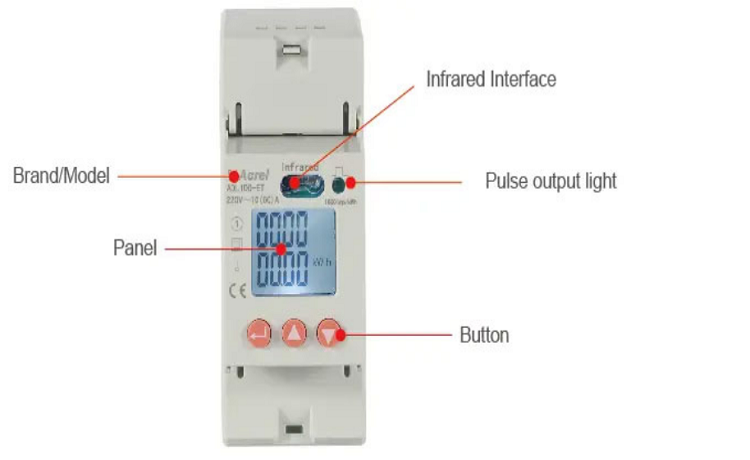

Characteristic

Function

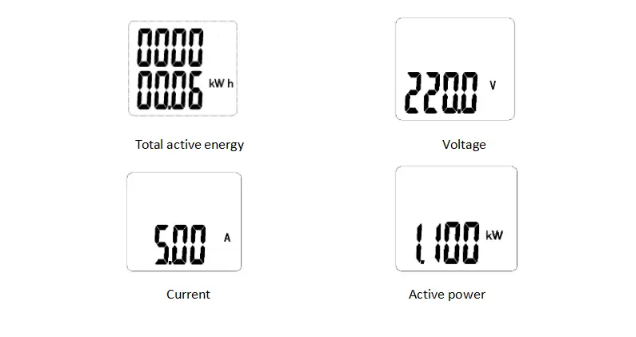

LCD display

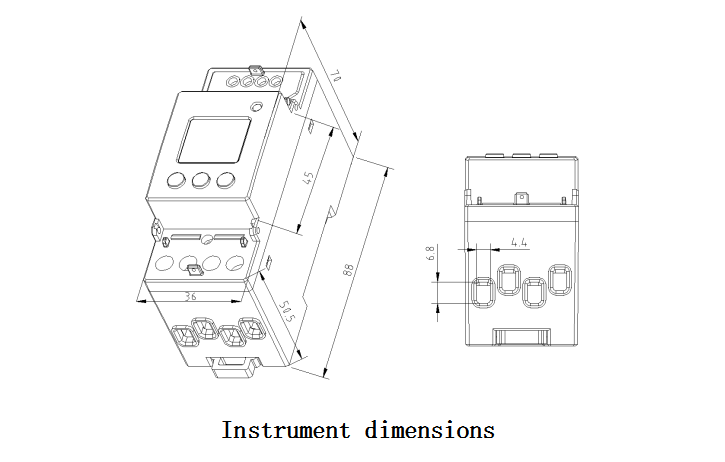

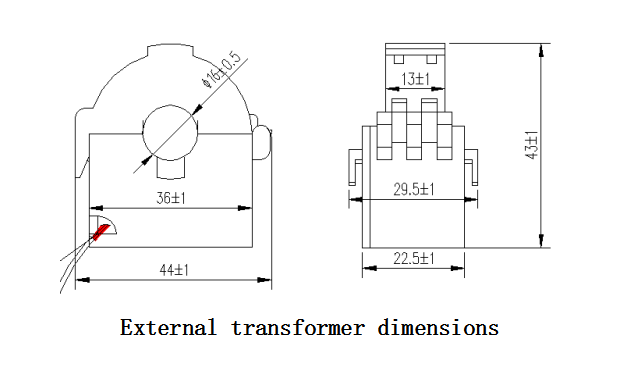

Dimension(unit:mm)

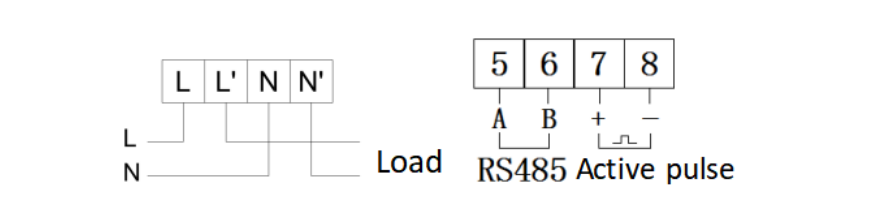

Wiring

Installation

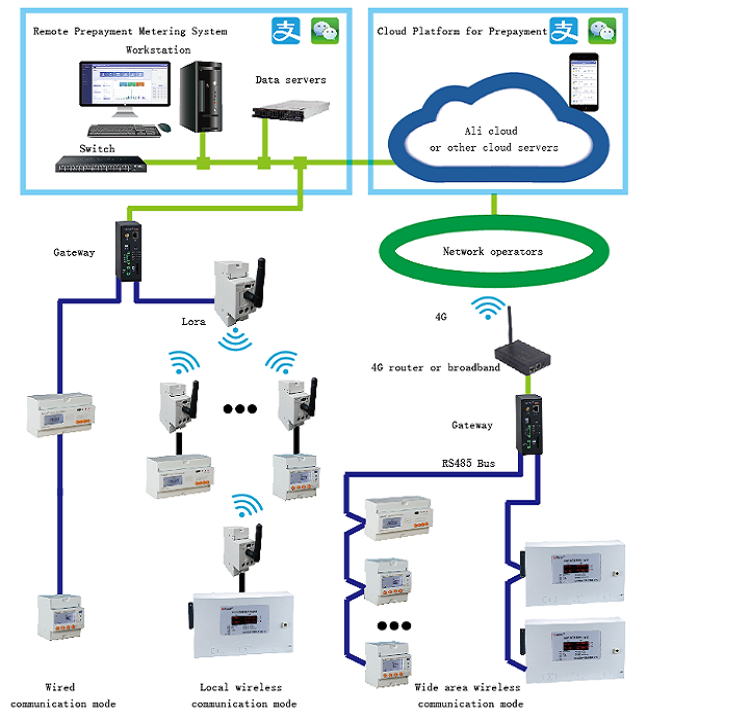

Diagram

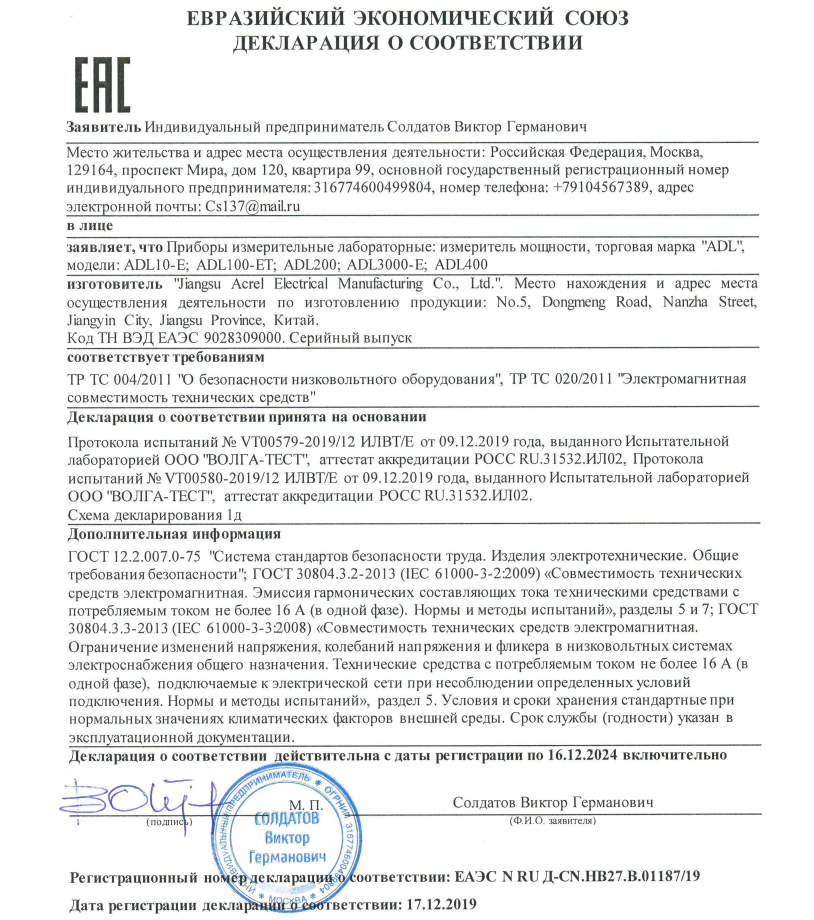

Certificate

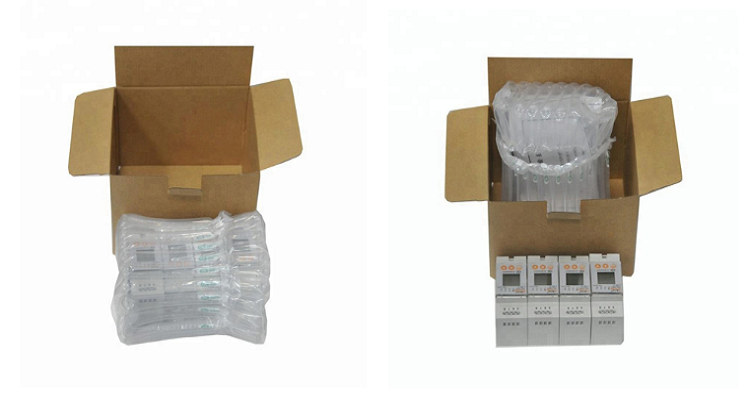

Packing&delivery

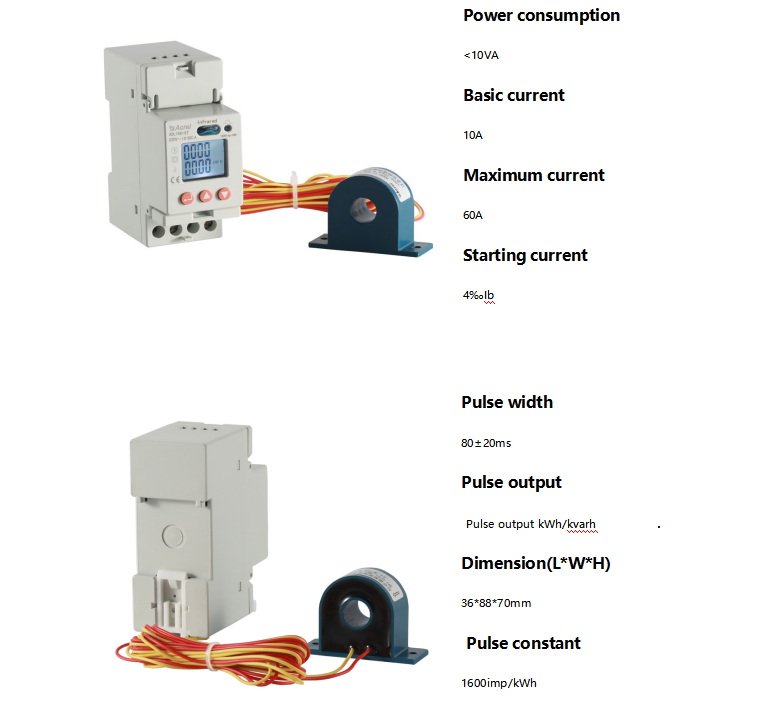

Parameters

Electric Performance

Input voltage	Reference voltage	AC220V
	Reference frequency	50Hz
	Power consumption	<10VA
Input current	Basic current	10A
	Maximum current	60A
	Starting current	4‰Ib
	Consumption	<4VA (Maximum current)
Measurement performance	Accuracy of measuring	1 class
Measurement performance	Range of measuring	000000.00~99999999kWh
Clock accuracy		Error≤0.5s/d
Active pulse	Pulse width	80±20ms
Active pulse	Pulse constant	1600imp/kWh, LED
Communication	Interface	RS485(A+、B-)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU
