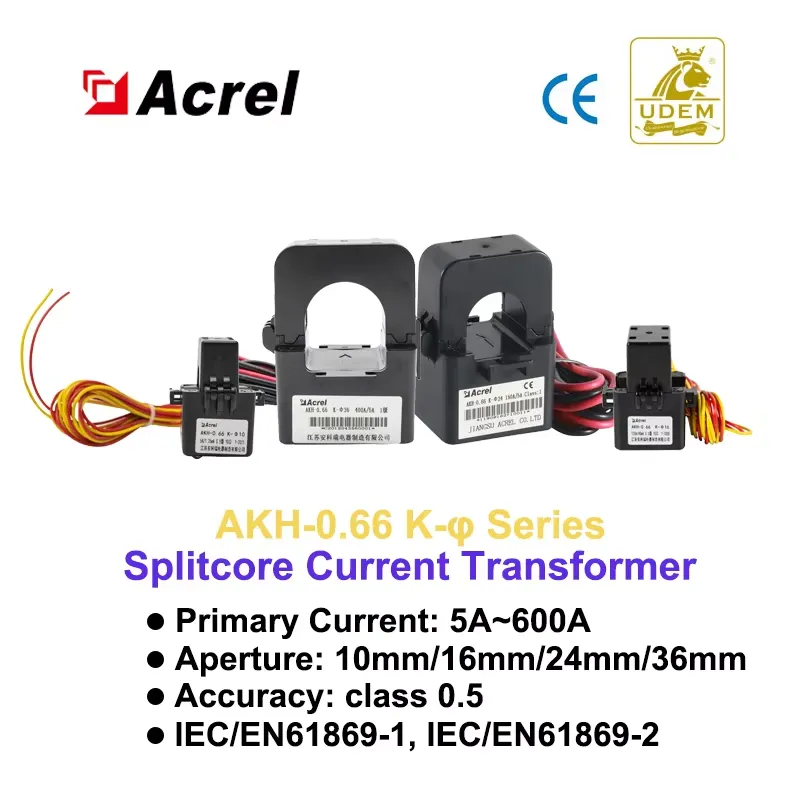

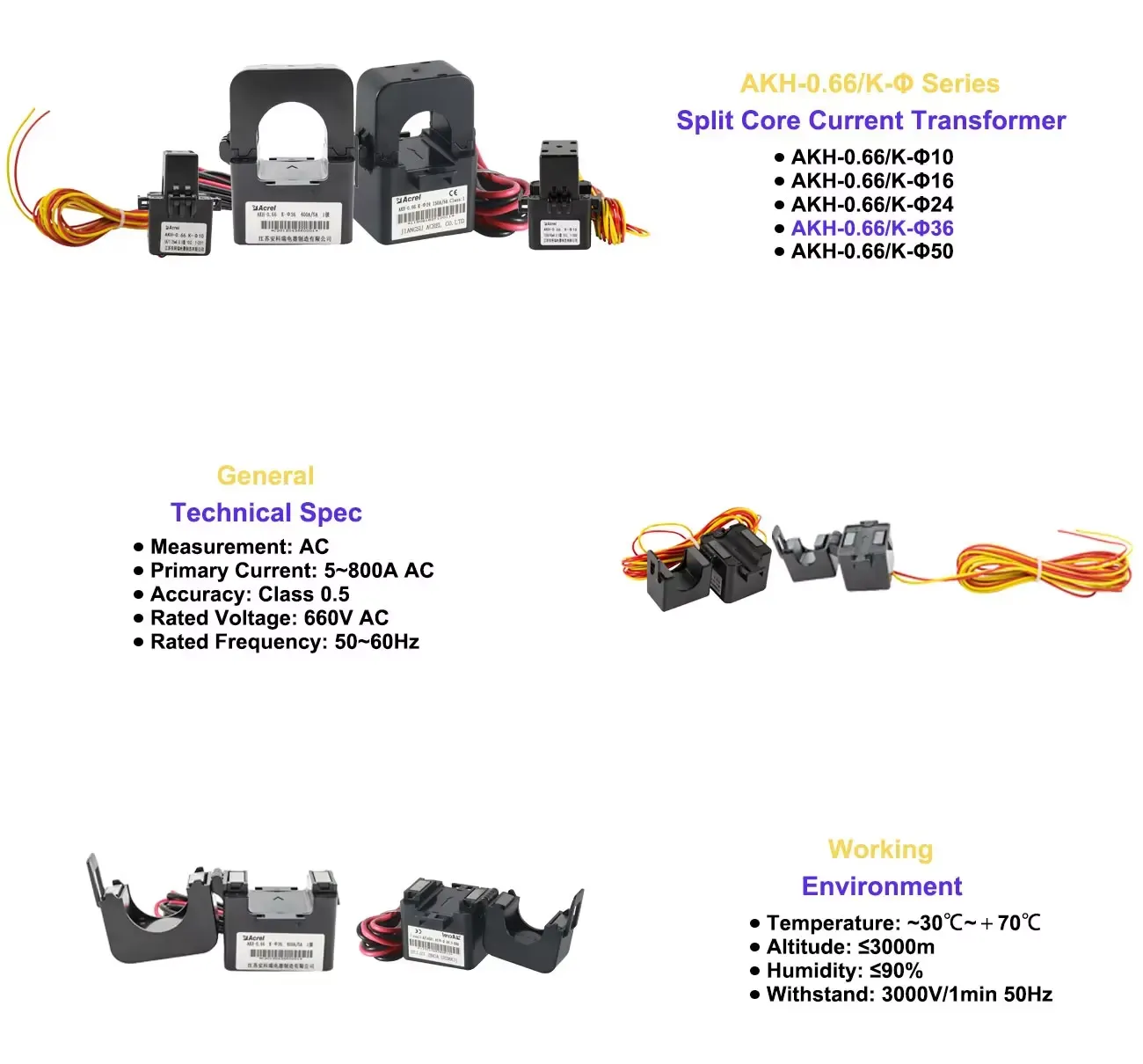

Acrel AKH-0.66 K-φ24 Split core Current Transformer
AKH-0.66K series of Split core current transformers are mainly used in industrial city network and agricultural network reconstruction projects. They are easy to install, do not need to remove primary busbar, can also be operated live, do not affect the normal use of electricity, save manpower, material and financial resources for user transformation projects, and improve efficiency. The series of current transformers can be used with relay protection, measurement and metering devices.
● Measurement: Alternating Current (AC)
● Accuracy: Class 0.5
● Primary Current Input: 60~400A AC
● Rated Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
● Accuracy: Class 0.5
● Primary Current Input: 60~400A AC
● Rated Voltage: 660V AC
● Rated Frequency: 50~60Hz
● Installtion: Clamp-on (installed on Cable)
● Loop Count: 1 Loop
● Standard&Certificate: IEC/EN61869-1;IEC/EN61869-2;CE
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Products Description

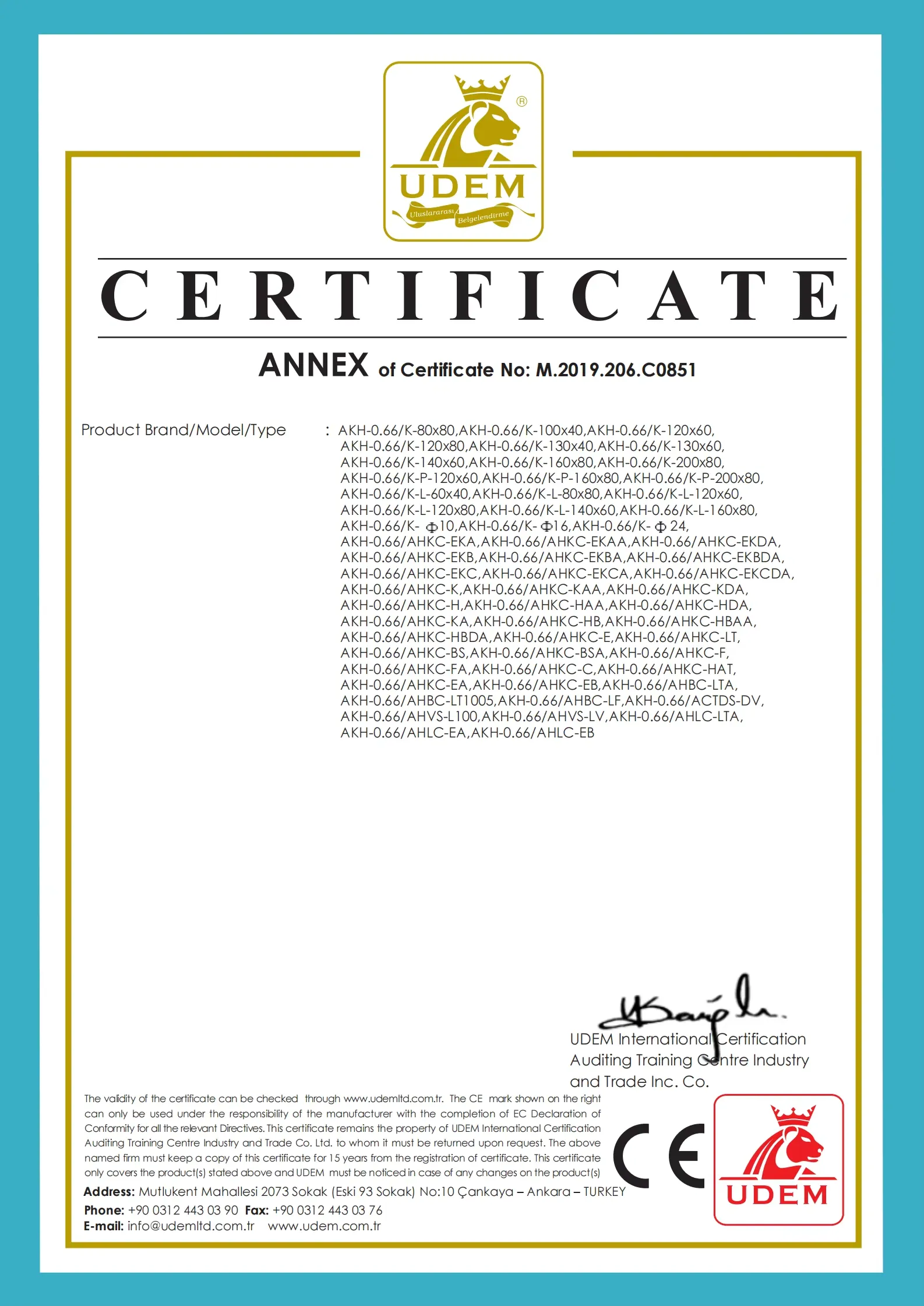

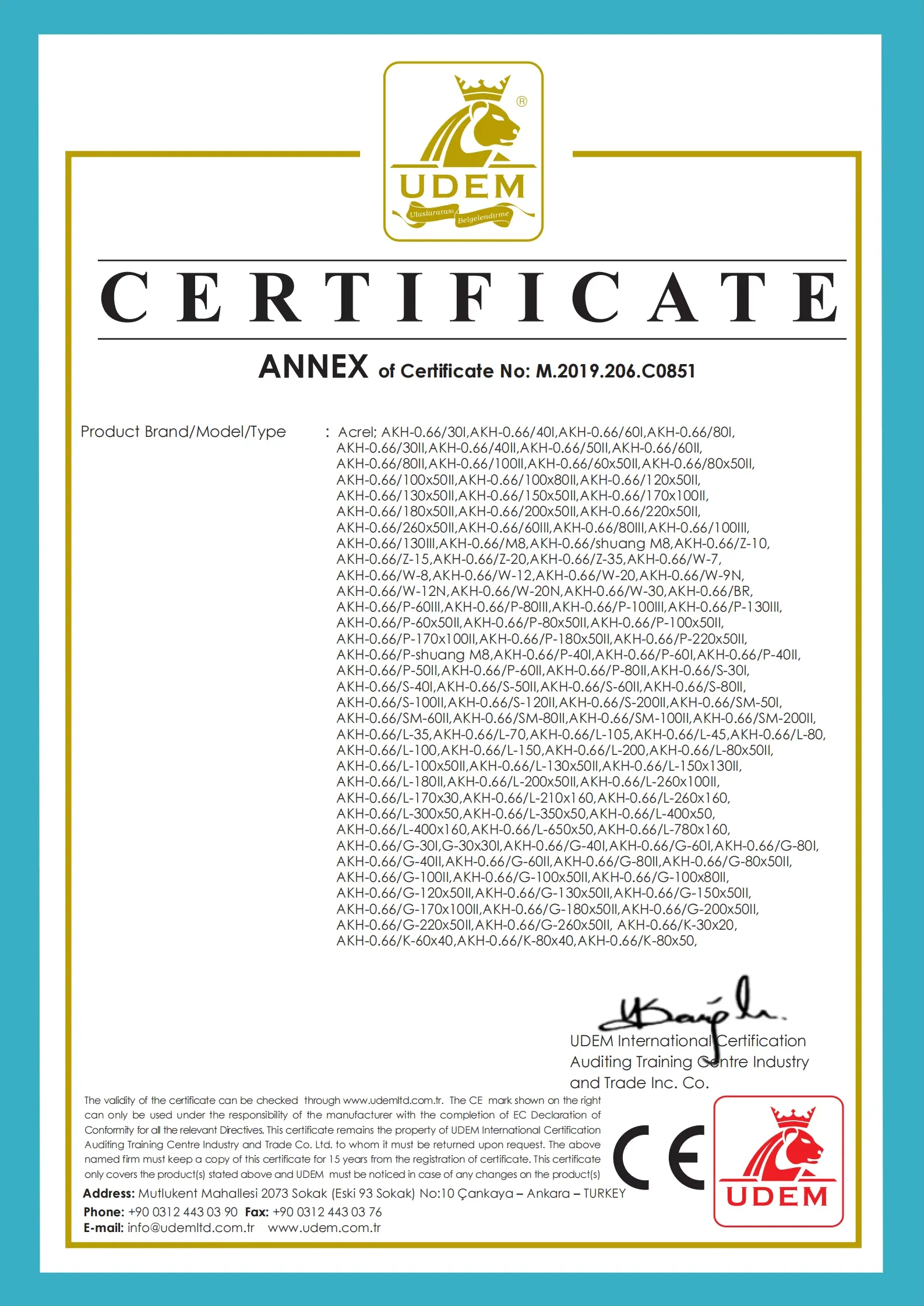

Certificate

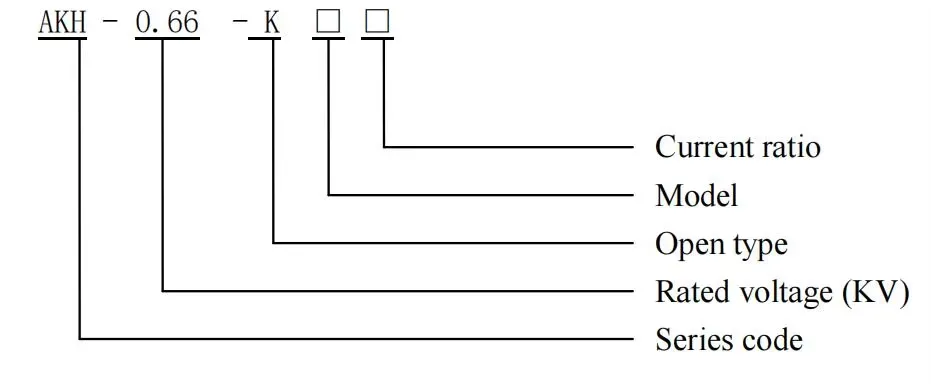

Explanation of Model Name
Technical Parameters
|
Model
Name
|
Current Ratio(A)
Primary/Secondary
|
Accuracy
Class
|
Rated Load
(VA)
|
Aperture
Hole Diameter(mm)
|
|
AKH-0.66/K-Φ10
|
5A/1.25mA
|
0.5
|
10
|
φ10
|
|
(10~20)A/5mA
|
||||
|
(40~60)A/20mA
|
||||
|
AKH-0.66/K-Φ16
|
(20~50)A/10mA
|
0.5
|
10
|
φ16
|
|
40~100A/20mA
|
||||
|
100A/40mA
|
||||
|
AKH-0.66/K-Φ24
|
(60~200)A/20mA
|
0.5
|
10
|
φ24
|
|
(100~250)A/40mA
|
||||
|
400A/100mA
|
10
|
|||
|
(150~200)A/5(1)A
|
|
|||
|
(250~300)A/5(1)A
|
10
|
|||
|
AKH-0.66/K-φ36
|
(100~200)A/10mA
|
0.5
|
10
|
φ36
|
|
(200~400)A/20mA
|
||||
|
(300~600)A/100mA
|
||||
|
400A/40mA
|
||||
|
600A/75mA
|
0.5
|
10
|
||
|
(300~400)A/5(1)A
|
||||
|
(500~600)A/5(1)A
|
10
|
φ36
|
||
|
AKH-0.66/K-Φ50
|
(600~800)A/100mA
|
0.5
|
10
|
φ50
|
|
(500~1000)A/5(1)A
|

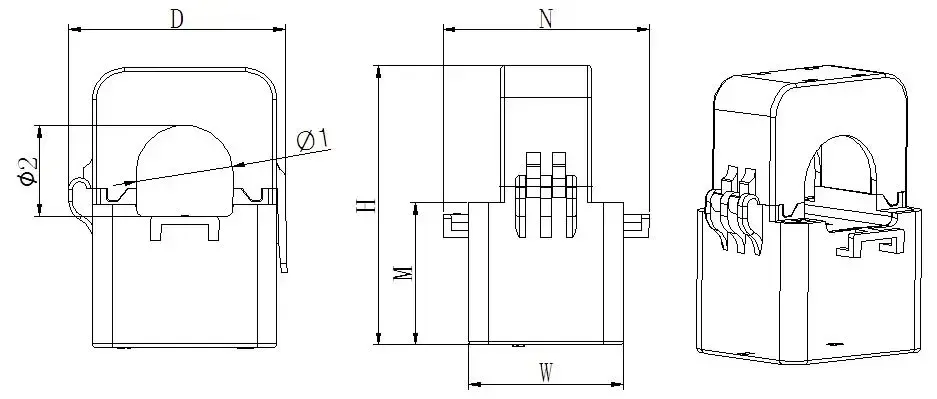

Dimension Overview
|
Model Name
|
Outline Size (mm)
|
Perforation Size (mm)
|
Tolerance (mm)
|
|||||
|
W
|
H
|
D
|
M
|
N
|
φ1
|
φ2
|
||
|
AKH-0.66/K-φ10
|
27
|
40
|
26
|
24
|
36
|
10
|
9
|
±1
|
|
AKH-0.66/K-φ16
|
31
|
50
|
29
|
28
|
42
|
16
|
17
|
|
|
AKH-0.66/K-φ24
|
39
|
71
|
46
|
36
|
52
|
24
|
23.5
|
|
|
AKH-0.66/K-φ36
|
42.5
|
82
|
58
|
40
|
56
|
33.5
|
35
|
|
|
AKH-0.66/K-φ50
|
46.5
|
110
|
90
|
54
|
66.5
|
47
|
52
|
|

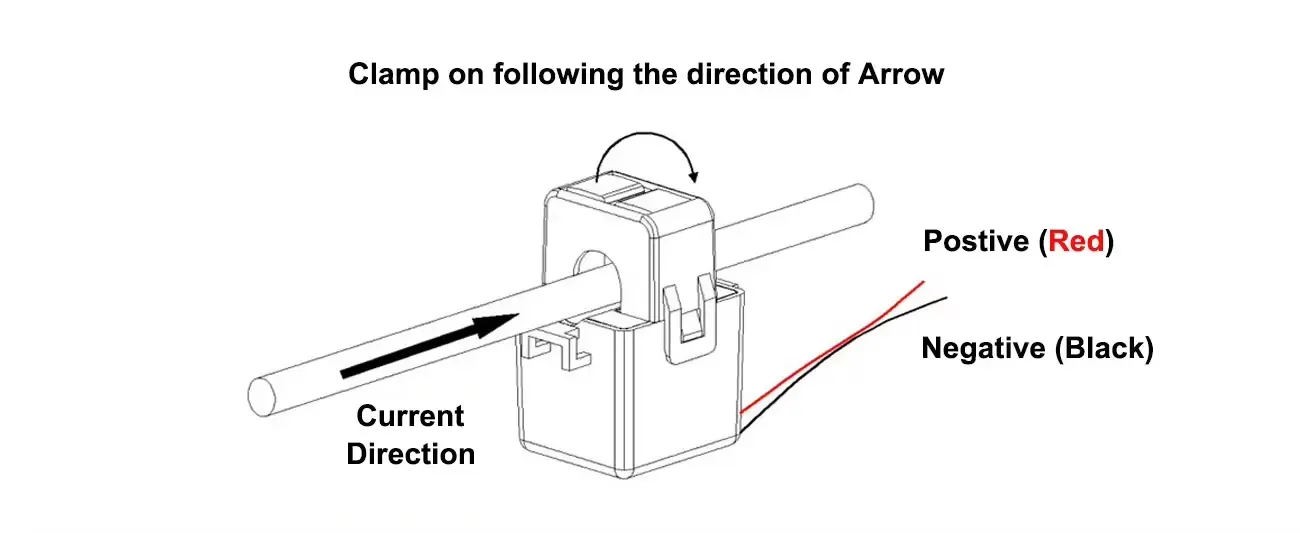

Installation Instruction
Download
-
AKH-0.66-K-Φ24（UL）Split type current transformer.pdf
