Acrel ADL200-NK/WF Single Phase Remote On/Off Energy Meter
● Measurement: 1-phase AC kilowatt-hours, active power, current, voltage, etc.
● Accuracy: 1.0% (kWh)
● Frequency: 45 ~ 65 Hz
● Rated Voltage: 220 ~ 264Vac (direct connection)
● Rated Current: 10(60)A AC (direct connection)
● Relay Output Capacity: 250Vac 60A
● Communication: RS485 (MODBUS-RTU), WIFI, MQTT
● Dimensions: 90 * 36 * 65 mm (L * W * H)
● Installation: 35mm DIN rail
● Standards and Certificates: IEC; CE; Ce-mid; EAC
▋ Common Applicaiton
▋ Products Overview
|
|
Main Features |
|
|
Wireless Communication ● Support optional 2.4GHz WiFi comms. ● Standard 1-channel RS485 [MODBUS-RTU]
|
|
Built-in control function ● With built-in withholding magnetic relay ● Control the circuit not more than 60A AC ● Remote control via platform available
|
|
Diverse Electricity Parameters Measurement ● U (Voltage) ● I (Current) ● P (Power) ● Q (Reactive power) ● S (Apparent power) ● PF (Power factor) ● kWh (Kilowatt-hours) ● kVarh (Kilovar-hours)
|
▋Dimension&Packagement
|
|
Outline Dimension |
|
▋ Wiring Instruction
|
|
PIN Overview |
|
|
|
|
PIN/Terminal Overview of ADL200-NK |
|
|
Power Wiring |
|
|
|
|
Power Wiring of ADL200-NK |
|
|
Comms. Wiring |
|
|
|
|
RS485 Communication Wiring of ADL200-NK |
▋ DIN Rail Installation

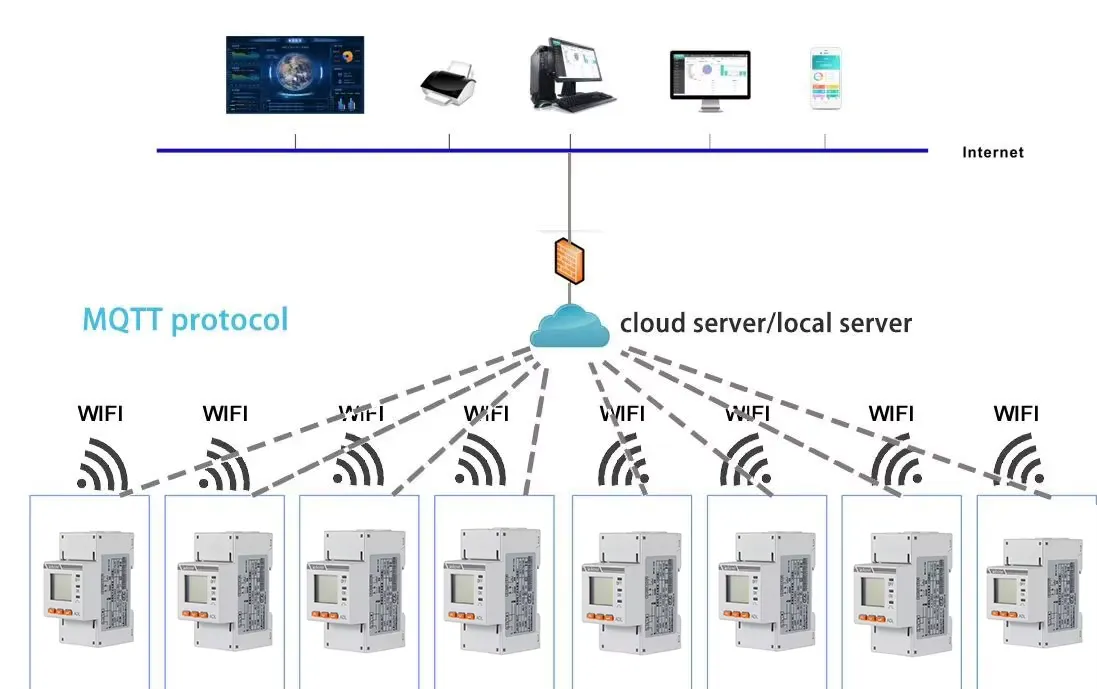

▋ Application in IoT System
-
ADL200-NKInstallationandoperationinstruction(V1.0).pdf
