Acrel BM200 series signal isolation barrier
Input type: Current/Voltage/Thermal resistance Pt100/Resistance/Thermocouple
Transmission accuracy: 0.2%
Input: 0~20mA /4~20mA ,0~5V /0~10V /1~5V (Distribution voltage: 12V/20mA) PT100 /0~10K
Output: 0~20mA /4~20mA , 0~5V /1~5V , 0~10V
Power Supply: 20~35V DC
Response Time: 5ms to reach 90% of final value
Installation: DIN Rail
Standard&Certificate: CE

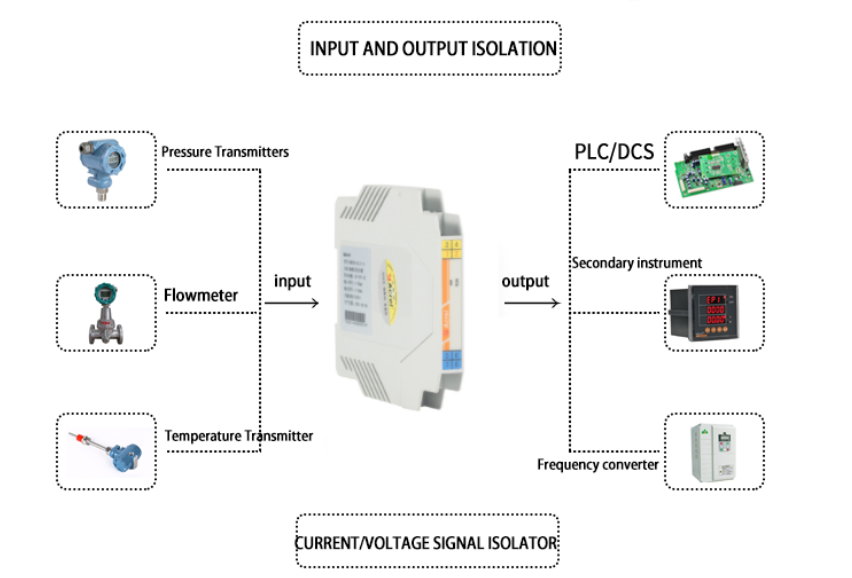

BM200 Series isolated safety barrier can transmit signals between the safe area and the dangerous area, and limit the energy transfer from the safe area to the dangerous area caused by the fault. The voltage, current, temperature, resistance signals generated by the equipment (transmitter) on the dangerous side are isolated and converted into corresponding linear voltage and current signals outputting to the safe area. The product requires independent power supply, and the input/output/power supply is isolated. It can be used in current source, two-wire, three-wire transmitter equipment.
|
Product category |
Type of products |
Outline dimension |
|
BM200 |
BM200-□□/□-B11(single-way input and single-way output) |
99mm*114.5mm*12.5mm |
|
BM200-□□/□-C□2 |
99mm*114.5mm*22.5mm |

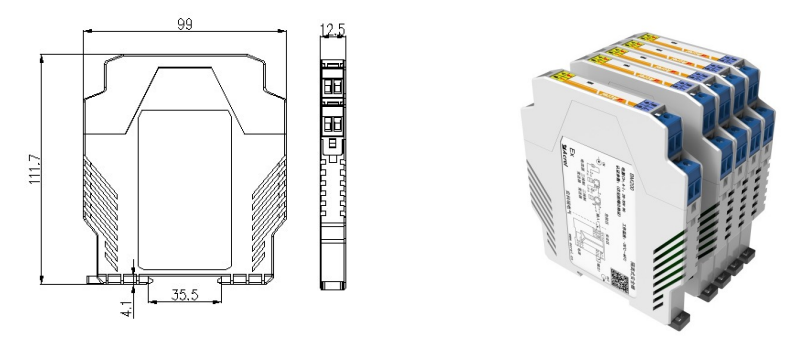

BM200-□□/□-B11 outline dimension(unit:mm)
BM200-□□/□-C□2 outline dimension(unit:mm)
|
Channel type |
Single-way input and single-way output, |
|
Input type |
Current/Voltage/Thermal resistance Pt100/Resistance |
|
Input signal |
0~20mA /4~20mA |
|
Output signal |
0~20mA /4~20mA (Safe side input); Load resistance: ≤550Ω |
|
Transmission accuracy |
0.2% |
|
Temperature modulus |
50ppm/℃ (The output signal is current) |
|
Response time |
5ms to reach 90% of final value |
|
Power supply |
20~35V DC |
|
Work temperature |
-20℃~+60℃ |
|
Fix mode |
Rail installation |
|
Dielectric strength |
Intrinsically Safe and Non-Intrinsically Safe ≥2500V AC; |
-
Manual of BM200 signal isolation barrier
-
Certificate of BM200
