Acrel AHBC-CAN500/24V Hall Effect Transducer
Good Linearity ---Linearity Error<0.1%
Wide Voltage Supply --- Supply Voltage: +18V to +28V
Power Protection Function ---Automatic Overvoltage Protection
High Accuracy
---Accuracy:0.2%
---Temperature Drift<50ppm
Digital Communication ---High-Speed CAN 2.0 Interface
Operating Temperature --- -40℃ to +105℃
The AHBC-CAN500/24V power sensor is a high-precision DC current sensor primarily installed on battery busbars to monitor charging and discharging currents. Utilizing fluxgate technology, it offers high precision and low hysteresis. With a zerooffset current less than 10mA, it maintains low zero offset and high accuracy even after exposure to large currents up to 1000A. This sensor is ideal for power battery monitoring, high-precision current measurement, and battery management systems, meeting the SOC estimation accuracy requirement of less than 10% as per national standard QCT897-2011. All functionalities comply with automotive-grade standards.
● EV Battery Management System (BMS)
● EV Battery Distribution Unit (BDU)
● EV High-Voltage Distribution Unit (PDU)
● Industrial Lithium Battery Energy Management
● Land-Based Tank Backup Power
Limit Parameters
|
Parameter |
Symbol |
Specs |
Unit |
Condition |
|
Overvoltage |
Uc |
35 |
V |
400ms |
|
Overvoltage |
Uc |
32 |
V |
1min |
|
Min. Operating Voltage |
Uc |
18 |
V |
Can operate but can't measure |
|
Max. OperatingVoltage |
Uc |
28 |
V |
Can operate but can't measure |
|
Clearance |
DCI |
7 |
mm |
|
|
Creepage Distance |
Dcp |
7.2 |
mm |
|
|
Insulation Resistance |
R IS |
500 |
MΩ |
500V ，1min |
|
IP Rating |
|
IP56 |
|
|
|
AC Insulation Test Voltage |
|
5 |
kV |
50Hz ，1min |
|
DC Insulation Test Voltage |
|
5 |
kV |
1min |
Standard Parameters
|
Parameter |
Symbol |
Specs |
Unit |
Condition |
||
|
Min. |
Typical Value |
Max. |
||||
|
Rated Measuring Current |
IPN |
-500 |
|
500 |
A |
|
|
Max Measuring Current |
IPM |
-600 |
|
600 |
A |
|
|
Supply Voltage |
Uc |
18 |
24 |
28 |
V |
|
|
Operating Current @Ip=0A |
Ic |
|
30 |
|
mA |
Uc=12V,T=25℃ |
|
Operating Current @IPM |
Ic |
|
160 |
|
mA |
Uc=12V,T=25℃ |
|
Linearity Error |
L |
-0.1 |
|
0.1 |
% |
±3σ Full Temp. Range |
|
Zero Offset@Ip=0A |
Io |
-10 |
|
10 |
mA |
±3σ Full Temp. Range |
|
Accuracy@Ip=±40A |
XG |
-60 |
|
60 |
mA |
±3σ Full Temp. Range |
|
Operating Temperature |
TA |
-40 |
|
105 |
℃ |
|
|
Zero Offset Temperature Drift |
Toff |
|
0 |
|
mA/K |
|
|
Gain Temperature Drift |
Tgain |
-50 |
|
50 |
ppm/K |
±3σ Full Temp. Range |
|
Output Noise |
Noise |
-10 |
|
10 |
dB |
|
|

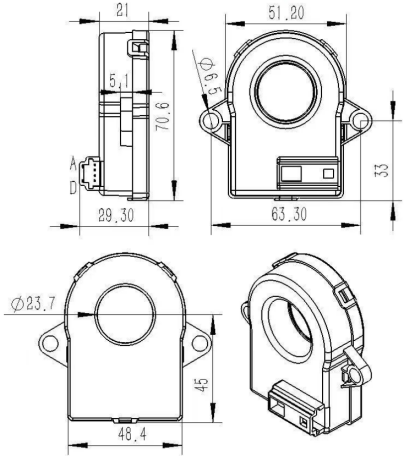

Characteristic |
Rating |
Unit |
|
General Tolerance |
± 0.5 |
mm |
|
Other Tolerances Apply |
GB/T 1804-2000-M |
|
|
Fixed Hole Size |
Φ6.5 |
mm |
|
Fastening Screws |
M6 |
|
|
Recommended Tightening Torque |
1.8(±10%) |
N.m |
|
Connector |
Tyco AMP 1473672 |
|
|
Housing Material |
PBT GF30 |
|
|
Weight |
80 |
g |
|
PIN Material |
Tin-Plated Brass |
|
|
IP Rating |
IP56 |
|
-
Manual of AHBC.pdf
