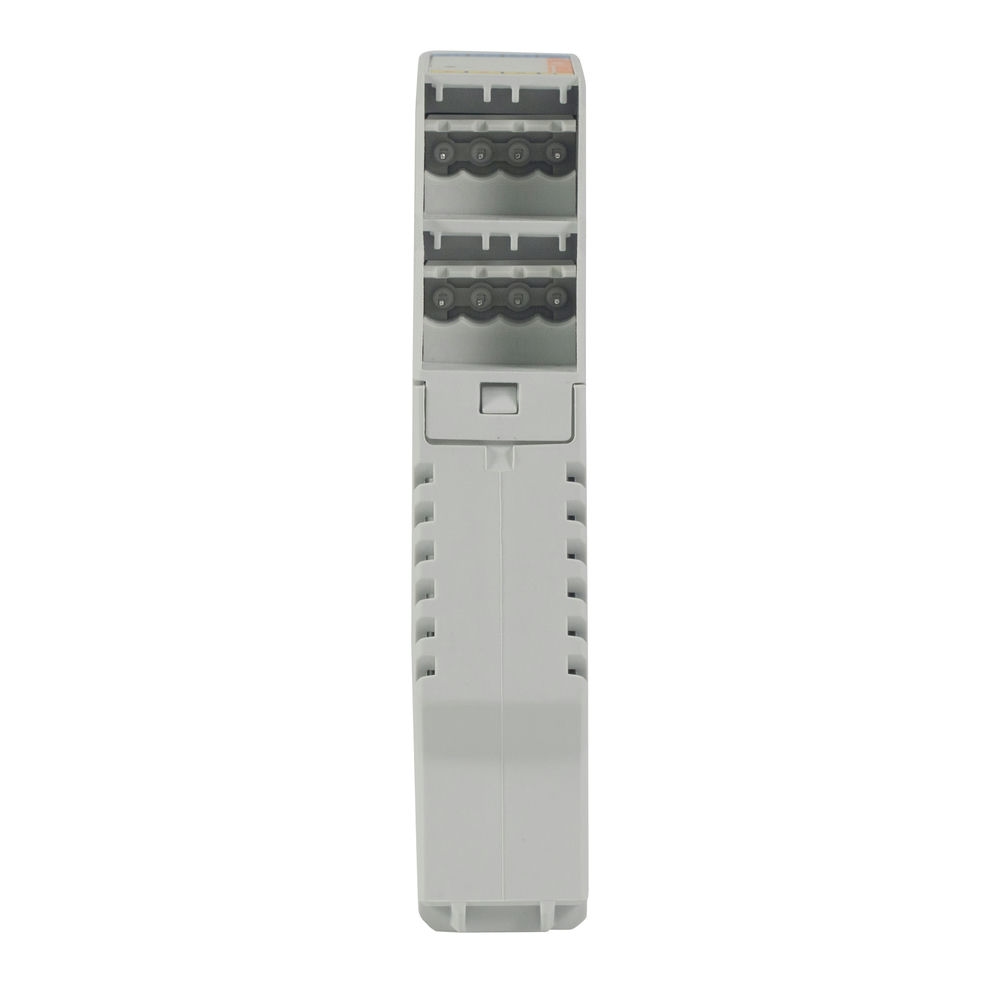

Acrel BM100 series signal isolator
Input type: Current/Voltage/Thermal resistance Pt100/Resistance
Transmission accuracy: 0.2%
Input signal: DC 0~20mA /4~20mA ,DC 0~5V /1~5V /0~10V, Pt100 ,0~10KΩ
Output signal: DC 0~20mA /4~20mA ,DC 0~5V /1~5V ,DC 0~10V /2~10V
Power supply: 20~35V DC or 85~265V AC/DC
Response time: 5ms to reach 90% of final value
Installation: DIN Rail
Standard&Certificate: CE
BM100 series signal isolators can measure the electrical parameters such as current and voltage or non-electrical parameters such as temperature and resistance at high speed and accurately, and can be converted into standard analog signal output after the isolation device. It can be directly connected with pointer meter and digital display meter, and can also be connected with automatic control instrument (such as PLC), various A/D converters and computer systems. It is widely used in electric power, railway, petrochemical, metallurgy, chemical industry, food, warehousing and other industries.
|
Product category |
Type of products |
Outline dimension |
|
BM100 |

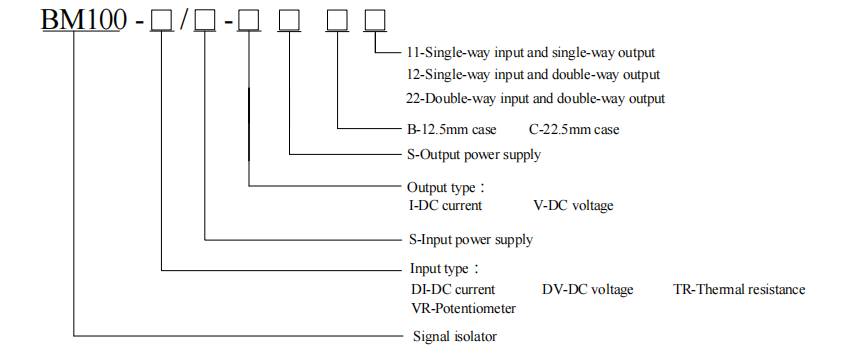

BM100-□□/□-B□□ |
99mm*112mm*12.5mm |
|
BM100-□□/□-C□□ |
99mm*112mm*22.5mm |

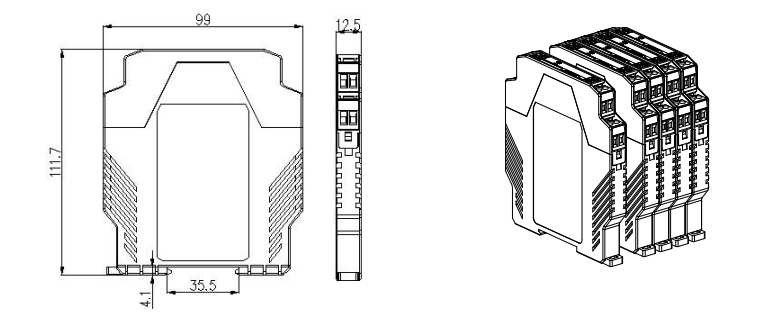

BM100-□□/□-B□□ outline dimension(unit:mm)

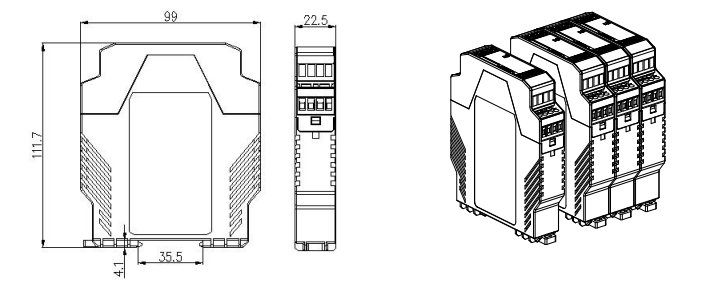

BM100-□□/□-C□□ outline dimension(unit:mm)
|
Channel type |
Single-way input and single-way output, |
|
Input type |
Current/Voltage/Thermal resistance Pt100/Resistance |
|
Input signal |
DC 0~20mA /4~20mA |
|
Output signal |
DC 0~20mA /4~20mA ; Load resistance: ≤550Ω |
|
Transmission accuracy |
0.2% |
|
Temperature modulus |
50ppm/℃ (Voltage output: 100ppm/℃) |
|
Response time |
5ms to reach 90% of final value (RTD Pt100/resistance input: 1s to reach 90% of final value） |
|
Power supply |
20~35V DC or 85~265V AC/DC |
|
Work temperature |
-20℃~+60℃ |
|
Fix mode |
Rail installation |
|
Dielectric strength |
≥1500V AC/1 min (Among input//output//power supply) |
-
Manual of BM100
-

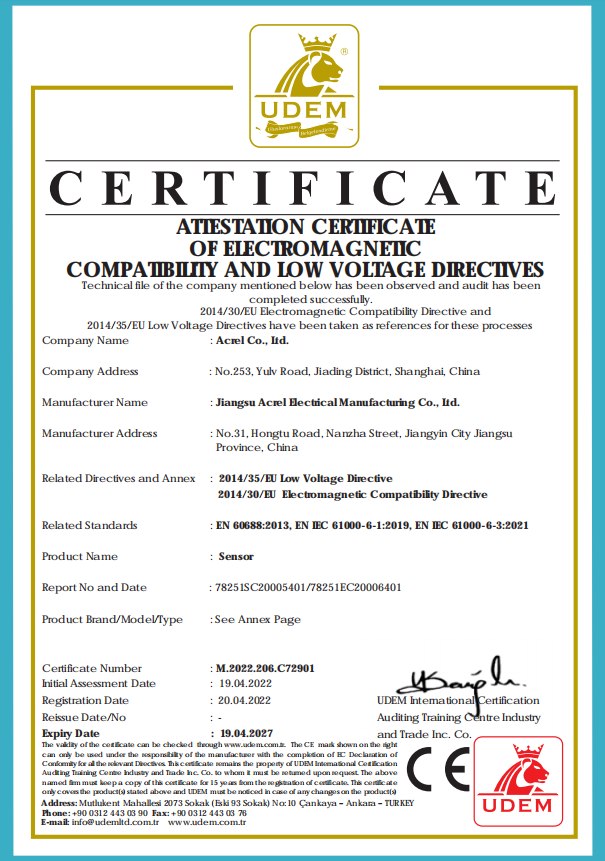

Certificate of BM100
