Acrel BM series analog signal isolator

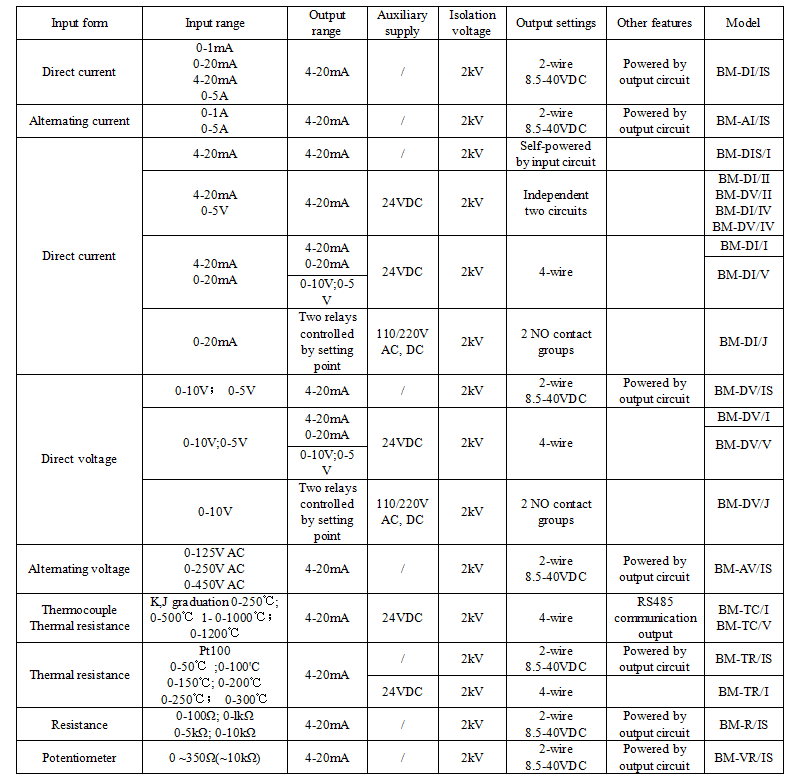

Input type: Current/Voltage/Thermocouple/Thermal resistance PT100/2-wire or 3-wire RTD Pt100
Input:AC0~1/5V,0-125/250/450V,DC4-20mA,0-20/4-20mA,0-1/0-20/4-20mA,0-5/0-10V,PT100,0-100/1K/5K/10KΩ,0-35Ω potentiometer
Output: DC4-20mA, 4-20mA, 0~5/0~10V, 4-20mA/0~5V, 2 channels 4-20mA, 2 channels 2-20mA
Auxiliary Supply: 24VDC or 110/220V AC/DC
Isolation voltage:2kV

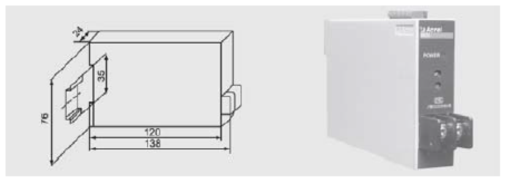

Installation:35mm din rail
Standard&Certificate: CE

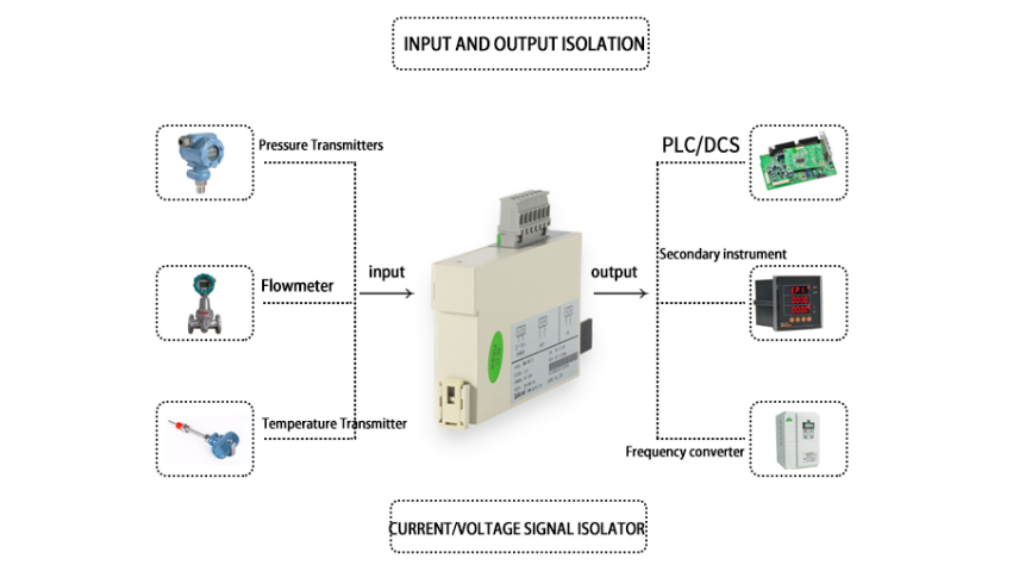

Analogue signal transducer BM series can measure electrical parameters (e.g. current and voltage) and non-electrical parameters (e.g. temperature and resistance) rapidly and accurately and isolate and convert measured values to standard analogue output signal. It can be not only connected directly with pointer gauges and digital display meters but also integrated with automatic control instruments (e.g. PLC), various A/D converters and computer systems.
-
BM Analog signal transmitter manual V1.1
-
Certificate of BM analog signal isolator
