Acrel BD-PF 3P4W AC Power Factor Transducer

● Measurement: 3-phase AC Power Factor (Range: 0~1)

● Accuracy: Class 0.5

● Input: 0~1A/0~5A AC and 0~100V/0~220V/0~380V AC

● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485 (MODBUS-RTU)

● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC

● Wiring: 3-phase 4-wire

● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering

● Response Time: ≤400ms

● Installation: 35mm DIN Rail/Screw fixed

● Standard&Certificate: CE

008618702112136

sherry@acrel.cn

8618702112136

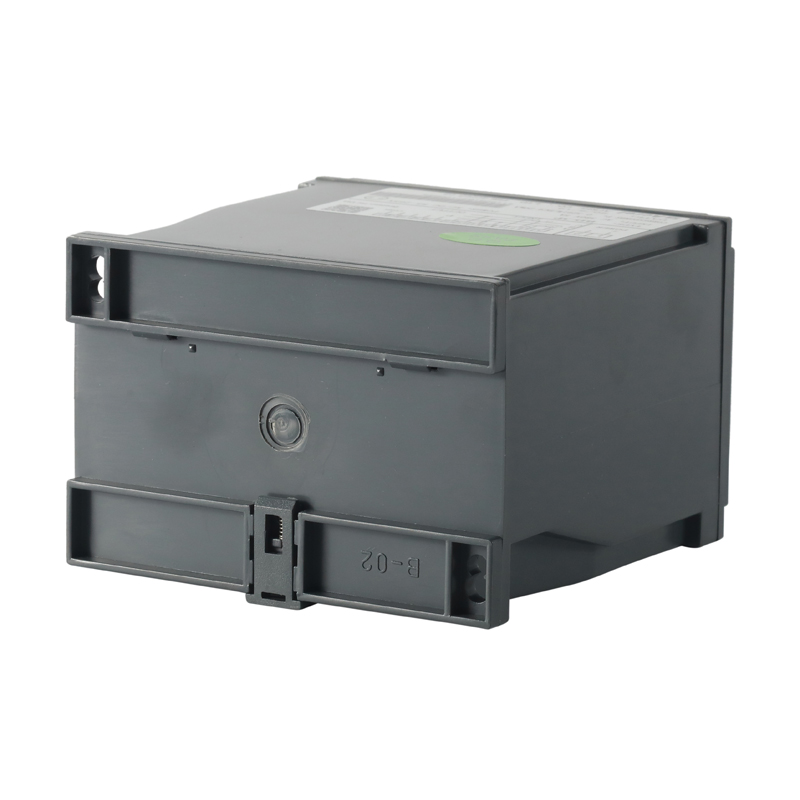

Acrel BD-PF 3P4W AC Power Factor Transducer

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Series Overview

Model Name	Measurement	Input	Output	Wiring
BA-AI	1-phase AC Current	0~1A AC/0~5A AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	1-phase 2-wire
BA-3I3	3-phase AC Current	0~1A AC/0~5A AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	3-phase 3-wire
BA-AV	1-phase AC Voltage	0~120/300/500V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	1-phase 2-wire
BA-3V3	3-phase AC Voltage	0~120/300/500V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	3-phase 3-wire
BA-4V3	3-phase AC Voltage	0~120/300/500V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	3-phase 4-wire
BD-DI	1-phase DC Current	4~20mA DC/0~20mA DC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	1-phase 2-wire
BD-DV	1-phase DC Voltage	0~75mV DC/0~10V DC /0~300V DC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC	1-phase 2-wire
BD-3P	3-phase Active Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4P	3-phase Active Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-3Q	3-phase Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4Q	3-phase Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-3/P/Q/I	3-phase Active&Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4/P/Q/I	3-phase Active&Reactive Power	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-PF	3-phase Power-Factor	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-F	3-phase Frequency	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire
BD-3E	3-phase Multi-Parameters	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 3-wire
BD-4E	3-phase Multi-Parameters	0~1A AC/0~5A AC and 0~100/220/380V AC	4~20mA DC/0~20mA DC 0~5V DC/0~10V DC RS485 (MODBUS-RTU)	3-phase 4-wire

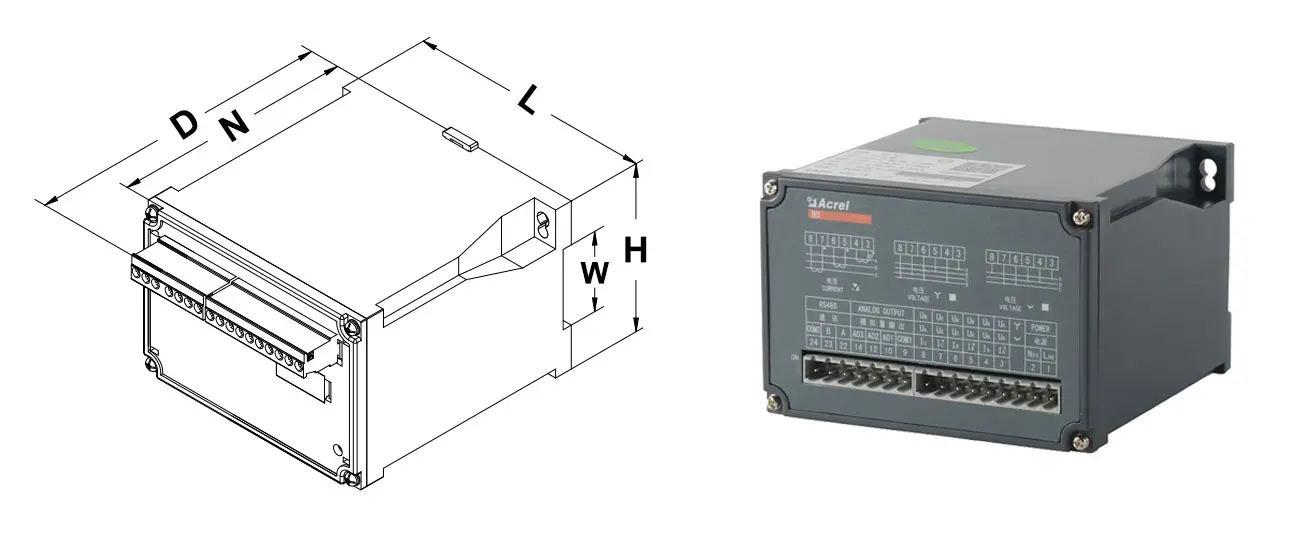

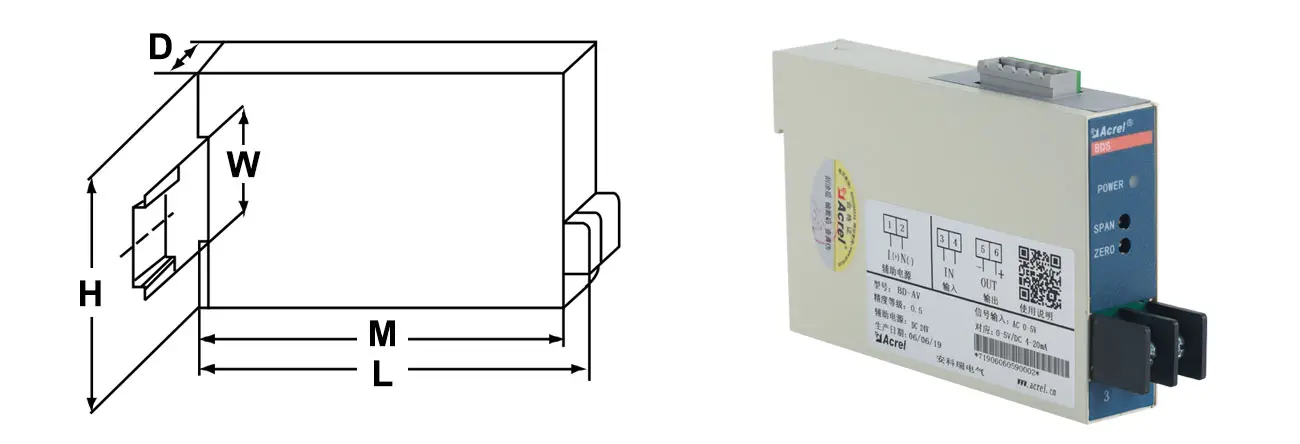

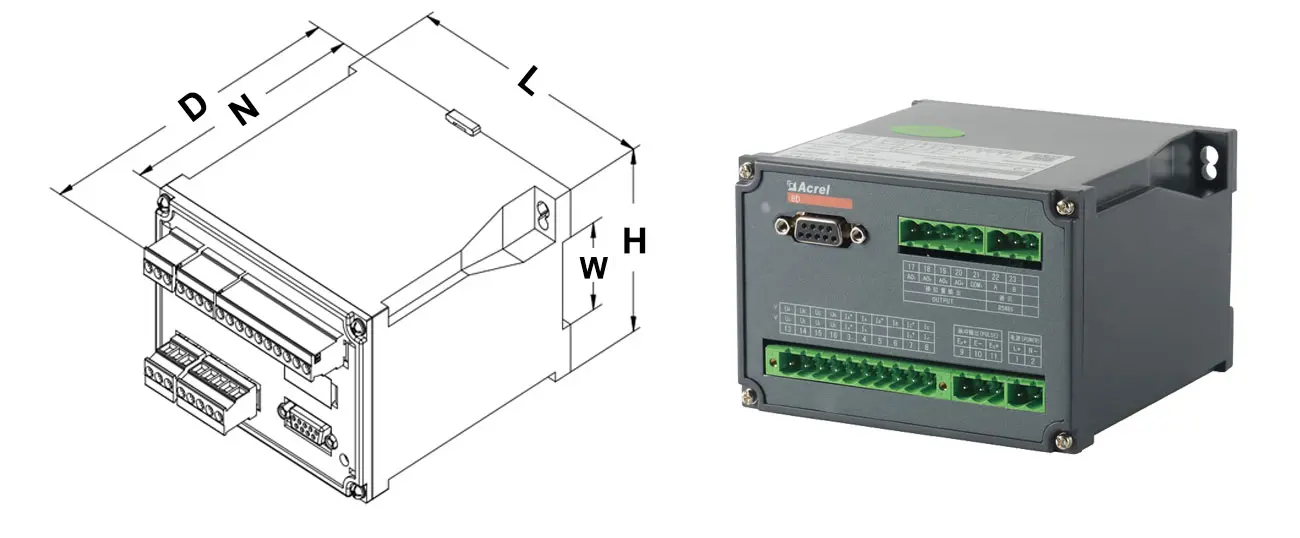

Dimension(unit:mm)

Model Name	Outline Size (mm)
Model Name	L	H	D	W	M
BD-AI	138	76	24	35	120
BD-AV	138	76	24	35	120
BD-DI	138	76	24	35	120
BD-DV	138	76	24	35	120

Model Name	Outline Size (mm)
Model Name	L	H	D	W	N
BD-3I3	110	75.4	128	35	111.7
BD-3V3	110	75.4	128	35	111.7
BD-4V3	110	75.4	128	35	111.7

Model Name	Outline Size (mm)
Model Name	L	H	D	W	N
BD-3P	110	75.4	128	35	111.7
BD-4P	110	75.4	128	35	111.7
BD-3Q	110	75.4	128	35	111.7
BD-4Q	110	75.4	128	35	111.7
BD-3P/Q/I	110	75.4	128	35	111.7
BD-4P/Q/I	110	75.4	128	35	111.7
BD-PF	110	75.4	128	35	111.7
BD-F	110	75.4	128	35	111.7
BD-3E	110	75.4	128	35	111.7
BD-4E	110	75.4	128	35	111.7

Parameters

Item	Description
Auxiliary Power Supply	85V~265V AC or 100V~350V DC or 24V/48V DC (for certain models)
Accuracy Class	0.5%
Load Resistance (Output)	Current Output: ≤600Ω; Voltage Output: ≤1000Ω
Response Time	≤400ms
Temperature	Operation Temp.: -10℃~+55℃; Storage Temp.: -25℃~+70℃
Temperature Coefiicient	≤200ppm/℃
Humidity	≤90%
Altitude	≤2500m
Installation	35mm DIN Rail or Screw fixed
Standard	CE
