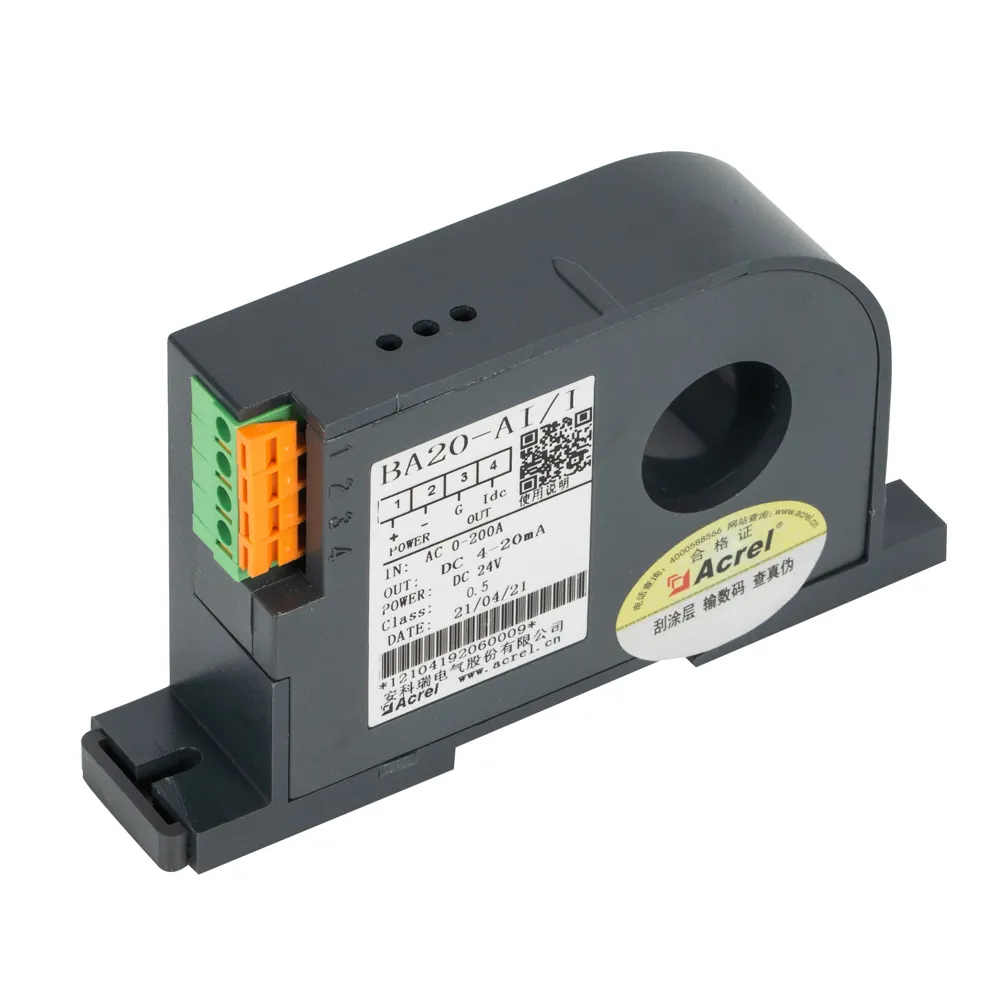

Acrel BA20-AI/I Current Transducer Input AC 0-200A Output DC 4-20mA

Input: 0~(40~200)A AC
Output: 4~20mA/0~20mA DC
Power Supply: 12V/24V DC
Perforation Hole Size: φ20mm
Applicaiton: Paired with PLC for Industrial Automation
Accuracy: Class 0.5
Response Time: ≤350ms
Installation: 35mm DIN Rail/Screw fixed
Standard&Certificate: CE; TüV

008618702112136

Richard@acrel-electric.com

8618701850814

Acrel BA20-AI/I Current Transducer Input AC 0-200A Output DC 4-20mA

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

Feature

Model Name	Input	Output		Perforation Hole Size(mm)
Model Name	AC Current	DC Current	DC Voltage	Perforation Hole Size(mm)
BA05-AI/I	0~(0.5~10)A	4~20mA/0~20mA	/	φ5
BA05-AI/V	0~(0.5~10)A	/	1~5V/0~5V	φ5
BA10-AI/I	0~(8~50)A	4~20mA/0~20mA	/	φ10
BA10-AI/V	0~(8~50)A	/	1~5V/0~5V	φ10
BA20-AI/I	0~(40~200)A	4~20mA/0~20mA	/	φ20
BA20-AI/V	0~(40~200)A	/	1~5V/0~5V	φ20
BA50-AI/I	0~(60~600)A	4~20mA/0~20mA	/	φ50
BA50-AI/V	0~(60~600)A	/	1~5V/0~5V
BA50L-AI/I	0~(0.1~1)A	4~20mA/0~20mA	/
BA50L-AI/V	0~(0.1~1)A	/	1~5V/0~5V

Dimension(unit:mm)

Model Name	Outline Size (mm)
Model Name	W	H	Φ	M	N	L
BA20-AI/I&BA20-AI/V	35	60	21	93	102	24
BA50-AI/I&BA50-AI/V	35	84	50	125	135	24
BA50L-AI/I&BA50L-AI/V	35	84	50	125	135	24

Wiring Illustration

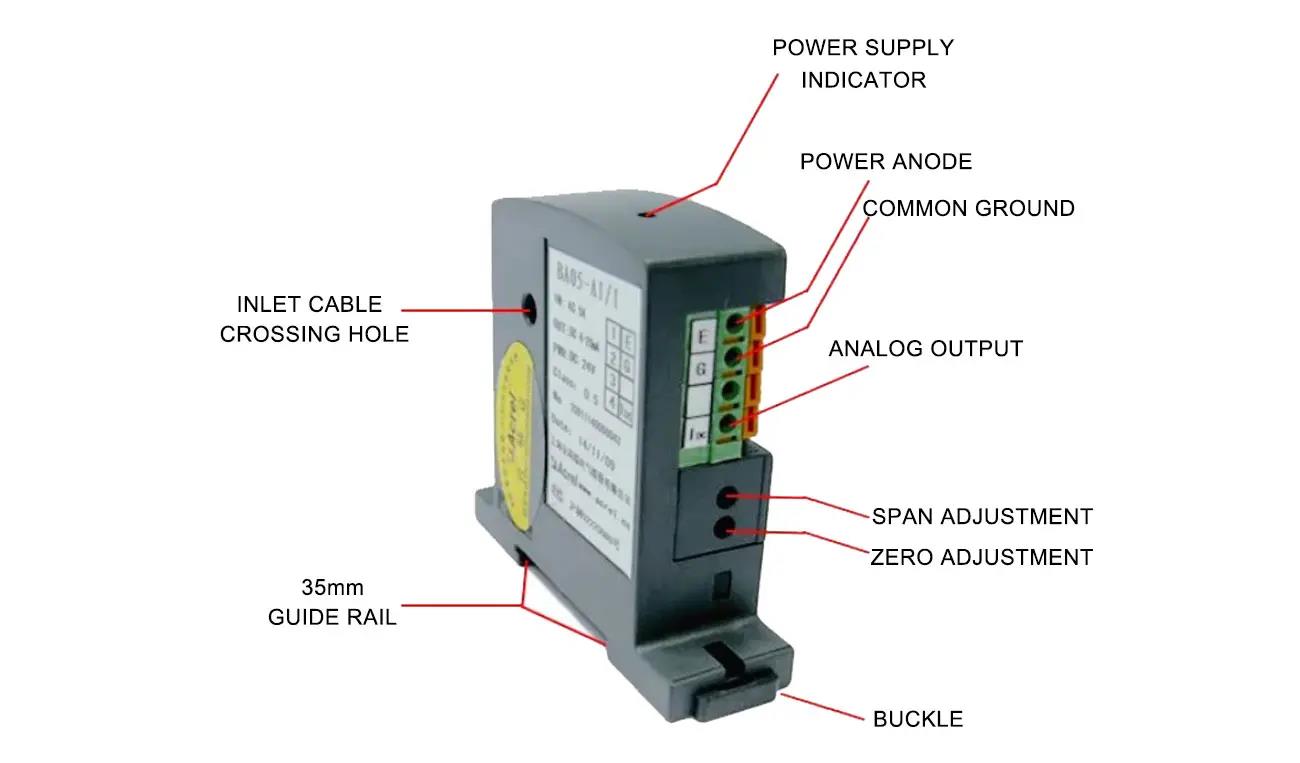

Wiring Terminals Overview of BA Series Current Transducer

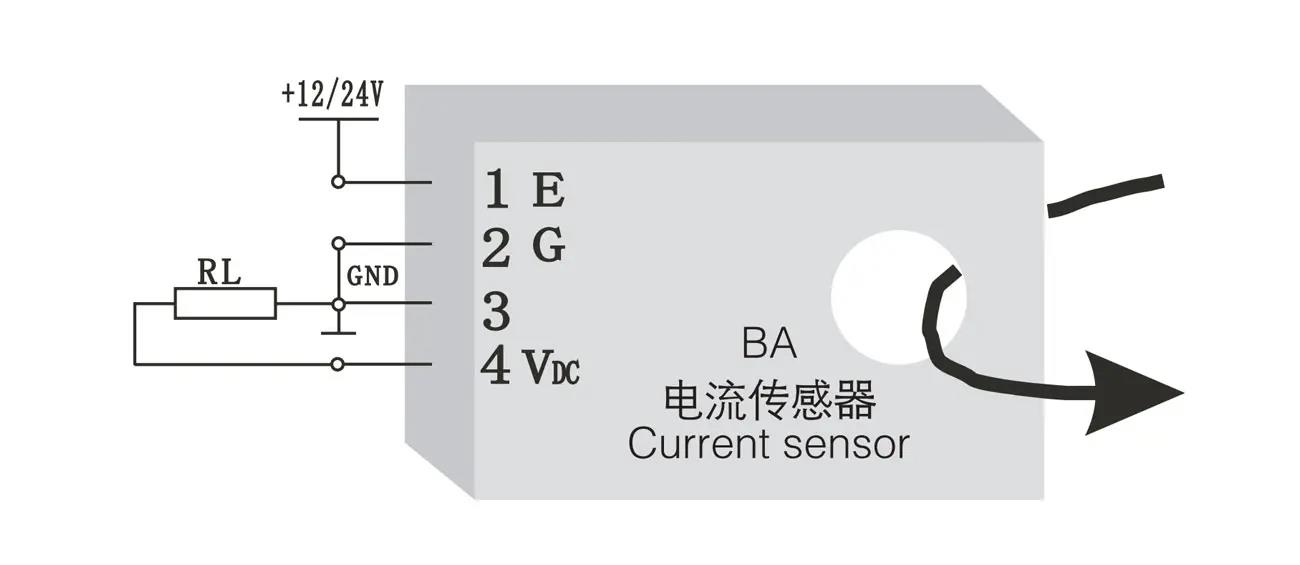

Cable Wiring of BA Series Current Tranducer with DC Current Output

Cable Wiring of BA Series Current Tranducer with DC Voltage Output

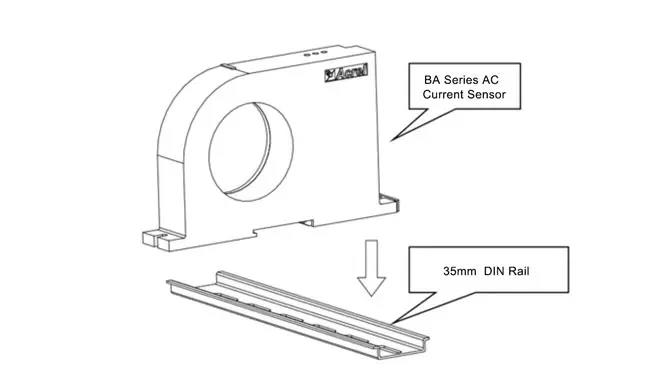

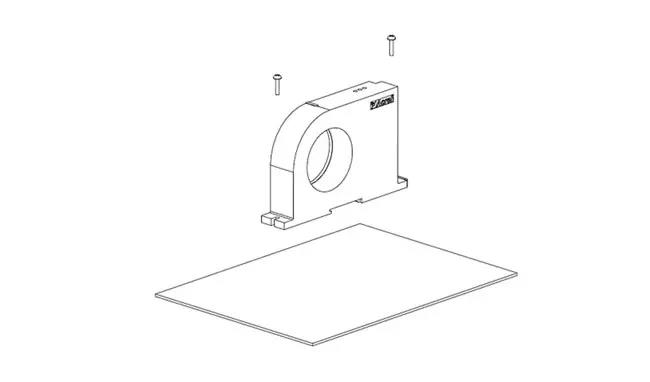

Installation Instruction

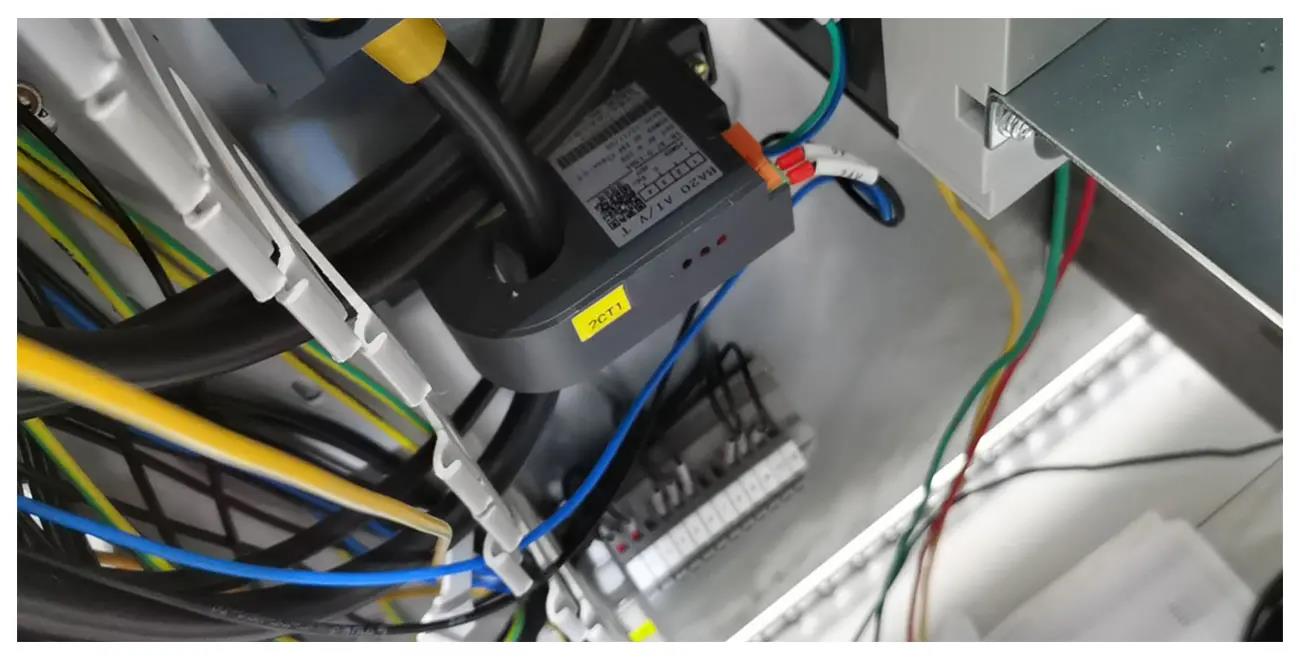

Work Site Application

Technical parameters

Technical Parameters
Accuracy Class		0.5
Input	Nominal value	Current AC 40A, 100A, 200A, etc. AC 0～(40～200)A
	Overload	Continuous 1.2 times, instantaneous current 10 times/1S
	Absorbed power	≤1VA
	Frequency	25Hz～800Hz(average value)，25～5kHz(True RMS)
Output	Nominal value	DC4～20mA，or 0～20mA，0～5V，0～10V ,etc
	load resistance	Current output ≤500 Ω, voltage output ≥1K Ω
Response time		Average value ≤ 350ms, true effective value ≤ 150ms

Download

CE
TUV
BA20-AI/I Manual
