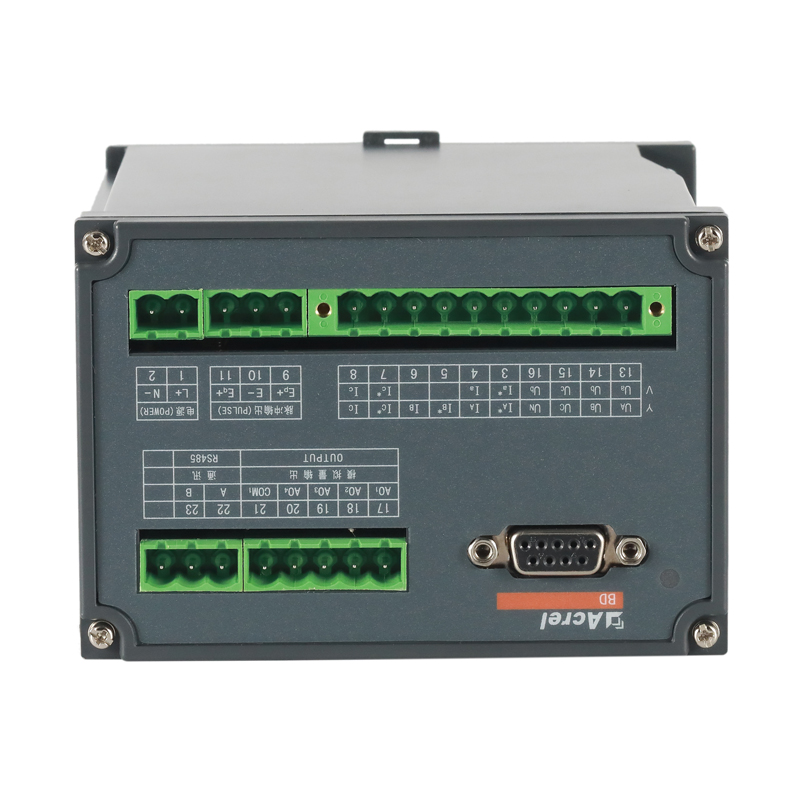

Acrel BD-3P 3P3W Active Power Transducer
Acrel BD-3P 3P3W Active Power Transducer
Acrel BD-3P 3P3W Active Power Transducer
Acrel BD-3P 3P3W Active Power Transducer

Acrel BD-3P 3P3W Active Power Transducer

● Measurement: 3-phase AC Active Power (Range: 0~+866W)
● Accuracy: Class 0.5
● Input: 0~1A/0~5A AC and 0~100V/0~220V/0~380V AC
● Output: 4~20mA/0~20mA DC or 0~5V/0~10V DC or RS485 (MODBUS-RTU)
● Power Supply: 85~265V AC(50Hz) or 100~350V DC or 24V/48V DC
● Wiring: 3-phase 3-wire
● Applicaiton: Paired with PLC for Industrial Automation; Used for Metering
● Response Time: ≤400ms
● Installation: 35mm DIN Rail/Screw fixed
● Standard&Certificate: CE

008618702112136

sherry@acrel.cn

8618702112136

Acrel BD-3P 3P3W Active Power Transducer
Acrel BD-3P 3P3W Active Power Transducer
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
Description

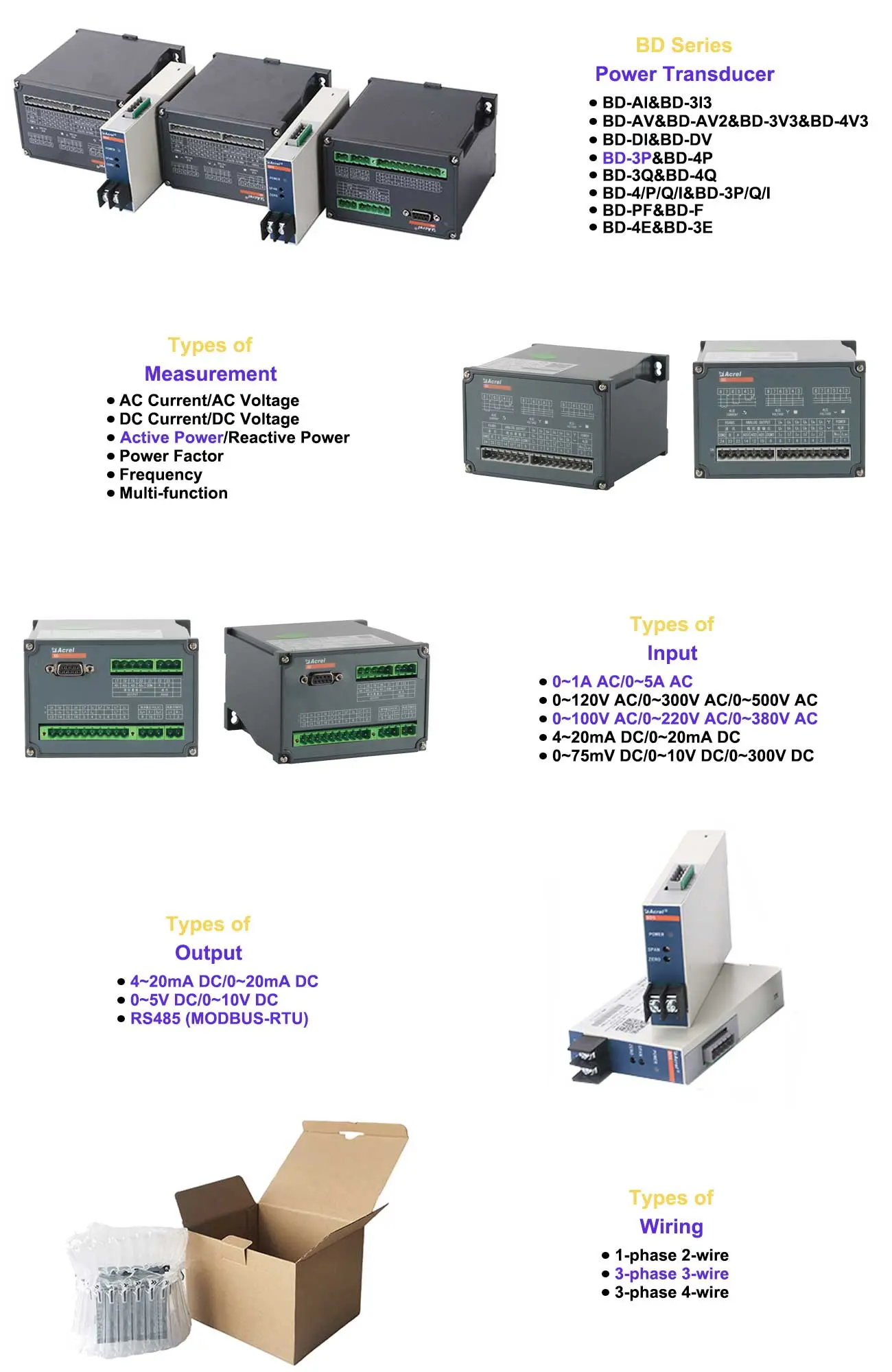

Series Overview




Model Name

Measurement

Input

Output

Wiring

BA-AI

1-phase

AC Current

0~1A AC/0~5A AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

1-phase 2-wire

BA-3I3

3-phase

AC Current

0~1A AC/0~5A AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

3-phase 3-wire

BA-AV

1-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

1-phase 2-wire

BA-3V3

 3-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

3-phase 3-wire

BA-4V3

 3-phase

AC Voltage

0~120/300/500V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

3-phase 4-wire

BD-DI

1-phase

DC Current

4~20mA DC/0~20mA DC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

1-phase 2-wire

BD-DV

1-phase

DC Voltage

0~75mV DC/0~10V DC

/0~300V DC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

1-phase 2-wire

BD-3P

 3-phase

Active Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4P

 3-phase

Active Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-3Q

 3-phase

Reactive Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4Q

 3-phase

Reactive Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-3/P/Q/I

 3-phase

Active&Reactive

Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4/P/Q/I

 3-phase

Active&Reactive

Power

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-PF

3-phase

Power-Factor

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-F

3-phase

Frequency

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

BD-3E

3-phase

Multi-Parameters

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 3-wire

BD-4E

3-phase

Multi-Parameters

0~1A AC/0~5A AC

and

0~100/220/380V AC

4~20mA DC/0~20mA DC

0~5V DC/0~10V DC

RS485 (MODBUS-RTU)

3-phase 4-wire

Dimension(unit:mm)




Model Name

Outline Size (mm)

L

H

D

W

M

BD-AI

138

76

24

35

120

BD-AV

138

76

24

35

120

BD-DI

138

76

24

35

120

BD-DV

138

76

24

35

120

Model Name

Outline Size (mm)

L

H

D

W

N

BD-3I3

110

75.4

128

35

111.7

BD-3V3

110

75.4

128

35

111.7

BD-4V3

110

75.4

128

35

111.7

Model Name

Outline Size (mm)

L

H

D

W

N

BD-3P

110

75.4

128

35

111.7

BD-4P

110

75.4

128

35

111.7

BD-3Q

110

75.4

128

35

111.7

BD-4Q

110

75.4

128

35

111.7

BD-3P/Q/I

110

75.4

128

35

111.7

BD-4P/Q/I

110

75.4

128

35

111.7

BD-PF

110

75.4

128

35

111.7

BD-F

110

75.4

128

35

111.7

BD-3E

110

75.4

128

35

111.7

BD-4E

110

75.4

128

35

111.7

Parameter

Type

Function

BD-3P: 3-phase 3-wire active power transmitters

Measuring active power, reactive power, isolated transmission output analog signal

Input signal

AC0-1/5A,0-125/250/450V

Output signal

1 channel analog output

Power supply

AC/DC85-270V

Phase

3 phase 3 wire;3 phase 4 wire

Feature

1.Designer GB/T 13850 AC power is converted into analog quantity or digital

signal measuring transmitter;



2.High precision grade:0.5 grade;


3.Full power parameter measurement, free combination of transmission output types;


4.True RMS measurement, suitable for large harmonics, voltage and current in

harsh environments such as waveform distortion;


5.It can be equipped with RS485 communication interface, which can be used

with other manufacturers' control modules. blocks hang on the same -485 bus

for easy computer programming, Users can easily build their own

measurement and control system;


6.Can be equipped with external display module, the customer can directly

change the input on site Range and transmission type,etc.


7.Optional transformer built-in perforated mounting type for easy

construction wiring, cost savings.
Download



  • BD-3P CE
  • BD-3P Manual
