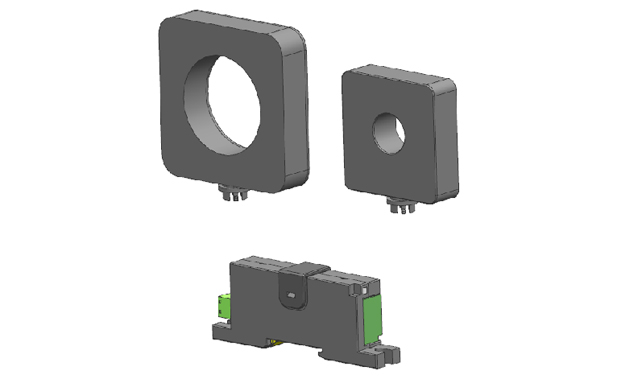

Acrel BA series Split Type AC 0-600A Current Sensor

Measurement

Direct AC current measurement up to 600A
Overload: 1.2 times of rated value

Application

Industrial automation

008618702112136

sherry@acrel.cn

8618702112136

Acrel BA series Split Type AC 0-600A Current Sensor

BA Series Manual(New).pdf

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

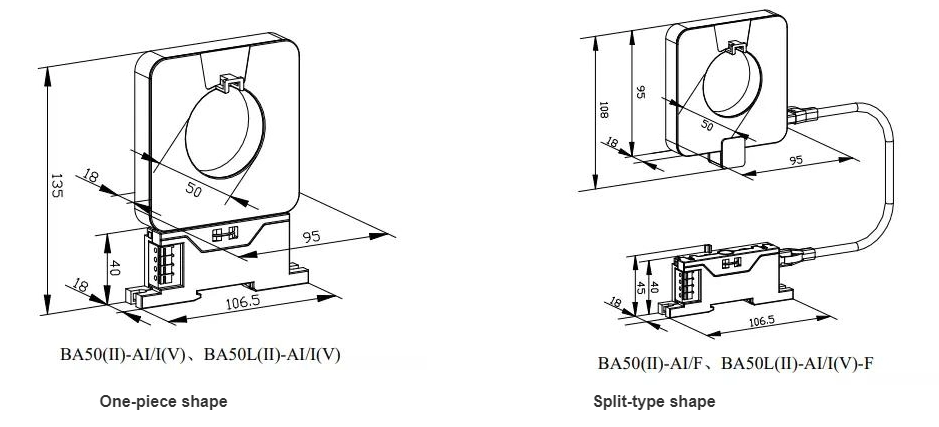

Dimension (unit:mm)

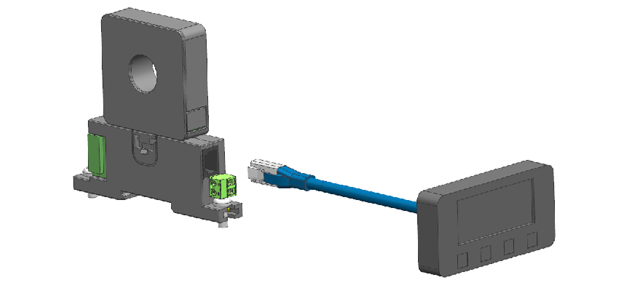

Installation

Integrated installation, a rotating structure can be used in the perforated part.

There are Φ20, Φ50 of hole sizes for your selection.

The main body could be connected to the display screen in order to display current and set parameters when integrated installation ( use existing display screen as far as possible).

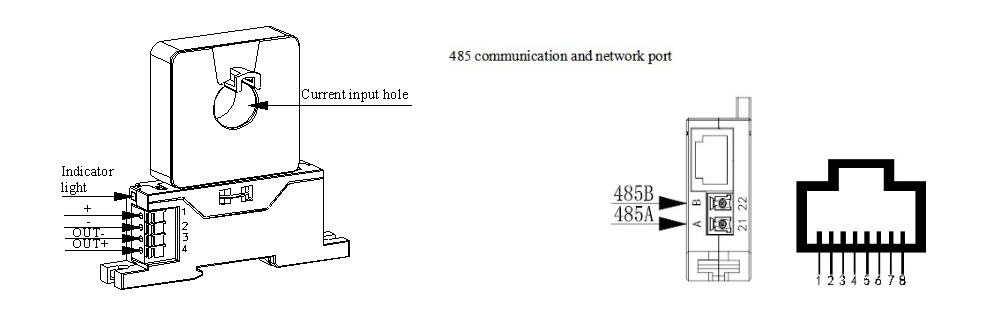

Wiring

Technical parameter

Technical parameter			Index
Accuracy class			Class 0.5
Input	Nominal value	BA20(Ⅱ)-AI	Current AC 0.5A, 50A, 200A, etc. AC 0～(0.5～200A)
		BA50(Ⅱ)-AI	Current AC 60A, 300A, 600A, etc. AC 0～(600A)
		BA50L(Ⅱ)-AI	Current AC 0.1A, 1A, etc. AC 0～(0.1～1)A
	Overload		Continuous 1.2 times, instantaneous current 10 times/1S
	Absorbed power		≤1VA
	Frequency response		25Hz～800Hz, especially suitable for industrial frequency occasions
output	Nominal value		DC4～20mA, or 0～20mA, 0～5V, 0～10V etc
	Load Resistance		When DC12V power supply, current output is ≤250Ω When DC24V power supply, current output is ≤500Ω, When voltage output is ≥1KΩ
	Communication		RS485 interface/Modbus-RTU
Response time			≤400ms
Power supply	Voltage		DC 12V or 24V
	Power consumption		≤1W
Insulation resistance			＞100MΩ
Compressive strength			Between input/output and power supply 2.0KV/1min,50HZ
Temperature Coefficient			-10℃～+55℃, ≤400ppm/℃
Environment	Temperature		Work: -10℃～+55℃ Storage: -25℃～+70℃
	Humidity		≤93%RH, no condensation, no corrosive gas place
	Altitude		≤2000m
Installation method			TS35 rail, or use screws to fix the cabinet
