Acrel ADL200N-CT/DXX Single Phase Din Rail Multifunction Meter with CTs

Rated voltage:AC230V

Input current:80A, 120A, 200A, 300A

Frequency:45~65Hz

Measurement: 1 phase AC kWh, kVarh, U, I, P, Q, S, PF, F and etc

Communication: RS485(Modbus-RTU)

Communication address range:Modbus RTU:1~ 247

Certificate:CE

008618702112136

sherry@acrel.cn

8618702112136

Acrel ADL200N-CT/DXX Single Phase Din Rail Multifunction Meter with CTs

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Description

General

ADL series DIN-rail mounted multifunctional electric energy meter is an intelligent instrument mainly designed for new energy power generation systems such as photovoltaic grid-connected system, micro inverter system, energy storage system, AC coupling system, etc. The product has the advantages of high precision, small volume, high respondent speed and convenient installation. The product has the features of sampling, metering and monitoring power parameters, communicating with an inverter or an energy management system (EMS), realizing the functions of preventing reverse flow, regulating power generation, charging and discharging batteries according to real-time power and accumulated electric energy, and realizing bidirectional metering and household distributed photovoltaic energy management.

Model description

Function

Function	Descriptions	ADL200N-CT	ADL400N-CT
Electric energy metering	Active energy metering (forward and reverse)	■	■
	Reactive energy metering (forward and reverse)	■	■
	Split-phase energy	□	■
Electric quantity measurement	U, I	■	■
Electric quantity measurement	P, Q, S, PF, F	■	■
LCD display	Segmented LCD display	■	■
Key programming	ommunication, transformation ratio and other parameters can be programmable by the key	□	■
Pulse output	Active pulse output	■	■
LED alarm	Operation instructions	□	■
Communication	RS485：Modbus RTU	■	■

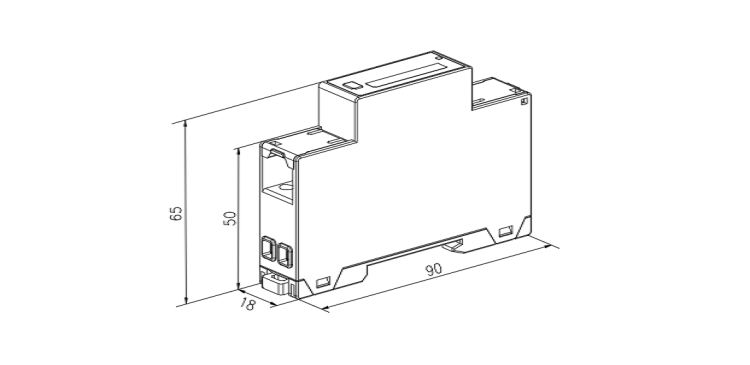

Dimension(unit:mm)

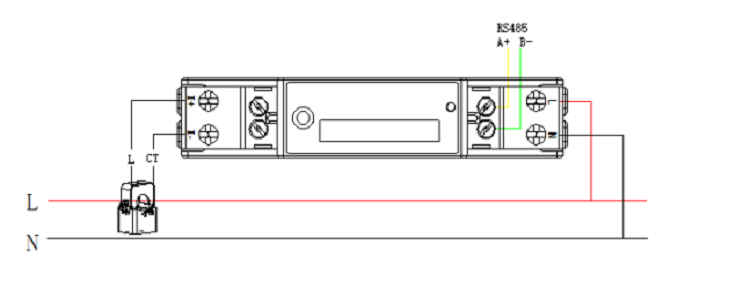

Wiring

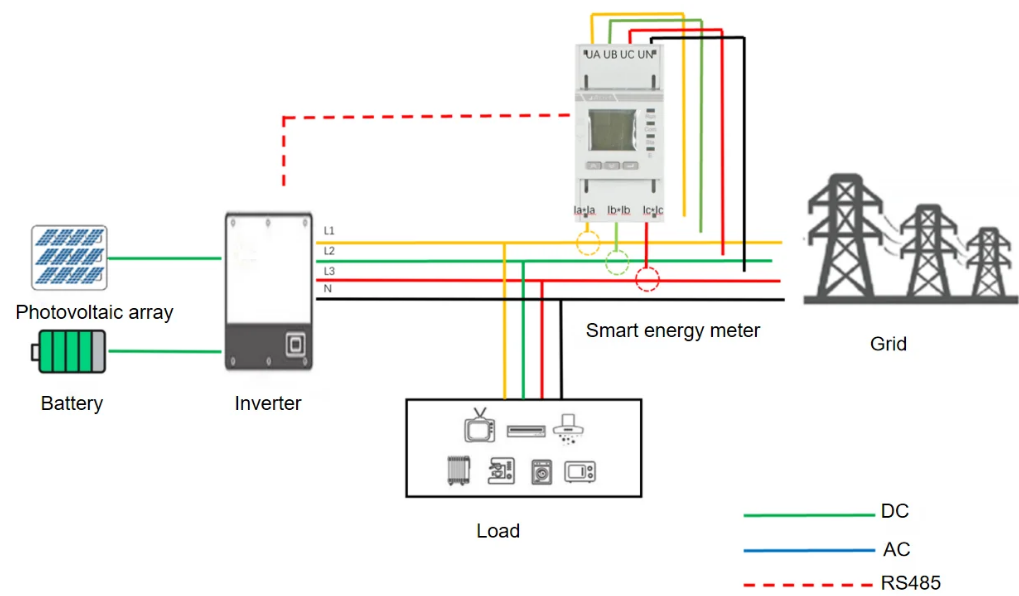

Diagram

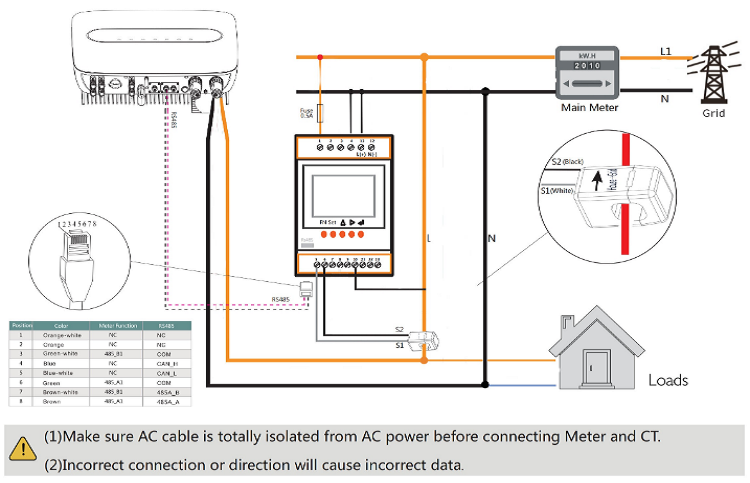

Application

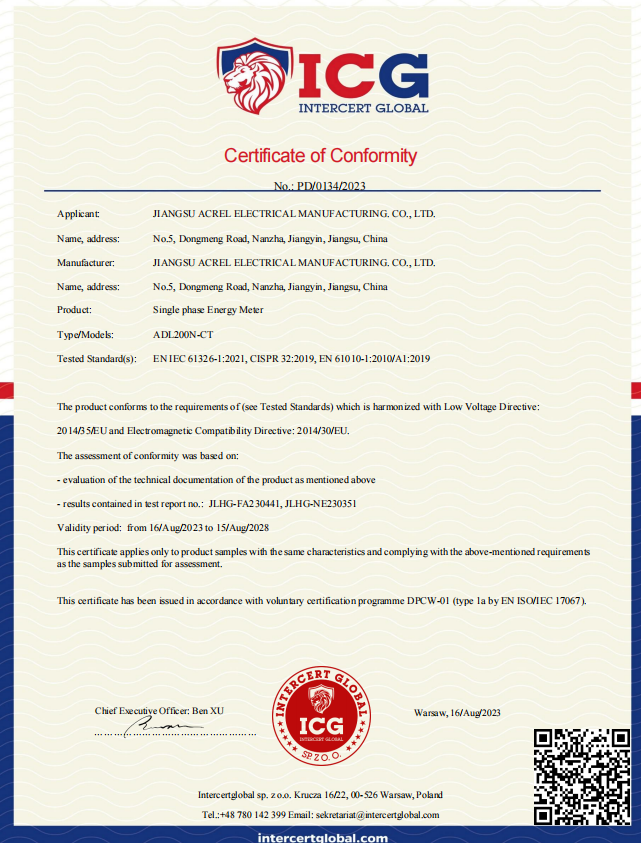

Certificate

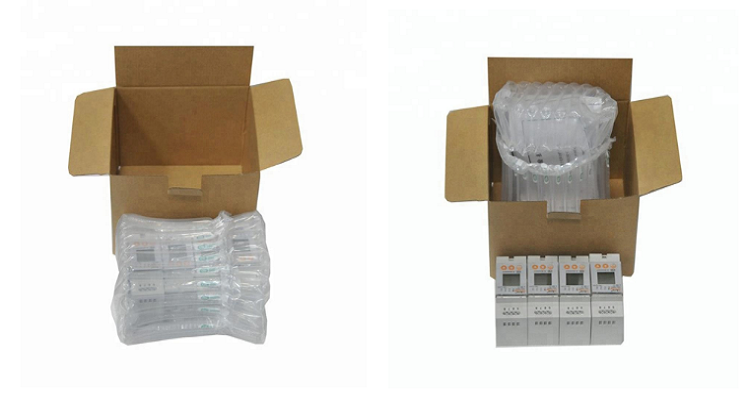

Packing&delivery

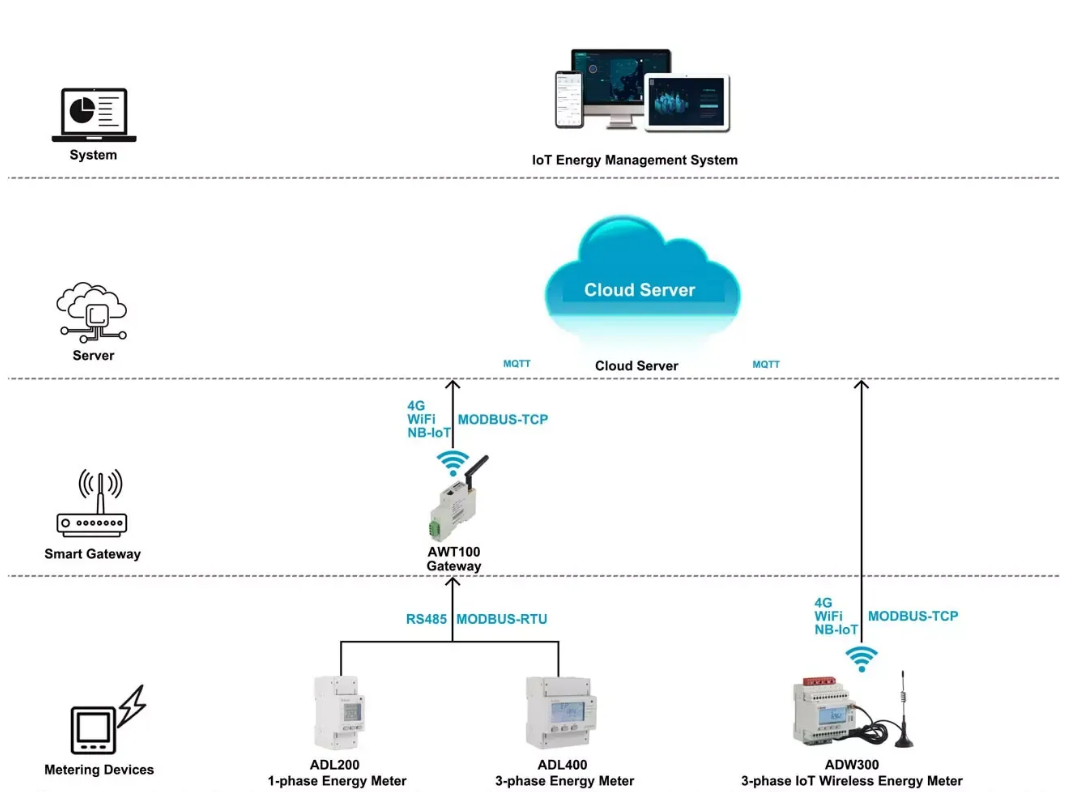

Acrel IOT Platform

1.System support all the meters across the country whose data has been sent to cloudserver through 4G,WiFi or Ethernet.

2.Remote meter reading and data collection.

3.Provide loT APP for mobile phone side and loT WEB for PC side

4.Generate energy data report of daily, monthly and annually period with year-on-yeay andperiod-on-period energy analysis.

5.Provide various alarm function to ensure a stable operation of the system and protect youlproperty.

6.Offer 3-month free trial of system with full technical support as for a test phase or pilotproject.

Remark:

1AcrelloT EMS WEB(For PC users):http://iot.acrel-eem.com/

2AcrelloT EMS APP(For mobile Users):https://play.google.com/store/apps/details?id=com.acrel.iotems

3.Test Account: AcrePassword:123456

Technical parameter

Electric Performance

Item			Performance Parameters
Model Series			ADL200N-CT	ADL400N-CT
Measurement	Grid		Single-phase	Three-phase four-wire, three-phase three-wire, single-phase three-wire
	Voltage	Rated voltage	230	Single-phase: 240/480V
				Three-phase:3×230/400V、 3×277/480V
		Overload	1.2 times rating (continuous) 2 times the rating for 1 second
		Power consumption	<0.2VA
		Accuracy class	Error ±0.5%
	Current	Input current	80A, 120A, 200A, 300A	80A, 120A, 200A, 300A, 3×80A, 3×120A, 3×200A, 3×300A
		Overload	1.2 times rating (continuous) 2 times the rating for 1 second
		Power consumption	<0.2VA
		Accuracy class	Error ±0.5%
	Power		Active, reactive, apparent power, error ±0.5℅
	Grid frequency		45~65Hz, error ±0.5%
	Response rate		≤100ms (voltage, current, power)
			≤1s (electrical energy)
Metering	Electric energy		Active energy ：Class B (split current transformer) / Class C (closed current transformer) Reactive energy (Class 2 accuracy)
electromagnetic compatibility	Electrostatic discharge immunity class III
	Electrical fast transient burst immunity class IV
	Surge (shock) immunity Class IV
Security	Power frequency withstand voltage		Between communication and signal input, AC4kV 1min
	Insulation resistance		Input and output terminals to casing >100MΩ
Communication	Interface and communication protocol		RS485 interface and Modbus RTU protocol
	Communication address range		Modbus RTU:1~ 247；
	Baud rate		Support 1200bps-38400bps
